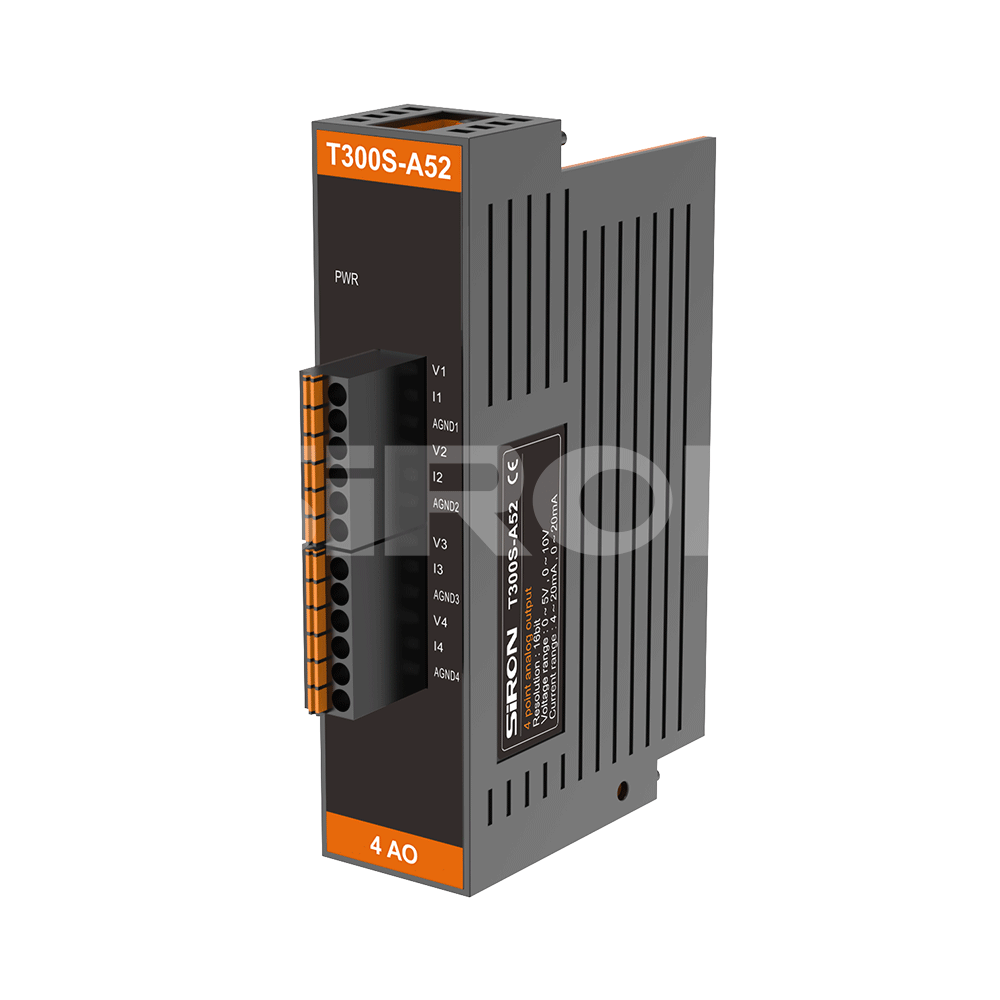

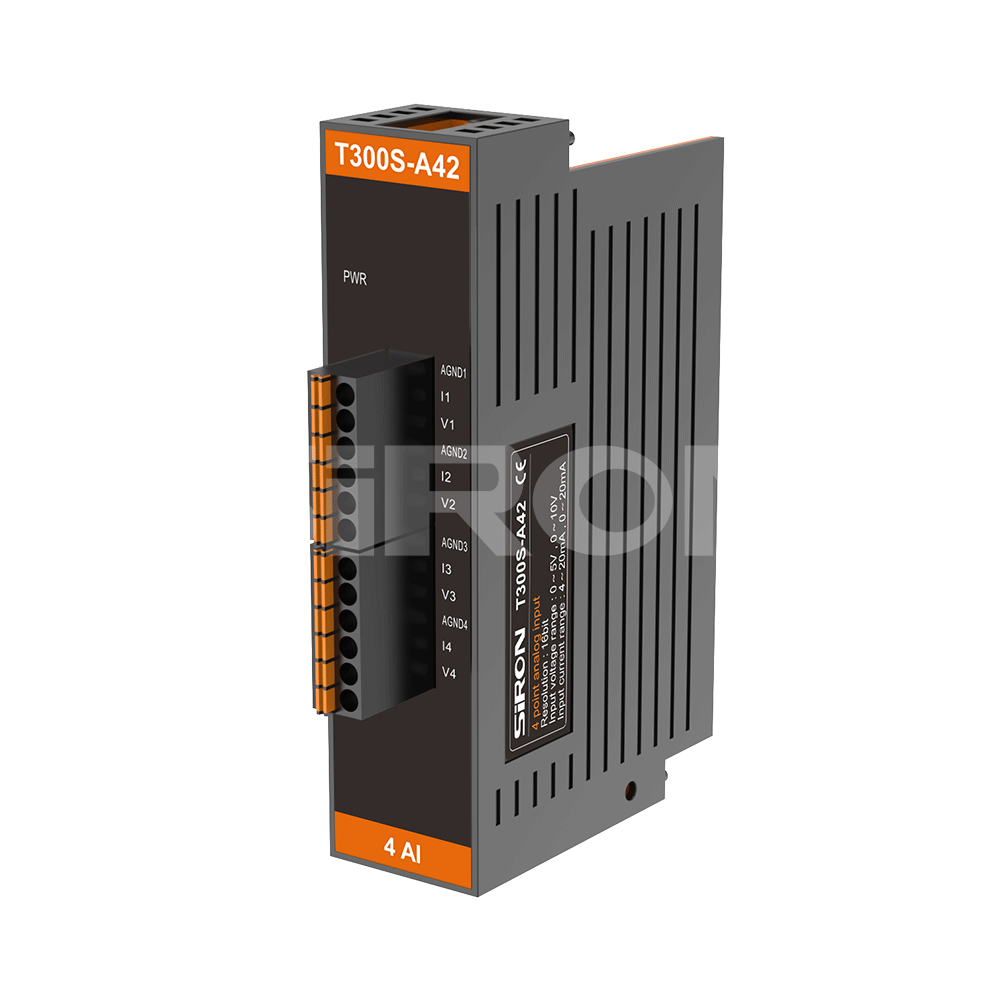

SiRON T300S-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module

Name: SiRON T300S-A Ultra-thin All-in-one I/O IP20 Expansion Analog Module
Brand: SiRON
Rating: 5.0 (19 reviews)

Features

* Used with couplers;
* Standard DIN35 rail installation, easy installation;
* Press type terminals, more convenient wiring

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T300S-A
Brand:
SiRON
Code:
8517799000

IP20 Expansion Analog Module RJ45 Expansion Analog DC 24V Expansion Analog

Product Description

About selection

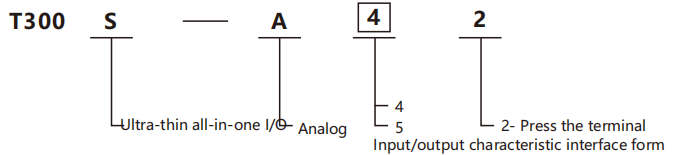

企业微信截图_17560911532682

Selection example: T300S-A42 represents the ultra-thin integrated I/O series. Analog, input/output characteristics: 4-channel analog input (current/voltage), 0-channel analog output. Interface for m: press terminal.

Input/output characteristics

Code	Input	Output
1*	4 channels analog input (Temperature module/NTC10K)	0 channels analog output
2*	4 channels analog input(Temperature module/PT100)	0 channels analog output
3*	4 channes analog input(Temperature module/thermocouple)	0 channels analog output
4	4 channes analog input(curent/Noltage)	0 channels analog output
5	0 channels analog input	4 channels analog output(Current/Voltage)

Specification

Input
Current type input range	0~20mA
Voltage type input range	0~10V
Resolution	16 ports
Sampling rate	100ms
Accuracy	Voltage:2.5mV,current: 4μA
Electrical isolation	AC 250V

Themal resistance	10K/:B3435
Resolution	16 ports
Accuracy	0.1 degree
Electrical isolation	AC 250V

Output
Curent type input range	0～20mA
Voltage type input range	0~10V
Resolution	16 ports
Accuracy	Voltage:2.5mV,current: 4μA
Electrical isolation	AC 250V
Operating temperature range	0～50℃
Storagetemperature range	-20～125℃
