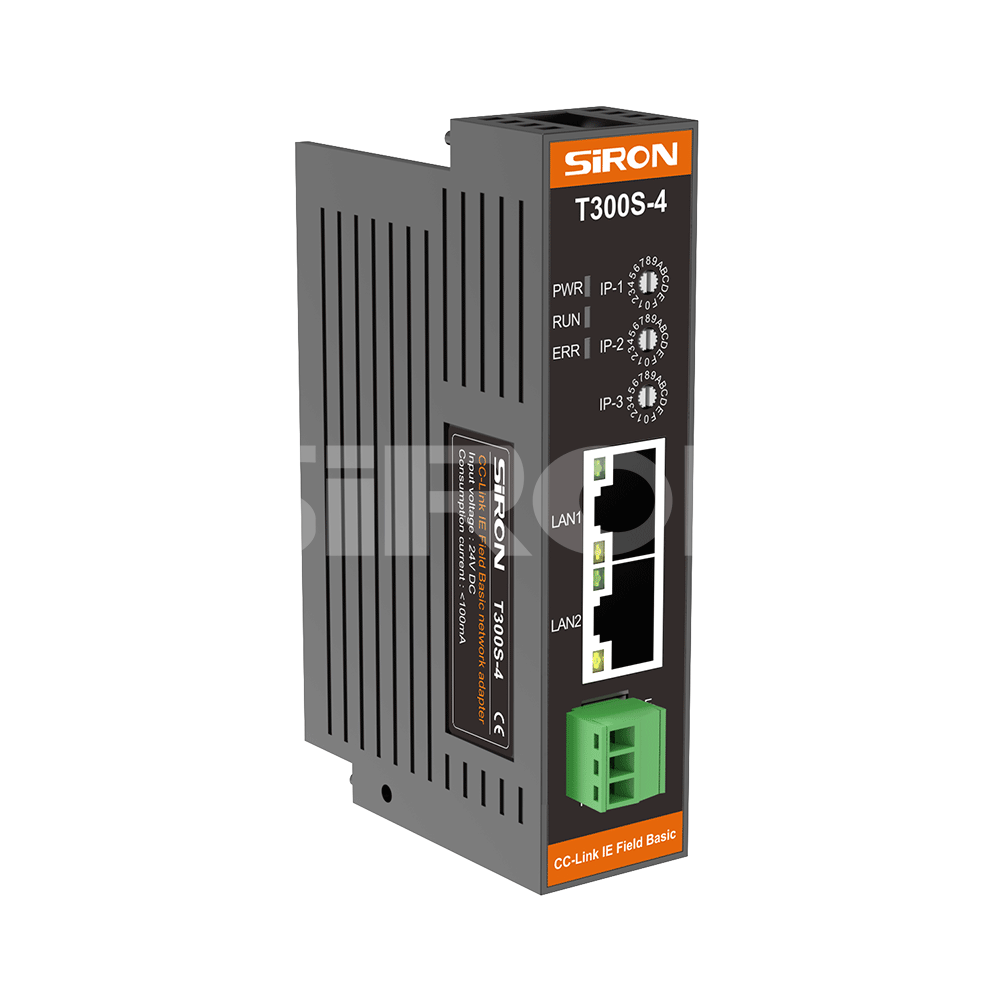

SiRON T300S-4 Ultra-thin All-in-one I/O IP20 CC-Link IE Field Basic Coupler

Name: SiRON T300S-4 Ultra-thin All-in-one I/O IP20 CC-Link IE Field Basic Coupler
Brand: SiRON
Rating: 5.0 (71 reviews)

Features

* Coupler supports CC-Link IE Field Basic protocol access;
* Coupler supports maximum input 128 bytes, maximum output 128 bytes;
* Supports up to 8 extended IO modules.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T300S-4
Brand:
SiRON
Code:
8517799000

IP20 CC-Link IE Field Basic Coupler RJ45 CC-Link IE Field Basic Coupler DC 24V CC-Link IE Field Basic Coupler

Product Description

About selection

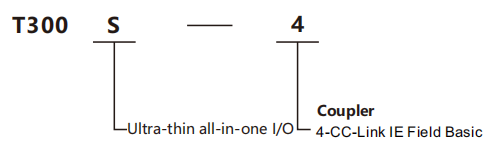

企业微信截图_175609014789

Selection example: T300S-4 represents the ultra-thin integrated I/O series, and the coupler protocol is CC-Link IE Field Basic.

Specification

Model number	T300S-4
Bus protocol	CC-Link IE Field Basic
Connection mode	2*RJ45
Communication rate	100Mb/s
Communication distance	100 meters(station distance)
Rated input voltage	DC 24V
Effective supply range	DC 18~30V
Electrical isolation	AC 500V
Work indication status	Green RUN LED light
Eror indicating state	Red ERR LED
Network port indication (Blinking when there is data exchange)	The green LINK1 LED corresponds to LAN1,and the green LINK2 LED corresponds to LAN2

Environmental conditions

Transportation/storge	Temperature	-40～70℃
	Atmospheric pressure	1080 to 660hPa(corresponding to heights of-1000 to+3500m)
	Relative humidity	10 to 95%,non-condensing
	Fall	1 meter,10 times,transportation packaging
Worknghours	Temperature	Horizontal installation:0-60℃ Vertical installation:0-40℃
	Atmospheric pressure	1080 to 795hPa(corresponding to heights of -1000 to +2000m)
	Relative humidity	10～95%,non-condensing
	Concentration of severe environmental pollutants	Low salt spray,humidity,dust fog and other environments So2<0.5ppm,relative humidity<60%,no condensation H2S<0.1ppm,relative humidity<60%,no condensation
