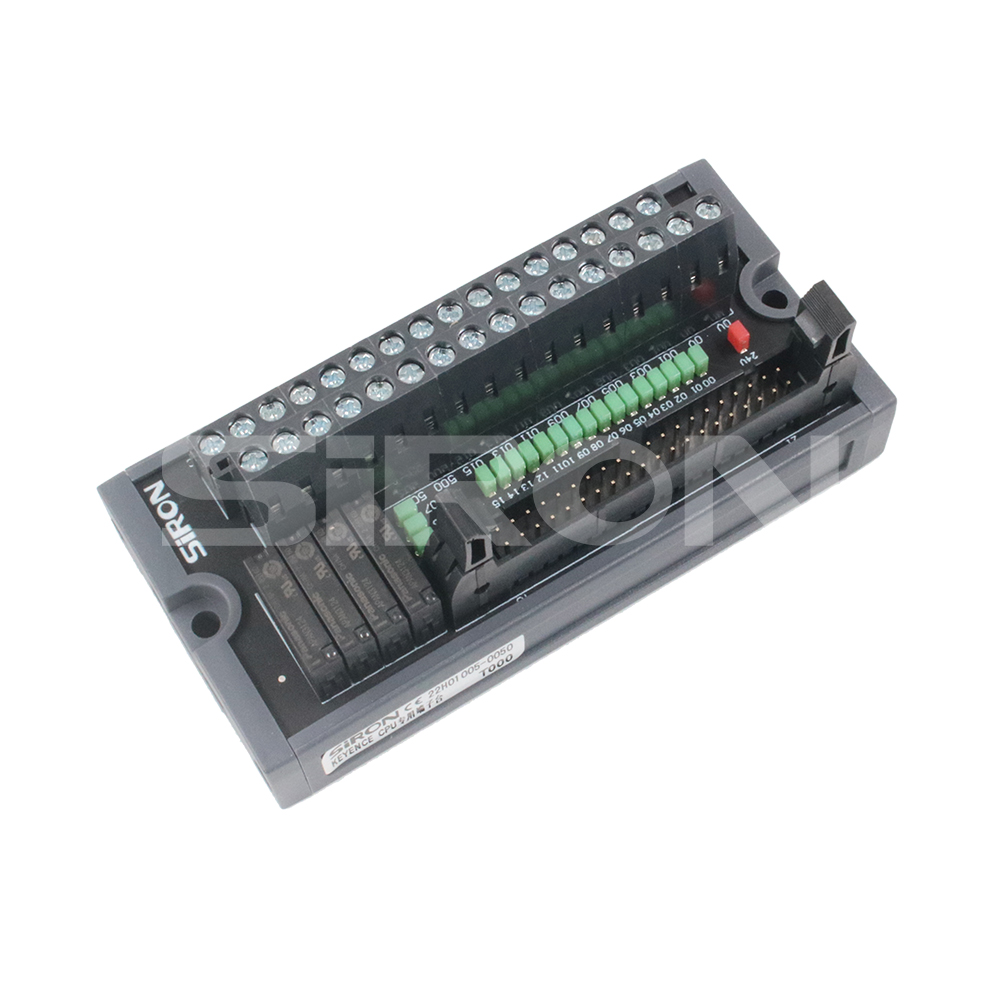

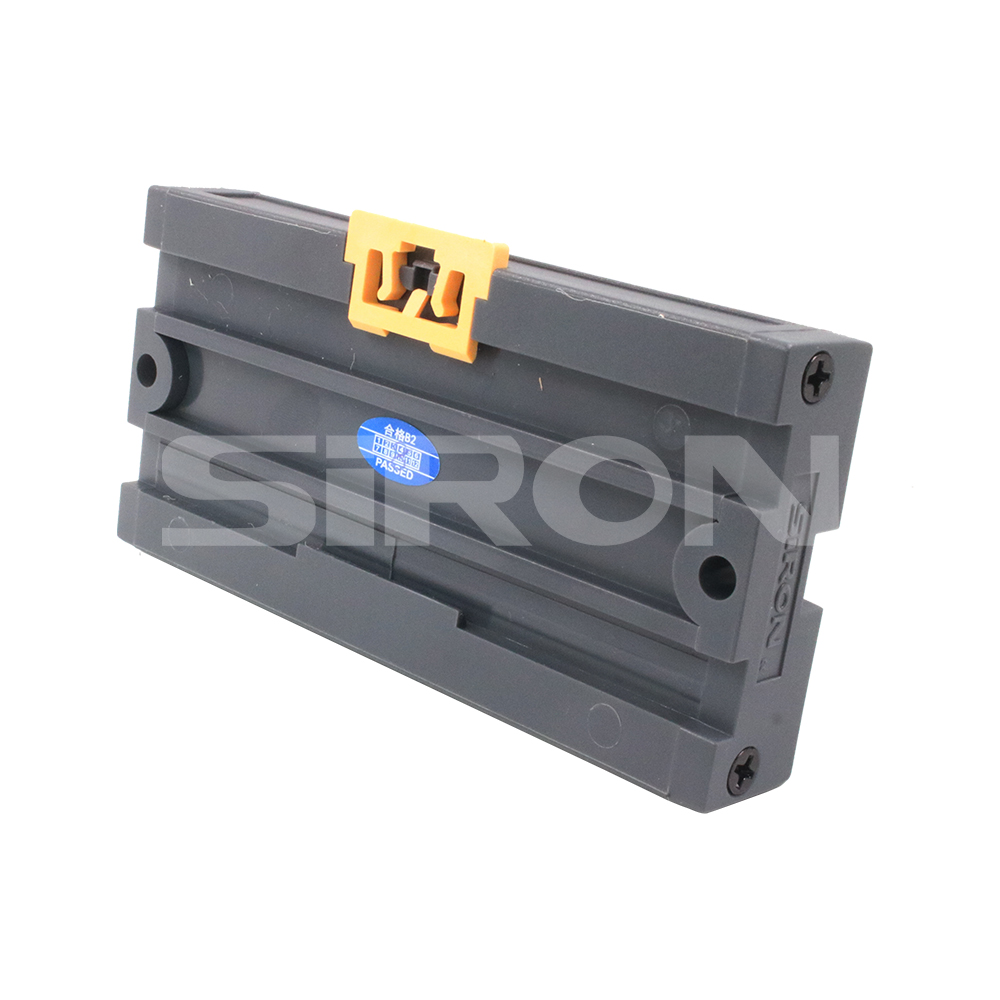

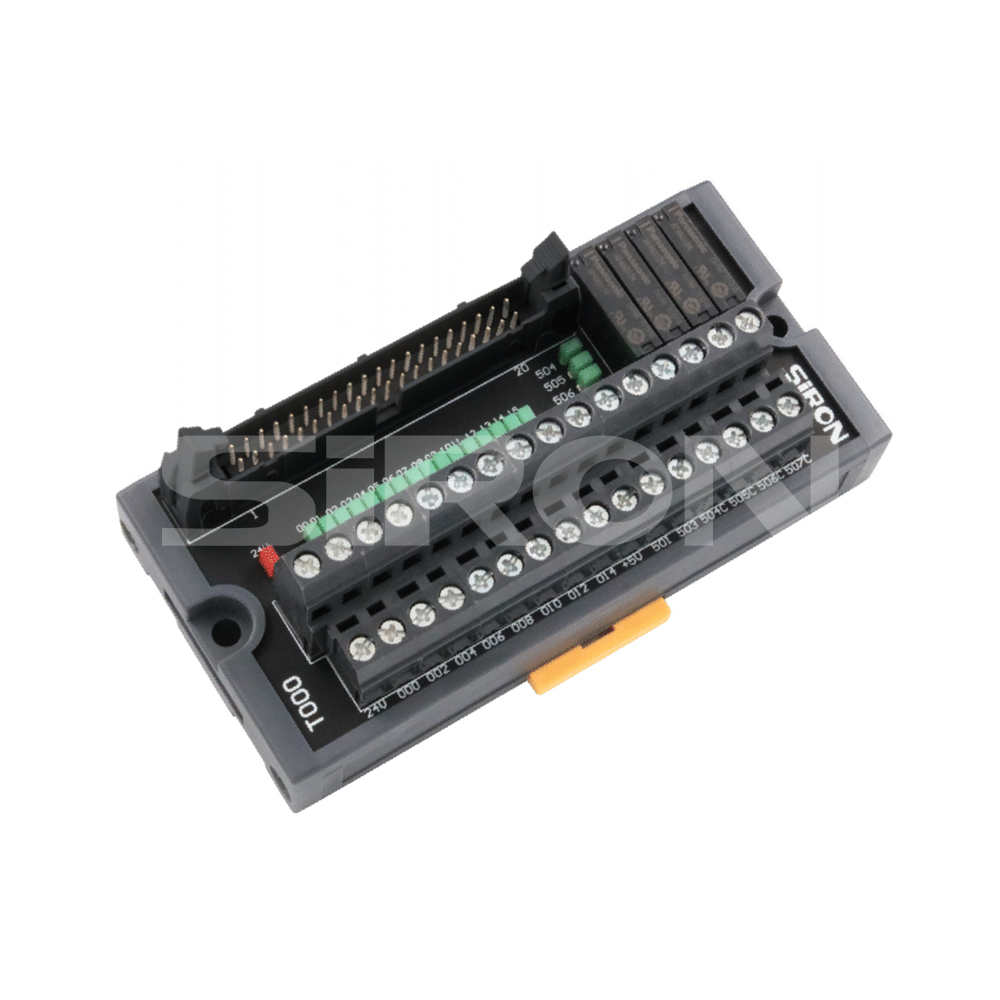

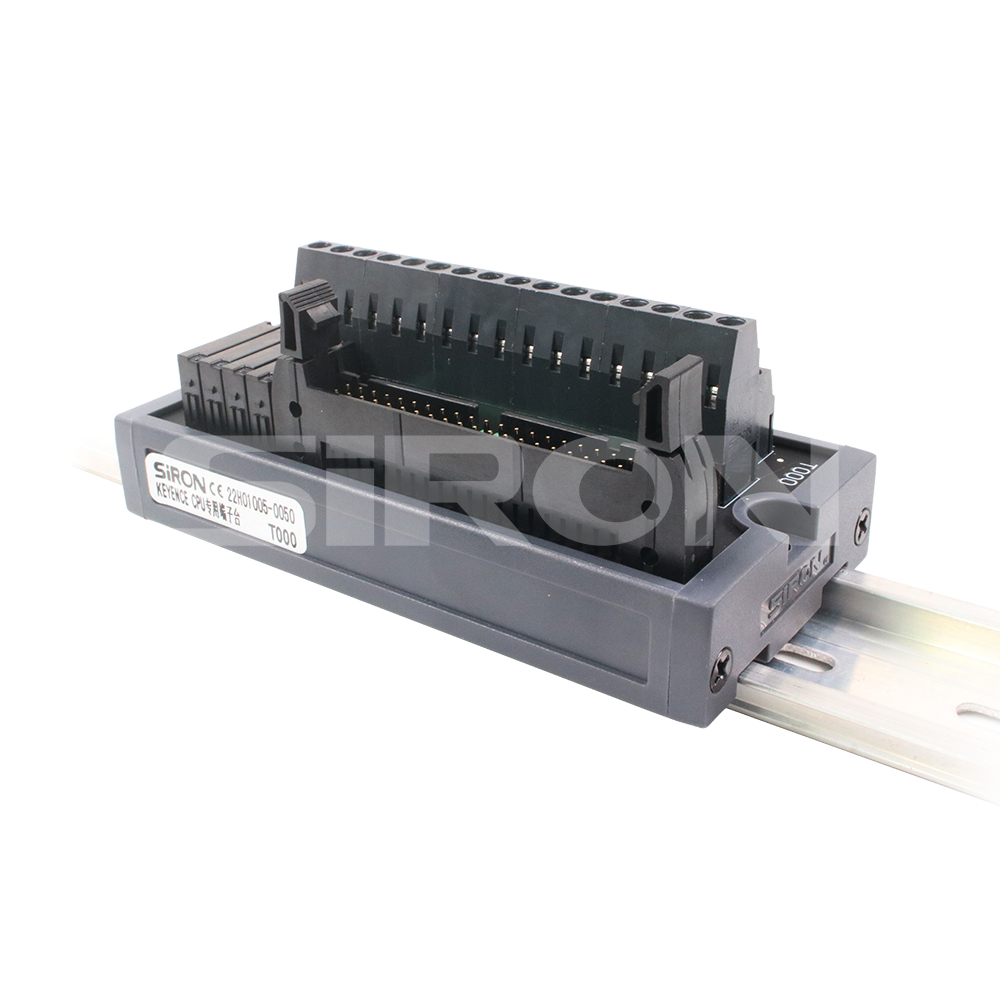

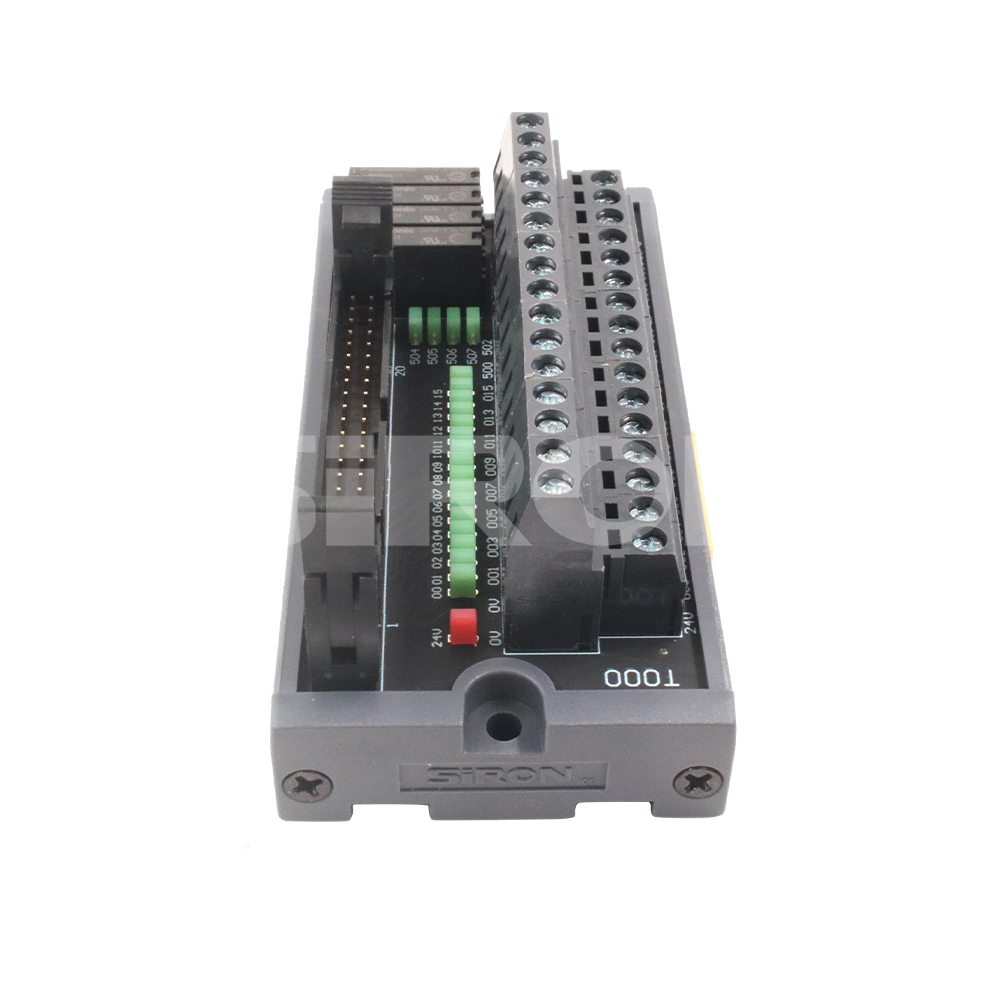

SiRON T000 Series Customized For KEYENCE CPU Terminal Block

Name: SiRON T000 Series Customized For KEYENCE CPU Terminal Block
Brand: SiRON
Rating: 5.0 (71 reviews)

Features

This CPu terminal block is applicable to the wiring and application ofKv1000, Kv3000 and KV5000 CPUmodules of KEYENCE PLC;Realizes overall wiring by utilizing connector plug;
The wiring content for each terminal block is clearly marked, making the workload of marking the wiring greatly reduced:
The output end can be used as an independent connecting point or for the convenient connection oftheshort-circuiting bar to the common end;Utilizes a LED display, so all input and output statuses are visible.
The relay coil has a surge suppressing loop, which prolongs the service life ofthe relay module and minimizesthe electromagneticinterference on the circuit;

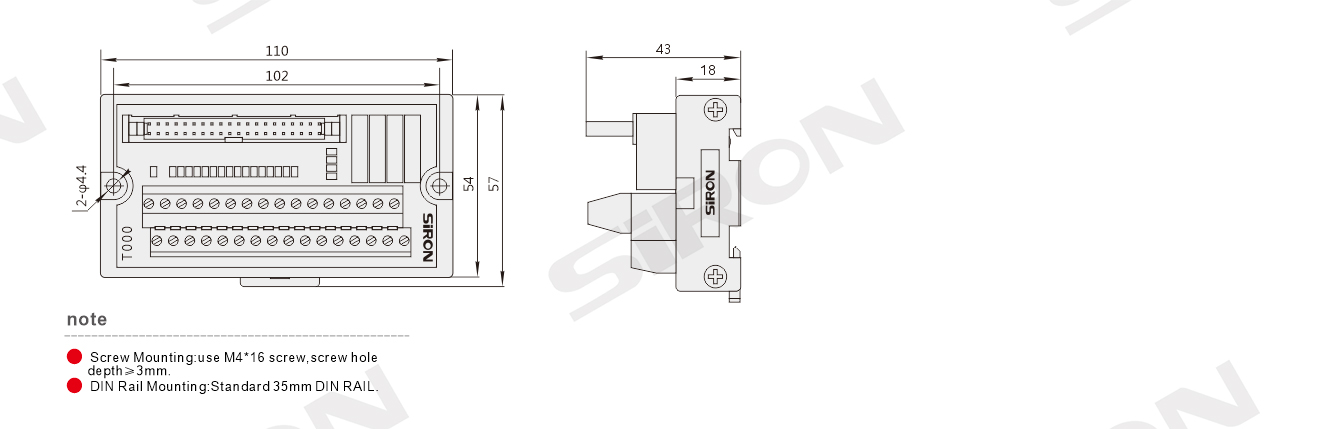

The terminal block is structured with a 5mm space, minimizing the space occupation

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

主图11端子台

Suitable PLC

KEYENCE

KV-1000 KV-3000 KV-5000

KV-5500

Suitable cable

X 2 1 0 - 4 / X 2 0 0 - 4

For details, please refer to the directory cable series

Specifications

Input	Nominal operating current	1A
Input	Nominal coil voitage	DC24V
Output	Relay Coil Specifications
	Nominal coil voltage	DC 24V
	Nominal operating ourent	7.5mA
	Coil resistance	32000
	Pick-up Vltage	More70%
	Drop-out Voltage	Following 5%
	Max allowable voitage	120%
	Nominal operating power	180MW
	Switch Circuit
	Arrangement	1a
	Initial contact resistance	30mΩ(Voltage drop through the DC6V1AFrance)
	Nominal switching capacity (resistive load)	AC250V/5A;DC30V/5A
	MaX.5witching power(resistive load)	1250V,150W
	MaX.switching voltage	5A
	Max.swiching capacity	250VAC;110V DC
	Min switching capacity	DC 100mv 100uA
	Mechanical	More than 20 million times (Off frequency of 180 times/min)
	Electrial	100,000 times or more (3A250AC,30VDC,Resistive load)
Corresponding output Devices		Button Switch,Photoelectric Switch,Solenoid, Indicator,Stepping Servo Motor,etc.
