SiRON M271-C Series Three-phase Open-loop Hybrid Stepper Motor

Name: SiRON M271-C Series Three-phase Open-loop Hybrid Stepper Motor
Brand: SiRON
Rating: 5.0 (79 reviews)

Features

* 1.2° step angle;

* High resolution, low noise;
* High torque, low vibration, high efficiency;

* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M271-C
Brand:
SiRON
Code:
8501109990

1.2° step angle 57mm frame size 86mm frame size 110mm frame size 130mm frame size

Product Description

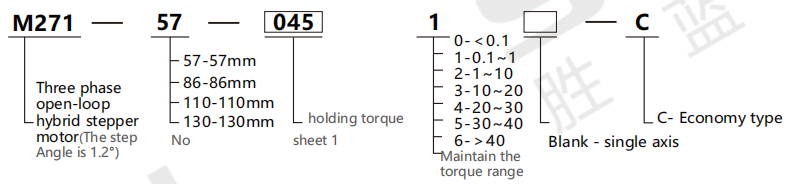

About selection

Selection example: M271-57-0451-C represents the M271 series three-phase open-loop hybrid stepping motor, with a frame size of 57mm, a holding torque of 0.45N.m, single-axis, and an economical type

0.45N.m～50N.m
Code	045	09	15	20	30	40	60	80
Torque	0.45N.m	0.9N.m	1.5N.m	2.0N.m	3.0N.m	4.0N.m	6.0N.m	8.0N.m
Code	10	12	15	16	20	28	35	50
Torque	10N.m	12N.m	15N.m	16N.m	20N.m	28N.m	35N.m	50N.m

Electrical properties

Project	Parameter	Project	Parameter
StepAngle Accuracy	±5%(synchronizing)	Voltage resistance	500V AC1 minute
Resistance accuracy	±10%(20℃)	Radial Play	0.02mm Max(450g load)
Inductance accuracy	±20%(1KHZ)	Axial Play	0.08mm Max(450g load)
Temperature rise	80C max(Rated current,2 is connected)	Insulation Resistance	100MΩ,500VDC
Ambient Temperature	-20℃~50℃

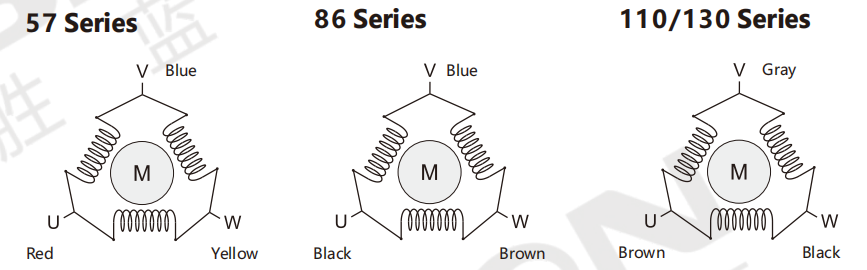

Wiring diagram

企业微信截图_1768376035195

Specification

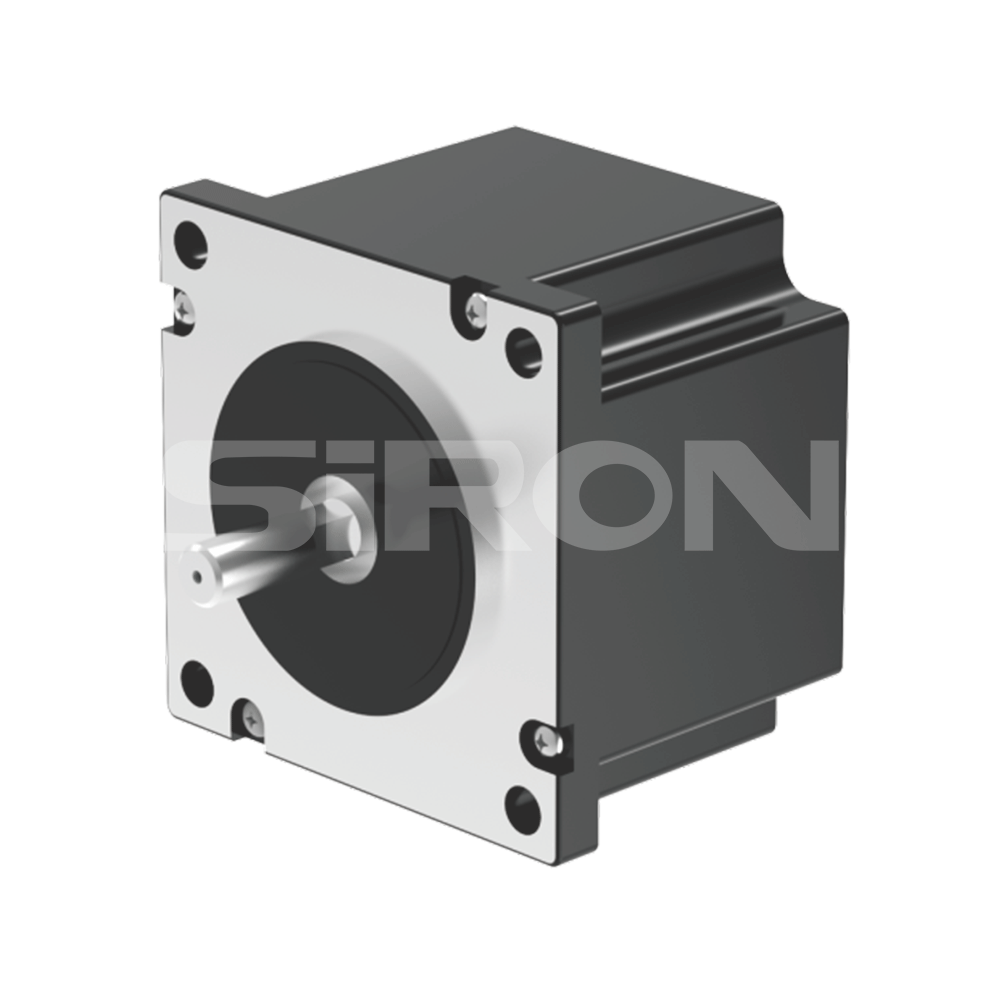

Ⅰ.57 series

Machine base number	57 Series
Model	M271-57-0451-C	M271-57-091-C	M271-57-152-C	M271-57-202-C
Adapter drive	M281-580-C
StepAngle	1.2°
Holding torque	0.45	0.9	1.5	2.0
Cument per phase	5.2	5.6	5.8	5.8
Eachresistance	0.242	0.24	0.29	0.376
Eachinductance	0.22	0.267	0.39	0.5
Momentof inertia	100	220	380	530
Number of lead wires	3
weiaht	0.5	0.75	1.1	1.57
Body lenath	41	54	76	100
Shaft diameter D(mm)	φ6.35	φ8	φ8	φ8
Axis extension(mm)	Mounting Flange 0.5×10	Mounting Flange 0.5x10	Key 3x15	Key 3x15
Axis length (mm)	21
Max.radial force	75N(20mm away from the flange)
Max.axial force	15N

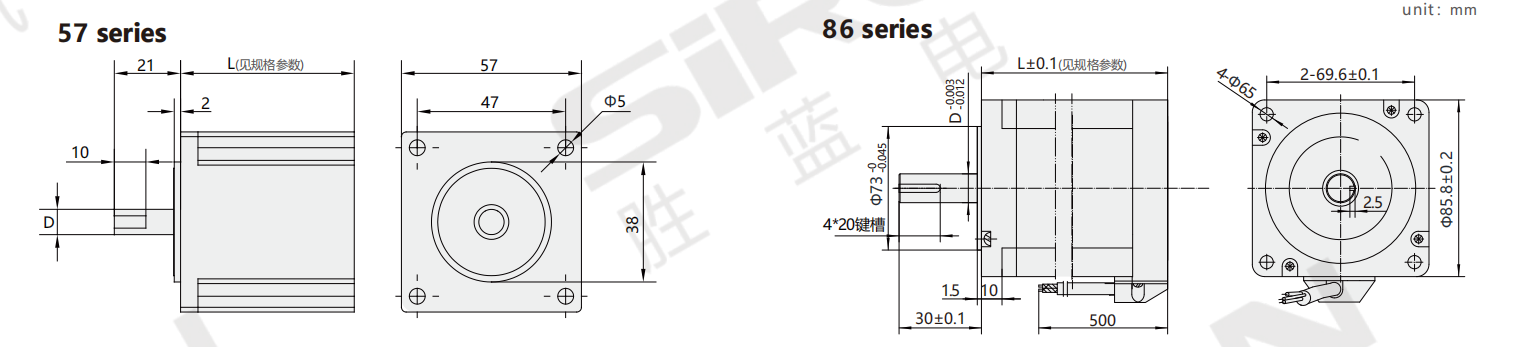

Dimensions

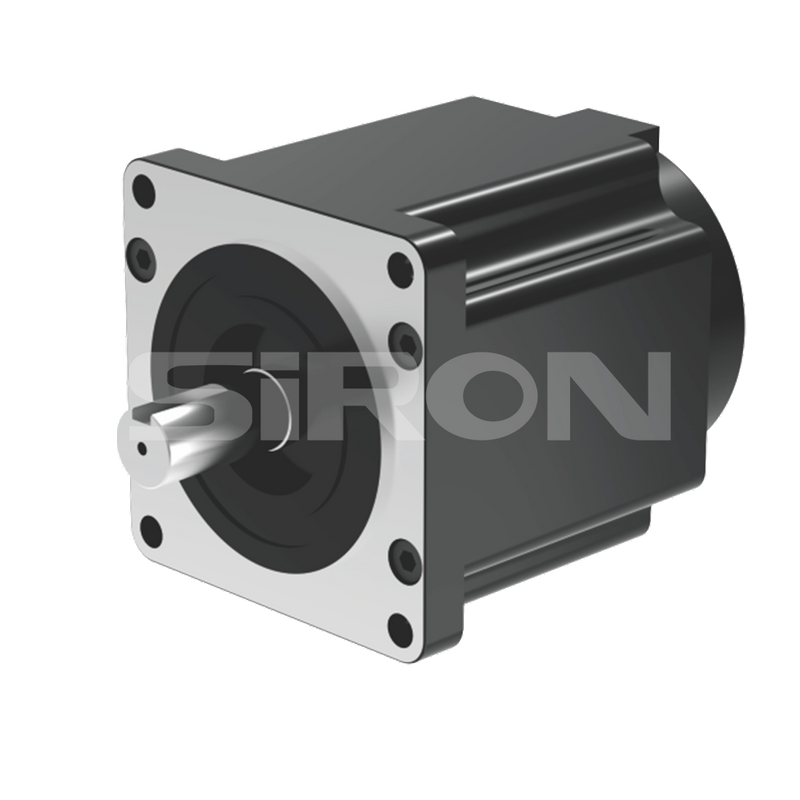

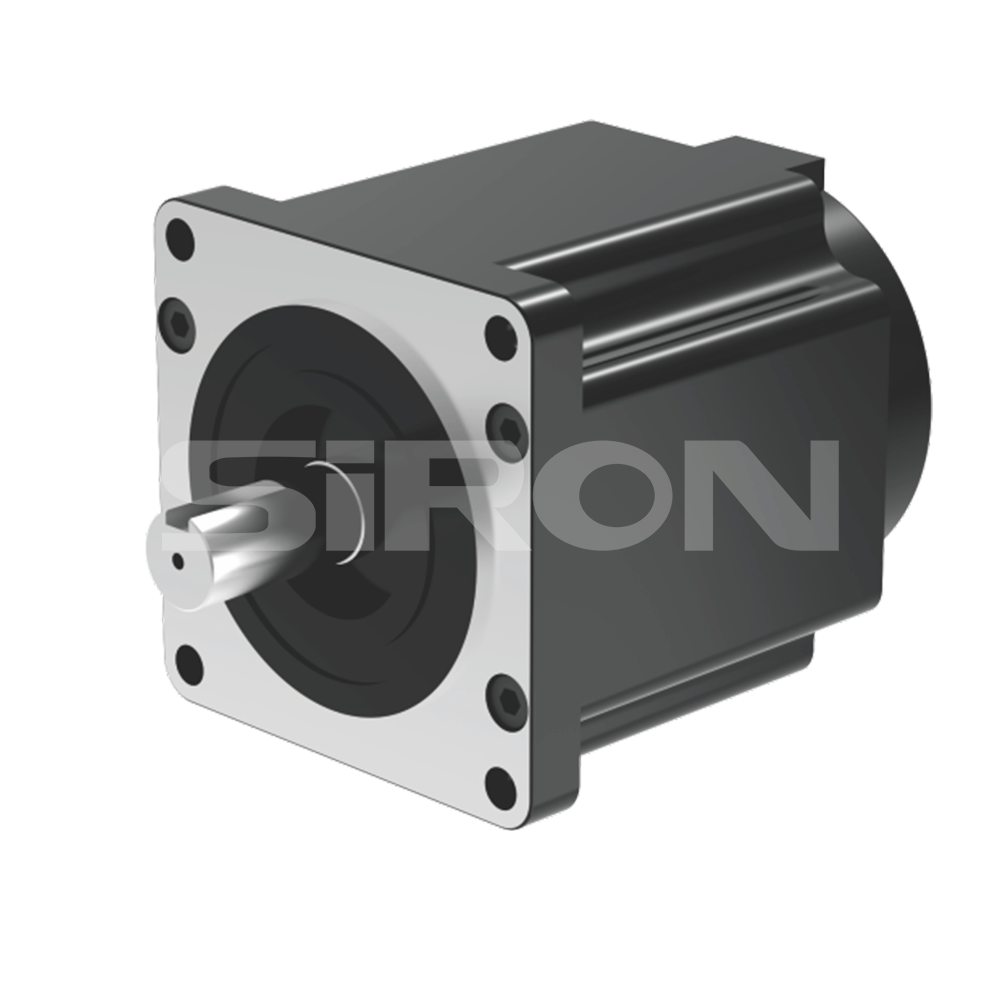

Ⅱ.86 series

Machine base number	86 series
Model	M271-86-302-C	M271-86-402H-C	M271-86-402-C	M271-86-602H-C	M271-86-602-C	M271-86-802H-C	M271-86-102-C
Adapter drive	M281-580-C
StepAngle	1.2°
Holding torque	3.0	4.0	4.0	6.0	6.0	8.0	10
Current perphase	3.0	2.0	5.8	3.0	5.8	5.0	5.0
Each resistance	0.5	4.6	0.7	2.0	0.9	1.08	1.29
Each inductance	0.9	14.6	1.5	8.0	2.17	6.5	8.8
Moment ofinertia	1320	2400	2400	3480	3480	3900	4600
Number of lead wires	3
weight	2.0	3.0	3.0	4.0	4.0	4.6	5.2
Body length	76	98	98	114	114	129	156
Shaf diameter D(mm) Axis extension(mm)	φ14 flat key 4×20	φ12 flat key 4×20	φ12 flat key 4x20	φ14 flat key 5×25	φ14 flat key 5×25	φ14 flat key 5x25	φ14 flat key 5×25
Axis length(mm)	35	30	30	35	35	32	35
Max.radial force	130N (20mm away from the flange)
Max.axial force	30N

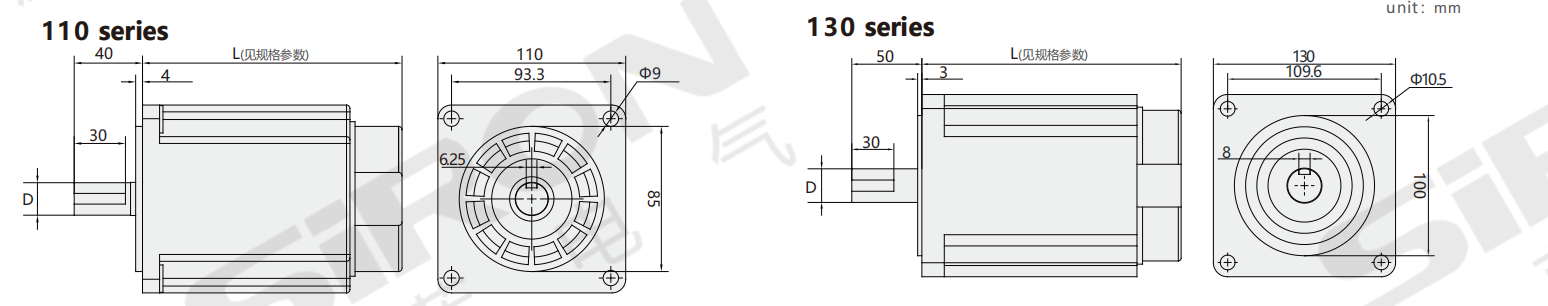

Dimensions

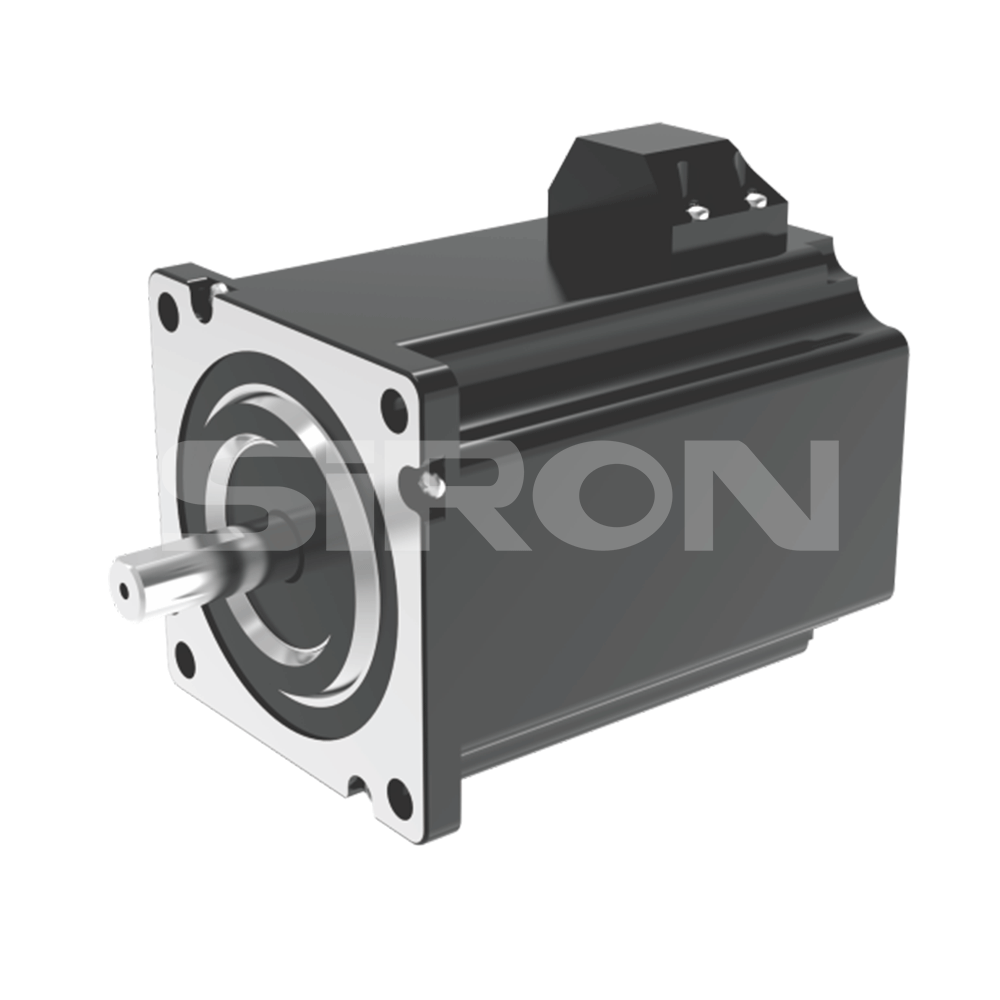

Ⅲ.110 series

Machine base number	110 series
Model	M271-110-802-C	M271-110-123-C	M271-110-163-C	M271-110-203-C
Adapter drive	M281-3522-C
StepAngle	1.2°
Holding torque	8.0	12	16	20
Curent per phase	4.3	6.0	6.4	6.9
Each resistance	1.25	1.89	1.89	1.859
Each inductance	4.49	8.34	8.73	7.26
Moment of inertia	6000	9720	13560	17400
Number ofleadwires	3
weight	5.0	6.6	9.0	11.1
Body length	128	152	186	219
Shaft diameter D(mm)	φ19
Axis extensian(mm)	flat key 6x30
Axis length(mm)	40
Max.radial force	220N(20mm away from the flange)
Max.axial force	60N

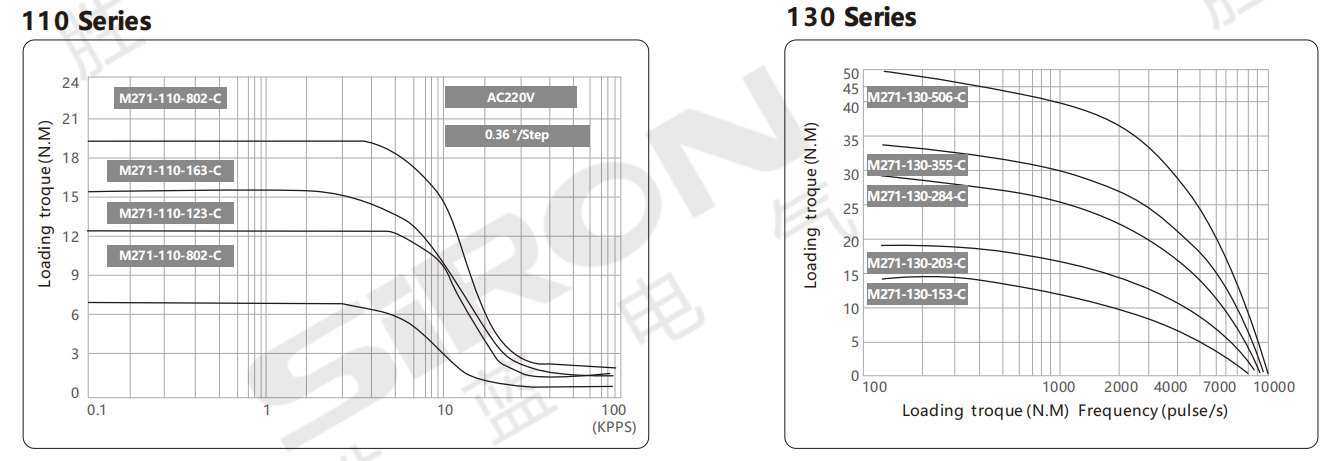

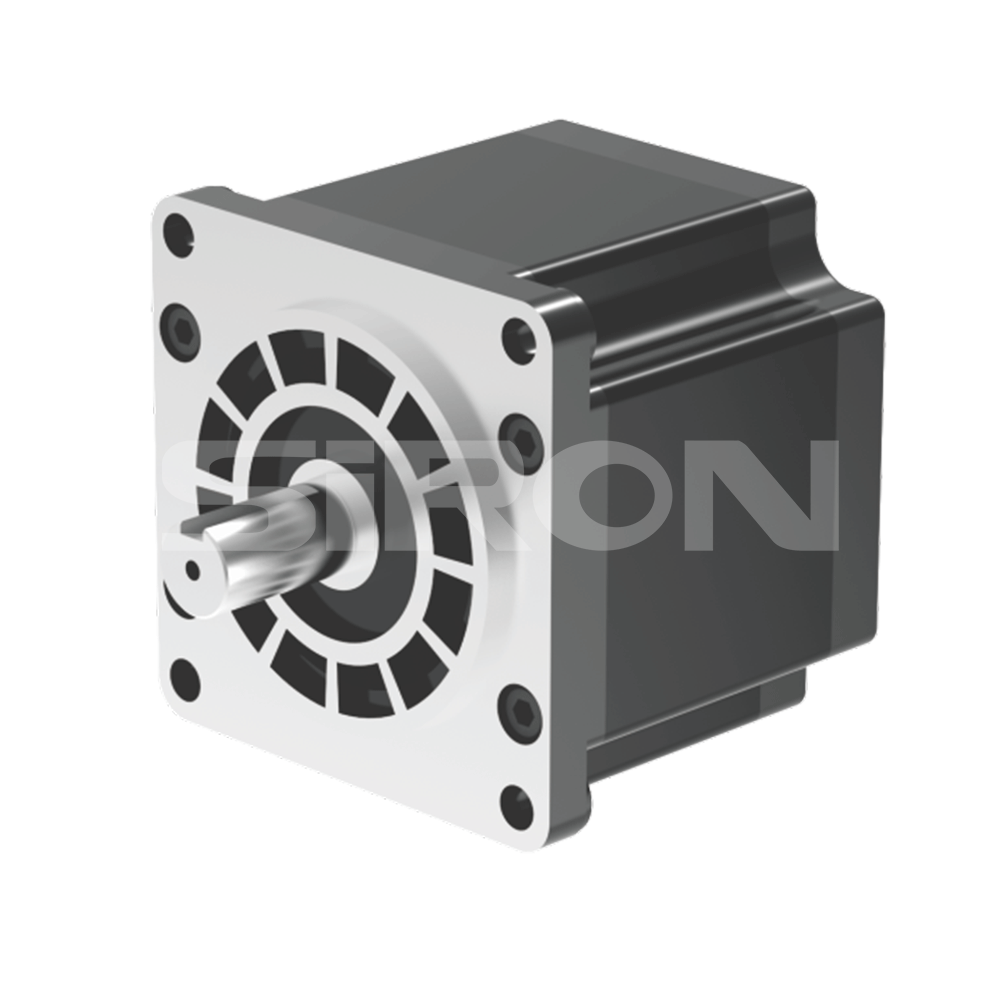

Ⅳ.130 series

Machine base number 130 series
Model M271-130-153-C		M271-130-203-C	M271-130-284-C	M271-130-355-C	M271-130-506-C
Adapter drive M281-3522-C、M281-3722-C				M281-3722-C
StepAngle Holding torque Current per phase	15	20	1.2° 28 6.9	35 50
Each resistance	0.88	1.1	2.8	3.3	4.2
Each inductance	3.7	4.9	17.9	21.52	28.9
Moment of inertia	20000	26700	33970	41240	55780
Number of lead wires	3
weight	11	14.1	17.2	19.8	26
Body length	154	185	218	255	280
Shaft diameter D(mm)	φ24
Axis extension(mm)	flat key 8x30
Axis length(mm)	50
Max.radial force	300N (20mm away from the flange)
Max.axial force	80N
