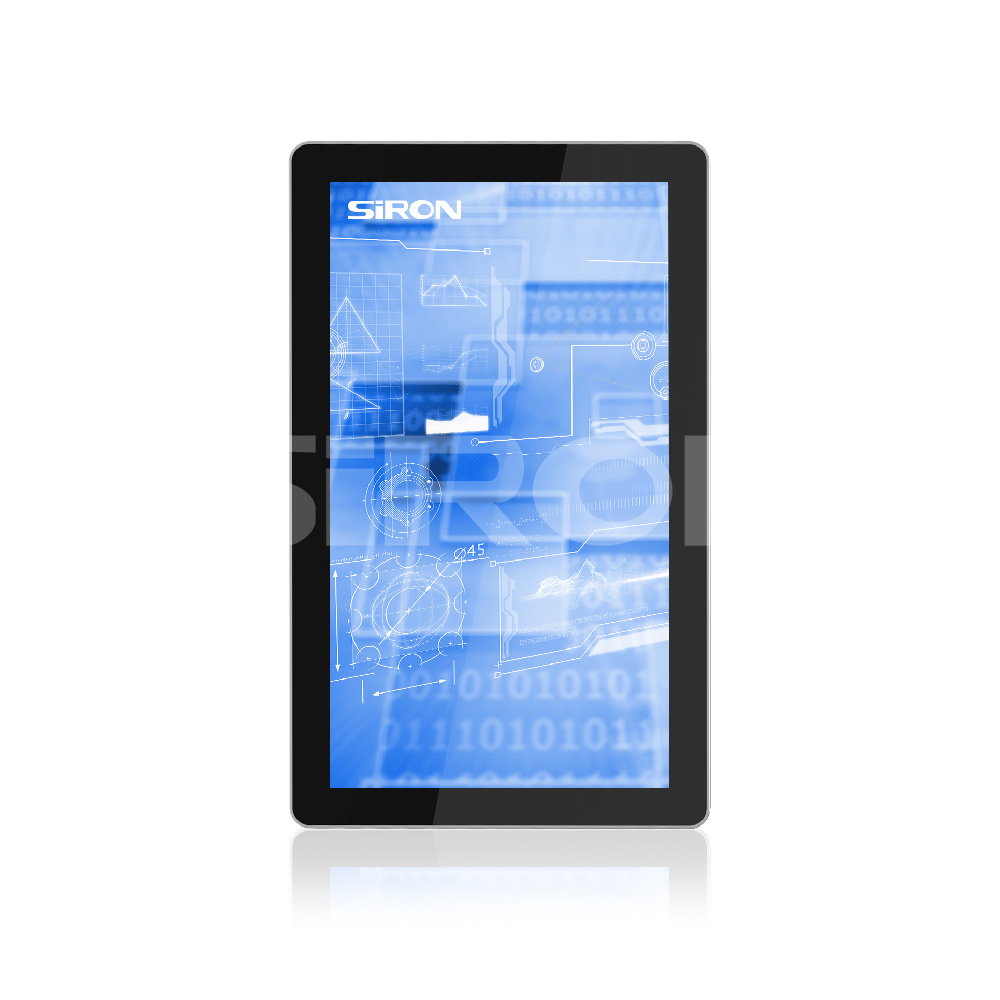

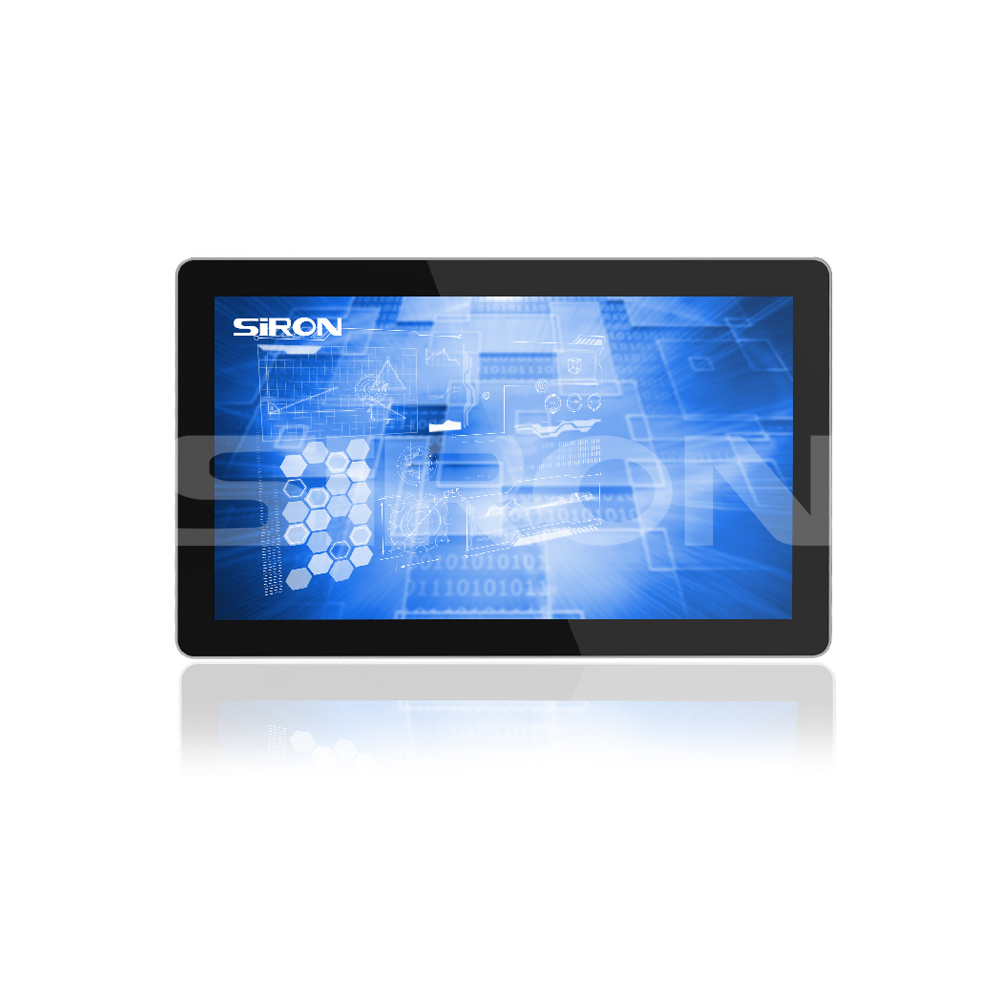

SiRON M030-2 Industrial touch panels

Name: SiRON M030-2 Industrial touch panels
Brand: SiRON
Rating: 5.0 (22 reviews)

Features

* M030-2 series is an embedded industrial capacitive touch panel PC with fanless silent design, combining industrial display
and touch screen technology,The product composition is compact, easy to install, easy to operate, is a high-efficiency, highly
reliable industrial computer system, the whole machine adopts a high-definition LCD screen with a resolution of 1920x1080,
rich and delicate colors, wide viewing angles, 12~24V wide voltage DC power supply, and is equipped with a locking screw
round DC power connector，It can prevent accidental falling off, the touch adopts a projected capacitive screen, and supports
10 touches, the host part uses Intel11 generation CPU, equipped with large-capacity solid-state SSD, DDR4 memory supports

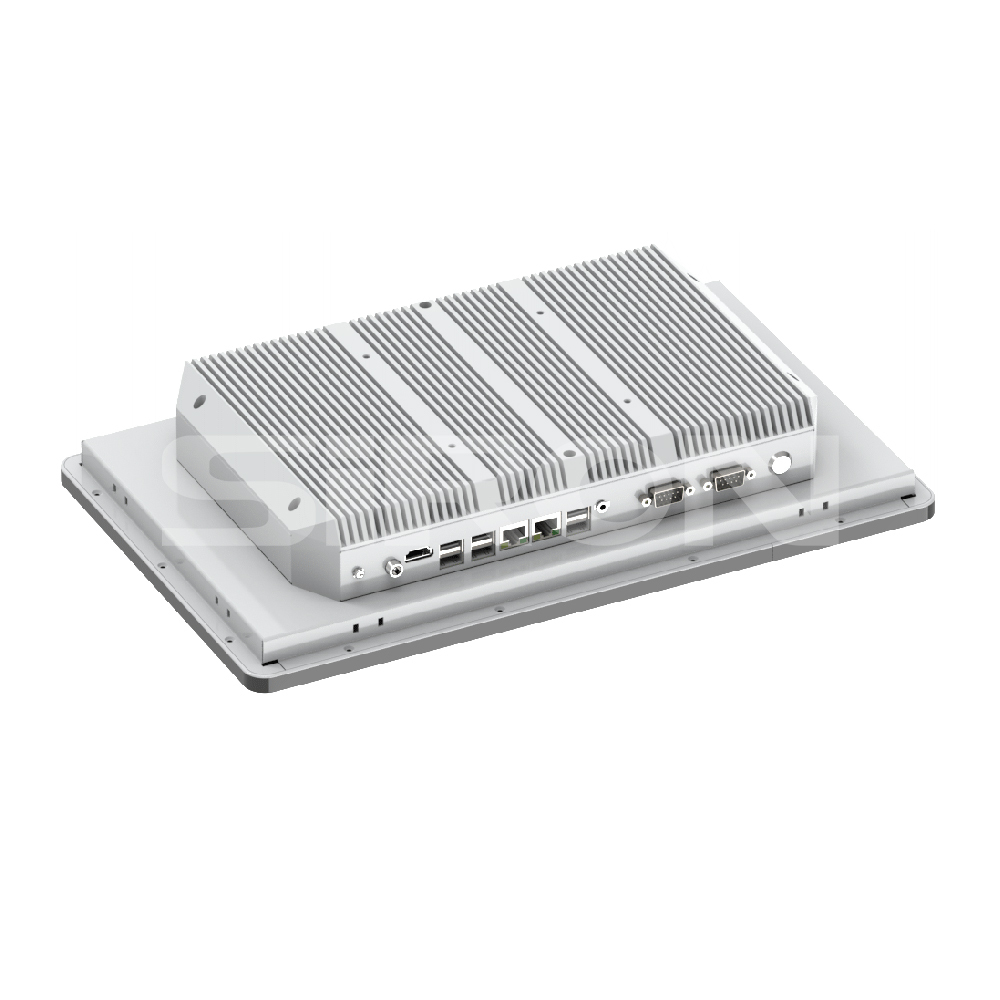

1x32G capacity, 6xUSB3.0, dual intel gigabit network cards, COM1 supports RS232/422/485, COM2 the port supports R232,
and the internal MINI-PCle and M.2 expansion slots are convenient for I/O expansion such as 4G and WIFI.
* M030-2 series supports a variety of installation methods: hook-type flush mounting, VESA-based wall mount and cantilever
mounting, anti-standard to prevent water droplets from entering due to on-site splashing when installed in the control cabinet, high-strength all-steel sealed box structure, with anti-shock and vibration protection functions, especially the special EMC
design makes the whole machine have excellent anti-interference ability, and can adapt to the harsh working environment of
industrial sites，It is widely used in factory automation, machinery manufacturing, numerical control equipment, textile
equipment communication network and power automation and other strong interference industrial occasions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M030-2
Brand:
SiRON
Code:
8471419000

USB port Industrial touch panels DC24V Industrial touch panels capacitive touch screen

Product Description

About selection

企业微信截图_17549115383003

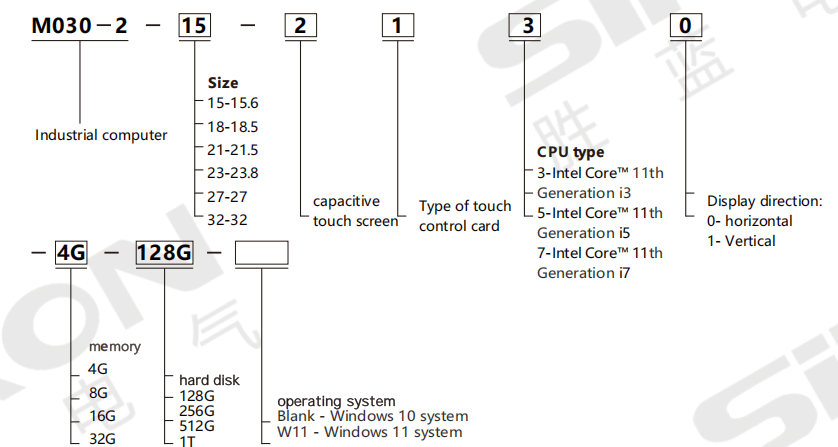

Selection example: M030-2-15-2130-4G-128G represents the M030-2 series, featuring a 15.6-inch capacitive touch screen, an Intel Core™ 11th generation i3 CPU, a horizontal display orientation, 4G memory, a 128G hard drive, and a Windows10 operating system for industrial tablet computers.

Specification

model		M030-1-15-2110	M030-1-18-2110	M030-1-21-2110	M030-1-23-2110	M030-1-27-2111	M030-1-32-2111
Touch screen	Touch screen type	Projective capacitive touch screen
	Multi-tbuch	10
	Light transmittance	85%
	Controller	USB
	Drive support	windows/linux
	Response Time (Touch Par	Average <5ms
	Surface hardness	≥7H	≥6H	≥6H	≥7H	≥6H	≥7H
	Touch lifespan	250g/120 million times
System paramers	Display interface	HDMI/DVI-D/DP
	Communication interface	USB2.0
	Instrucions and operations	OSD control key
Power	Input voltage	DC24V
Power	Maximum power consumption	18W	21W	21.5W	30W	37.5W	60W
power supply	Size	392.90×242.20x50.40mm	462.3×287.3×50.3mm	531.7×328.01×50.3mm	580.8×352.8×53.4mm	401.5×666.5×50.3mm	457.55×762.95×56.6mm

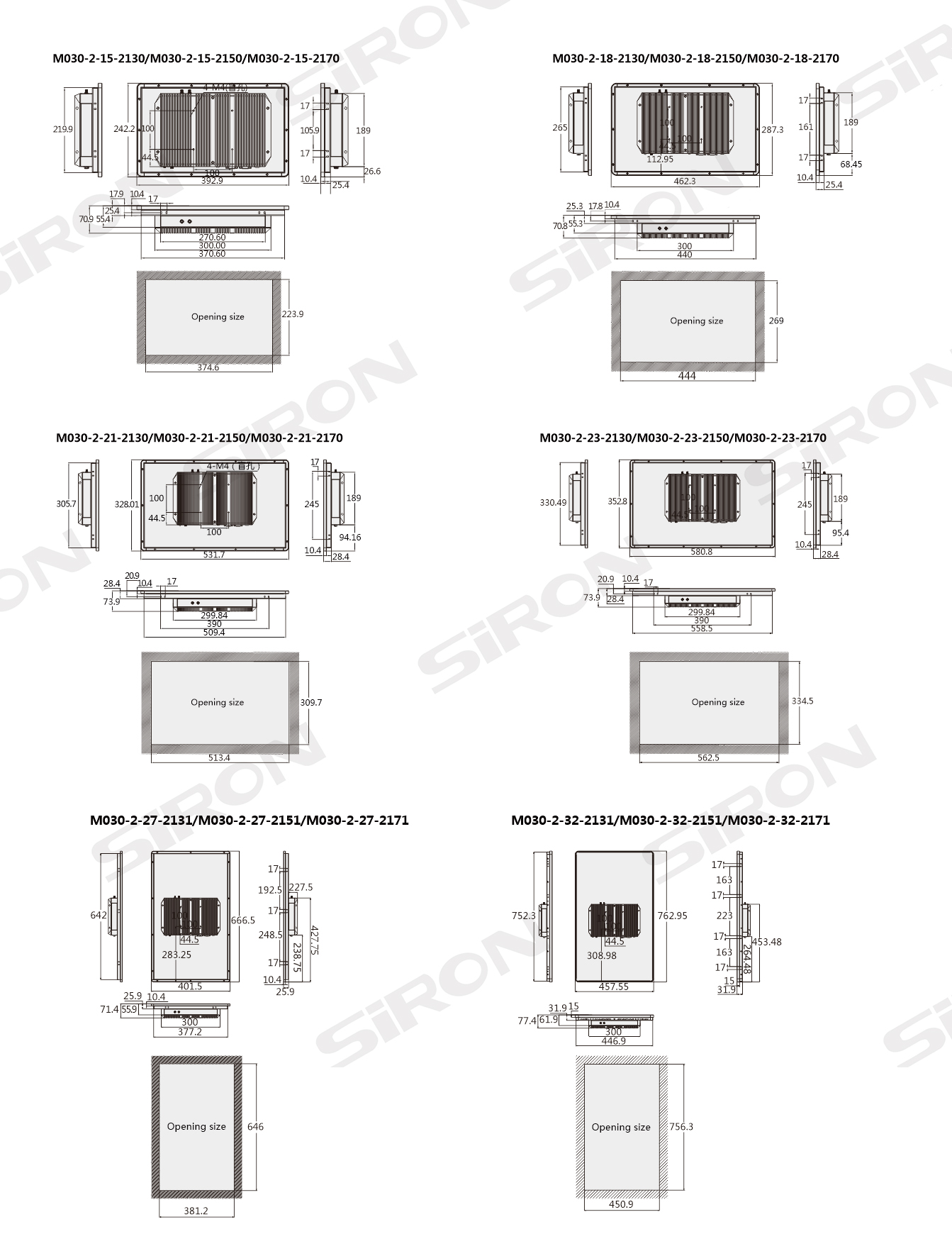

	Opening size	374.60×223.90mm	443×268mm	512×308mm	569.7×330.5mm	381.5×646mm	449.3×754.7mm
	Net weight	3.8kg	5.0kg	5.6kg	8kg	9.5kg	14kg
	Installation method	Embedded installation and VESA installation
Environmental parameters	Working temperature	0~50℃
	Storage temperature	-10~60℃
	Relative Humidity	10%-95%RH at 40℃,no condensation
	Vibration during work	IEC 600682-2-64:1.5Grms/5~500Hz/random,1hr/axis
	Impact during work	IEC 600682-2-27:10G(11ms),continuous peak acceleration 10m/s⊃2;

System parameters	CPU	Supports Intel Core11th Gen i3/i5/i7
	Frequency	Dual core 3.0GHz/Quad core 2.4GHz/Quad core 2.8GHz
	Cache	6MB/8MB/12MB
	Chipset	Integrated PCH-LP
	Memory	1xDDR4-3200MHz,Max32GB
	Storage	M.2 Key-M 2280(SATA SSD)

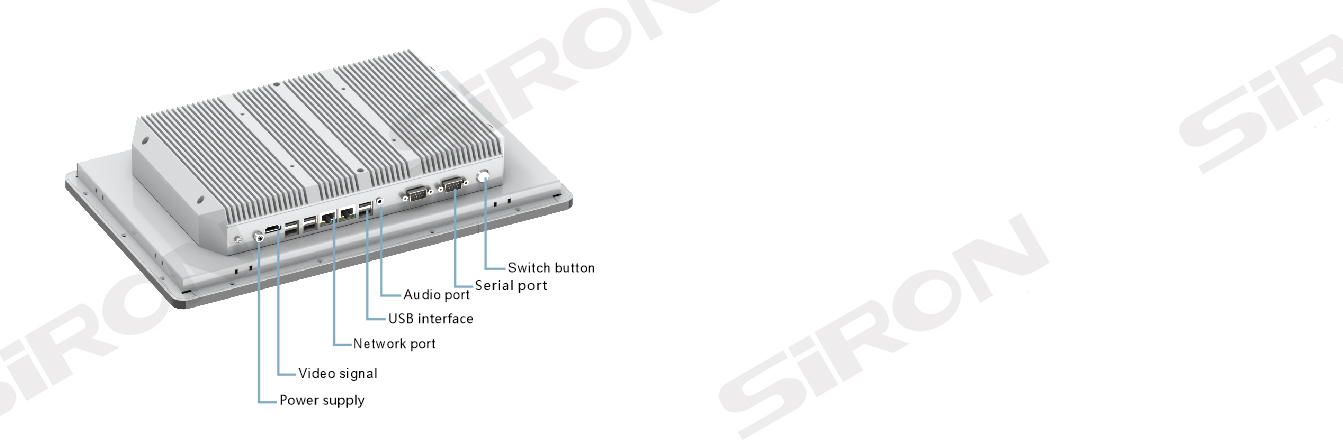

I/O interlace	Intemet	2xlntel 1000Mbps RJ-45 Ethernet interface
	Video	1xHDMI,1×LVDS(inside)
	Audio	1xHP_OUT
	USB	6xUSB3.0
	Serial	2xCOM port (Surge protection):COM1(Optional RS232/422/485 automatic flow control)COM2(RS232)
	Expansion slots	1X Mini-CLE (supports 4G)1X M.2(supports WIFI)
Power	Input voltage	DC12V~24V
	Maimum powerconsumption	50W	56W	56W	65W	75W	95W

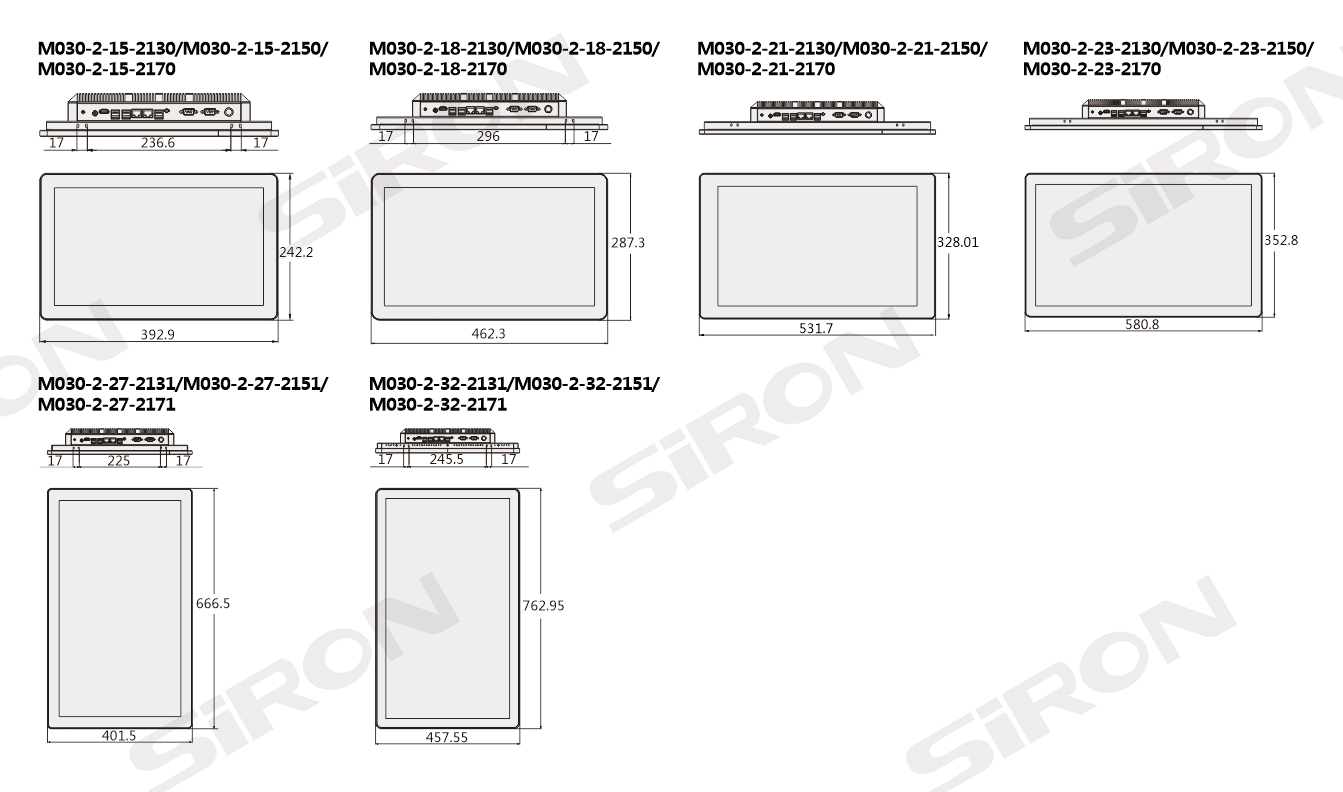

Ph s ical characterisics	Dimensions (WxHxD)	392.90×242.20x50.40mm	462.3×287.3×70.8mm	531.7×328.01×73.9mm	580.8×352.8×73.9mm	401.5×666.5×71.4mm	457.55×762.95×77.4mm
	Cut-out size (WxH)	374.60×223.90mm	444×269mm	513.4×309.7mm	562.5×334.5mm	381.2×646mm	450.9×756.3mm
	Netweight	5.5kg	6.8kg	7.5kg	10.2kg	11.4kg	16kg
	Installation method	Embedded installation and VESA installation
Eviranmentalparameters	Working temperature	0~50℃
	Storage temperature	-10~60℃
	Relative Humidity	10%-95%RH at 40℃,no condensation
	Vibratian at work	IEC 600682-2-64:1.5Grms/5~500Hz/random,1hr/axis
	Shock while working	IEC 600682-2-2710G(11ms),continuous peak acceleration 10m/s⊃2;
Operating system		Windows/Linux
