K090-9-E Series
SiRON
9031809090

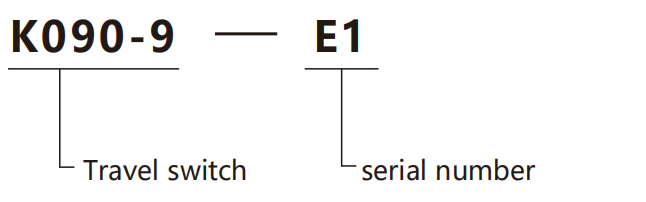

About selection
Selection example：K090-9-E1 indicates the K090-9 series, serial number E1.
Contacr Form
Specifications
Name | Travel switch | ||||||

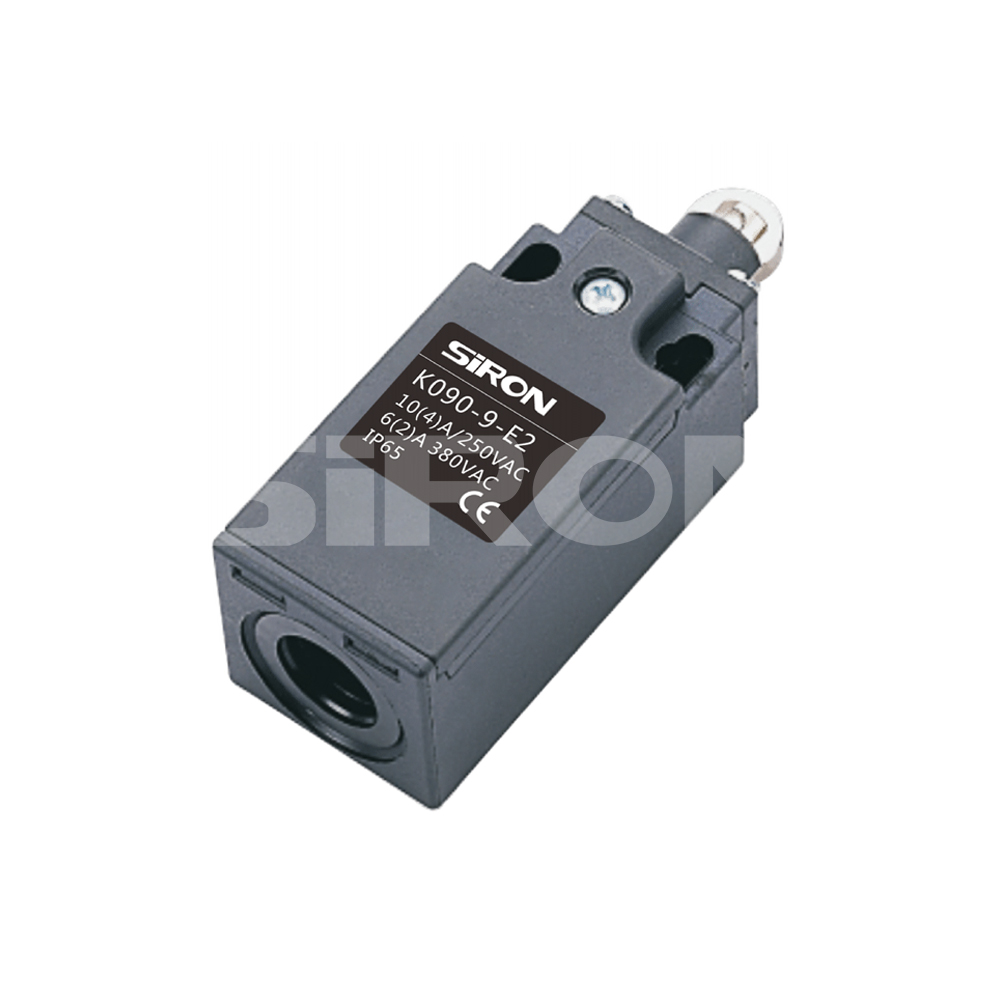

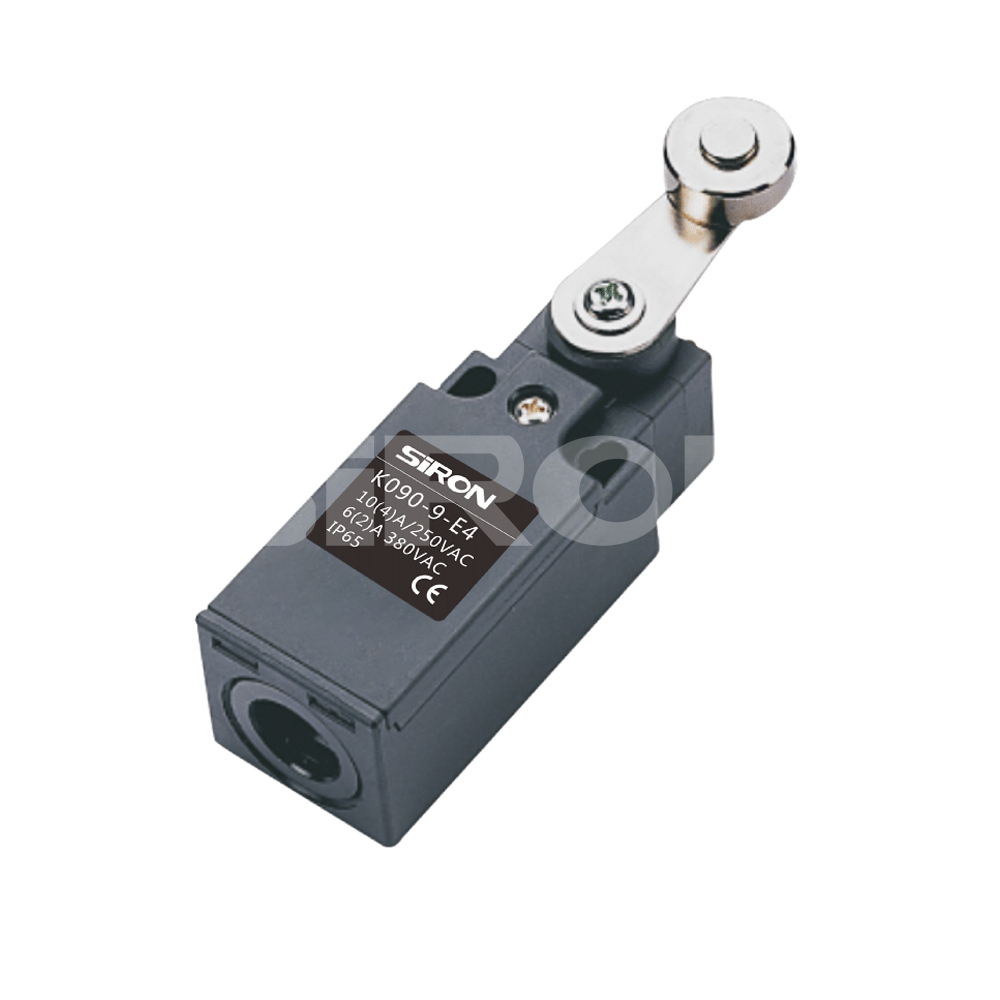

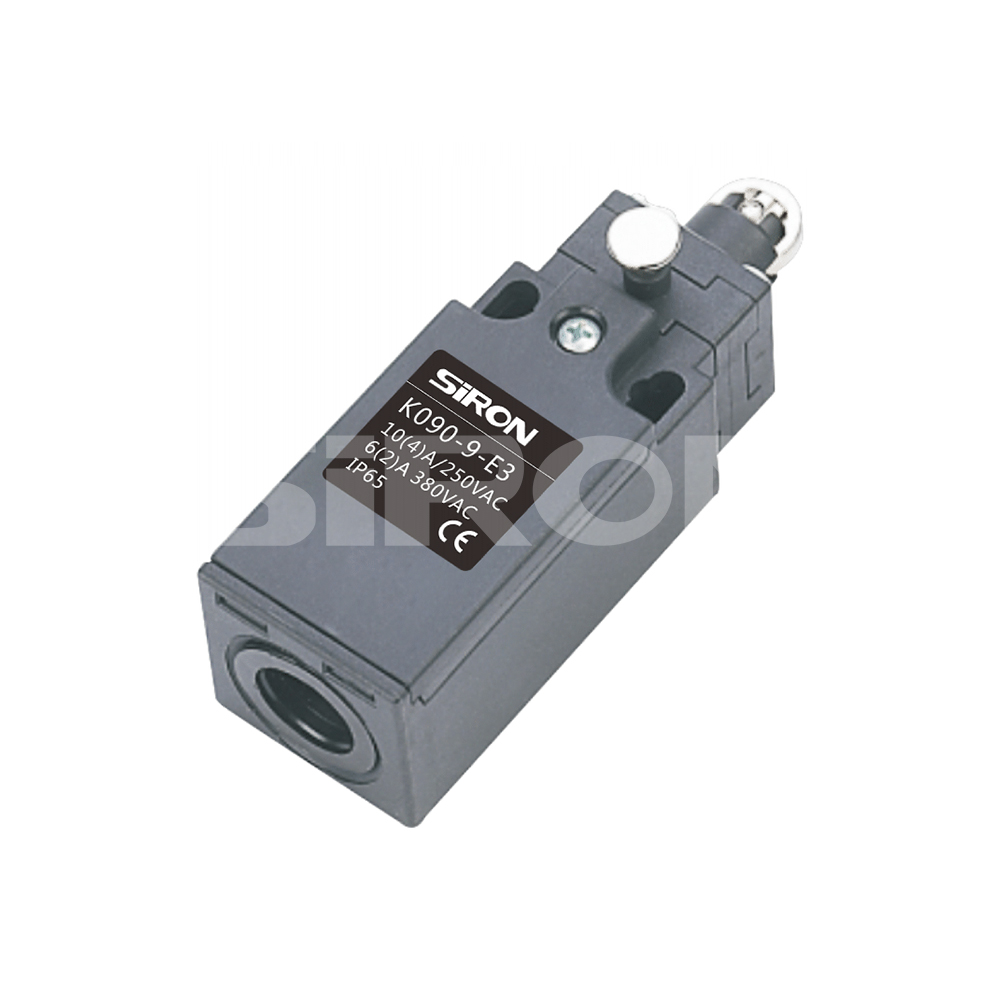

Model | K090-9-E1 | K090-9-E2 | K090-9-E3 | K090-9-E4 | K090-9-E5 | K090-9-E6 | |
Appearance |   |  |  |  |  |  | |
Action force | 700g(6.86N) | 700g(6.86N) | 700g(6.86N) | 500g(4.9N) | 500g(4.9N) | 500g(4.9N) | |
Resilience | 180g(1.76N) | 180g(1.76N) | 180g(1.76N) | 80g(0.78N) | 80g(0.78N) | 80g(0.78N) | |
Pre-travel | 2.5mm | 2.5mm | 2.5mm | 30° | 30° | 30° | |
Overtravel | 3mm | 3mm | 3mm | 70° | 70° | 70° | |
Difference stroke | 1.2mm | 1.2mm | 1.2mm | 15° | 15° | 15° | |
Total trip | 5.8mm | 5.8mm | 5.8mm | 90° | 90° | 90° | |
Rated load | 10(4)A/250VAC,6(2)A 380VAC | ||||||
Operating speed | 5mm～0.5m/s | ||||||
Operating frequency | Mechanical | 120 times per minute | |||||
Electric | 30 times per minute | ||||||
Insulation resistance | 100 mΩ 以 上 DC 500V | ||||||
Contad resistance | 25mΩ(initial value) | ||||||
Medium withstanc woltage | Non-wired | 1000VAC | |||||
| Between terminals | 1500VAC | ||||||
Vibration | Complex amplitude of 10 to 55Hz | ||||||
Shock | Durable | 1000m/s⊃2; | |||||
Malfunction | 300m/s⊃2; | ||||||
life | Electric | 100,000 times or more | |||||
Mechanical | 10 million times or more | ||||||
Protection level | IP65 | ||||||
Operating temperature | -10~+70℃ | ||||||
Operating humidity | <85% | ||||||

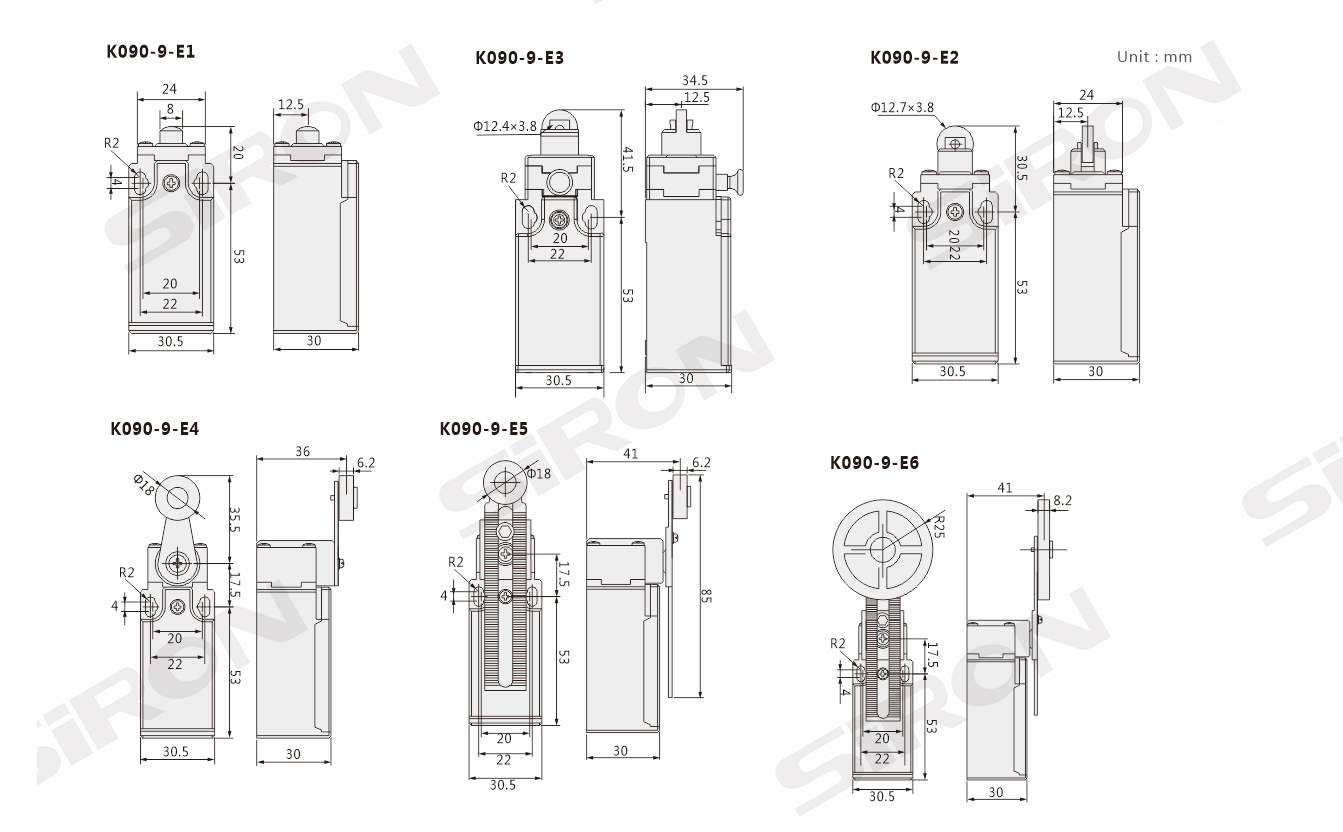

Dimension
