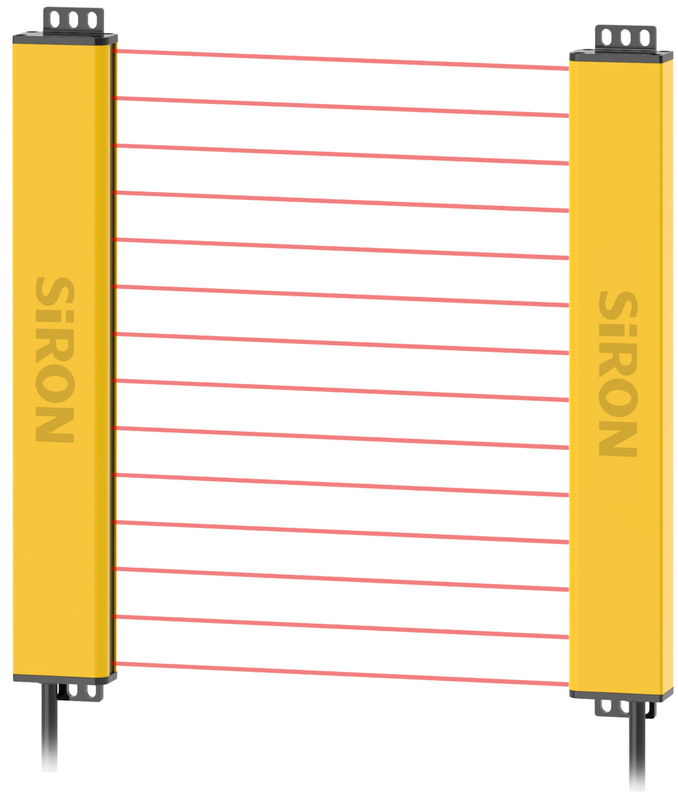

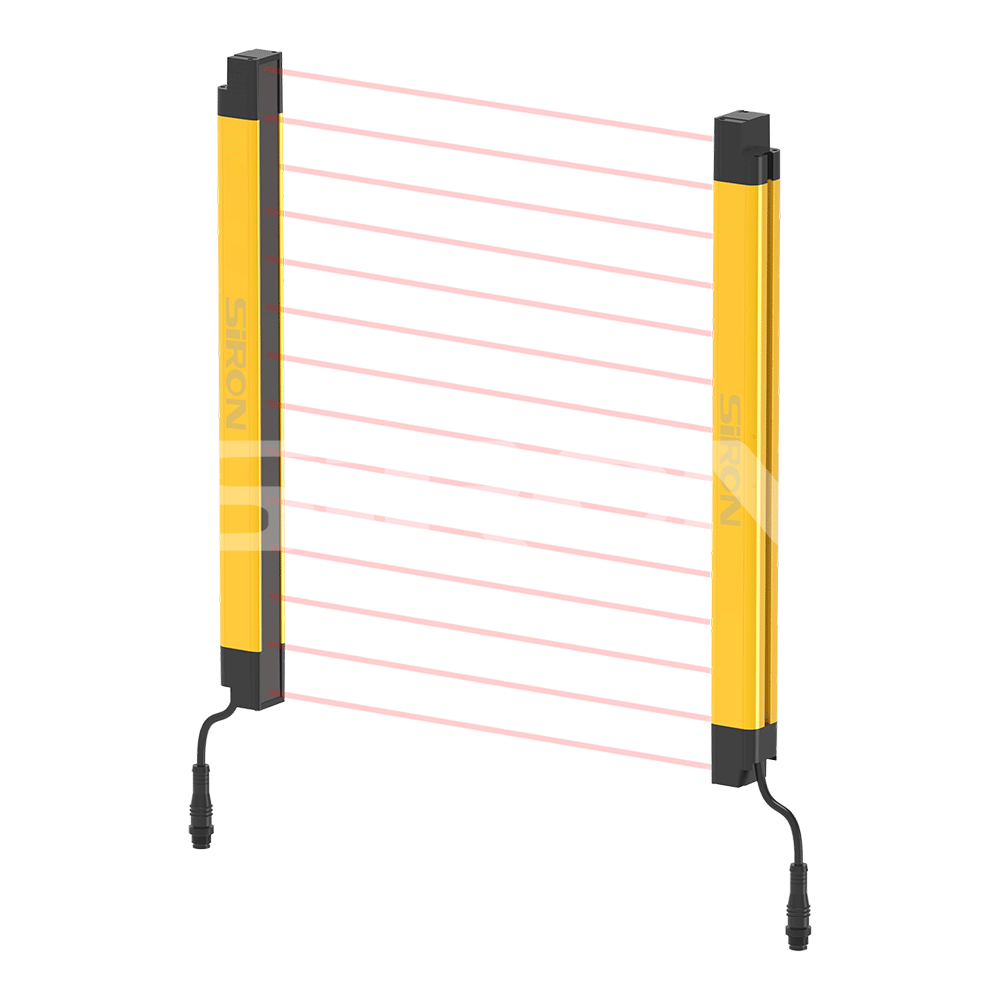

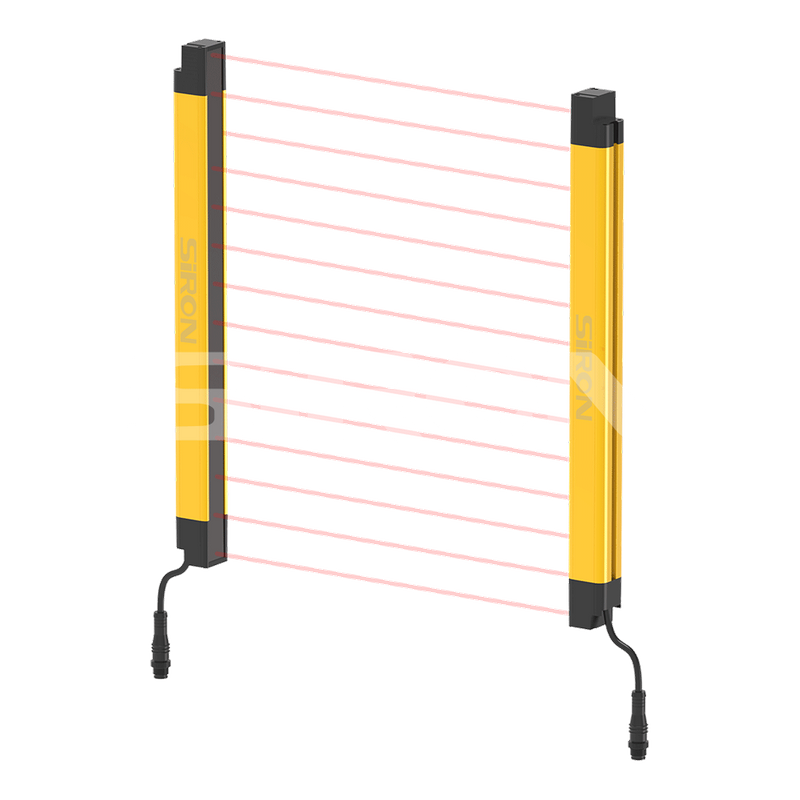

K037B Series
SiRON
About selection

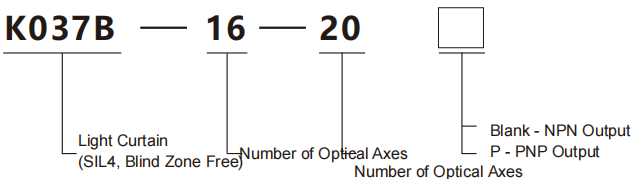

Model Selection Example: K037B-16-20 stands for K037B series, with 16 optical axes, 20mm optical axis spacing and NPN output.
Note: When purchasing brackets separately, the order models are: K037B-L1, K0.37B-L2

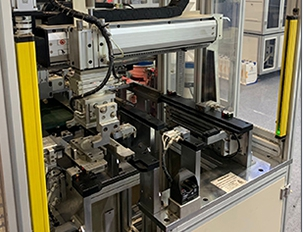

Example
Equipment Operation Protection Detection Mechanical Equipment Detection

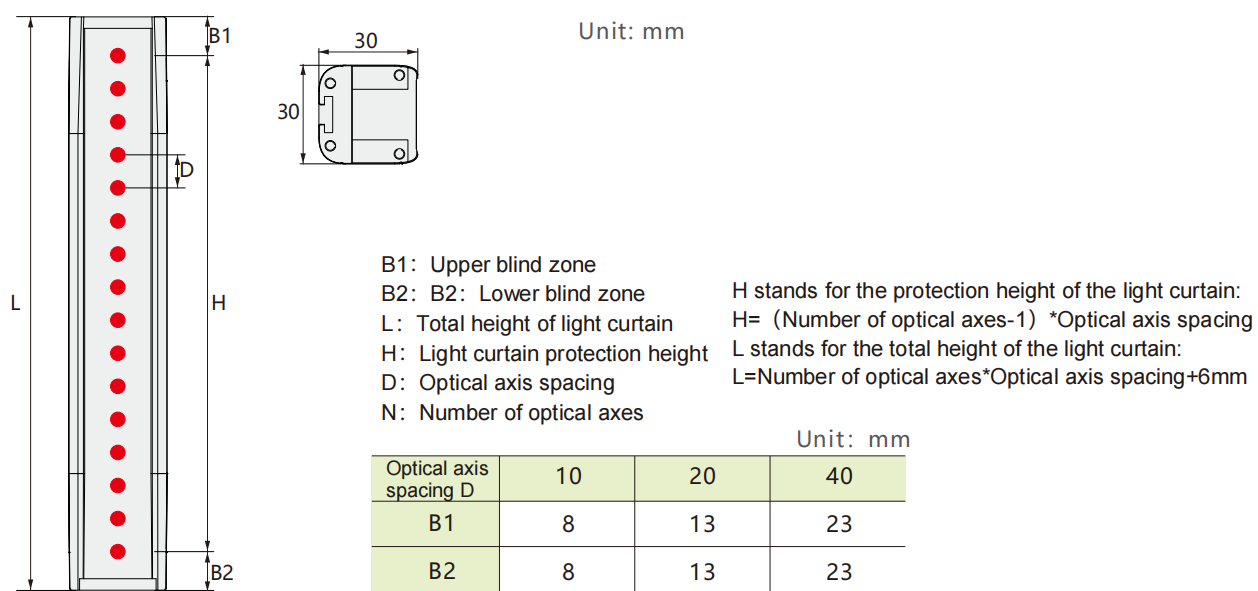

Dimension

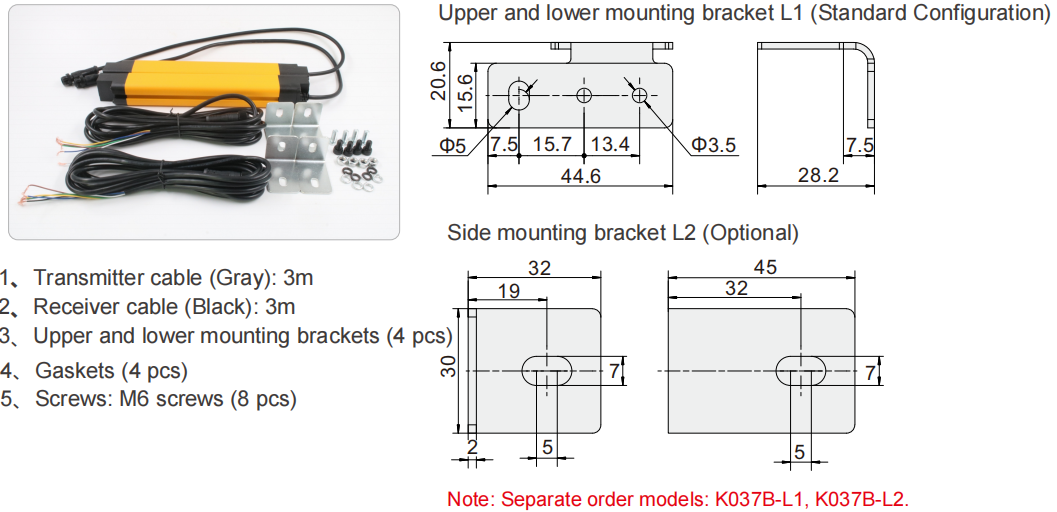

Accessories

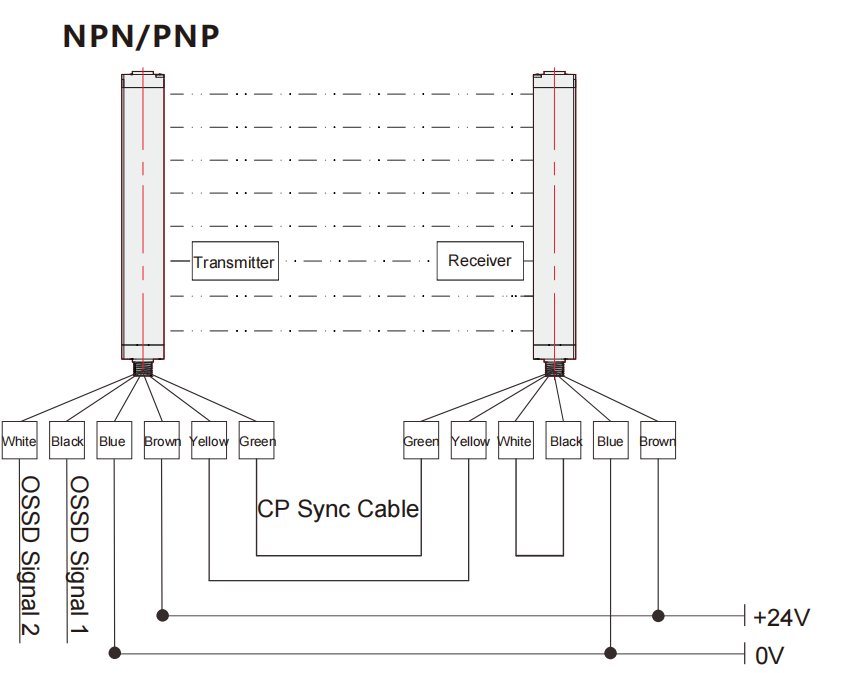

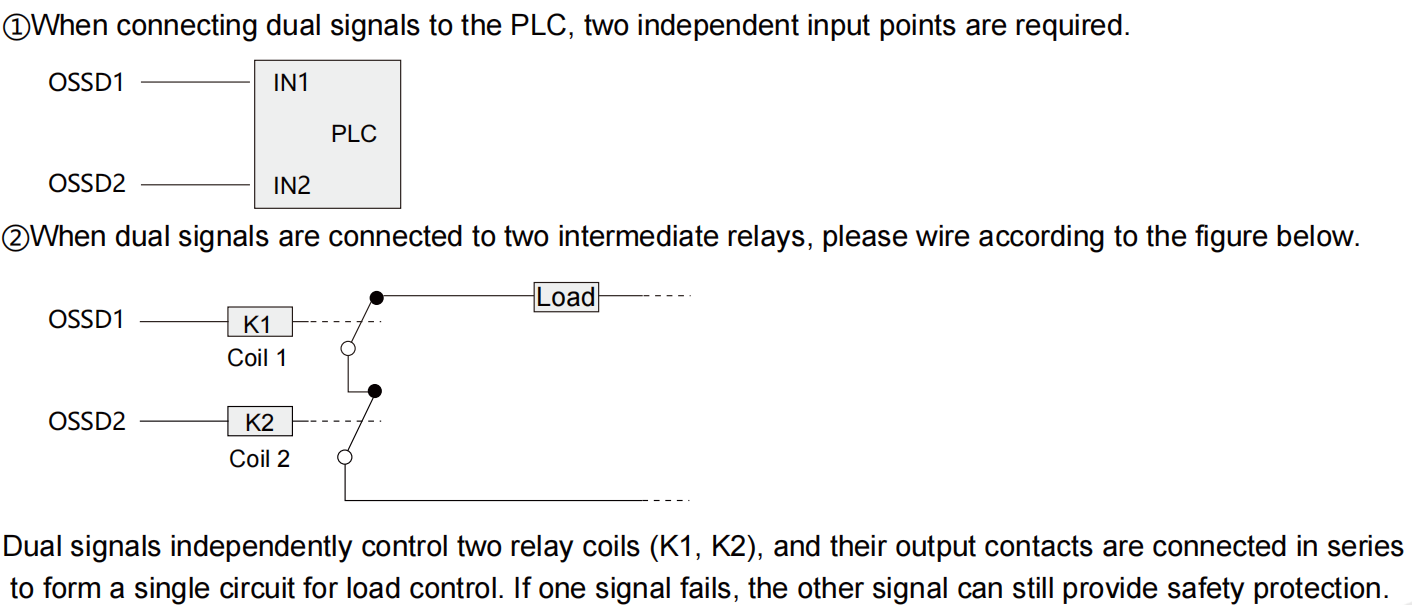

Wiring diagram


Specifications
| Name | Light screen (Level 4Certification) | |||
| Security Level | Type4 | Insulation Resistance | ≥100MΩ | |
| Wire Cross-sectional Area | 30×30mm | Response time | ≤10ms | |
| Channel Quantity | Dual Channel | Synchronization Performance | Wired Synchronization | |
| Number of Optical Axes | 8, 10, 12, 14 axes…… | Protection Rating | IP65 | |
| Protection Height | Protection height:H=(N−1)× Optical Axis Spacing Nstands for the number of optical axes. | Operating temperature | -10~+55℃ | |
| Protection distance* | 0.2~4M | Ambient temperature | -40~+70℃ | |
| Optical axis spacing | 10mm/20mm/40mm | Relative humidity | 35%RH~85%RH | |
| Power | 3~8W | Anti-light Interference | 1000Lux | |
| Power supply | 24V±10% | Circuit Protection | Reverse Polarity Protection/Output Short-circuit Protection, Dual-circuit Control System, Self-diagnosis and fault detection etc | |
| Output Mode | NPN/PNP | Light curtain form | Through-beam | |
Model Selection Table
Optical axis spacing: 10mm (Protection distance: 0.2~4m)
| Optical Axis Pitch | 10mm | |||||||||||||||||
| Number of Optical Axes | 14 axes | 16 axes | 18 axes | 20 axes | 22 axes | 24 axes | 26 axes | 28 axes | 30 axes | 32 axes | 34 axes | 36 axes | 38 axes | 40 axes | 42 axes | 44 axes | 46 axes | 48 axes |
| Protection Height (mm) | 130 | 150 | 170 | 190 | 210 | 230 | 250 | 270 | 290 | 310 | 330 | 350 | 370 | 390 | 410 | 430 | 450 | 470 |
| Overall Height of Light Curtain (mm) | 146 | 166 | 186 | 206 | 226 | 246 | 266 | 286 | 306 | 326 | 346 | 366 | 386 | 406 | 426 | 446 | 466 | 486 |
| Optical Axis Pitch | 10mm | |||||||||||||||||
| Number of Optical Axes | 50 axes | 52 axes | 54 axes | 56 axes | 58 axes | 60 axes | 62 axes | 64 axes | 66 axes | 68 axes | 70 axes | 72 axes | 74 axes | 76 axes | 78 axes | 80 v | … | 98 axes |
| Protection Height (mm) | 490 | 510 | 530 | 550 | 570 | 590 | 610 | 630 | 650 | 670 | 690 | 710 | 730 | 750 | 770 | 790 | … | 970 |
| Overall Height of Light Curtain (mm) | 506 | 526 | 546 | 566 | 586 | 606 | 626 | 646 | 666 | 686 | 706 | 726 | 746 | 766 | 786 | 806 | … | 986 |
Optical axis spacing: 20mm (Protection distance: 0.2~4m)
| Optical Axis Pitch | 20mm | |||||||||||||||||
| Number of Optical Axes | 8 axes | 10 axes | 12 axes | 14 axes | 16 axes | 18 axes | 20 axes | 22 axes | 24 axes | 26 axes | 28 axes | 30 axes | 32 axes | 34 axes | 36 axes | 38 axes | 40 axes | 42 axes |
| Protection Height (mm) | 140 | 180 | 220 | 260 | 300 | 340 | 380 | 420 | 460 | 500 | 540 | 580 | 620 | 660 | 700 | 740 | 780 | 820 |
| Overall Height of Light Curtain (mm) | 166 | 206 | 246 | 286 | 326 | 366 | 406 | 446 | 486 | 526 | 566 | 606 | 646 | 686 | 726 | 766 | 806 | 846 |
| Optical Axis Pitch | 20mm | |||||||||||||||||
| Number of Optical Axes | 44 axes | 46 axes | 48 axes | 50 axes | 52 axes | 54 axes | 56 axes | 58 axes | 60 axes | 62 axes | 64 axes | 66 axes | 68 axes | 70 axes | 72 axes | 74 axes | … | 98 axes |
| Protection Height (mm) | 860 | 900 | 940 | 980 | 1020 | 1060 | 1100 | 1140 | 1180 | 1220 | 1260 | 1300 | 1340 | 1380 | 1420 | 1460 | … | 1940 |
| Overall Height of Light Curtain (mm) | 886 | 926 | 966 | 1006 | 1046 | 1086 | 1126 | 1166 | 1206 | 1246 | 1286 | 1326 | 1366 | 1406 | 1446 | 1486 | … | 1966 |
Optical axis spacing: 40mm (Protection distance: 0.2~4m)
| Optical Axis Pitch | 40mm | ||||||||||||||||
| Number of Optical Axes | 8 axes | 10 axes | 12 axes | 14 axes | 16 axes | 18 axes | 20 axes | 22 axes | 24 axes | 26 axes | 28 axes | 30 axes | 32 axes | 34 axes | 36 axes | 38 axes | 40 axes |
| Protection Height (mm) | 280 | 360 | 440 | 520 | 600 | 680 | 760 | 840 | 920 | 1000 | 1080 | 1160 | 1240 | 1320 | 1400 | 1480 | 1560 |
| Overall Height of Light Curtain (mm) | 326 | 406 | 486 | 566 | 646 | 726 | 806 | 886 | 966 | 1046 | 1126 | 1206 | 1286 | 1366 | 1446 | 1526 | 1606 |
| Optical Axis Pitch | 40mm | ||||||||||||||||
| Number of Optical Axes | 42 axes | 44 axes | 46 axes | 48 axes | 50 axes | 52 axes | 54 axes | 56 axes | 58 axes | 60 axes | 62 axes | 64 axes | 66 axes | 68 axes | 70 axes | 72 axes | 74 axes |
| Protection Height (mm) | 1640 | 1720 | 1800 | 1880 | 1960 | 2040 | 2120 | 2200 | 2280 | 2360 | 2440 | 2520 | 2600 | 2680 | 2760 | 2840 | 2920 |
| Overall Height of Light Curtain (mm) | 1686 | 1766 | 1846 | 1926 | 2006 | 2086 | 2166 | 2246 | 2326 | 2406 | 2486 | 2566 | 2646 | 2726 | 2806 | 2886 | 2966 |
