About selection

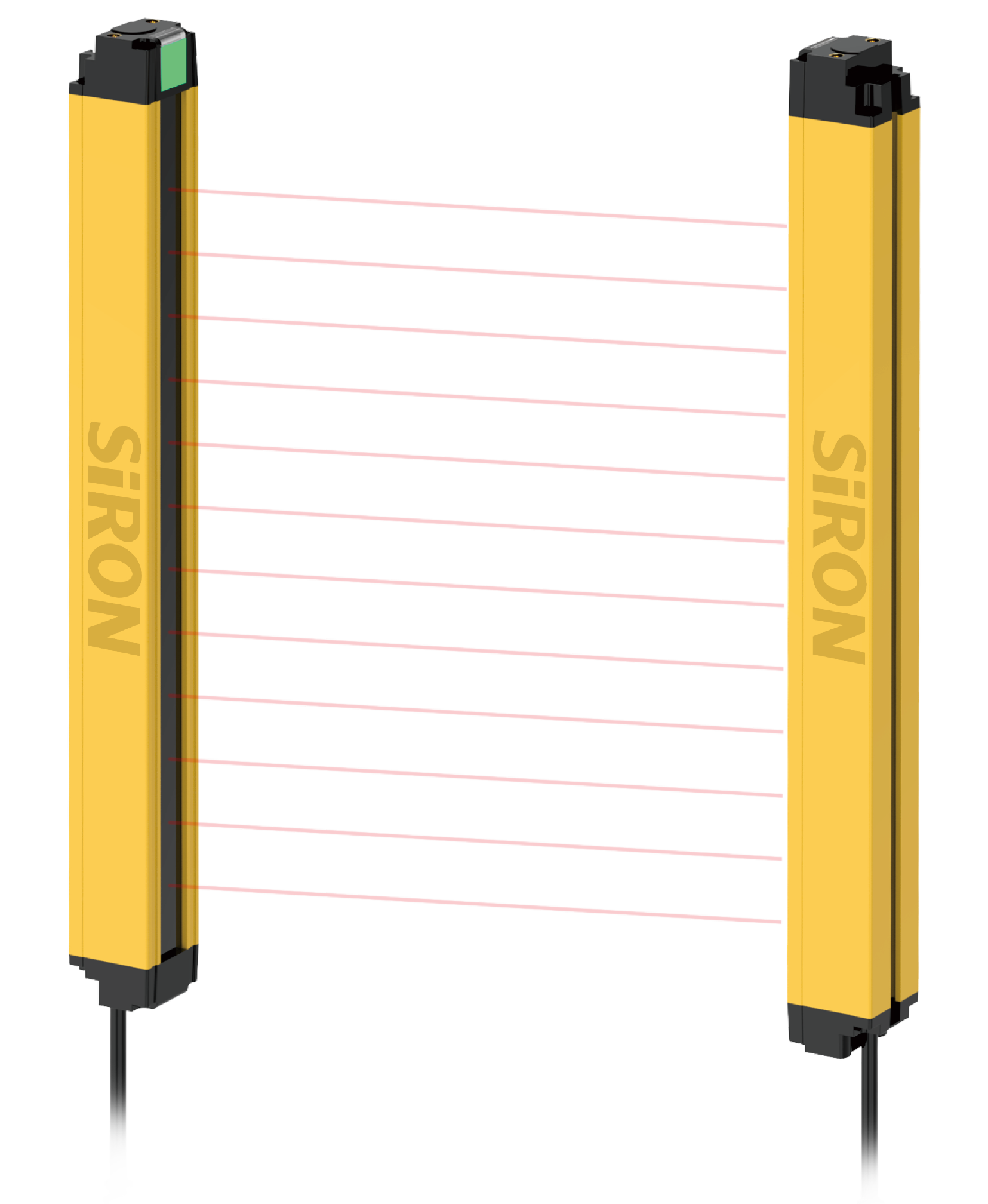

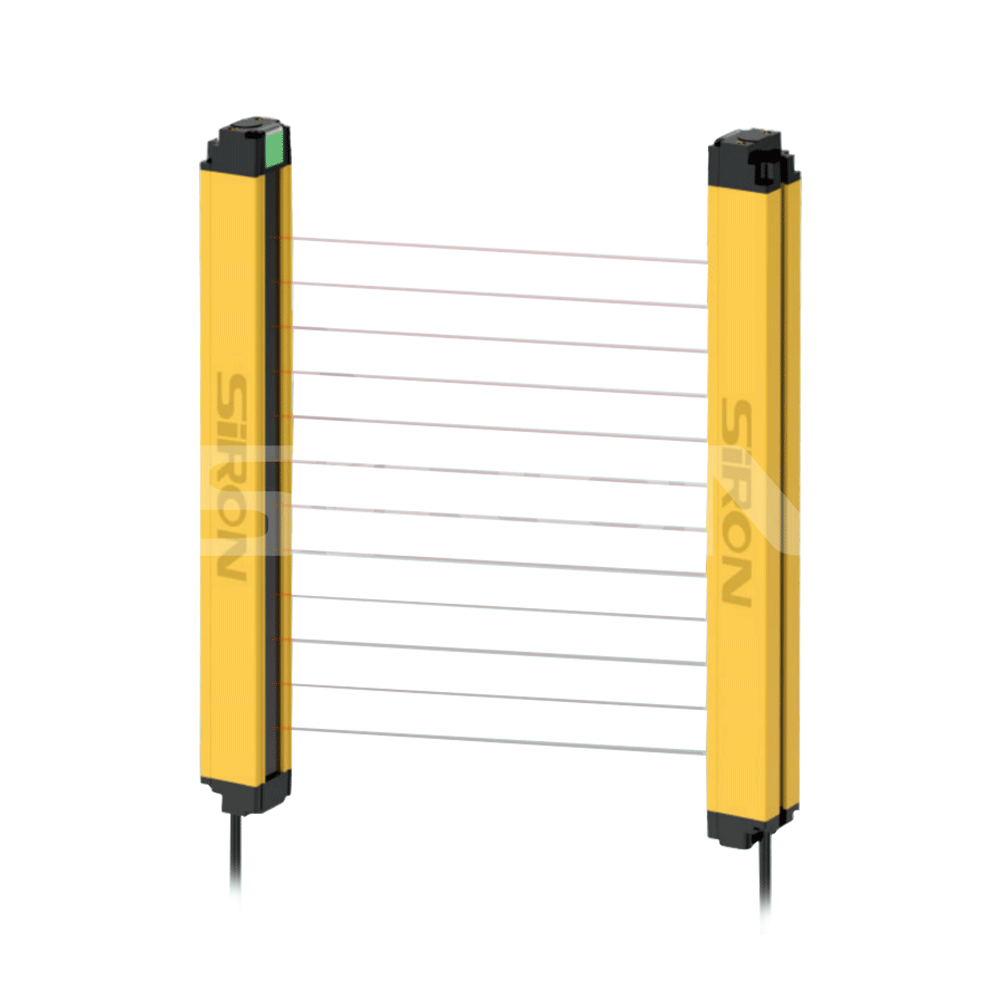

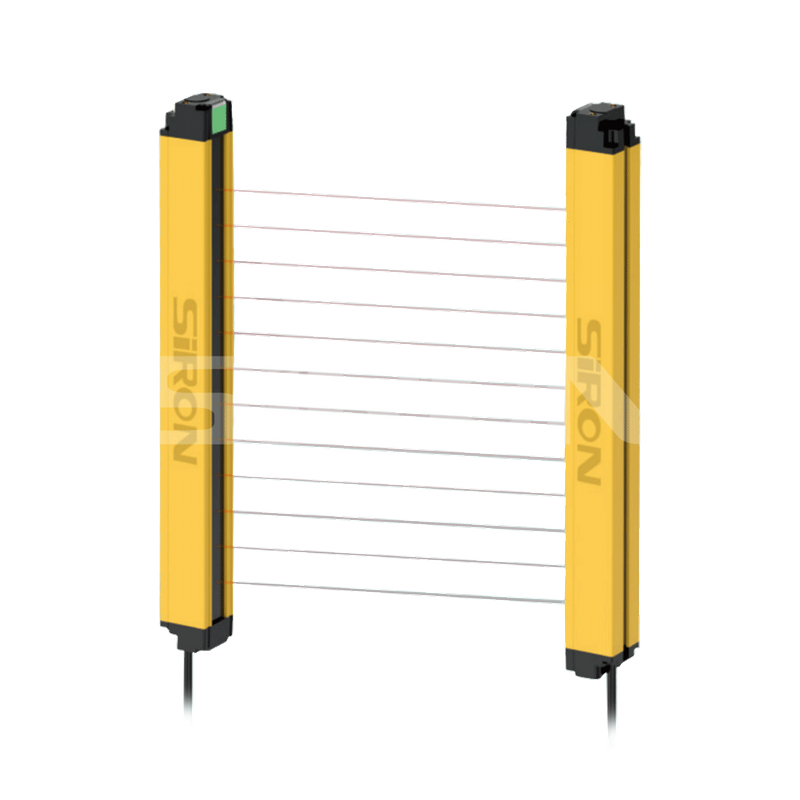

Ultra-thin Light Curtain (Side Detection) Series | K033E |
Number of optical axes | 4: 4 axes, 6: 6 axes, 8: 8 axes |
Optical Axis Pitch | 10:10mm 20:20mm 40:40mm |
Output Mode | Blank: NPN Output |
Operating Status | Blank: Normally Closed |
Synchronization Mode | Blank: Line Synchronization |
Protection Distance | D1:0~1m D3:1~3m D5:1~5m D7:1~7m |

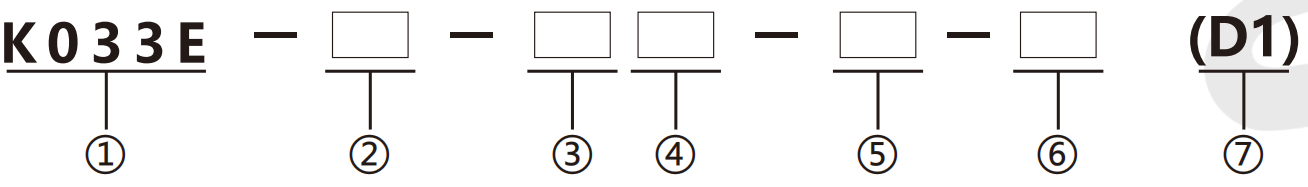

Model Selection Example:
K033E-8-10(D1) refers to the K033E series, with 8 optical axes, 10 mm optical axis pitch, NPN output, normally closed state, line synchronization, and a protection distance of 1 meter.
K033E-8-10NP-NO-G(D7) refers to the K033E series, with 8 optical axes, 10 mm optical axis pitch, NPN+PNP dual output, normally open state, optical synchronization, and a protection distance of 7 meters.
Note:
For line synchronization, either NPN or PNP output is optional; optical synchronization only supports NPN+PNP dual output.

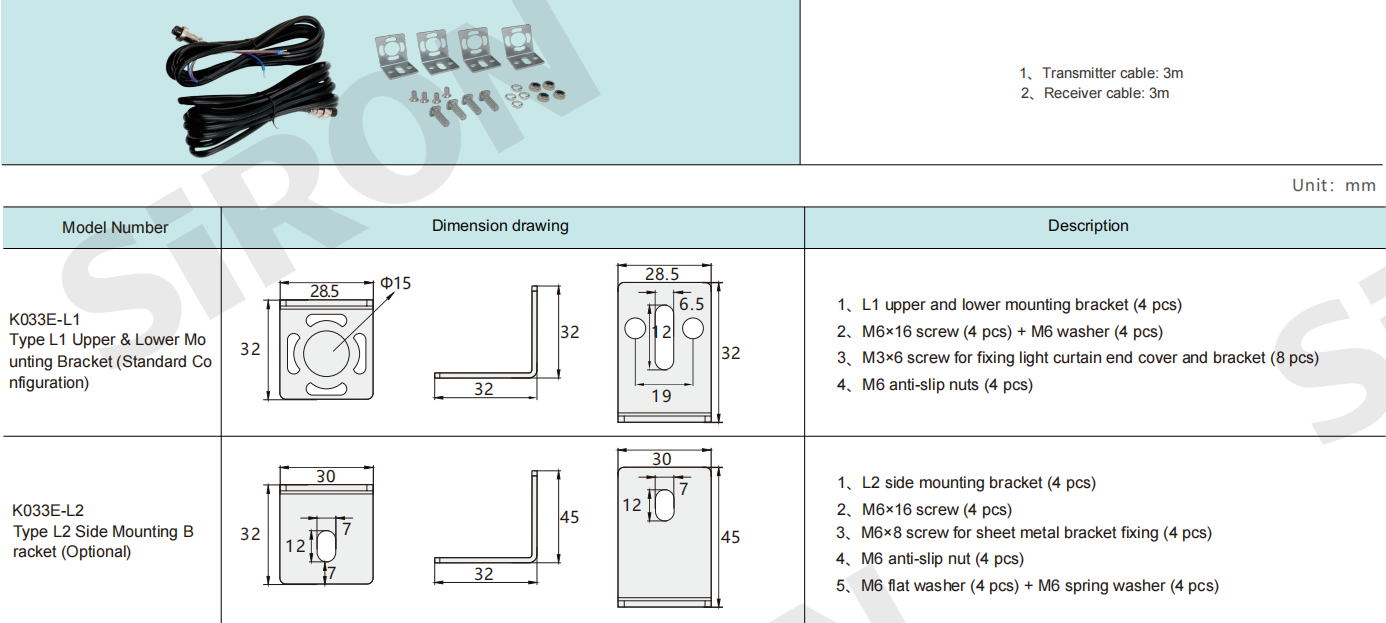

When purchasing brackets separately, the ordering models are: K033E-L1, K033E-L2.
Example

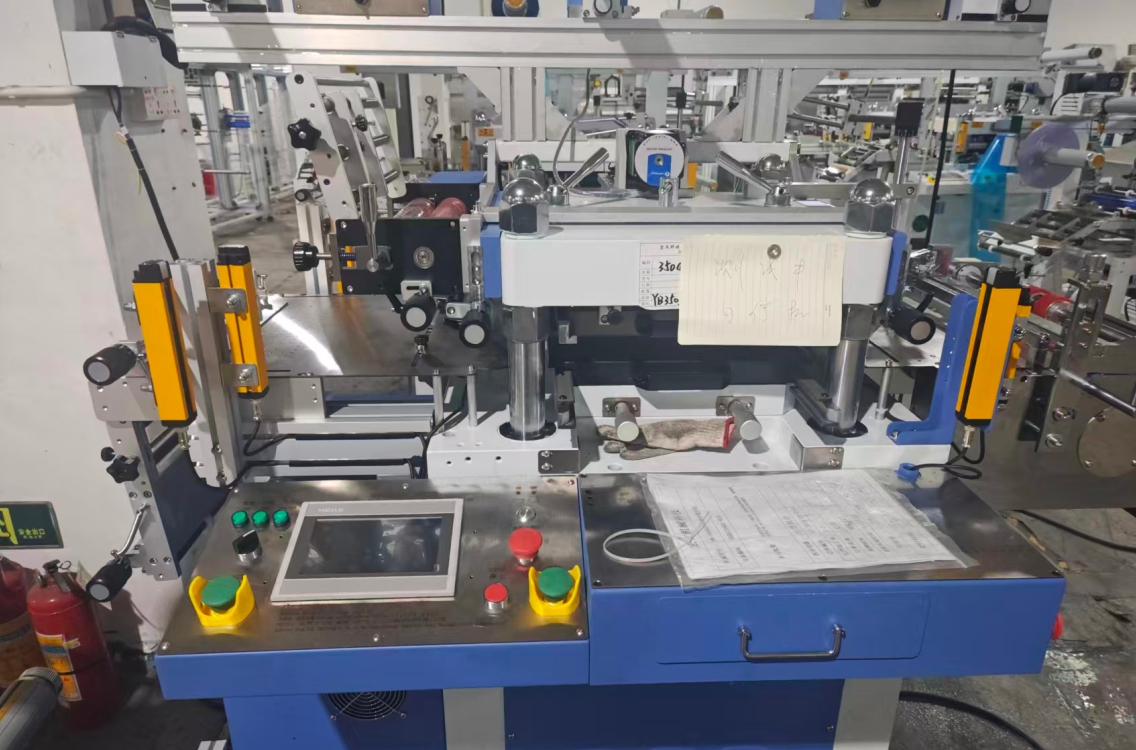

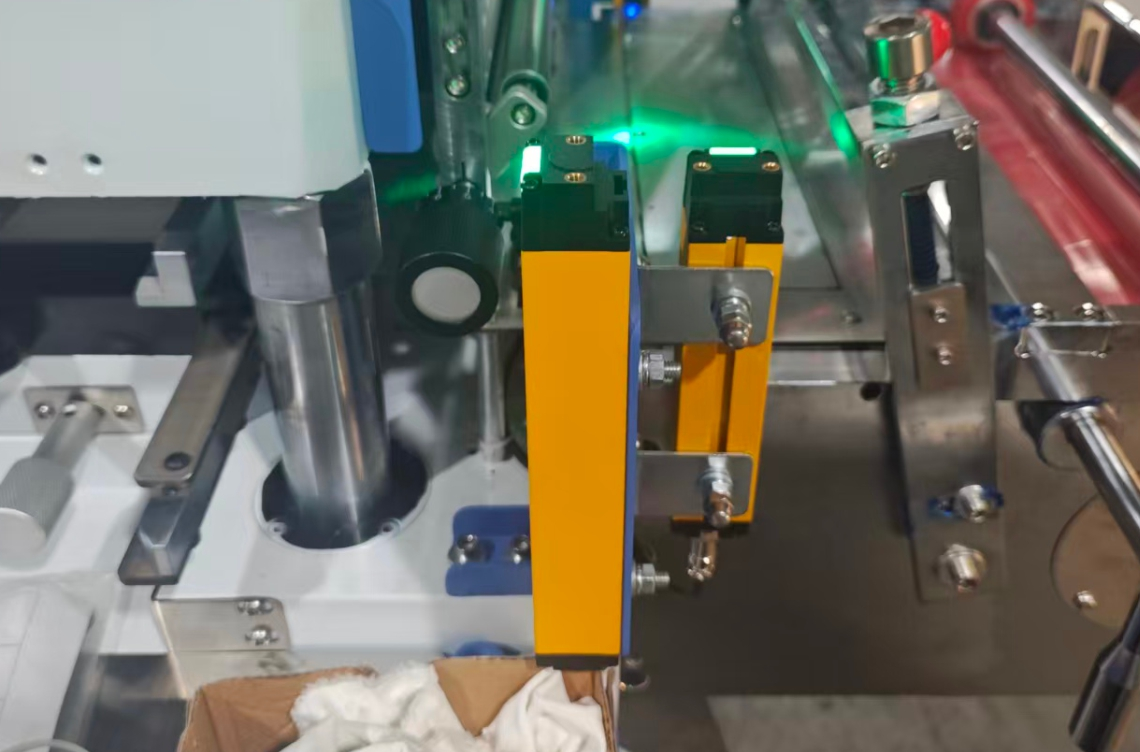

Die-cutting machine application

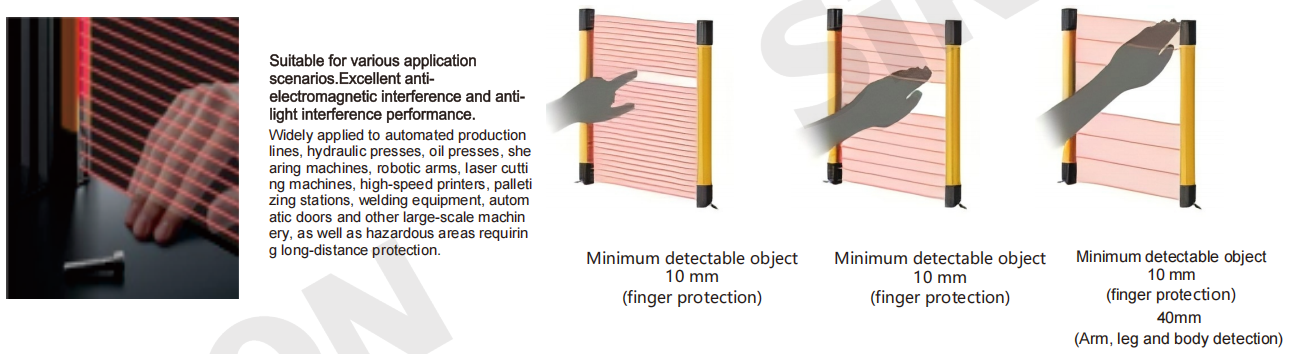

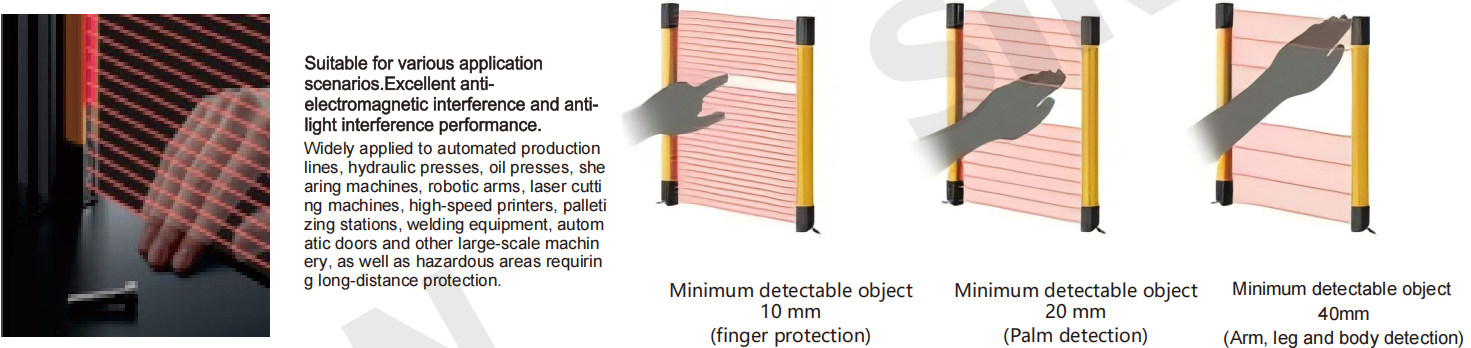

Schematic diagram of optical axis spacing

Specification parameter
| Name | Mini optical curtain |
| Cross-sectional Area | 29×30mm |
| Channel Quantity | Single Channel |
| Number of Optical Axes | 4, 6, 8, 10, 12 axes...... |
| Protection Height | Optical axis pitch × (Number of optical axes - 1) |
| Protection Distance | 0.2~7M |
| Optical Axis Pitch | 10mm/20mm/40mm |
| Operating Power Supply | 24V±10% |
| Power | 3~8W |
| Circuit Protection | Reverse connection protection / Output short-circuit protection |
| Response Time | ≤10ms |
| Operating Temperature | -10~+55℃ |
| Storage Temperature | -40~+70℃ |
| Operating Humidity | 35%RH~85%RH |
| Insulation Resistance | ≥100MQ |
| Signal Output | NPN/PNP |
| Anti-light Interference | 10000Lux |
| Synchronization Mode | Line Synchronization / Optical Synchronization |
| Ingress Protection (IP Rating) | IP65 |
Selection list
| Optical Axis Pitch | 10mm | |||||||||||||||||||||||
| Number of Optical Axes | 6 axes | 8 axes | 10 axes | 12 axes | 14 axes | 16 axes | 18 axes | 20 axes | 22 axes | 24 axes | 26 axes | 28 axes | 30 axes | 32 axes | ||||||||||
| Protection Height | 50 | 70 | 90 | 110 | 130 | 150 | 170 | 190 | 210 | 230 | 250 | 270 | 290 | 310 | ||||||||||
| Overall Height of Light Curtain(mm) | 95 | 115 | 135 | 155 | 175 | 195 | 215 | 235 | 255 | 275 | 295 | 315 | 335 | 355 | ||||||||||
| Optical Axis Pitch | 10mm | |||||||||||||||||||||||
| Number of Optical Axes | 34 axes | 36 axes | 38 axes | 40 axes | 42 axes | 44 axes | 46 axes | 48 axes | 50 axes | 52 axes | 54 axes | 56 axes | 58 axes | 60 axes | ||||||||||
| Protection Height | 330 | 350 | 370 | 390 | 410 | 430 | 450 | 470 | 490 | 510 | 530 | 550 | 570 | 590 | ||||||||||
| Overall Height of Light Curtain(mm) | 375 | 395 | 415 | 435 | 455 | 475 | 495 | 515 | 535 | 555 | 575 | 595 | 615 | 635 | ||||||||||
| Optical axis spacing is 20mm(protection distance:(0.2~7m) | ||||||||||||||||||||||||
| Optical Axis Pitch | 20mm | |||||||||||||||||||||||
| Number of Optical Axes | 4 axes | 6 axes | 8 axes | 10 axes | 12 axes | 14 axes | 16 axes | 18 axes | 20 axes | 22 axes | 24 axes | 26 axes | 28 axes | 30 axes | ||||||||||
| Protection Height | 70 | 100 | 140 | 180 | 220 | 260 | 300 | 340 | 380 | 420 | 460 | 500 | 540 | 580 | ||||||||||
| Overall Height of Light Curtain(mm) | 115 | 155 | 195 | 235 | 275 | 315 | 355 | 395 | 435 | 475 | 515 | 555 | 595 | 635 | ||||||||||
| Optical Axis Pitch | 20mm | |||||||||||||||||||||||
| Number of Optical Axes | 32 axes | 34 axes | 36 axes | 38 axes | 40 axes | 42 axes | 44 axes | 46 axes | 48 axes | 50 axes | 52 axes | 54 axes | 56 axes | 58 axes | 60 axes | |||||||||
| Protection Height | 620 | 660 | 700 | 740 | 780 | 820 | 860 | 900 | 940 | 980 | 1020 | 1060 | 1100 | 1140 | 1180 | |||||||||
| Overall Height of Light Curtain(mm) | 675 | 715 | 755 | 795 | 835 | 875 | 915 | 955 | 995 | 1035 | 1075 | 1115 | 1155 | 1195 | 1235 | |||||||||
| Optical axis spacing is40mm(protection distance: (0.2-7m) | ||||||||||||||||||||||||
| Optical Axis Pitch | 40mm | |||||||||||||||||||||||
| Number of Optical Axes | 4 axes | 6 axes | 8 axes | 10 axes | 12 axes | 14 axes | 16 axes | 18 axes | 20 axes | 22 axes | 24 axes | 26 axes | 28 axes | 30 axes | ||||||||||
| Protection Height | 120 | 200 | 280 | 360 | 440 | 520 | 600 | 680 | 760 | 840 | 920 | 1000 | 1080 | 1160 | ||||||||||
| Overall Height of Light Curtain(mm) | 195 | 275 | 355 | 435 | 515 | 595 | 675 | 755 | 835 | 915 | 995 | 1075 | 1155 | 1235 | ||||||||||
| Optical Axis Pitch | 40mm | |||||||||||||||||||||||
| Number of Optical Axes | 32 axes | 34 axes | 36 axes | 38 axes | 40 axes | 42 axes | 44 axes | 46 axes | 48 axes | 50 axes | 52 axes | 54 axes | 56 axes | 58 axes | 60 axes | |||||||||
| Protection Height | 1240 | 1320 | 1400 | 1480 | 1560 | 1640 | 1720 | 1800 | 1880 | 1960 | 2040 | 2120 | 2200 | 2280 | 2360 | |||||||||
| Overall Height of Light Curtain(mm) | 1315 | 1395 | 1475 | 1555 | 1635 | 1715 | 1795 | 1875 | 1955 | 2035 | 2115 | 2195 | 2275 | 2355 | 2435 | |||||||||
Attachment

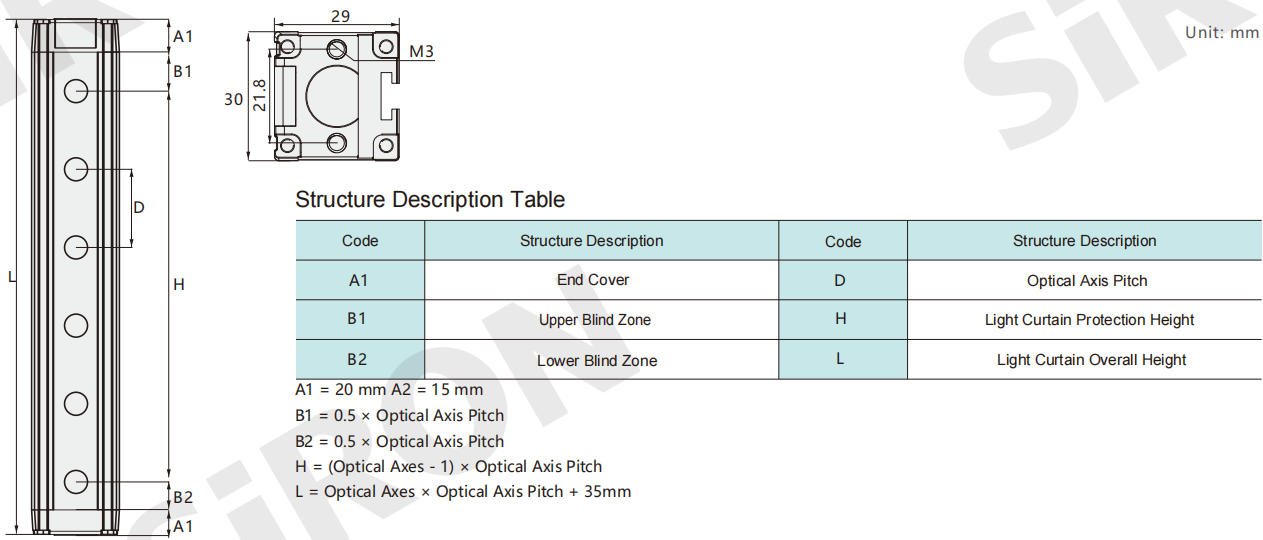

Outline Drawing

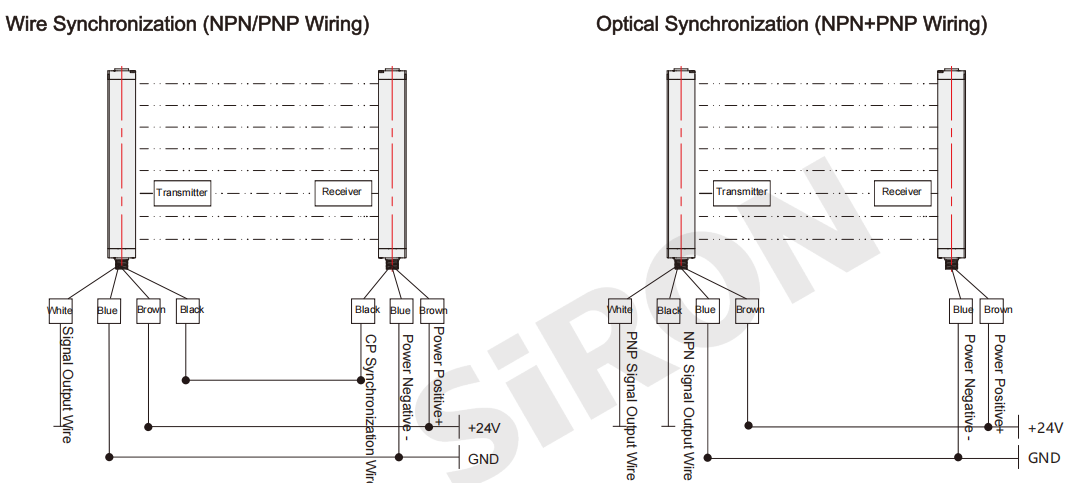

Wiring diagram
