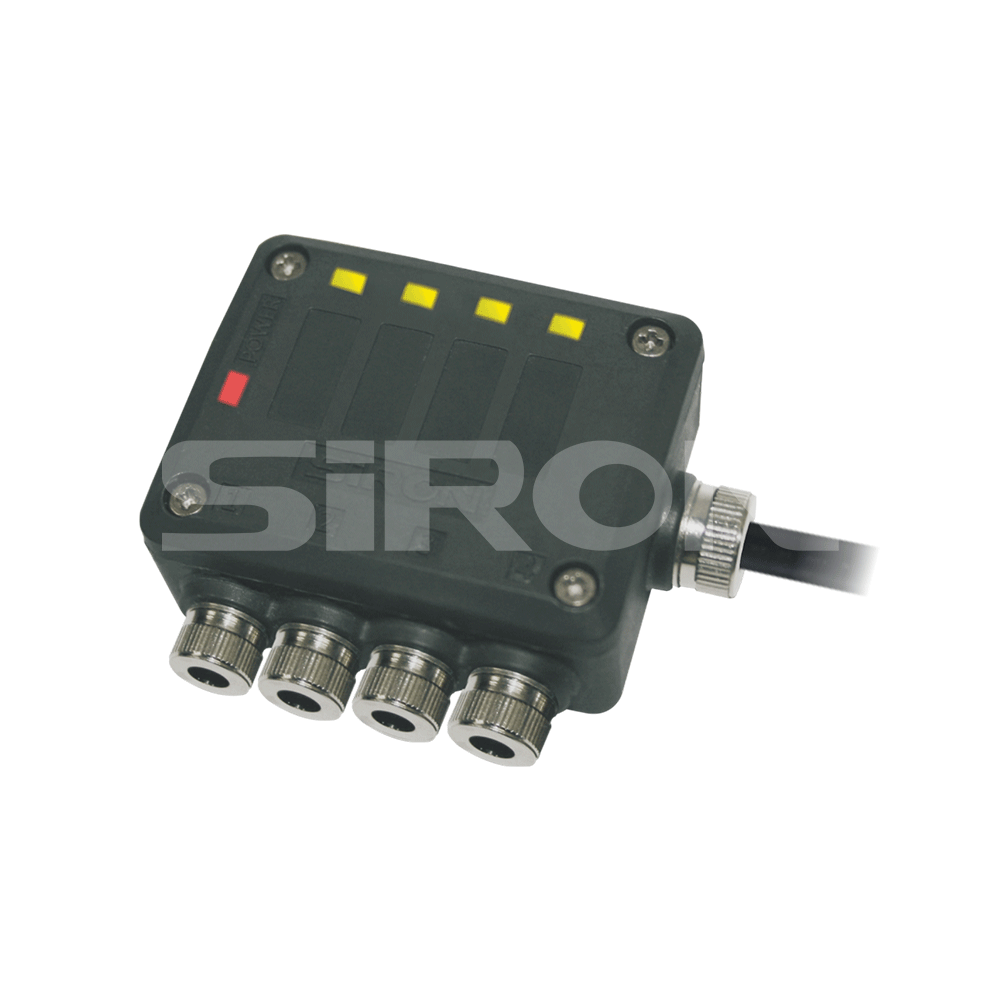

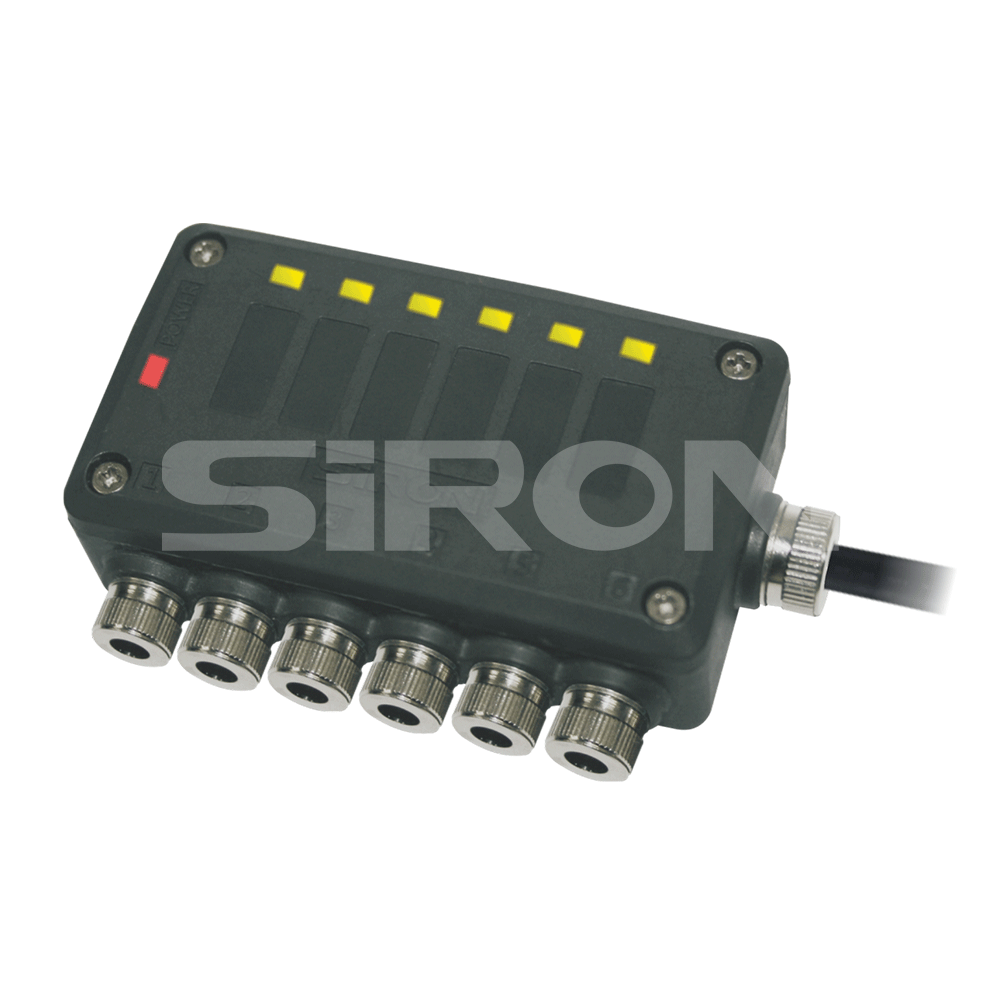

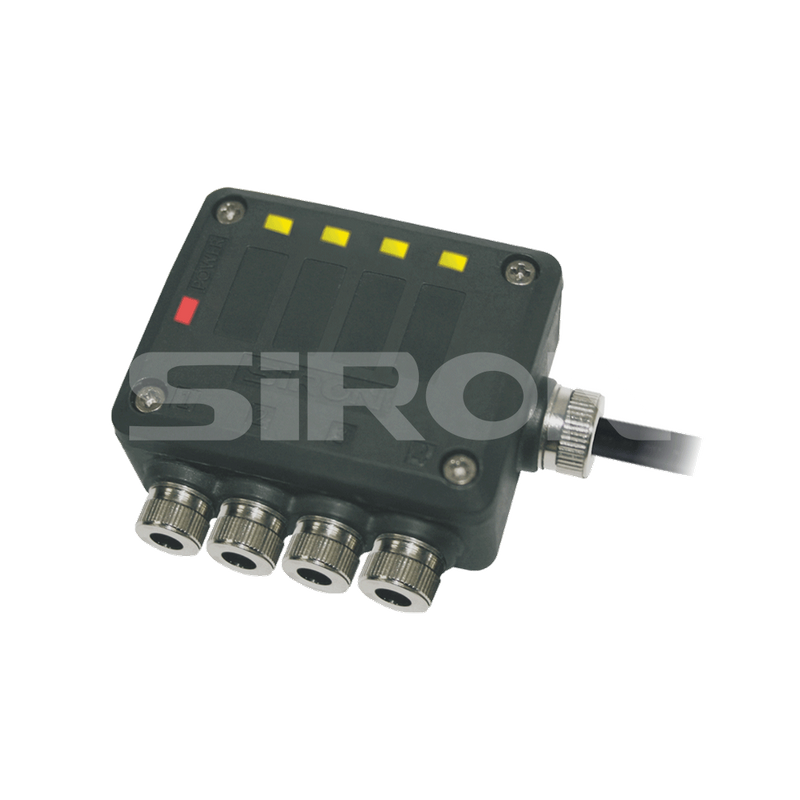

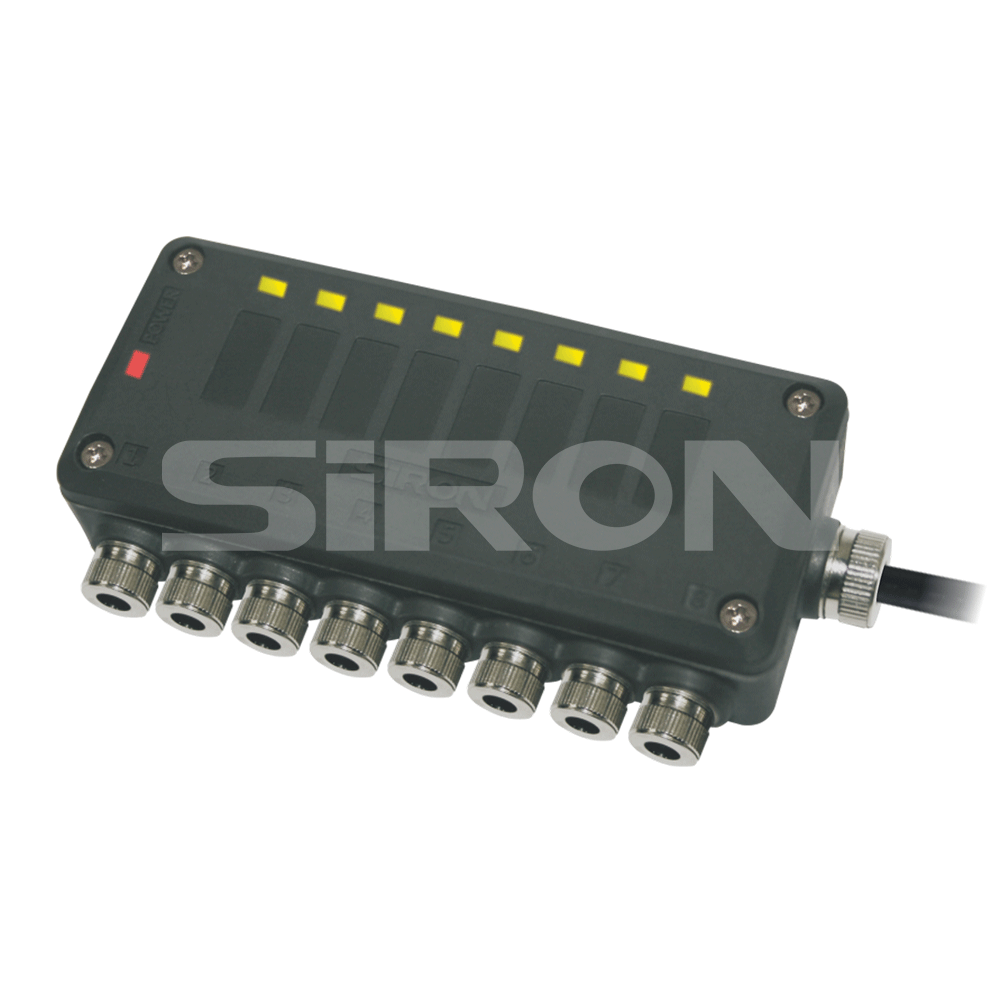

SiRON H420 Series NPN/PNP MINI Waterproof Junction Box

Name: SiRON H420 Series NPN/PNP MINI Waterproof Junction Box
Brand: SiRON
Rating: 5.0 (74 reviews)

Features

The minimal size, waterproof level can reach IP67，Can support various installation methods, convenient and quick.
Sensor without special connector, LED lamp instant display working state, simple and intuitive.
NPN and PNP bipolar swappable.NPN - green light;PNP - ared light.
To the corresponding sensor cable size for:Φ2 3~Φ4 0(mm).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H420
Brand:
SiRON
Code:
8538900000

H420 waterproof junction box NPN/PNP Junction Box Mini type 4/6/8Pin waterproof junction box

Product Description

Order

Model		Cable Length
H420-4		3000mm ※

Note :

* Other lengths include :5000mm, 7000mm, 10000mm

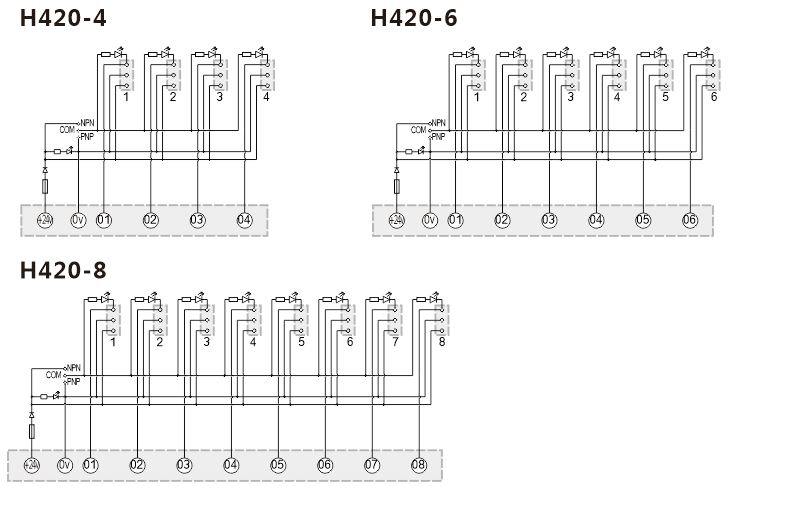

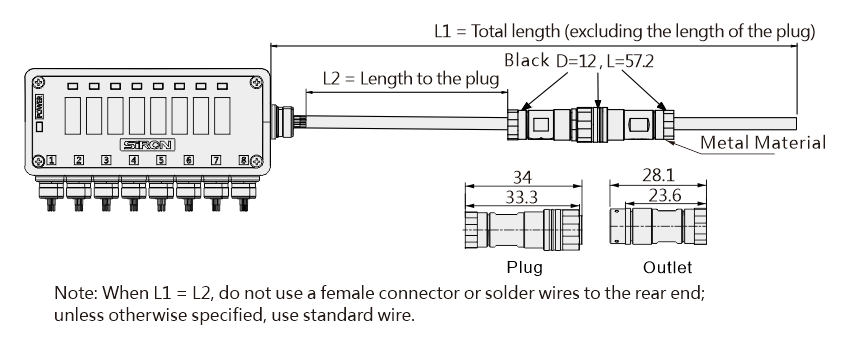

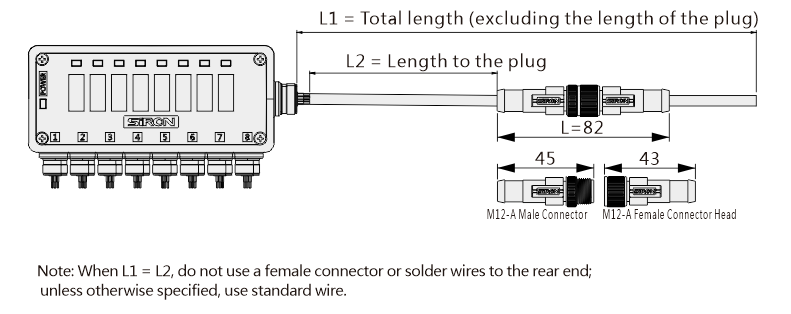

* "With a mating plug; The line length is 3000/100, L1=3000. L2=100(wiring diagram)

* The above is the standard cable model. If you need to use high-flexibility wire, please add "T" after the model. For details, please consult the relevant salesperson

Type selection reference

Model	H420-4	H420-6	H420-8	H420-4/6/8F	H420-4/6/8WF
Name	Mini type 4-bit waterproof junction box	Mini type 6-bit waterproof junction box	Mini 8-bit waterproof junction box	Mini type 4/6/8-bit waterproof junction box

Specifications

Input	Nominal operating current	1A
	Nominal coil voltage	DC24V
Operating temperature		90℃~100℃
Bending parameters of tow chain line		≥10 million times(Radius:≥10 OD;Travel:≤2m;Speed:≤2m/s)
Shell		ABS + PC material
