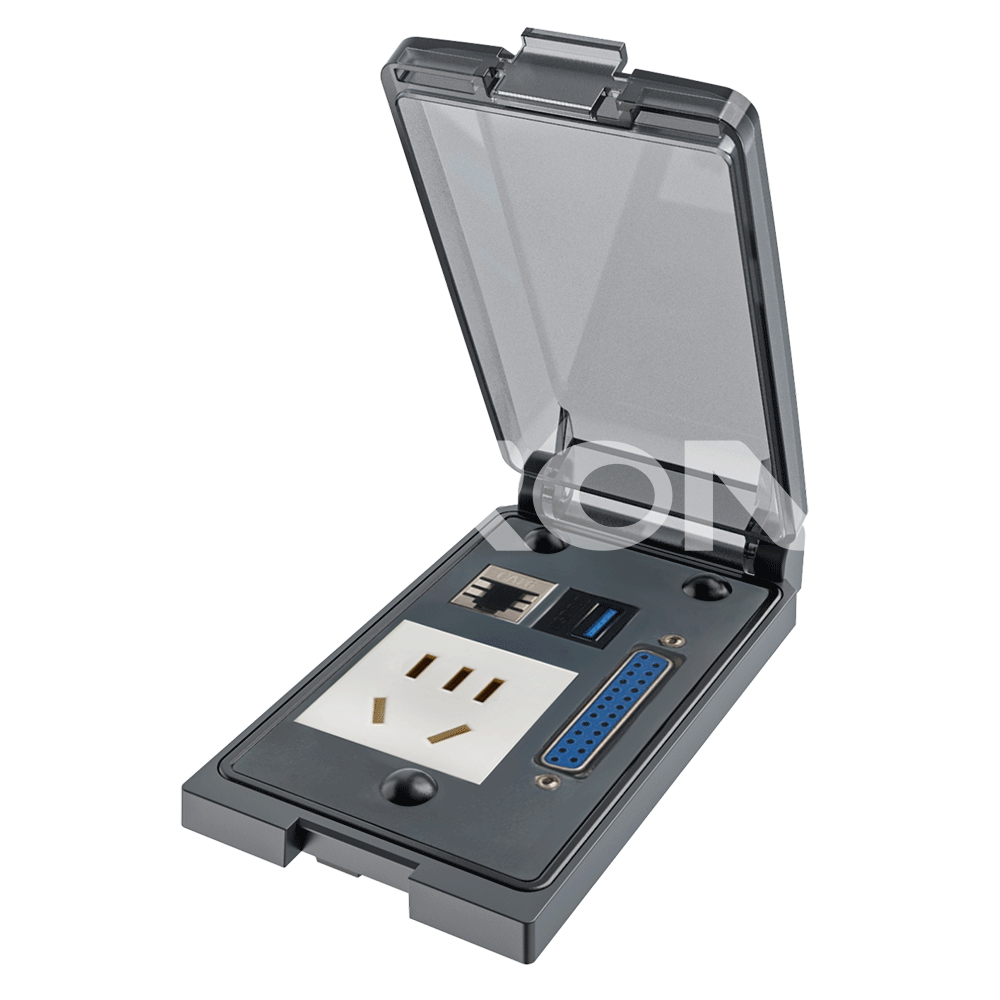

SiRON H410-4 Series PC Protective panel box

Name: SiRON H410-4 Series PC Protective panel box
Brand: SiRON
Rating: 5.0 (69 reviews)

Features

Adopt high quality PC flame retardant polycarbonate material;
Built-in holding type dust protection cover;
Combined structure design;
Wide range of use;
Easyinstallation and maintenance;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H410-4
Brand:
SiRON
Code:
8538900000

H410-4 Protective panel box Protective communication panel

Product Description

Order

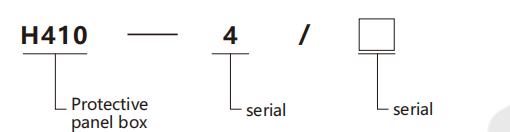

Selection example: H410-4/1 indicates the H410 model, 4 series number, and 1 serial number

Note: The D-SUB connector is by default female to female (except for H410-4/4). If you want to use female to male, customization is available. Please consult and confirm before placing an order.

By default, D-SUB-25 in H410-4/4 is a male-to-female connection

Specification parameter

Name	Protective communication panel
Model	H410-4	H410-4/1	H410-4/2	H410-4/3	H410-4/4	H410-4/5

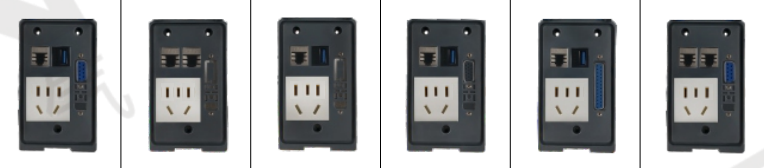

Appearance
Power socket	1 0 A National standard 5-hole
RJ45 network port	1	2	1	1	1	2
USB interface	1	一	1	1	1	一
D-SUB	D-SUB-9 double row	一	一	D-SUB-15 triplex row	D-SUB-25 double row	D-SUB-9 double row
Rated voltage	250V
Fit core	Φ0.8mm-Φ3.8mm
Wire hole	Φ2.5mm
Stripping length	15~18mm
Material	PC
Waterproofing class	IP54
Service temperature	-5..+55℃
Storage temperature	-20..+60℃
