SiRON D010-3 Series LED Machine Tool Warning Light

Name: SiRON D010-3 Series LED Machine Tool Warning Light
Brand: SiRON
Rating: 5.0 (4 reviews)

Features:

*New appearance, silver texture. High light transmission high strength bullet-proof PC lamp shade.

*Built-in buzzer up to 85 dB or more. The sound is loud and not harsh.

*Easy to install. Reasonable structure and convenient transportation.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

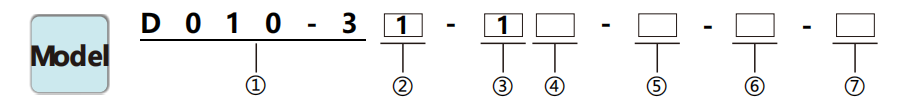

Model analysis
①	LED machine tool warning light series	D010-3
②	Installation mode	1: uprighttype 2: L-shapedbracket
③	Color selection (Articles made to order）	1: Thefirstlayer
④	Color selection（Articles made to order）	R: Red Y: yellow G: green (colororderfromtoptobottom)
⑤	Working condition	Blank: Alwayson B: Always onwithbuzzer S: Flashing Q: Flashingwithbuzzer
⑥	Connection mode	Blank: commonpositive/negativeUniversal C: contacttype
⑦	Rated voltage	Blank：24VDC 220：220VAC

Specifications

Appearance/Body color	Appearance:Mitsubishi column design light body color:silver
Input voltage/lnput current	Input voltage:24V DC/220V AC Input current:80~260mA
The material	Lamp shade PC(bulletproof glue)+lamp body ABS(silver surface treatment)+aluminum base
Power	Monochrome 0.7~2.0W,total power is less than 6W
Lhigt source/Luminous angle	Light source:Patch 2835 LED,0.2W/pcs luminous Angle:single lamp 120°light,the whole lamp 360°visible
Sound intensity	Buzzer>85 dB
Color layer	Single layer 3 color
Class of protection	IP40
Working condition	Always on /Always on with buzzer/Flashing/Flashing with buzzer
Installation mode	Upright/L-shaped support
Service life	50000h
Standard wiring length	1500mm
Connection mode	Direct power input type (common positive/negative)/contact type
Operating temperature/Storage temperature	Operating temperature:-20~45℃ Storage temperature:-40~70℃
Operating humidity/Storage humidity	Operating humidity:10~90%Storage humidity:10~90%
Luminescent lamp source color	Red Yellow Green
