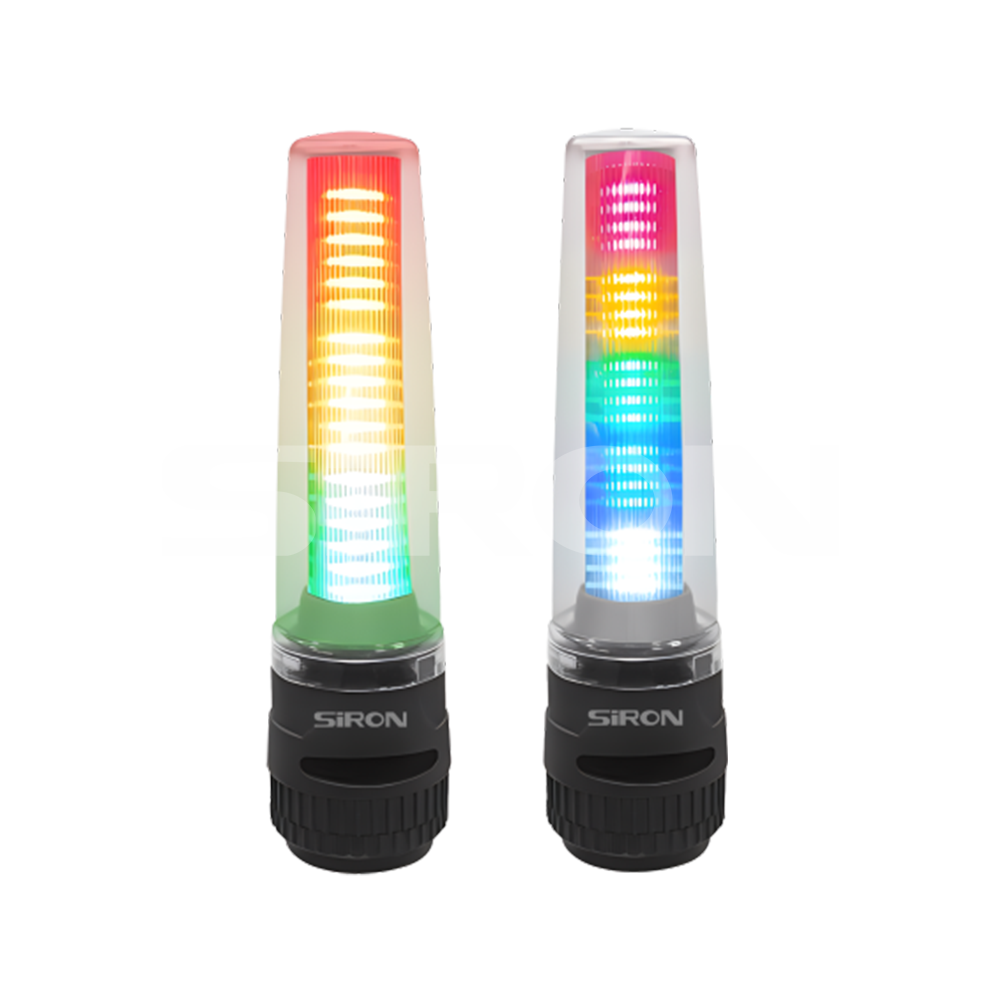

SiRON D010-1 Series Machine Tool Signal Light Highlight Light Beads

Name: SiRON D010-1 Series Machine Tool Signal Light Highlight Light Beads
Brand: SiRON
Rating: 5.0 (2 reviews)

Features:

*Tower design Transparent PC lampshade for a premium feel.

*Built-in buzzer up to 95 decibels The sound is loud and not harsh.

*Hidden folding mounting holes. Beautiful and unobtrusive

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION


Model analysis
①	LED machine tool warning light series	D010-1
②	Color layers（Acquiesce）	3：Threelayers（RYG） 5：Five-layer（RYGBW）
③	Color selection (Articles made to order）	R：Red Y：Yellow G：Green B：Blue W：white (Color order from top to bottom)
④	Working condition	Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer
⑤	Connection mode	Blank: commonpositive/negativeUniversal C: contacttype
⑥	Rated voltage	Blank：24VDC 220：220VAC

Specifications

Mode number	D010-1-3	D010-1-5
Appearance
Input voltage/lnput current	Input voltage:24V DC/220V AC Input Current:40~270mA
The material/Casecolor	Material:PC(bulletproof rubber)lamp shade,ABS lamp shell shell color:black
Power	Monochrome 1.0W,total power 6W
Lhigtsource/Luminous angle	Light source:Patch 2835 LED,0.2W/pcs luminous Angle:The whole lamp can be seen by 360°
Sound intensity/Class of protection	Sound intensity:Buzzer>95 dB Protection level:IP40
Color layer	Single layer 3 color/single layer 5 color
Working condition	Always on /Always on with buzzer/Flashing /Flashing with buzzer
Installation mode/Connection mode	Installation mode:Bending connection mode:direct power input type (positive/negative universal)/contact type
Service life/Standard wiring length	Service life:50000h Wiring length:1500mm
Operating temperature/Storage temperature	Operating temperature:-20~45℃ Storage temperature:-40~70℃
Operating humidity/Storage humidity	Operating humidity:10~90%Storage humidity:10~90%
Luminescent lamp source color	Red Yellow Green Blue White
