Engineers constantly battle restricted cabinet dimensions during system design. Routing vast amounts of data and power through minimal space creates immense friction. We often face physical constraints where packing more automation functionality into smaller enclosures becomes absolutely essential. Choosing a high-density Terminal block connector for industrial wiring is never a simple decision. It dictates field wiring speed. It influences long-term vibration resistance. It also fundamentally alters your thermal management strategy. You must weigh these interrelated factors carefully to ensure complete system reliability.
This guide comprehensively evaluates the technical trade-offs of high-density interconnects. We help you specify the exact right component for mission-critical automation frameworks or heavy-duty power distribution panels. You will learn how different termination technologies directly affect installation timelines. We also explore practical ways to navigate complex industry compliance standards effectively. Ultimately, you will gain the expertise needed to optimize your panel layouts without sacrificing safety.
Routing numerous signal lines through a single node presents a massive physical challenge. Modern PLCs and motor drives demand dense input/output configurations. Industry 4.0 integrations push sensor counts higher every year. Yet, the physical cabinet footprint rarely increases. This spatial mismatch forces us to consider ultra-compact connection solutions. You want to avoid creating a confusing, tangled wiring nest inside the panel. A messy panel severely delays future troubleshooting efforts. Maintenance teams struggle to trace individual circuits when wires overlap chaotically. We must deploy highly organized, miniature interconnects to keep panels legible.
You cannot ignore the strict physics of heat dissipation. Placing 40 active electrical connections in a minimized footprint generates severe localized thermal spikes. Closer pin spacing naturally reduces air convection between the internal conductors. Heat pools rapidly around the immediate contact points. Joule heating occurs whenever current flows through a microscopic resistance barrier. Excessive heat degrades wire insulation slowly over time. It also increases baseline contact resistance, which breeds even further heat generation. You must proactively engineer solutions around these thermal realities.
Industrial environments constantly expose panels to severe mechanical stress. Heavy motors, stamping presses, and CNC machines generate continuous, low-frequency vibrations. These vibrations translate directly into microscopic frictions at the wire connection point. Over time, these micro-frictions cause fretting corrosion. They physically wear away the protective tin or gold plating on the contact surface. They threaten long-term contact integrity. A poorly chosen terminal block will loosen drastically under these harsh conditions. Secure clamping mechanisms become mandatory to survive daily factory operations.
You must carefully balance raw electrical capacity against the available physical footprint. Compact designs intrinsically shrink the internal metal conductor mass. This reduction directly impacts acceptable voltage limits and maximum current thresholds. Always review the manufacturer derating curves carefully. A fully populated module behaves very differently than a single isolated contact. When you load adjacent pins continuously, the aggregate heat rise forces a severe drop in the maximum allowable current. You must calculate these thermal limits before finalizing your panel schematics.
Termination technology heavily influences overall project success. Each method carries unique mechanical traits. Technicians find traditional screw terminals familiar and universally accepted. However, they remain highly time-consuming to wire by hand. They also suffer from vibration loosening. Maintenance teams must perform periodic re-torquing schedules. We consider Push-in (PIT) or Spring Cage systems ideal for rapid assembly. You just insert a ferruled wire directly into the housing. They resist continuous industrial vibration exceptionally well. They carry a slightly higher upfront component cost but drastically reduce labor hours. IDC (Insulation Displacement) models offer maximum speed for delicate signal wiring. You skip the manual wire stripping process entirely. However, they limit you to highly specific wire types and thinner gauges.
We must outline the strict physical limitations of compact pitch sizes. Tighter pin spacing severely restricts your maximum wire thickness. You also face frustrating clearance issues around ferrule insulation collars. Always confirm standard American Wire Gauge (AWG) compatibility before ordering bulk parts. An incompatible, oversized ferrule collar will block the adjacent insertion pins completely. DIN 46228-4 standards dictate ferrule collar dimensions. Verify these dimensions against the connector datasheet. A square crimp profile often fits better into tight housings than a traditional hexagonal crimp.
| Termination Method | Installation Speed | Vibration Resistance | Primary Application |
|---|---|---|---|
| Screw Connection | Slow | Low to Medium | Legacy field retrofits |
| Push-in (PIT) | Very Fast | Excellent | High-vibration automation |
| Spring Cage | Fast | Excellent | Standard motor controls |
| IDC | Maximum | Good | Low-power signal sensors |
Denser wiring formats create an unavoidable engineering paradox. You save valuable rail space, but you sacrifice immediate accessibility. A tightly packed 40 pin configuration makes visual inspection difficult. Multimeter probing becomes a highly frustrating task. Technicians struggle to isolate specific contacts during live fault finding. Accidental short circuits happen frequently when thick probe tips slip off tiny metal parts. You must provide specialized, needle-tipped testing adapters for your maintenance staff.
Clear, redundant labeling systems remain an absolute necessity. Evaluate the availability of multi-level marking accessories early in the design phase. A high-density array only functions well if maintenance teams can identify circuits instantly. Relying on handwritten tags leads directly to disastrous troubleshooting errors. Always specify machine-printed, highly visible marker strips. Zack marker strips snap cleanly into most standard housings. They provide legible, permanent identification across all wire levels.
Proper cable management prevents premature mechanical failure. You must eliminate tension on the sensitive DIN rail mount. Heavy wire bundles exert significant torque on lightweight plastic housings. Unchecked torque eventually cracks the internal copper busbar.
Follow these structural best practices for layout routing:
These simple layout steps protect delicate internal components from catastrophic physical cracking.
Industrial components must meet rigid global safety standards. Certifications act as your baseline guarantee of safe operation. UL 1059 and IEC 60947-7-1 represent the mandatory frameworks globally. They dictate specific clearance distances, creepage limits, and baseline voltage ratings. Never specify uncertified, generic components for critical power panels. You risk catastrophic failure and invite severe legal liability. Always download and archive the official manufacturer compliance certificates.
Material flammability ratings demand strict engineering attention. Enclosure electrical fires destroy expensive automation equipment instantly. Specify UL 94 V-0 rated housing materials exclusively. Manufacturers typically use high-grade Polyamide (PA66) to cast these housings. This specialized plastic self-extinguishes within 10 seconds during vertical burn tests. It actively prevents flame propagation across the crowded panel. It also maintains excellent elasticity, which allows secure snap-on mounting.
Harsh industrial environments require exceptional chemical resilience. Establish baseline expectations for long-term corrosion resistance. Look for internal clamping bodies forged from tin-plated copper alloys. Tin plating actively prevents oxidation in humid, unconditioned factory environments. Operating temperature ranges should span safely from -40°C to +105°C. Extreme thermal cycling weakens inferior plastics over several years. A high-quality compact terminal withstands these massive temperature swings effortlessly.
Map your specific project requirements directly to distinct component features. Define clear success criteria early in the schematic design phase. For high-vibration CNC enclosures, choose spring-loaded or push-in designs universally. For legacy field retrofits involving bare stranded wire, standard screw types might still suffice. Do not over-specify expensive features you simply do not need. Match the component grade to the actual environmental threat.
Assess the broader modular accessory ecosystem carefully. A single component rarely operates perfectly in isolation. Check the manufacturer catalog for compatible plug-in bridges and jumper bars. Look for modular end plates, partition plates, and customized testing adapters. A robust, well-stocked accessory lineup simplifies complex panel builds tremendously. It allows you to distribute common potentials quickly across multiple poles.
We must calculate the true functional cost-to-value ratio. Shift your procurement focus completely away from the raw price per pin. Calculate the realistic installed cost instead. Factor in the massive wiring time reduction gained through modern push-in technology. Saving just 30 seconds per wire yields massive labor reductions across hundreds of panels. Consider the minimized field failure rates over a standard ten-year operational lifespan. Paying slightly more upfront for a premium part yields massive labor savings during panel assembly. You also drastically reduce costly emergency maintenance calls. We must utilize a highly robust connector to safeguard expensive power circuits. Every reliable industrial wiring strategy hinges completely on this logical selection process.

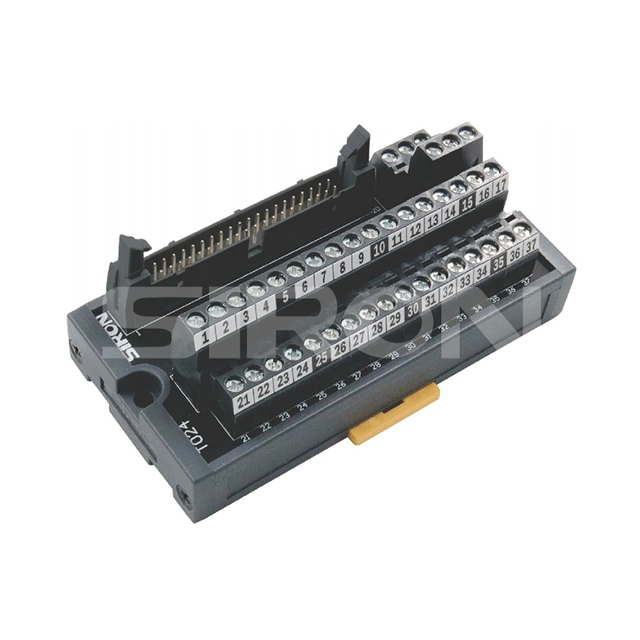

The optimal 40-pin terminal block connector prioritizes long-term contact reliability over raw miniaturization. Space savings matter greatly in modern control cabinets. However, ensuring stable electrical flow remains your primary operational objective. Do not sacrifice secure termination strength just to shrink a panel size artificially. We strongly recommend requesting physical evaluation samples before finalizing any bulk specification. Test them actively in your own production workshop. Verify ferrule compatibility firsthand using your standard crimping tools.
Follow these action-oriented next steps to ensure successful integration:
A: This heavily depends on the specific pin pitch. Most compact designs comfortably support between 26 AWG and 14 AWG for signal and low-power applications. Always consult the technical datasheet. Larger wire insulation may physically block adjacent insertion points entirely.
A: Yes, but exact termination rules vary. Push-in terminals easily accept solid wires or ferruled stranded wires directly. If you use bare stranded wire in a push-in block, you must actuate the spring mechanism manually first. Screw terminals accept both types natively without extra steps.
A: Closer pin spacing physically limits natural heat dissipation. Heat pools quickly across a densely packed block. This thermal concentration often results in lower maximum current ratings compared to standard-width components. You must apply manufacturer derating curves when all pins carry continuous loads simultaneously.
A: Absolutely. Most high-density models feature universal mounting feet built directly into the housing. They seamlessly confirm compatibility with standard 35mm (NS 35) or 15mm (NS 15) DIN rails. You must verify the specific housing base type before purchasing to ensure panel layout matching.
