T024 Terminal Block

Features
● T022/T022-K is a 20pin terminal connection for 20pin connector, suitable to all PLC connections with 20pin MIL plug on the market.
● T023/T023-K is a 34pin terminal connection for 34pin connector, applicable to KV-32XA/C, KV-64XA/C,KV-32TA/C and KV-64TA/C.
expansion modules of KEYENCE PLCs.

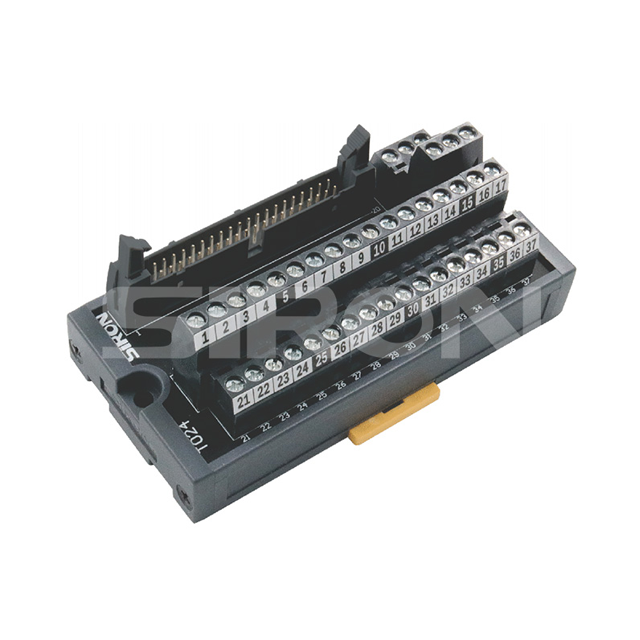

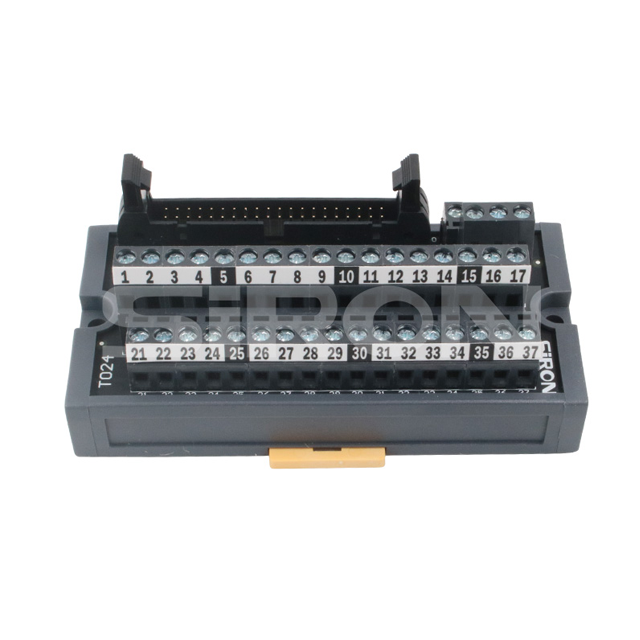

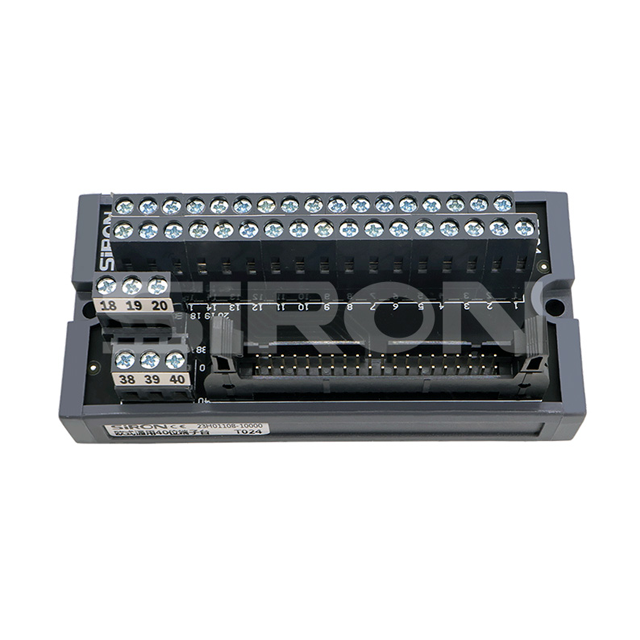

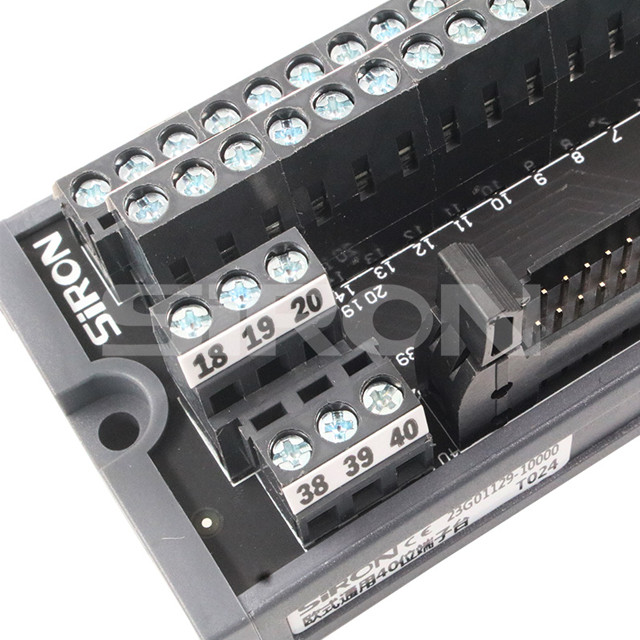

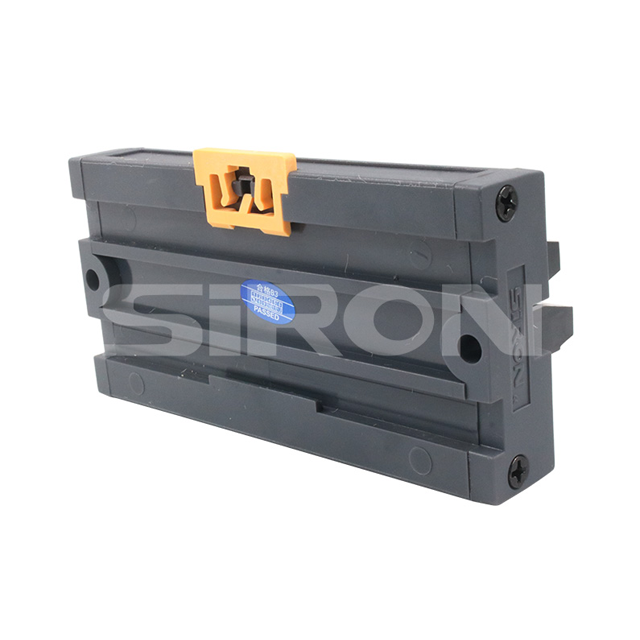

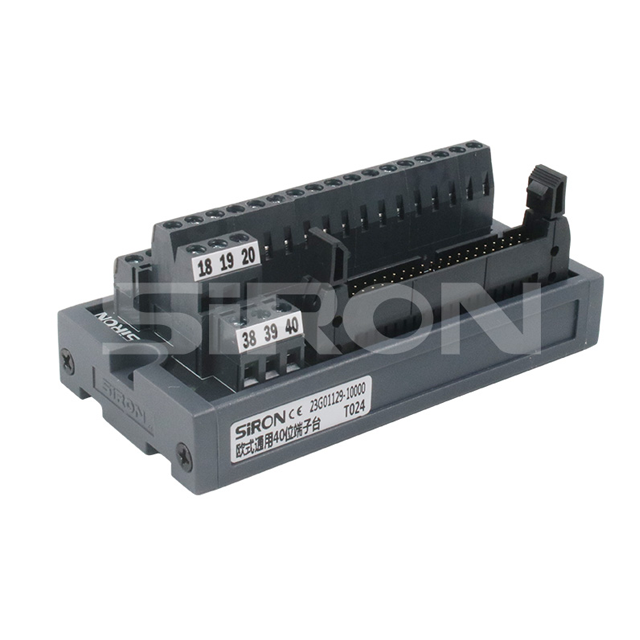

● T024T024/T024-K is a 40pin terminal connection for 40pin connector, small size for space saving.

Note
● Before ordering，please confirm the PLC pin definition,choose the suitable terminal.
● When PLC connection,Please be sure to use the corresponding special cable developed by our company.

Quantity:
Availability:





Inquire Add to Basket

T024 Terminal Block Screwless T024 Terminal Block Modular T024 Terminal Block Insulated T024 Terminal Block Compact T024 Terminal Block High-temperature T024 Terminal Block Multi-level T024 Terminal Block

Product Description

The screwless T024 terminal block from SiRON Electrical offers a fast, secure, and maintenance-friendly wiring solution designed for modern industrial applications. Featuring a modular T024 terminal block design, it allows flexible configuration and easy expansion to meet diverse installation needs. Built with high-grade insulating materials, the insulated T024 terminal block ensures superior safety and protection against electrical hazards. Its compact T024 terminal block structure saves valuable panel space while maintaining robust connection performance. Engineered to withstand extreme conditions, the high-temperature T024 terminal block performs reliably in demanding environments, including heavy-duty manufacturing and automation systems. For complex wiring needs, the multi-level T024 terminal block provides organized and efficient terminal arrangements, streamlining installation and maintenance. Compatible with major PLC brands such as KEYENCE, MITSUBISHI, OMRON, Panasonic, FUJI, AB Allen-Bradley, and YOKOGAWA, it embodies SiRON’s philosophy of “Endless innovation, Everlasting operation” by delivering quality, adaptability, and long-term reliability.

Suitable wire

1.5mm² Following/AWG16; Stripping Length:6mm

Type selection reference

Model

T022

T022-K

T023

T023-K

T024

T024-K

Name

European-style universal

20-bit terminal block

European-style universal

34-bit terminal block

European-style universal

40-bit terminal block

Suitable PLC

OMRON	CJ1W-MD232 CJ1W-MD233			CJ1W-ID231 CJIW-ID261 CJIW-MD261(IN) CJ1W-MD263(IN) CJIW-MD563(IN) CJ1W-OD231 CJ1W-OD261 CJ1W-MD261(Out)	CJ1W-OD232 CJ1W-OD233 CJ1W-OD262 CI1W-OD263 CJ1W-MD263(Out) CJ1W-MD563(Out) CJ1M-CPU21 CJ1M-CPU22 CJ1M-CPU23 CJIW-ID232 CJ1W-ID262
MITSUBISHI	FX1NC-16MT FX2NC-16EXL-C FX1NC-32MT FX2NC-16EYT FX2NC-16MT FX2NC-17EYT-C FX2NC-32MT FX2N-10PG FX3UC-32MT FX2N-10GM FX2NC-16EX FX2N-20GM FX2NC-16EX-C			QX41 QX41-S1 QX42 QX42-S1 QX71 QX72 QY41P	QY42P QY71 QH42P QD70P4 QD70P QD70D QD75M
KEYENCE	KV-NC16EX KV-NC16ET	KV-C32XA/C KV-C64XAC KV-C32TA/C KV-C64TA/C	KV-NC32T KV-NC32EX KV-NC32ET KV-NC16EXT	KV-1000 KV-3000 KV-5000 KVH20S KVH40S FPG-XY64D2T/P FP2-C1D FP2-X32D2 FP2-X64D2 FP2-32T/P FP2-Y64T/P FP2-XY64D2T FP2-XY64D7T	KV-SH04PL
Panasonic				FPG-XY64D2T/P FP2-C1D FP2-X32D2 FP2-X64D2 FP2-32T/P FP2-Y64T/P FP2-XY64D2T FP2-XY64D7T	FP2-XY64D2P FP2-XY64D7P FP2-PP21 FP2-PP22 FP2-PP41 FP2-PP42 FP2-HSCT FP2-PXYT
SIEMENS				40P Plug with a full range
Yokogawa				F3WD64-3N F3WD32-3F	F3WD64-3F
