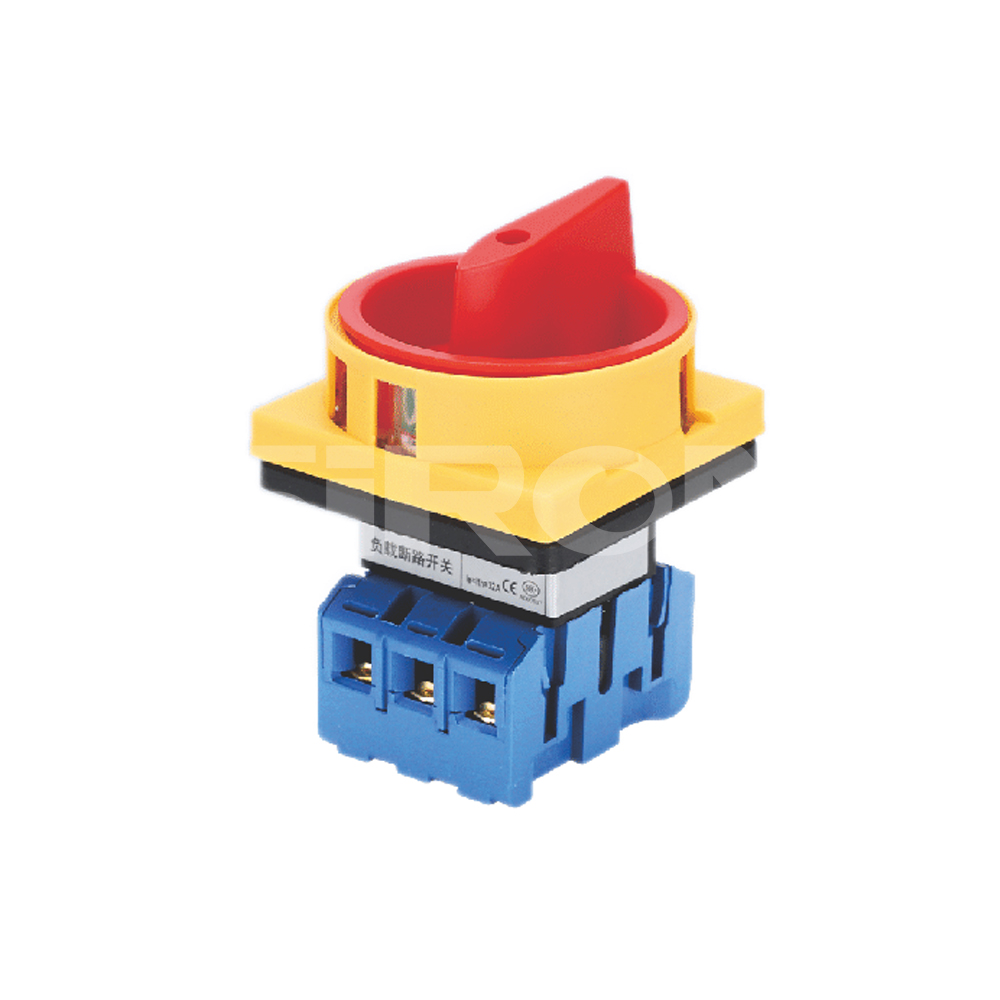

SiRON Y91 Series Load Break Switch

Name: SiRON Y91 Series Load Break Switch
Brand: SiRON
Rating: 5.0 (97 reviews)

Features

Good insulation performance, high temperature resistance, not easy to aging using closed design to prevent dust from entering;_ow resistivity, good electrical conductivity, no arc, not easy to wear and other properties;
Miniaturization: compact structure, small volume and ideal performance;
Finger protection: with finger protection function, can prevent the risk of electric shock caused by unintentionalcontact with live parts;
Load short-circuit switch is mainly used in 50Hz, rated working voltage below 440, rated current up to 125Aelectrical lines
The main switch of ventilation equipment, air conditioning and water pump system can alsodirectly control the small capacity AC motor.

Product Description

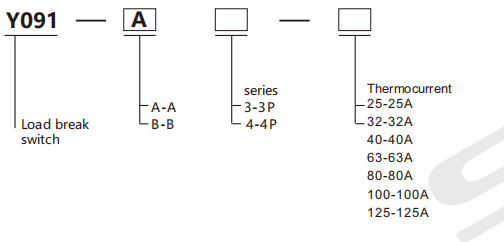

For Selection

2a33ce5ae158deb61f316771813b4d72

Specifications

IEC/BSVDE nominal rating
Thermal current	Resistive load	AC-23 occasionally switches motor or high inductive load		AC-3 starts motor directly on line
Thermal current	Resistive load	3×220~240V	3×380～400V	3×220~240V	3×380～400V
25A	20A	4KW	7.5KW	3KW	5.5KW
32A	32A	5.5KW	11KW	4KW	7.5W
40A	40A	7.5KW	15KW	7.5KW	11KW
63A	63A	11KW	22KW	11KW	12.5KW
80A	80A	18.5W	30W	15KW	22KW
100A	100A	22KW	37KW	18.5W	30KW
125A	125A	22KW	37KW	18.5W	30KW
