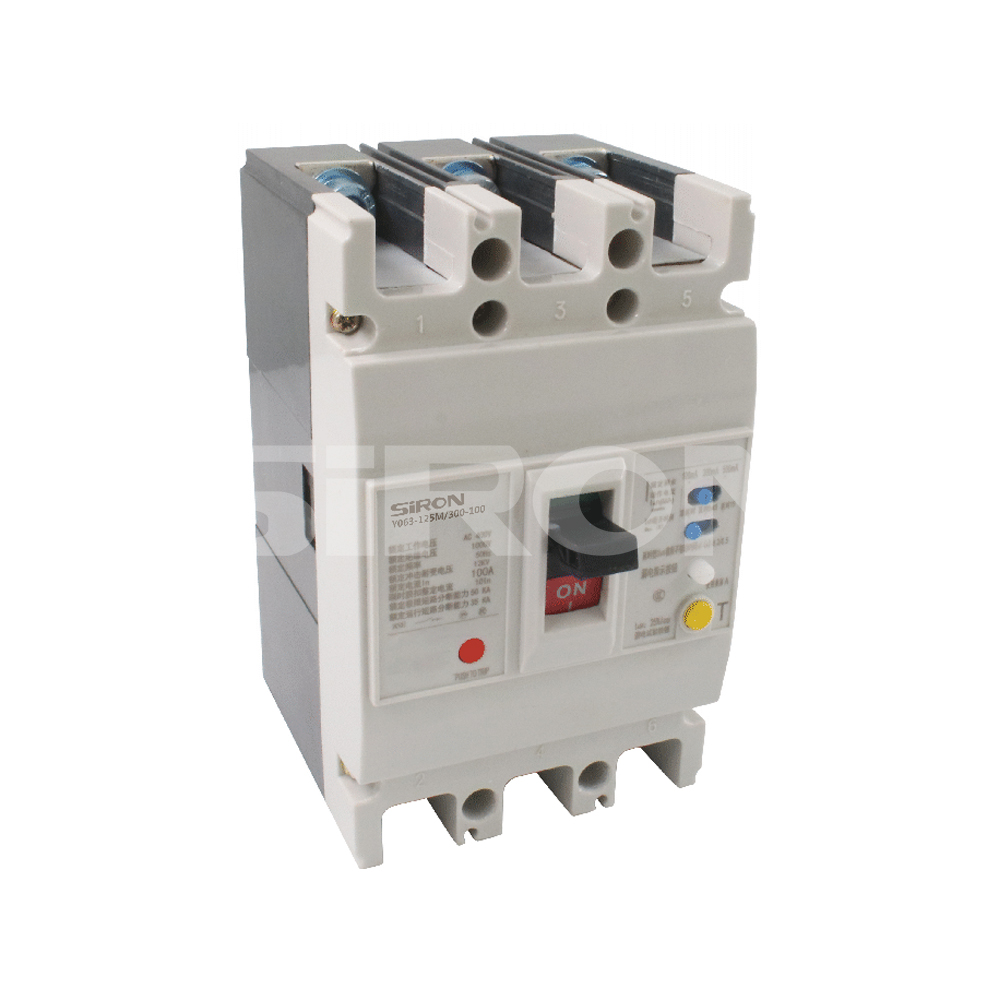

SiRON Y06 Series Earth Leakage Circuit Breaker

Name: SiRON Y06 Series Earth Leakage Circuit Breaker
Brand: SiRON
Rating: 5.0 (11 reviews)

Features

Suitable for AC 50Hz;
Rated voltage is 400V;
Electronic current action type;
Electromagnetic short circuit protection, overload protection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
Y06
Brand:
SiRON
Code:
8536901100

AC 50Hz Circuit Breaker Y06 Series Earth Leakage Contactor 400V Contactor

Product Description

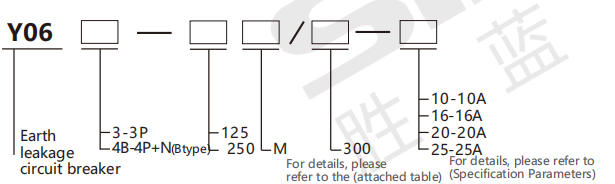

For Selection

Y06

Selection example: Y063-125M/300-16(Leakage protection circuit breaker, 3-pole, frame grade 125, breaking capacity M type, compound trip unit 300, rated current 10A.) ②Y064B-125M/300-20(Leakage protection circuit breaker, 4-pole B type, frame grade 125, breaking capacity M type, compound trip unit 300, rated current 20A.)

Note :1. M: Indicates that the breaking capacity is of a higher breaking type;
2200: Indicates the circuit breaker body with only an "electromagnetic trip unit"
300: Indicates the circuit breaker body equipped with a "thermal-electromagnetic trip unit"; Other attachments shall be included in the "Attachment Form". 3. Type B (indicating the N-pole type in 4-pole products): The N-pole is not equipped with an overcurrent release device, and the N-pole is closed and opened together with the other three poles (the N-pole is closed first and then opened).

Specifications

Code		name
Electromagnetic	Double trip	name
200	300	no attachment
208	308	alarm contact
210	310	shunt release
220	320	auxiliary contact
230	330	Undervoltage trip unit
240	340	Shunt trip unit + auxiliary contacts
250	350	Shunt trip unit + undervoltage trip unit
260	360	Two sets of auxiliary contacts
270	370	Two sets of auxiliary contacts
218	318	Shunt trip unit + alarm contact
228	328	Auxiliary contacts + alarm contacts
238	338	Under-voltage trip unit + alarm contact
