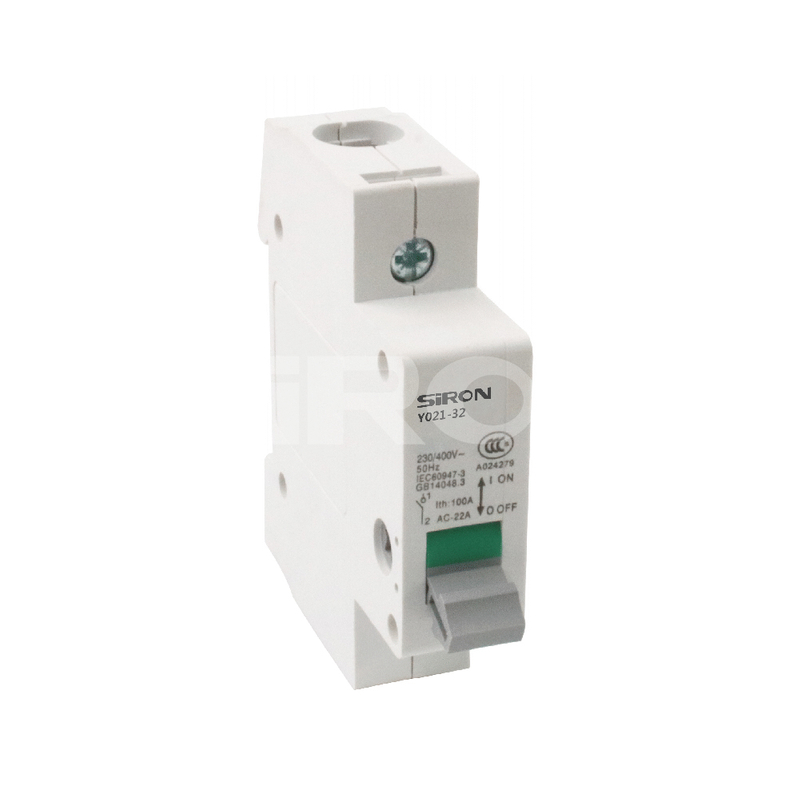

SiRON Y02 Series Isolating Switch

Name: SiRON Y02 Series Isolating Switch
Brand: SiRON
Rating: 5.0 (18 reviews)

Features

modular disconnecting switch;
The shell is made of special plastic with high flame retardant and highstrength, strongimpact resistance and light weight
With good contact reliability, suitable for guide rail installation,
And canbe used with o thermodular terminal electrical matching.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

For Selection

Y02

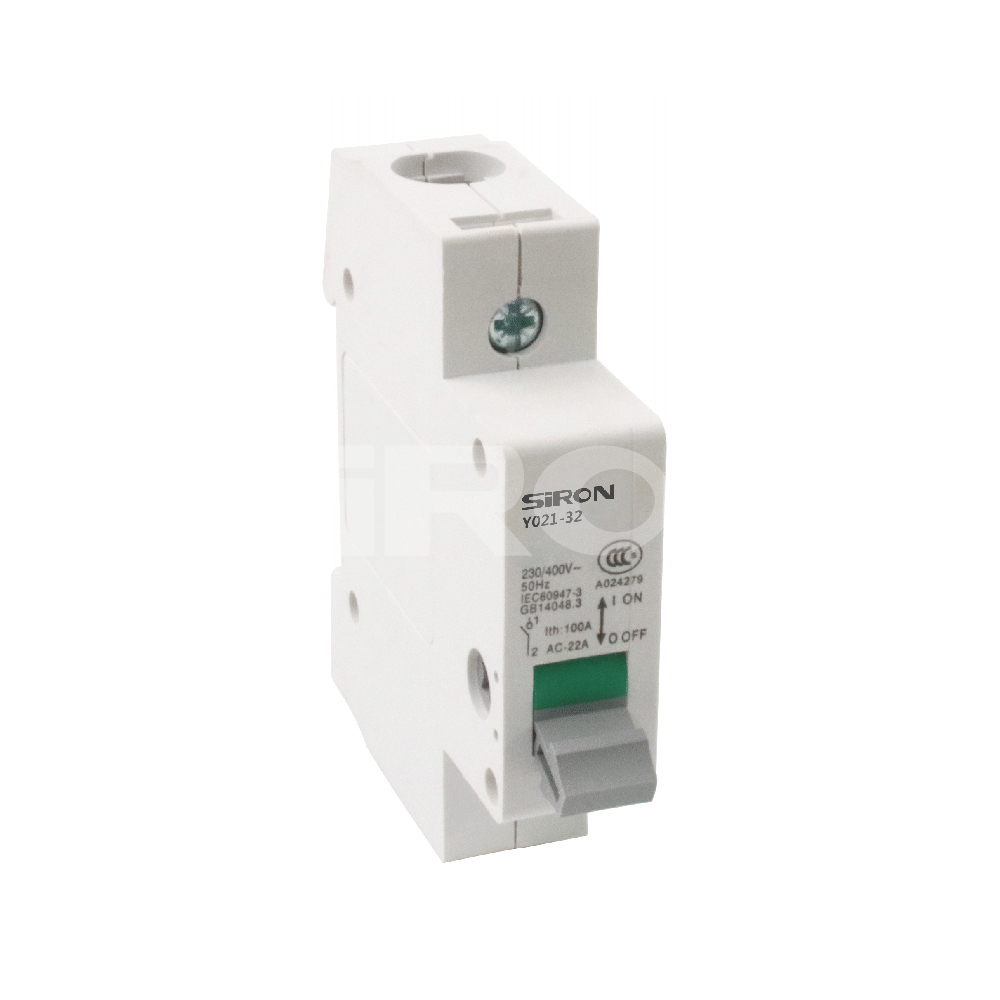

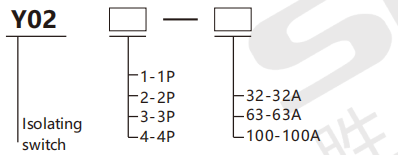

Selection example: Y021-32 indicates: Y02 series disconnector, 1-pole, with a rated current of 32A

Type selection reference

Model	Y02 series
Number of poles	1P、2P、3P、4P
Rated current	32A、63A、100A
Nominal voltage	230～400V AC
Installation	Embedded installation (rail installation at 100A)
Power frequency withstand voltage	2500VThe power frequency withstand voltage test lasted for one minute without any insulation flashover or breakdown
Rated short-time making capacity	Icm:20le,resistance welding time0.1s
Rated shock withstand voltage	4KV(2000m)
Rated short-time tolerable current	12le,resistance welding time 1s
