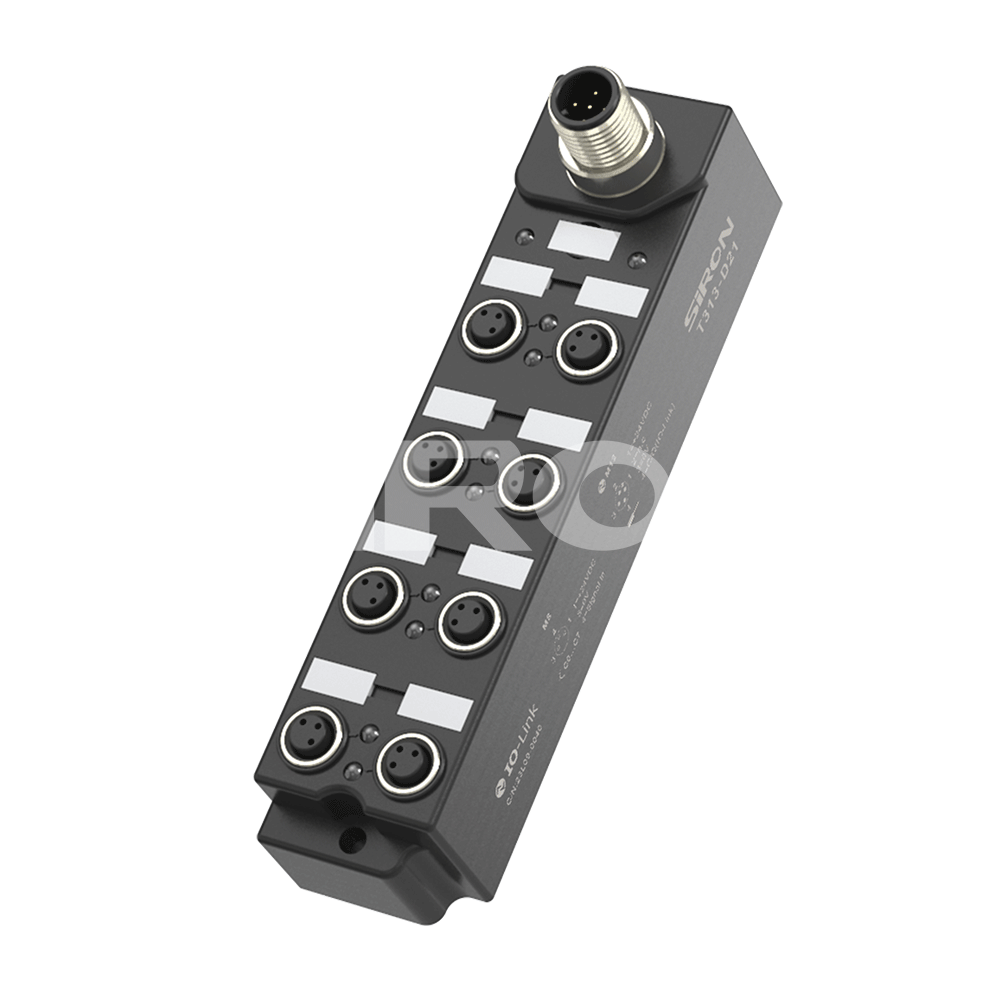

T313-D
SiRON
8517799000
About selection

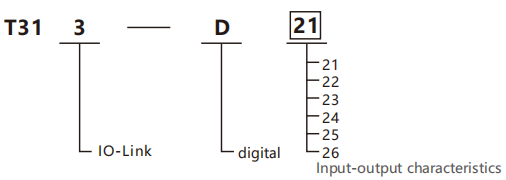

Selection example: T313-D21 represents the IO-Link slave module series, digital, 8-channel digital input (NPN), 0-channel digital output. Input/output characteristics
| Code | Input | Output |
| 21 | 8 channels digital input(NPN) | 0 channel digitaloutput |
| 22 | 8 channels digital input(PNP) | 0 channel digital output_ |
| 23 | 0 channel digital input | 8 channels digital output(NPN)slave station (Class A) |
| 24 | 0 channel digital input | 8 channels digital output(PNP)slave station(Class A) |
| 25 | 0 channel digital input | 8 channels digital output(NPN)slave station (Class B) |
| 26 | 0 channel digital input | 8channels digital output(PNP)slave station(Class B) |
Specifications
| Model | T313-D21 | T313-D22 | |
Appearance |   | ||
| Operatingload voltage | 24VDC±10% | ||
| Module operafing aurent | <100mA | ||
| Maximum supply current | 1.4A | ||
| Operating temperature | -20~+55℃ | ||
| Input | Input points | 8 | |
| Interface type | M83 Holes | ||
| Input mode | NPN(Low Level Effective) | PNP(High Level Effective) | |
| Input impedance | ≈3K | ||
| Input ratedcurrent | ≈7mA | ||
| Input delay | 3ms | ||
| Switching threshold | 2mA/4mA 7V/11V | ||
| Isolafion mode | Opto-couplers isolation | ||
| Sensorpower supply | Maximum 150mA | ||
| IO-Link | Number of interfaceS | 1 | |
| IO-Link protocolversion | V1.1 | ||
| IO-Link Indicates the inafacoa type | Class A | ||
| Frame type | TYPE_2_1 | ||
| Transmission rate | COM238.4kbit/s | ||
| Minimum cycle time | 4000us | ||
| ISDU(Index Service) | support | ||
| Block parameteroperation | nonsupport | ||
| Data Storage (DS) | support | ||
| Data store lock | support (Note This feature is supported for compatibility,but the device will not perform this operation) | ||
| Model | T313-D23 | T313-D24 | T313-D25 | T313-D26 | |||
| Appearance |  |  | |||||
| Operating/load voltage | 24VDC±10% | ||||||
| Module operating current | <100mA | <100mA(Ub) | |||||
| Power supply forworkandload | ≤4A(UbUI) | Note:The IO-Link Master provides power,and the Master parameters need to be considered | ≤4A(UI) | Note:The IO-Link Master provides power,and the Master parameters need to be considered | |||
| Operating temperature | -20~+55℃ | ||||||
| Output | Output points | 8 | |||||
| Output mode | NPN(The public end is 24V) | PNP(The public end is 24V) | NPN(The public end is 24V) | PNP(The public end is 24V) | |||
| Output current | 0.2A;max 0.5A;(U The total current shall not exceed 4A. | ||||||
| Output protection mode | Overload protection,overheat protection | ||||||
| Output proleclion response fime | ≈20ms | ||||||
| Switching frequency | 100Hz | ||||||
| Output voltage drop | ≈0.6V | ||||||
| Isolation mode | opto-isolator | ||||||
| IO-Link | Number ofinterfaces | 1 | |||||
| IO-Link protocol version | V1.1 | ||||||
| O-Link hndicales the interface type | Class A | Class B | |||||
| Frame type | TYPE_2_3 | ||||||
| Transmission rate | COM238.4 kbit/s | ||||||
| Minimum cycle time | 2400us | ||||||
| ISDU(Index Service) | support | ||||||
| Block parameter operation | nonsupport | ||||||
| Data Storage(DS) | support | ||||||
| Data store lock | support (Note:This feature is supported for compatibility,but the device will not perform this operation | ||||||

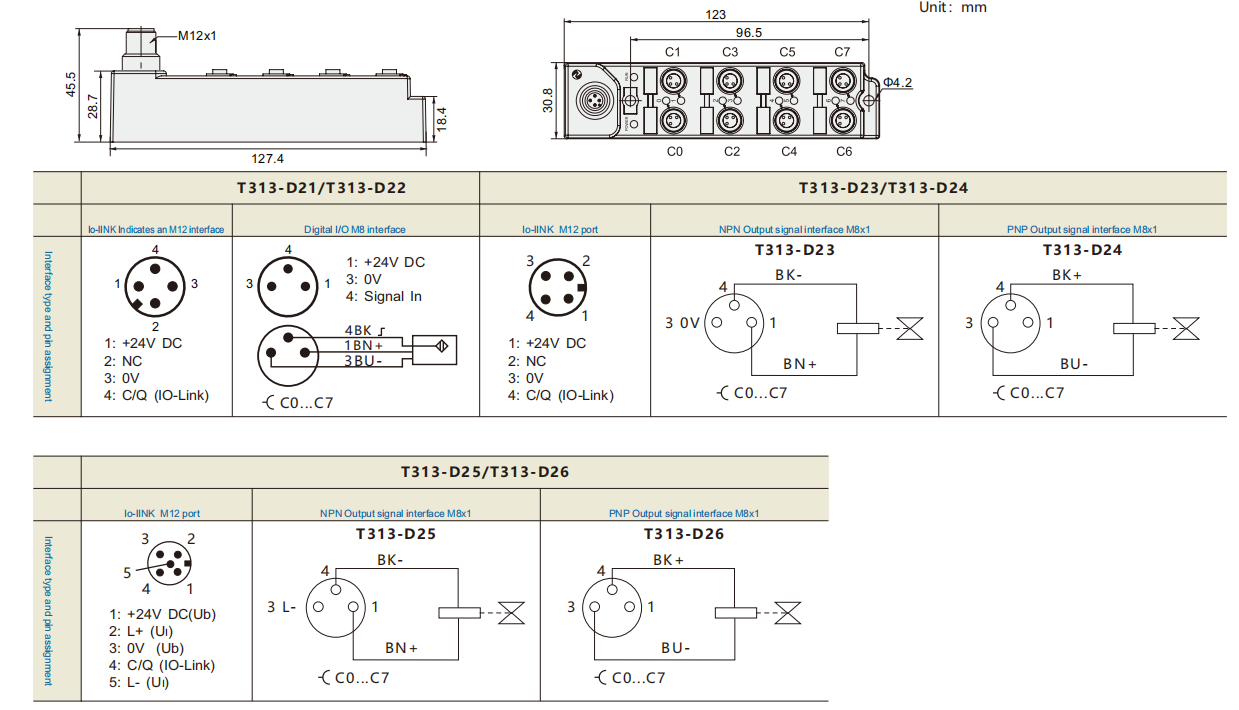

Dimensions
