SiRON T231/T232 Series 14PIN 20PIN MDR Connector Terminal Station

Features
  • This terminal board is applicable to 14/20pin MDR connector;
  • It can be used on the signal line port on Mitsubishi,Yaskawa, Panasonic,Delta, Sanyo and AB servo drives;
  • No soldering is required. Connect the corresponding pins correctly;
  • the output interface is shrapnel terminal, convenient and fast wiring;
  • PE is the earthing of the plug shell, which has been led to the terminal to facilitate the earthing wire;
  • Saves time and can prevent wrong wiring connections.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • T231/T232

  • SiRON

  • 8536901100

14PIN 20PIN MDR Connector Terminal Station use for Mitsubishi Terminal Block use for Yaskawa Terminal Block use for Panasonic Terminal Block use for Delta Terminal Block use for Sanyo and AB Terminal Block
Product Description

Suitable wire

主图11端子台


Type selection reference

Model T231 T232

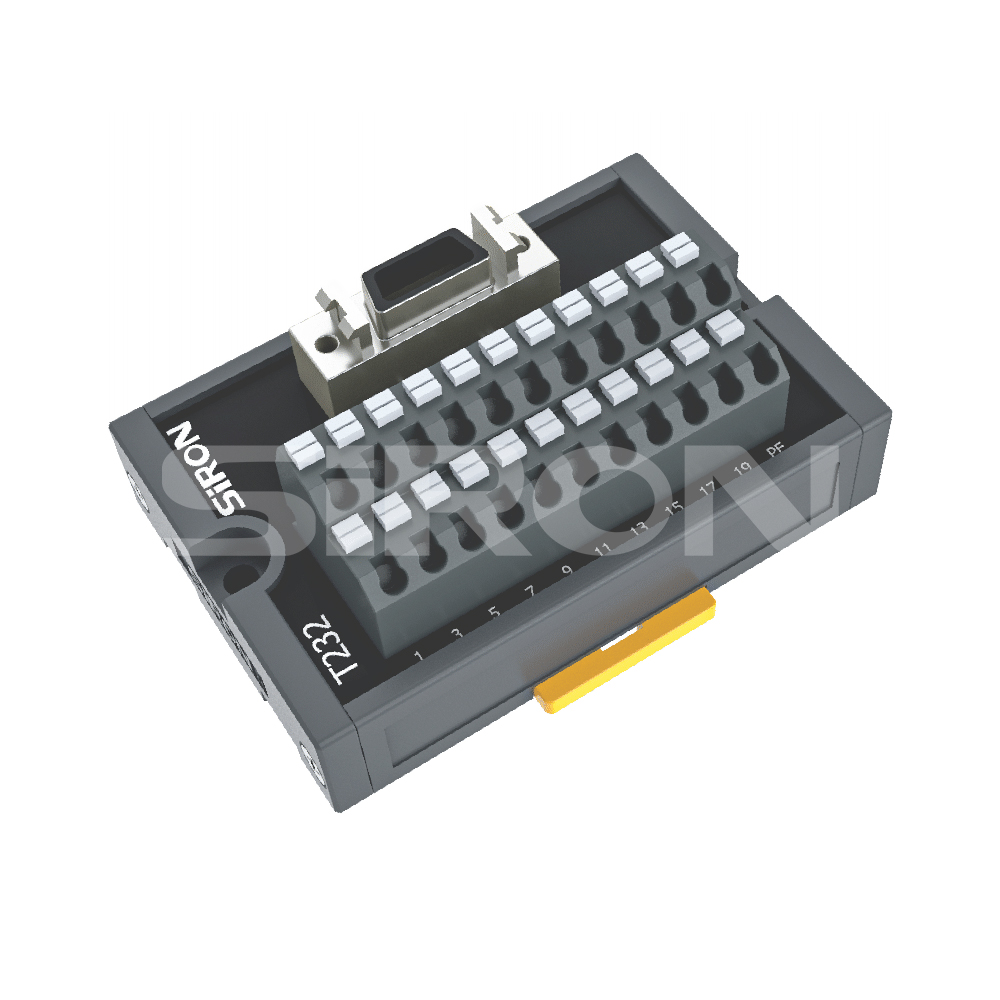

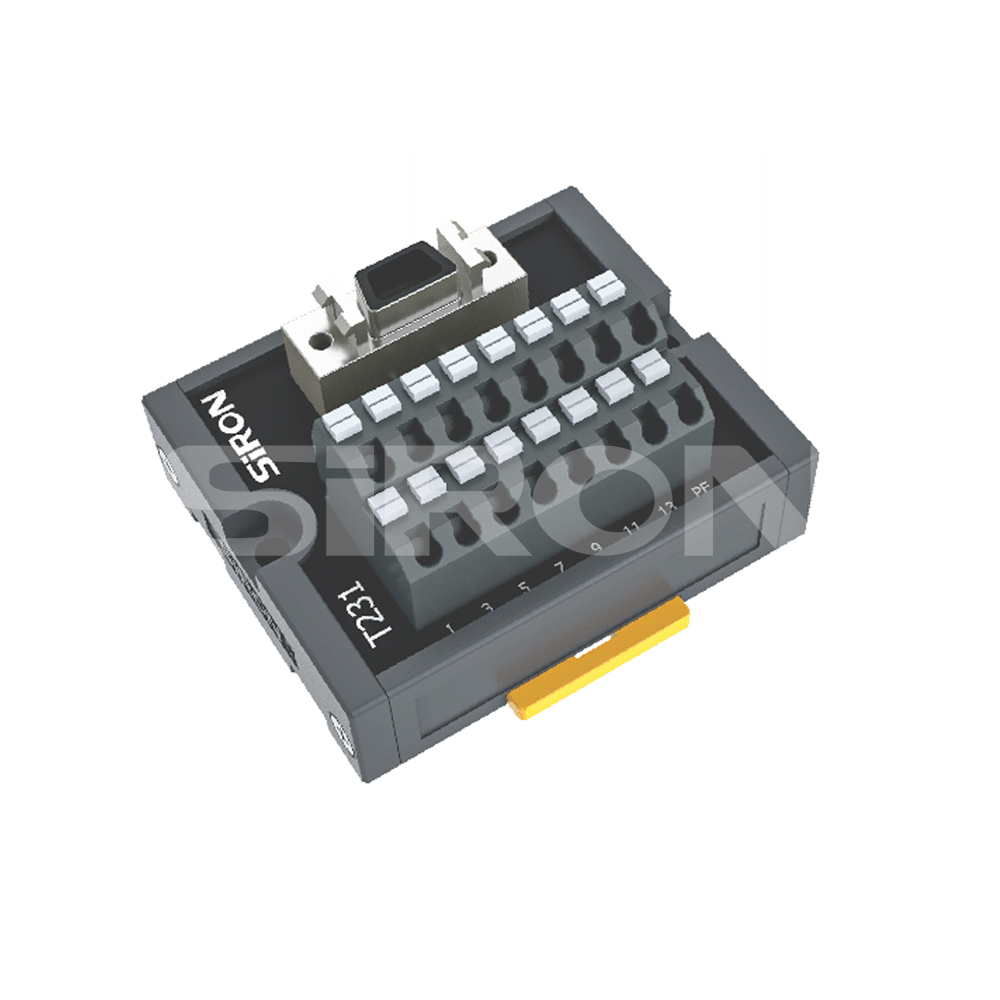

Name 14-digit MDR plug terminal block 20-digit MDR plug terminal block

Output Structure

 Double-layer spring terminal


Suitable cable

Suitable cable:X220-5S，X220-8S

For details, please refer to the directory cable series


Specifications

Input Nominal operating current 1A
Nominal coil voltage DC24V
Corresponding output Devices Servo motor control signal line circuit
