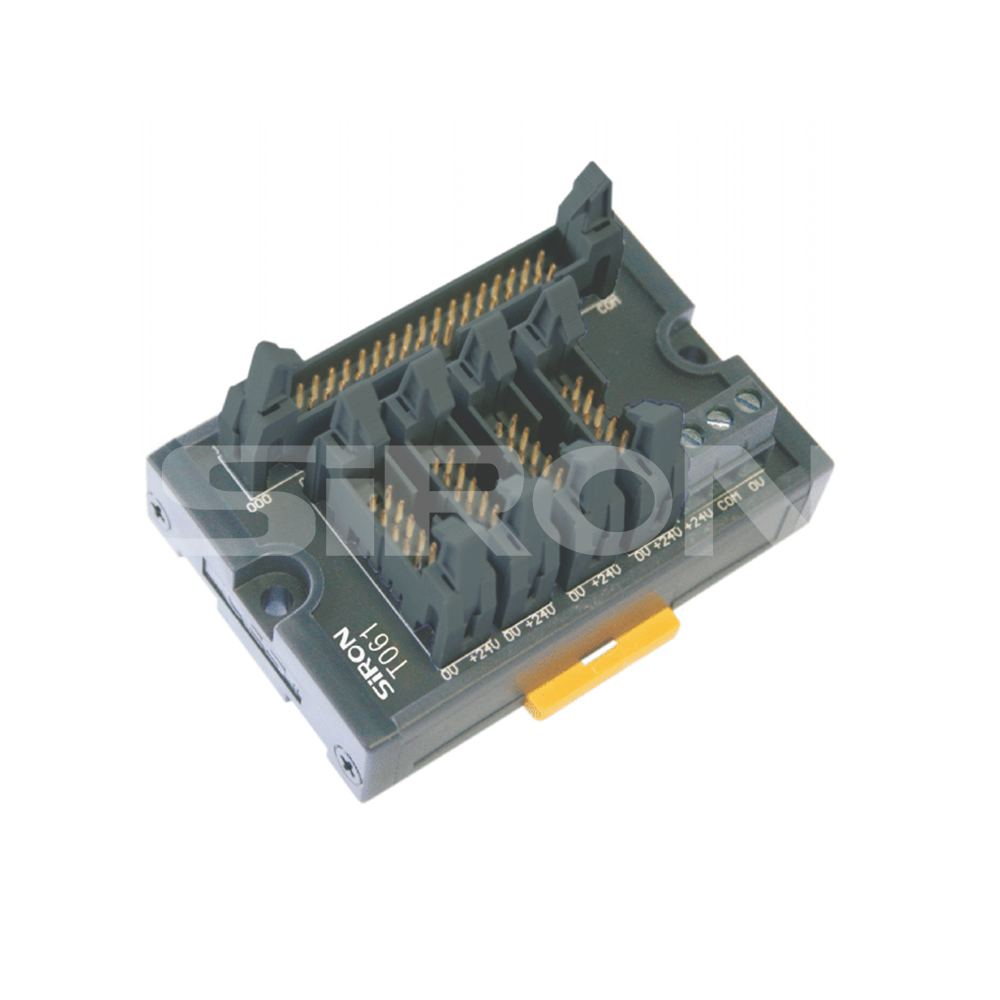

SiRON T061 Series KEYENCE 32-bit Customized Terminal Block

Name: SiRON T061 Series KEYENCE 32-bit Customized Terminal Block
Brand: SiRON
Rating: 5.0 (9 reviews)

Features

T061 is applicable to the connection of expanded I/O modules of KEYENCE,including KV-C32XA/C,KV-C64XA/C,KV-C32TA/C and KV-C64TA/C;
By converting the 32 bit module into 4 sets of 8 bit unit, which are corresponding to 4 sets of 10pin connector, all inputsignals can be connected using connectors.
When used in combination with other T series products, it can increase the efficiency of wiring work and saves time,flexible wiring to maximize efficiency

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

主图11端子台

Type selection reference

Suitable cable

Suitable cable:X200-3 X210-3

For details, please refer to the directory cable series

Suitable PLC

KEYENCE

KV-C32XA/C KV-C64XA/C KV-C32TA/C KV-C64TA/C

Specifications

Model		T061
Name		KEYENCE 32-bit Customized Terminal Block
Input	Nomina operaling orent	1A
	Nominal oil woltage	DC24V
Output side correspondence		T080 T082 Y411 Y413
