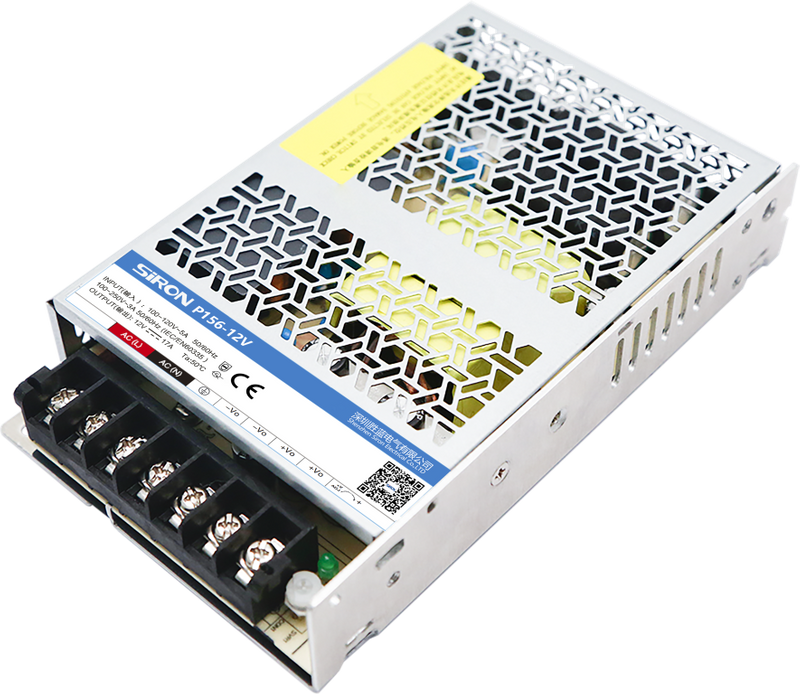

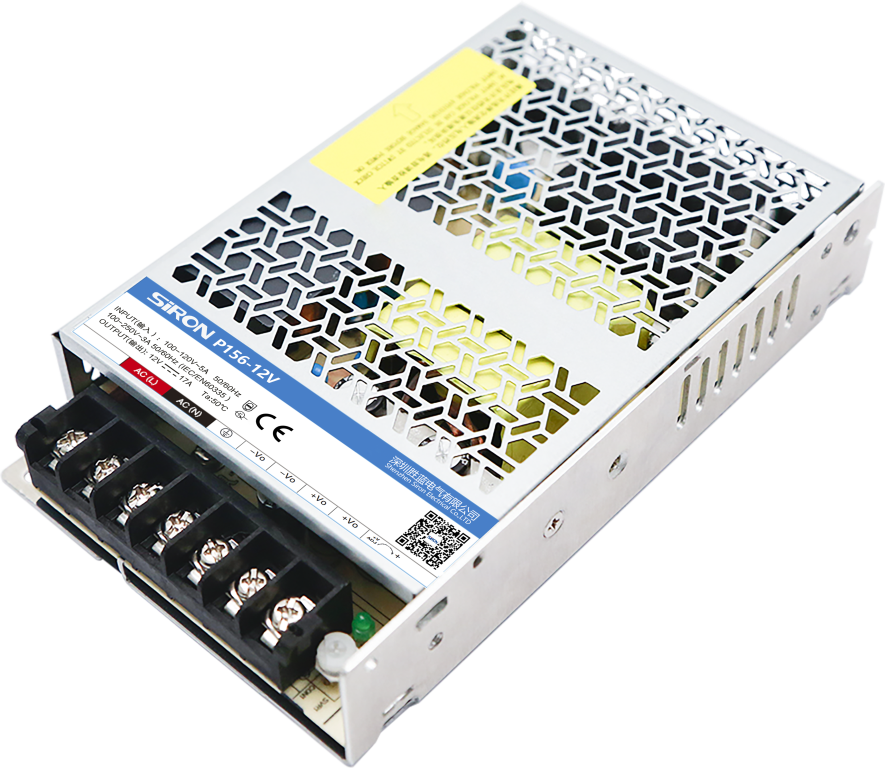

P156
SiRON
8504401400
Order
| Model | Voltage |
| P156 | 5V |
Selection reference
Model | Rated output | Type | (uF) Maximum capacitiveload | Output ripple noise | ||
| Power | Voltage/current | Voltage adjustable range | ||||
| P156-12V | 204W | 12V/17A | 11.4-13.8V | 89% | 4000 | Maximum 150mV |
| P156-15V | 210W | 15V/14A | 14.25-17.25V | 89% | 3300 | |
| P156-24V | 211.2W | 24V/8.8A | 22.8-27.6V | 91% | 1500 | |
| P156-36V | 212.4W | 36V/5.9A | 34.2-41.4V | 91.5% | 1500 | Maximum200mV |
| P156-48V | 211.2W | 48V/4.4A | 43.2-52.8V | 92% | 470 | |
| P156-54V | 210.6W | 54V/3.9A | 51.3-56.7V | 92% | 330 | |
Product Attributes
| Model | P156 series | |
| (@230VAC) Electric shock | Cold start, 80A | |
| Standby function | <0.75W | |
| Overcurrent Protection | 120%-250%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.25kVAC (Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+85℃ | |
| E M C | EMI | CISPR32/EN55032 ClassA |
| performance | EMS | IEC/EN61000-4-2 Contact ± 6KV；IEC/EN61000-4-3 10V/m, IEC/EN61000-4-6 10Vr.m.s；IEC/EN61000-4-8,30A/m； IEC/EN61000-4-4,5,11 |
| Safety standard | IEC/UL/EN/BS EN62368、EN60335、EN61558、EN62477、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 18-10AWG | |
| Connector torque | M 3 . 5, 0 . 8 N .m M a x | |
| Dimensions | 159×97×30 | |
| Input voltage range | 90 - 132VAC/180 - 264VAC | |
