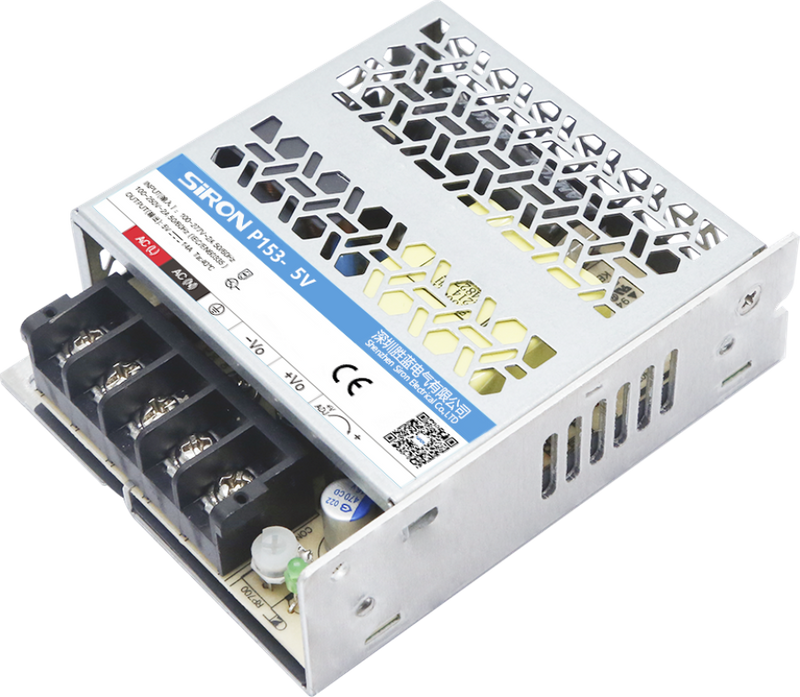

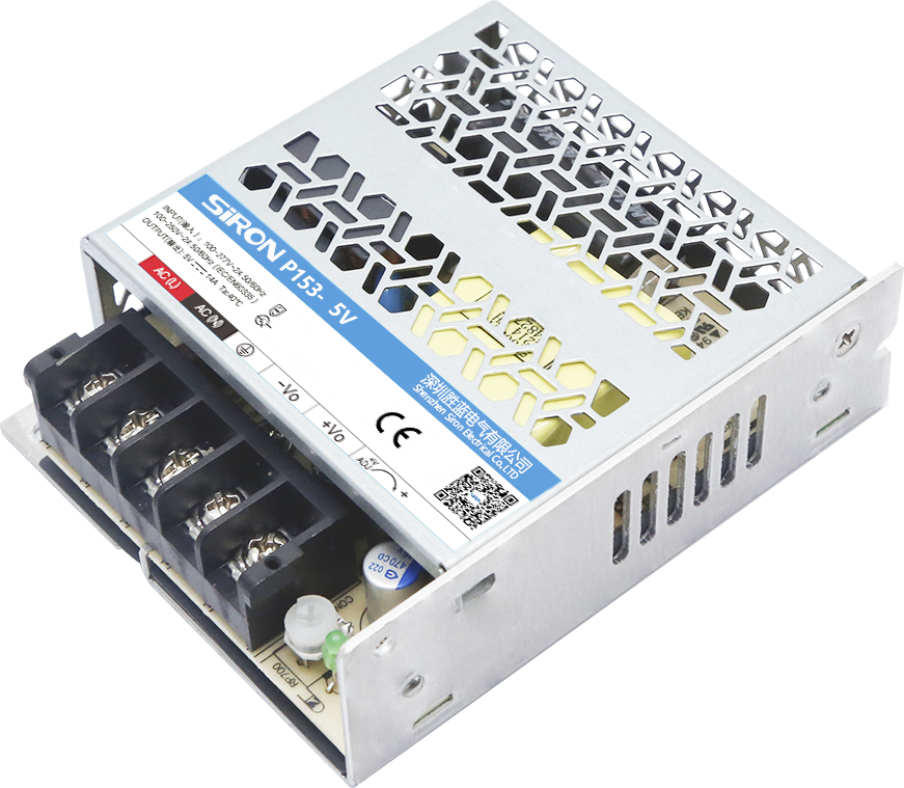

P153
SiRON
8504401400
Order
| Model | Voltage |
| P153 | 5V |
Selection reference
| Model | Rated output | Type | (uF) Maximum capacitiveload | Output ripple noise | ||
| Power | Voltage/current | Voltage adjustable range | ||||
| P153-5V | 70W | 5V/14A | 4.5-5.5V | 86.5% | 10000 | convention 120mV |
| P153-12V | 72W | 12V/6A | 10.2-13.8V | 89% | 6000 | |
| P153-15V | 75W | 15V/5A | 13.5-18V | 5000 | ||
| P153-24V | 76.8W | 24V/3.2A | 21.6-28.8V | 91% | 1500 | convention150mV |
| P153-36V | 75.6W | 36V/2.1A | 32.4-39.6V | 1000 | convention200mV | |
| P153-48V | 76.8W | 48V/1.6A | 43.2-52.8V | 92.5% | 680 | |
| P153-54V | 75.6W | 54V/1.4A | 48.6-59.4V | |||
Product Attributes
| Model | P152series | |
| (@230VAC) Electric shock | Cold start, 60A | |
| Standby function | <0.5W | |
| Overcurrent Protection | 120%-200%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.25kVAC (Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃ to+85℃ | |
| E M C | EMI | CISPR32/EN55032 ClassB |
| Performance | EMS | IEC/EN61000-4-2 Contact±6KV,IEC/EN61000-4-310V/m, IEC/EN61000-4-6 10Vr.m.s,IEC/EN61000-4-4,5,11 |
| Safety standard | IEC/UL/EN/BS EN62368、EN60335、EN61558、EN62477、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 22-14AWG | |
| Connector torque | M3,0.5N.m Max | |
| Dimensions | 99×65×30 | |
| Input voltage range | 80-305VAC/100-430VDC | |
