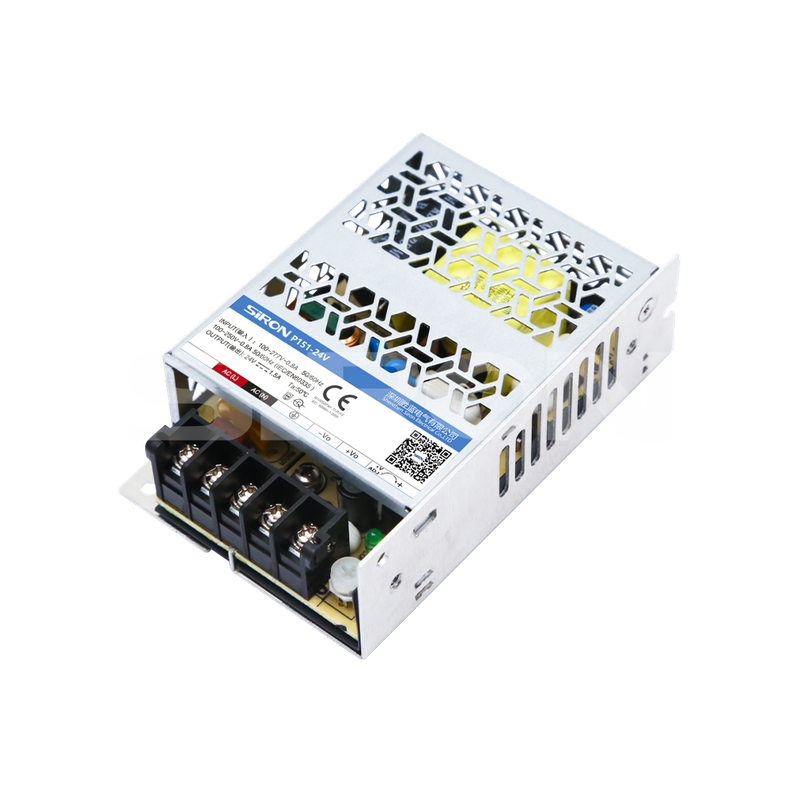

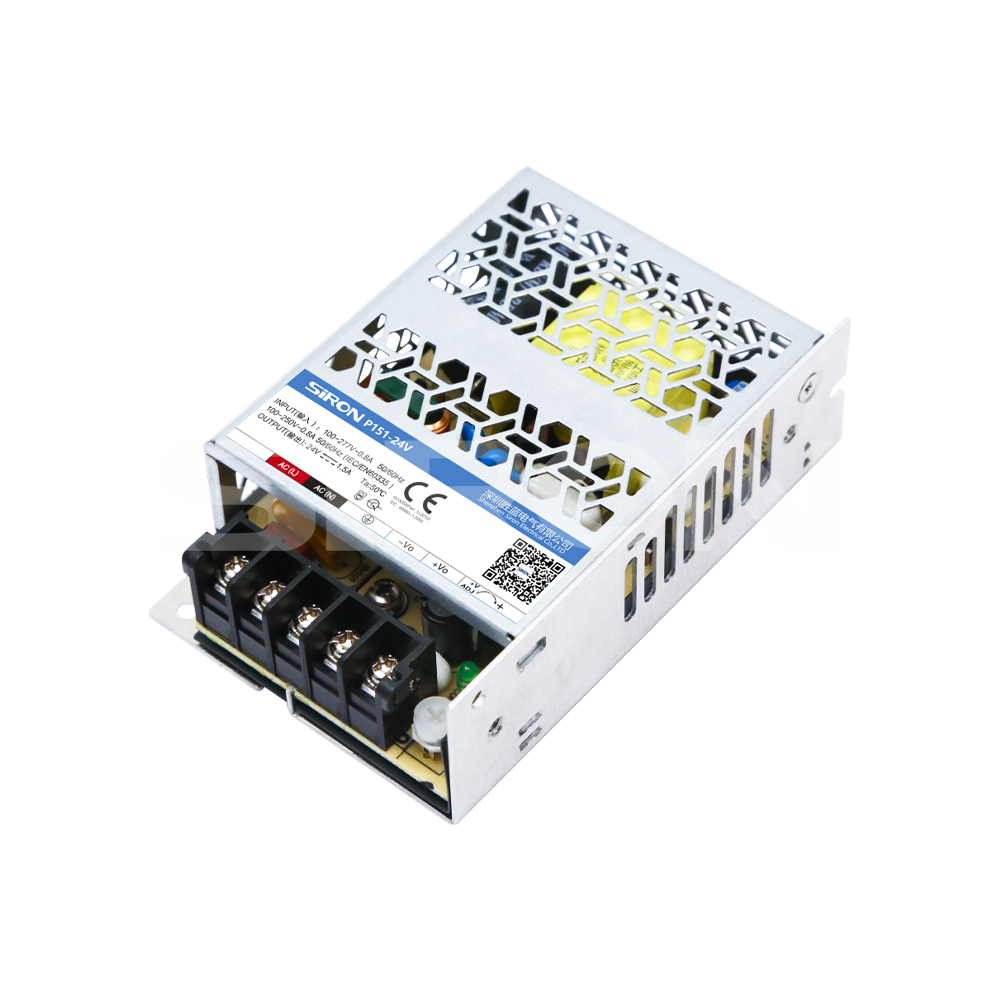

P151
SiRON
8504401400
Order
| Model | Voltage |
| P151 | 5V |
Selection reference
Model | Rated output | Type | (uF) Maximum capacitiveload | Output ripple noise | ||
| Power | Voltage/current | Voltage adjustable range | ||||
| P151-5V | 35 | 5V/7A | 4.75-5.75V | 86.0% | 8000 | 60mV 150mV |
| P151-12V | 36 | 12V/3A | 11.4-13.8V | 87.5% | 1500 | |
| P151-15V | 36 | 15V/2.4A | 14.25-17.25V | 87.5% | 1000 | |
| P151-24V | 36 | 24V/1.5A | 22.8-27.6V | 88.5% | 750 | 100mV 150mV |
| P151-36V | 36 | 36V/1A | 34.2-41.4V | 88.5% | 330 | 100mV 240mV |
| P151-48V | 38.4 | 48V/0.8A | 43.2-52.8V | 89.5% | 220 | |
| P151-54V | 36 | 54V/0.67A | 48.6-59.4V | 89.5% | 100 | |
Product Attributes
| Model | P151series | |
| (@230VAC) Electric shock | Cold start, 50A | |
| Standby function | <0.5W | |
| Overcurrent Protection | 120%-200%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.25kVAC (Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+85℃ | |
| E M C | EMI | CISPR32/EN55032 ClassB |
| performance | EMS | IEC/EN61000-4-2 Contact±6KV,IEC/EN61000-4-310V/m, IEC/EN61000-4-6 10Vr.m.s,IEC/EN61000-4-4,5,11 |
| Safety standard | IEC/UL/EN/BS EN62368、EN60335、EN61558、EN62477、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 22-14AWG | |
| Connector torque | M3,0.5N.m Max | |
| Dimensions | 99×65×30 | |
| Input voltage range | 80-305VAC/100-430VDC | |
