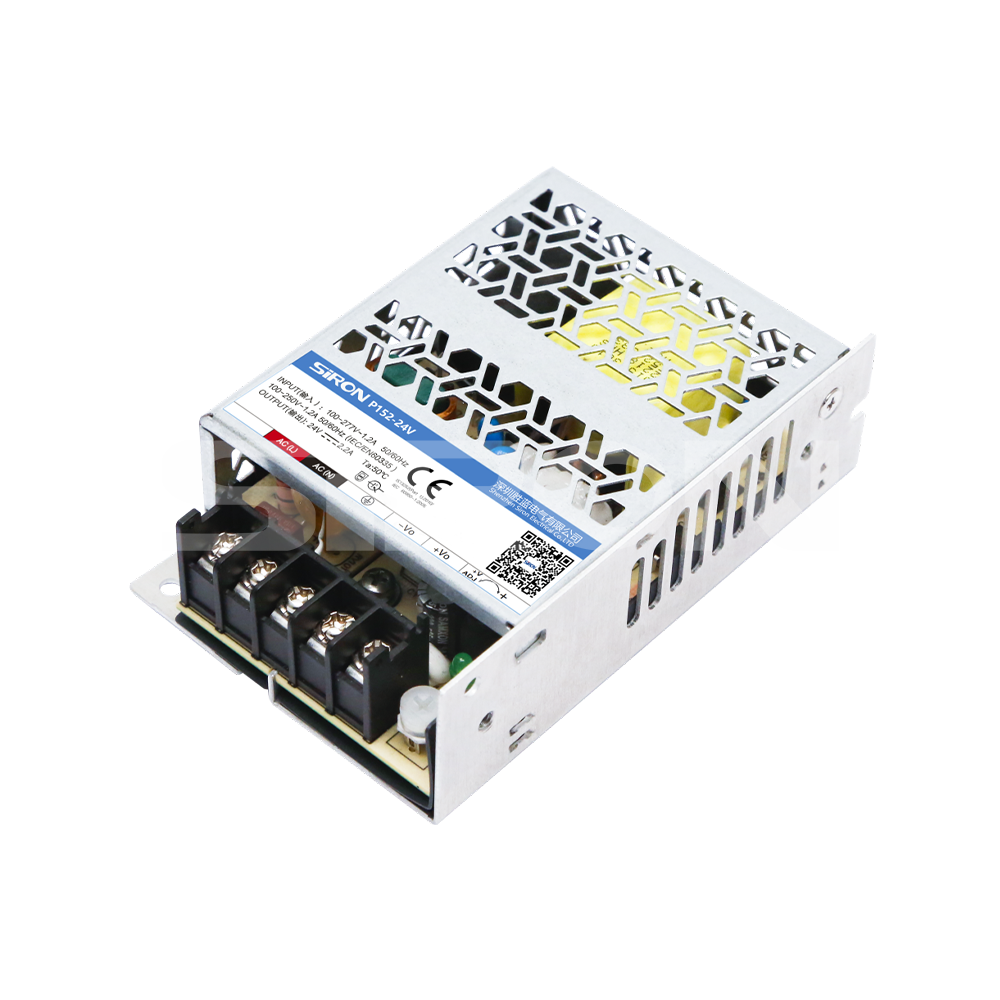

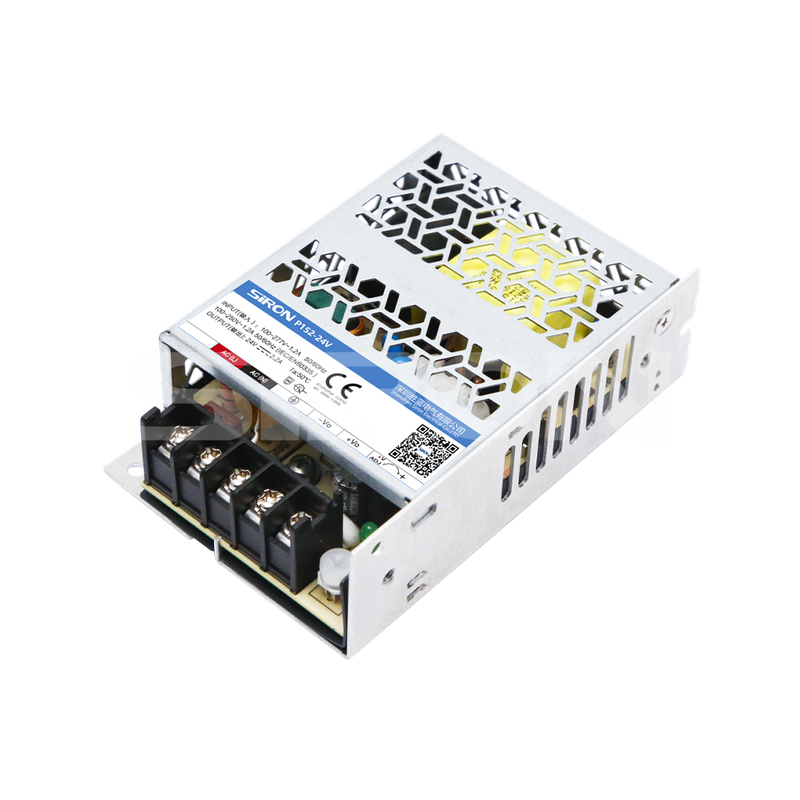

P152
SiRON
8504401400
Order
| Model | Voltage |
| P152 | 5V |
Selection reference
| Model | Rated output | Type | (uF) Maximum capacitiveload | Output ripple noise | ||
| Power | Voltage/current | Voltage adjustable range | ||||
| P152-5V | 50 | 5V/10A | 4.75-5.75 | 86% | 8500 | Convention65mV Maximum150mV |
| P152-12V | 50.4 | 12V/4.2A | 11.4-13.8 | 88% | 2000 | |
| P152-15V | 51 | 15V/3.4A | 14.25-17.25 | 88% | 1500 | |
| P152-24V | 52.8 | 24V/2.2A | 22.8-27.6 | 89.5% | 1000 | Convention80mV Maximum150mV |
| P152-36V | 52.2 | 36V/1.45A | 34.2-41.4 | 90% | 470 | Convention120mV Maximum240mV |
| P152-48V | 52.8 | 48V/1.1A | 43.2-52.8 | 90.5% | 220 | |
| P152-54V | 50 | 54V/0.925A | 48.6-59.4 | 90.5% | 100 | |
Product Attributes
| Model | P152series | |
| (@230VAC) Electric shock | Cold start, 60A | |
| Standby function | <0.5W | |
| Overcurrent Protection | 120%-200%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.25kVAC (Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+85℃ | |
| E M C | EMI | CISPR32/EN55032 ClassB |
| performance | EMS | IEC/EN61000-4-2 Contact±6KV,IEC/EN61000-4-310V/m, IEC/EN61000-4-6 10Vr.m.s,IEC/EN61000-4-4,5,11 |
| Safety standard | IEC/UL/EN/BS EN62368、EN60335、EN61558、EN62477、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 22-14AWG | |
| Connector torque | M3,0.5N.m Max | |
| Dimensions | 99×65×30 | |
| Input voltage range | 80-305VAC/100-430VDC | |
