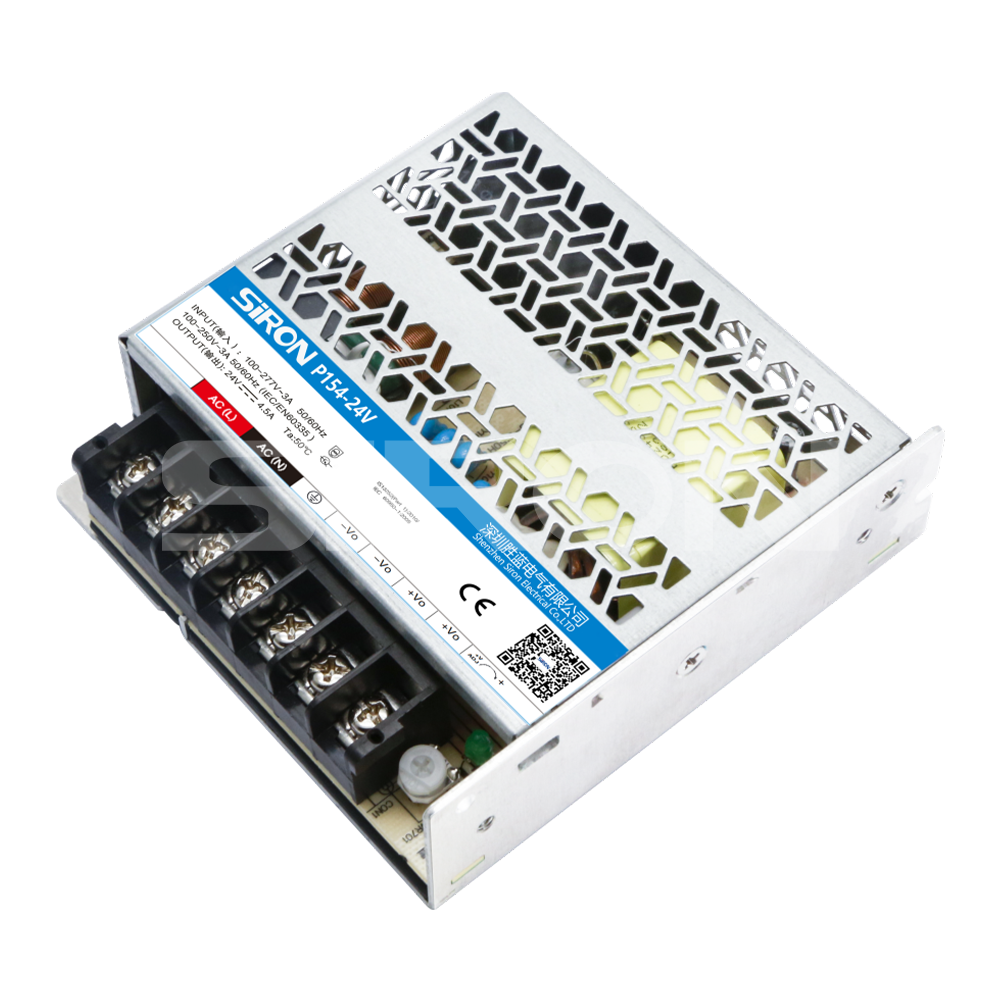

P155
SiRON
8504401400
Order
| Model | Voltage |
| P155 | 5V |
Selection reference
| Model | Rated output | Type | (uF) Maximum capacitiveload | Output ripple noise | ||
| Power | Voltage/current | Voltage adjustable range | ||||
| P155-12V | 150.0W | 12V/12.5A | 11.4-13.8V | 91.5% | 10000 | maximum1 5 0 m V |
| P155-15V | 150.0W | 15V/10.0A | 14.2-17.3V | 91.5% | 6000 | |
| P155-24V | 156.0W | 24V/6.5A | 22.8-27.6V | 91.5% | 2400 | maximum2 0 0 m V |
| P155-36V | 154.8W | 36V/4.3A | 34.2-41.4V | 91.5% | 1200 | |
| P155-48V | 158.4W | 48V/3.3A | 43.2-52.8V | 92.0% | 600 | |
| P155-54V | 151.2W | 54V/2.8A | 51.3-56.7V | 92.0% | 600 | |
Product Attributes
| Model | P151series | |
| (@230VAC) Electric shock | Cold start, 60A | |
| Standby function | <0.5W | |
| Overcurrent Protection | 120%-200%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.25kVAC (Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+85℃ | |
| E M C | EMI | CISPR32/EN55032 ClassB |
| performance | EMS | IEC/EN61000-4-2 Contact ± 6KV；IEC/EN61000-4-3 10V/m, IEC/EN61000-4-6 10Vr.m.s；IEC/EN61000-4-8,30A/m； IEC/EN61000-4-4,5,11 |
| Safety standard | IEC/UL/EN/BS EN62368、EN60335、EN61558、EN62477、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Wiring diameter | 20-10AWG | |
| Connector torque | M3.5, 0.8N.m Max | |
| Dimensions | 99×97×30 | |
| Input voltage range | 80-305VAC/100-430VDC | |
