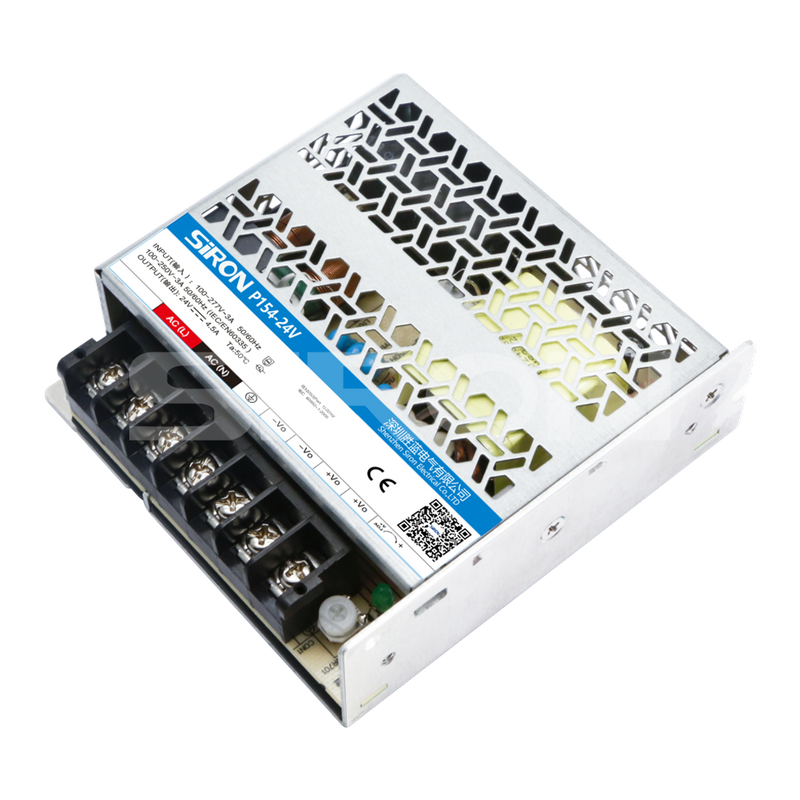

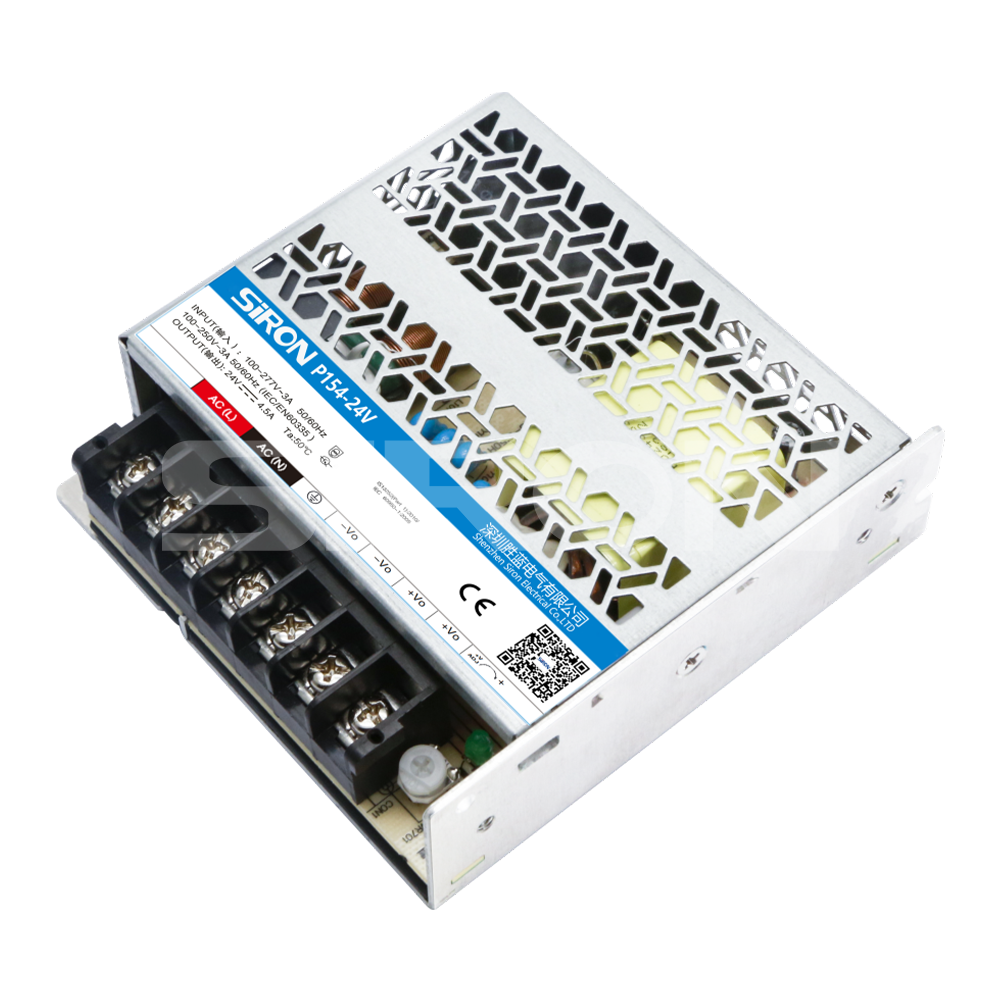

SiRON P154 Series 100W Shell Rack Type Switching Power Supply

Name: SiRON P154 Series 100W Shell Rack Type Switching Power Supply
Brand: SiRON
Rating: 5.0 (26 reviews)

Features

Dual use (same terminal input voltage), low standby power consumption, high efficiency;
4000VAC high isolation low voltage ripple noise, output short circuit, overcurrent, overvolta
Overvoltage class lll (in line with EN62477),to meet the 5000m altitude application;

Product Description

Order

Model	Voltage
P154	5V

Selection reference

Model	Rated output			Type	(uF) Maximum capacitiveload	Output ripple noise
Model	Power	Voltage/current	Voltage adjustable range	Type	(uF) Maximum capacitiveload	Output ripple noise
P154-5V	90W	5V/18A	4.75-5.75V	87.0%	10000	convention150mV
P154-12V	102W	12V/8.5A	11.4-13.8V	90.0%	6800	convention120mV
P154-15V	105W	15V/7.0A	14.25-17.25V	90.0%	3300	convention120mV
P154-24V	108W	24V/4.5A	22.8-27.6V	90.5%	2200	convention150mV
P154-36V	100.8W	36V/2.8A	34.2-41.4V	90.5%	1000	convention200mV
P154-48V	110.4W	48V/2.3A	43.2-52.8V	91.5%	470
P154-54V	102.6W	54V/1.9A	51.3-56.7V	91.5%	220

Product Attributes

Model		P154 series
(@230VAC) Electric shock		Cold start, 65A
Standby function		<0.5W
Overcurrent Protection		1 1 5 % - 2 0 0 %lo
Short circuit protection		Hiccup type, with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.25kVAC (Test for 1 minute, leakage current <10mA)
Operating temperature		-40℃to+85℃
E M C	EMI	CISPR32/EN55032 ClassB
performance	EMS	IEC/EN61000-4-2 Contact ± 6KV；IEC/ E N 6 1 0 0 0 - 4 -3 1 0 V / m , IEC/EN61000-4-6 10Vr.m.s；IEC/EN61000-4-8,30A/m； IEC/EN61000-4-4,5,11
Safety standard		IEC/UL/EN/BS EN62368、EN60335、EN61558、EN62477、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Wiring diameter		2 0 - 1 0AW G
Connector torque		M 3 . 5, 0 . 8 N .m M a x
Dimensions		9 9 × 9 7 × 3 0
Input voltage range		80-305VAC/100-430VDC
