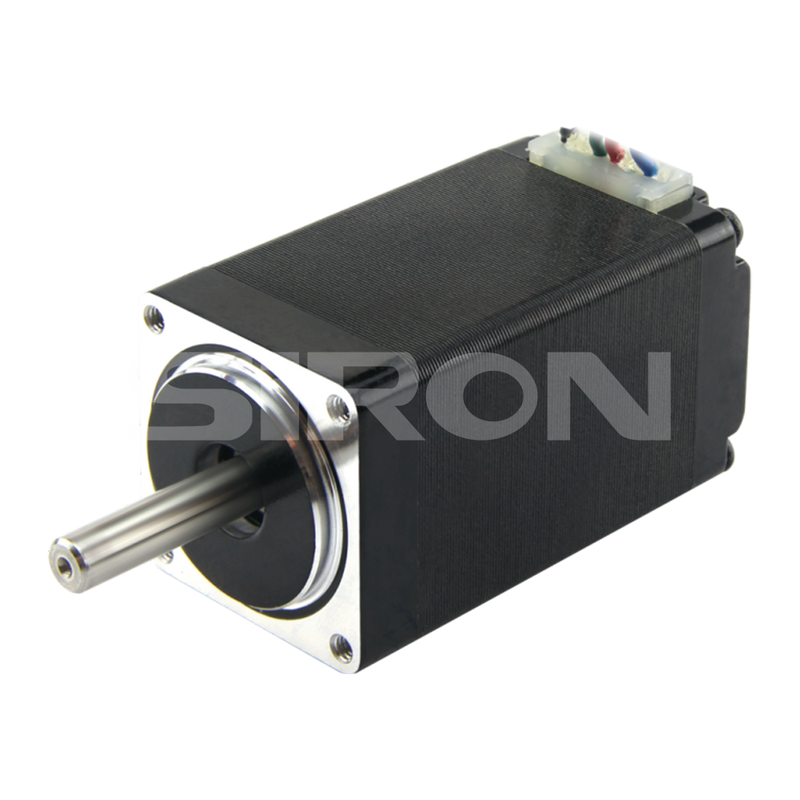

SiRON M272-28 Series 1.8° 28mm Two-phase Stepper Motor

Name: SiRON M272-28 Series 1.8° 28mm Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (42 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-28
Brand:
SiRON
Code:
8501109990

1.8° step angle 28mm frame size 0.06N.m holding torque

Product Description

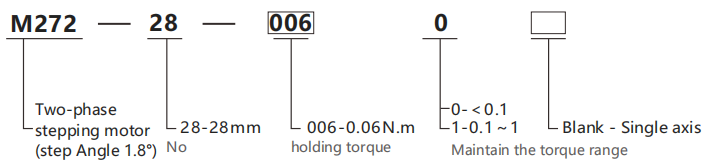

About selection

Selection example: M272-28-0060 represents the M272 series two-phase stepping motor, with a frame size of 28mm, a holding torque of 0.06N.m, and a single axis.

Table

Code	006	043	095	075	009	012
Hokding torque	0.06N.m	0J043N.m	0.095N.m	0.075N.m	0.09N.m	0.12N.m

Specification

Model	M272-28 Series
Radial Play	0.02mm@400g	Step Angle	1.8°
Axial Play	0.08mm@400g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	7N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

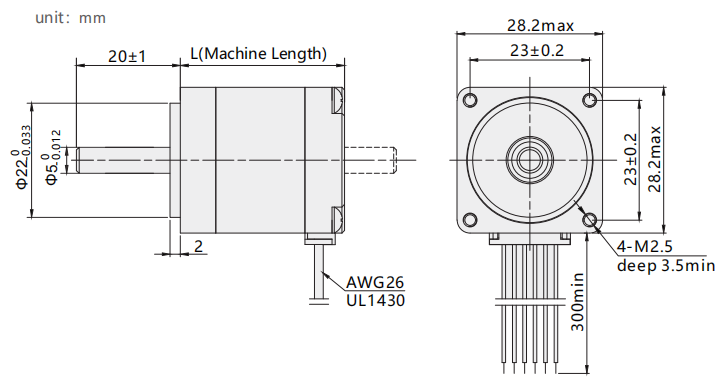

Dimensions

企业微信截图_17806452393249

Electrical properties

Model	M272-28-0060	M272-28-0430	M272-28-0950	M272-28-0750	M272-28-0121	M272-28-0090
Adapter drive	M280-430	M280-430	M280-430	M280-430	M280-430	M280-430
Current per phase	0.67	0.95	0.67	0.95	0.67	0.95
Holding torque	0.06	0.043	0.095	0.075	0.12	0.09
Positioning torque	0.005	0.005	0.006	0.006	0.008	0.008
Each resistance	5.6	2.8	6.8	3.4	9.2	4.6
Each inductance	3.4	1	4.9	1.2	7.2	1.8

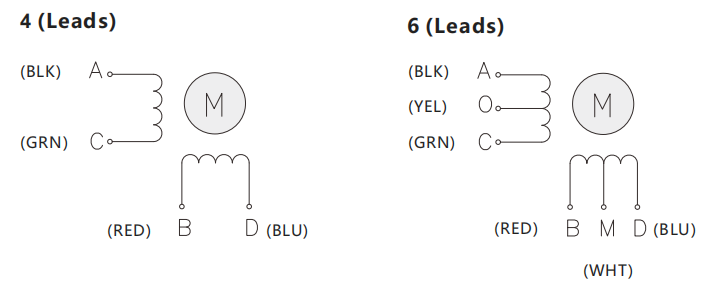

Number of lead wires	4	6	4	6	4	6
Moment of inertia	9	9	12	12	18	18
weight	0.11	0.11	0.14	0.14	0.2	0.2
Body length	32	32	45	45	51	51
