SiRON M271-86 Series Three-phase Stepper Motor

Name: SiRON M271-86 Series Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (91 reviews)

Features

* 1.2° step angle, three-phase stepper motor;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M271-86
Brand:
SiRON
Code:
8501109990

1.2° step angle 86mm frame size 2N.m holding torque 4.52N.m holding torque 6.78N.m holding torque

Product Description

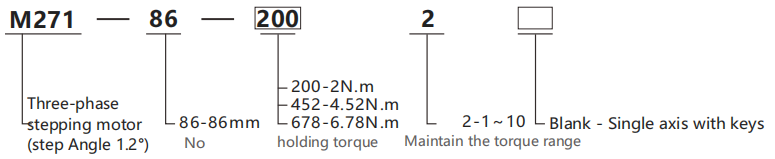

About selection

Selection example: M271-86-2002 represents the M271 series three-phase stepping motor, with a frame size of 86mm, a holding torque of 2N.m, and a single-axis key.

Specification

Model	M271-86 Series
Radial Play	0.025mm@500g	Step Angle	1.2°
Axial Play	0.075mm@1000g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	220N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	60N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	1200VAC/1s	Insulation Class	Class B

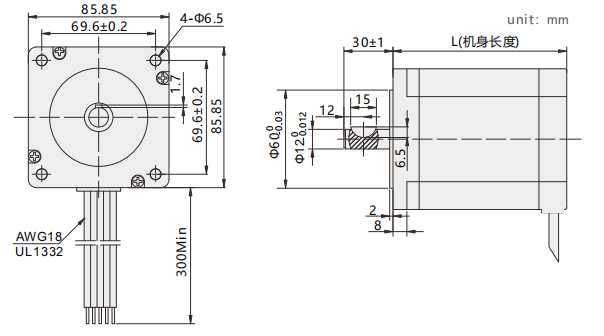

Dimensions

企业微信截图_1768811230329

Electrical properties

Model	M271-86-2002	M271-86-4522	M271-86-4522A	M271-86-6782	M271-86-6782A
Adapter drive	M281-3722	M281-3722	M281-3606	M281-3722	M281-3606
Current per phase	1.75	2	5.8	2.25	5.2
Hokding torque	2	4.52	4.52	6.78	6.78
Positioning torque	0.08	0.15	0.15	0.26	0.26
Each resistance	4.25	5.8	0.97	9	1.8
Each inductance	11	23	3.2	41	8

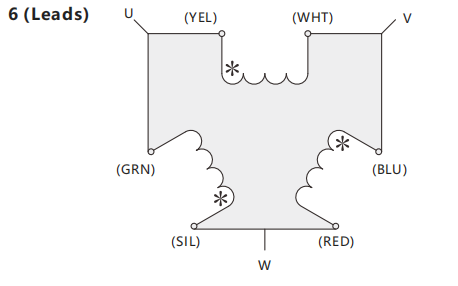

Numberof lead wires	6	6	6	6	6
Moment of inerfia	1120	2200	2200	3300	3300
weight	1.65	2.7	2.7	3.8	3.8
Body length	67	97	97	127	127
