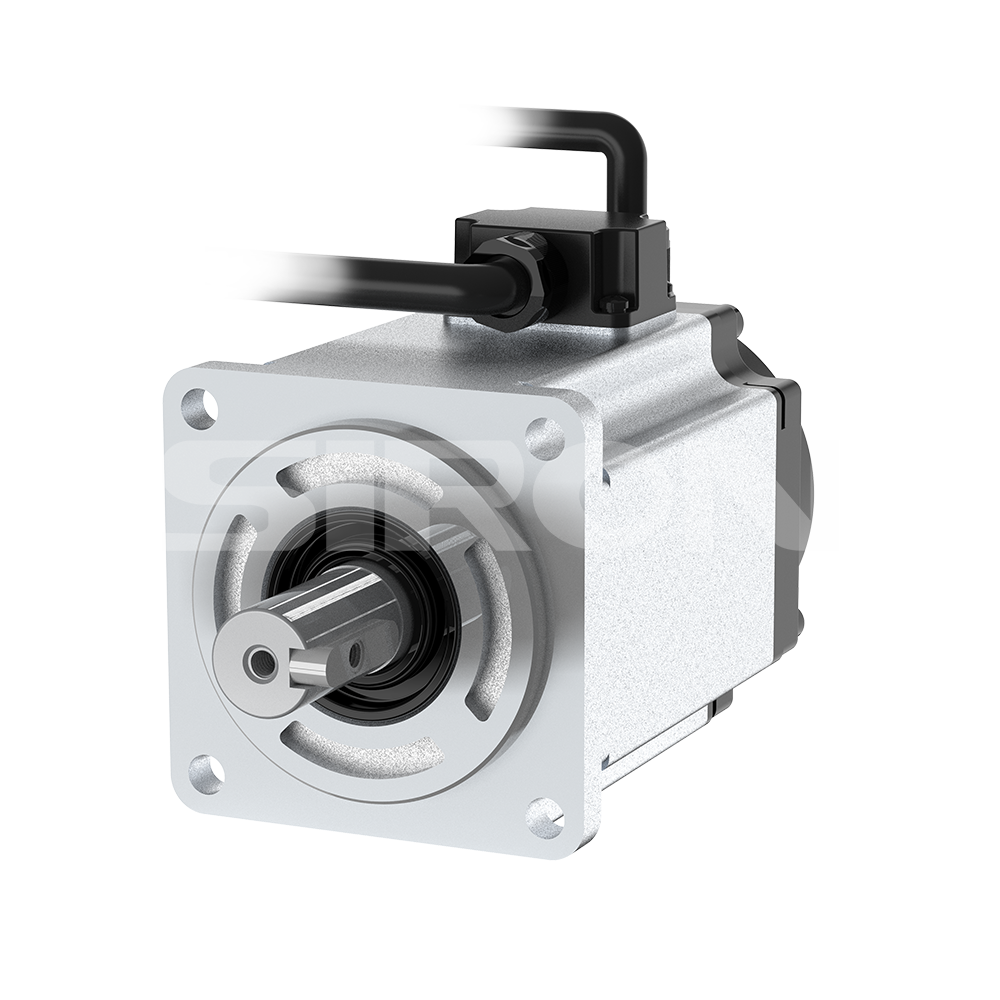

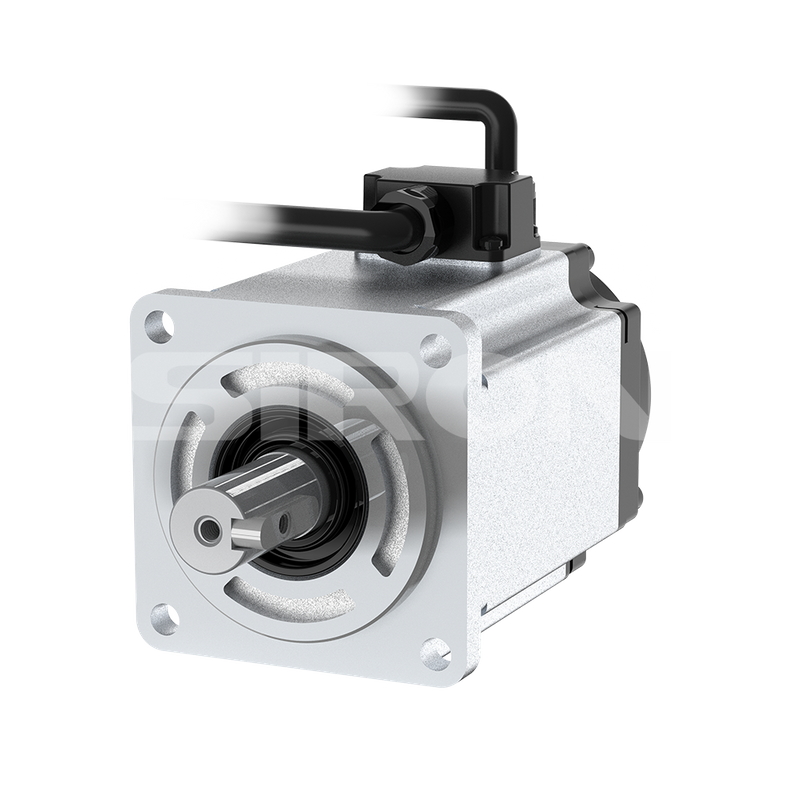

SiRON M206 AC 220V 40 60 80 Flange Servo Motor

Name: SiRON M206 AC 220V 40 60 80 Flange Servo Motor
Brand: SiRON
Rating: 5.0 (8 reviews)

Feature

* 17 bit magnetic encoder for single coil absolute value/17 bit magnetic encoder for multi coil absolute value can be selected;
* Adopting new technology, compact structure, short body and small size;
* Applied to automation equipments and instruments in the field of operation and control, for example: 3D printing equipments, lithium battery liquid injection machine, labeling machine, robot, CNC machine tools, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M206
Brand:
SiRON
Code:
8503009090

AC220V Servo Motor 40 Flange Servo Motor 60 Flange Servo Motor 80 Flange Servo Motor

Product Description

About selection

企业微信截图_17550818314543

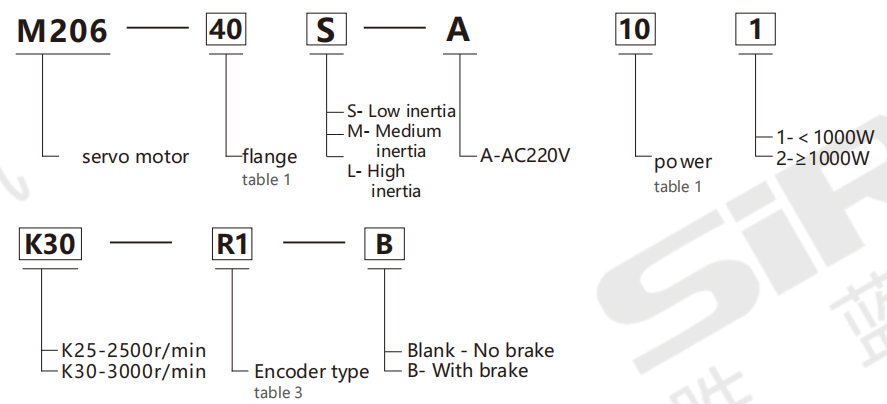

Selection example: M206-40S-A101K30-R1-B represents the M206 series servo motor, with a flange size of 40mm, an inertia specification of low inertia, a rated voltage of AC220V, a power of 100W, a rated speed of 3000r/min, a 1 7-bit magnetic coding incremental type, and a brake.

Note: 1. 220V: The power selectable range is 100W to 1000W.

2. The M206 series servo motors can be matched with the M216E series servo drivers

Table 1: Flanges

Code	40		60		80
Flange size	40mm		60mm		80mm

Table 2:Power

100W～1000W

Code	10	20	40	60	75	10
Power	100W	200W	400W	600W	750W	1000W

Table 3:Encoder Types

Code	R1			D11
Encodertype	17-bit magnetic coding single-turn absolute value			17-bit magnetic coding multi-turn absolute value

Specification

Ⅰ、40 flanges (220V )

Flange series	40 Flange series
Motor model	M206-40S-A101K30-R1	M206-40S-A101K30-D11
Rated power	0.10
Rated current	1.1
Rated speed	3000
Rated torque/Peak torque	0.32/0.95
Back electromotive force	20
Torque coefficient	0.29
Rotor inertia(without brake)	0.06×10⁻⁴
Winding(line to line)resistance	10.5
Winding(line to line)inductance	8.9
Electrical constant	0.85
Weight	0.8
Polar logarithm	5
Motor insulation level	Class F
Protection level	IP65
L without/with brake	86.5/119.5
Inertia type	low-inertia motor

Ⅱ、60 flanges(220V )

Flange series	60 Flange series
Motor model	M206-60S-A201K30-R1	M206-60S-A201K30-D11	M206-60S-A401K30-R1	M206-60S-A401K30-D11	M206-60S-A601K30-R1	M206-60S-A601K30-D11
Rated power	0.20		0.40		0.60
Rated current	1.6		2.5		3.3
Rated speed	3000		3000		3000
Rated torque/Peak torque	0.637/1.92		1.27/3.81		1.91/5.73
Back electromotive force	29.3		31.2		34.5
Torque coefficient	0.4		0.5		0.75
Rotor inertia(without brake)	0.3×10⁻⁴		0.52×10⁴		0.58×10⁻⁴
Winding(line to line)resistance	8.9		3.5		3.4
Winding(line to line)inductance	13.5		5.8		6.4
Electrical constant	1.52		1.66		1.88
Weight	0.72		1.06		1.2
Polar logarithm	5
Motor insulation level	Class F
Protection level	IP65
Lwithout /with brake	72/120		90/120		97/130
Inertia type	low-inertia motor

Ⅲ、80 flanges(220V )

Flange series	80 Flange series
Motor model	M206-80S-A751K30-R1	M206-80S-A751K30-D11	M206-80S-A102K25-R1	M206-80S-A102K25-D11
Rated power	0.75		1.0
Rated current	4.5		4.6
Rated speed	3000		2500
Rated torque/Peak torque	2.39/7.17		4.0/11.46
Peak current	13.5		13.8
Back electromotive force	32.8		50.8
Torque coefficient	0.53		0.83
Rotor inertia(without brake)	1.5×10⁻⁴		2.2×10⁴
Winding(line to line)resistance	1.2		23
Winding(line to line)inductance	4.2		9.6
Electrical constant	3.5		4.2
Weight	2.05		2.75
Polar logarithm	5
Motor insulation level	Class F
Protection level	IP65
Lwithout /with brake	96/133		116/143
Inertia type	low-inertia motor
