M030-1
SiRON
8471419000

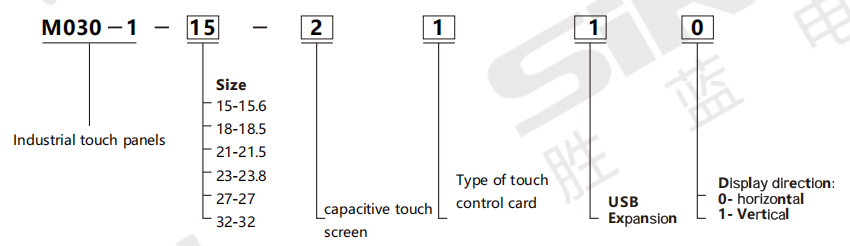

About selection

Selection example: M030-1-15-2110 represents the M030-1 series, featuring a 15.6-inch industrial touch panel with a capacitive touch screen and USB expansion, and a horizontal display orientation.
Specification
| model | M030-1-15-2110 | M030-1-18-2110 | M030-1-21-2110 | M030-1-23-2110 | M030-1-27-2111 | M030-1-32-2111 | |
| Touch screen | Touch screen type | Projective capacitive touch screen | |||||
| Multi-tbuch | 10 | ||||||
| Light transmittance | 85% | ||||||
| Controller | USB | ||||||
| Drive support | windows/linux | ||||||
| Response Time (Touch Par | Average <5ms | ||||||
| Surface hardness | ≥7H | ≥6H | ≥6H | ≥7H | ≥6H | ≥7H | |
| Touch lifespan | 250g/120 million times | ||||||
| System paramers | Display interface | HDMI/DVI-D/DP | |||||
| Communication interface | USB2.0 | ||||||
| Instrucions and operations | OSD control key | ||||||
| Power | Input voltage | DC24V | |||||
| Maximum power consumption | 18W | 21W | 21.5W | 30W | 37.5W | 60W | |
| power supply | Size | 392.90×242.20x50.40mm | 462.3×287.3×50.3mm | 531.7×328.01×50.3mm | 580.8×352.8×53.4mm | 401.5×666.5×50.3mm | 457.55×762.95×56.6mm |
| Opening size | 374.60×223.90mm | 443×268mm | 512×308mm | 569.7×330.5mm | 381.5×646mm | 449.3×754.7mm | |
| Net weight | 3.8kg | 5.0kg | 5.6kg | 8kg | 9.5kg | 14kg | |
| Installation method | Embedded installation and VESA installation | ||||||
| Environmental parameters | Working temperature | 0~50℃ | |||||
| Storage temperature | -10~60℃ | ||||||
| Relative Humidity | 10%-95%RH at 40℃,no condensation | ||||||
| Vibration during work | IEC 600682-2-64:1.5Grms/5~500Hz/random,1hr/axis | ||||||
| Impact during work | IEC 600682-2-27:10G(11ms),continuous peak acceleration 10m/s⊃2; | ||||||
Outline Drawing

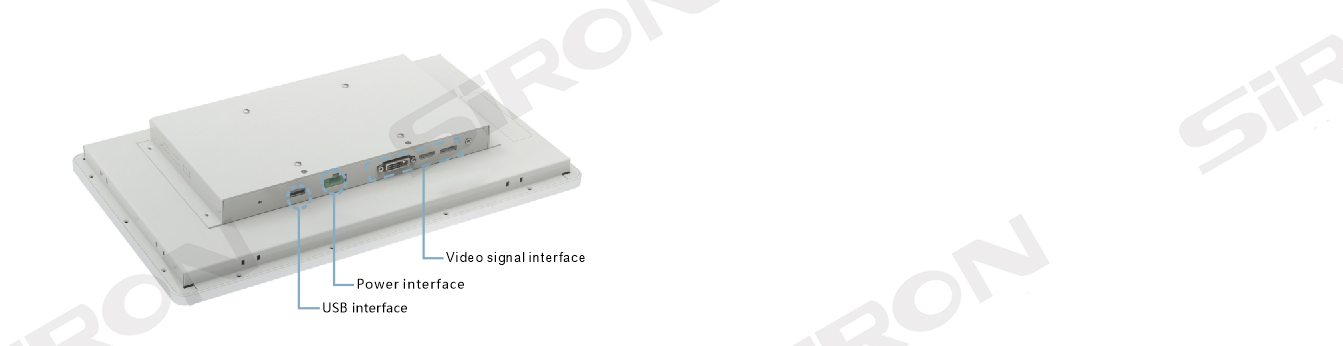

Pin Definitions

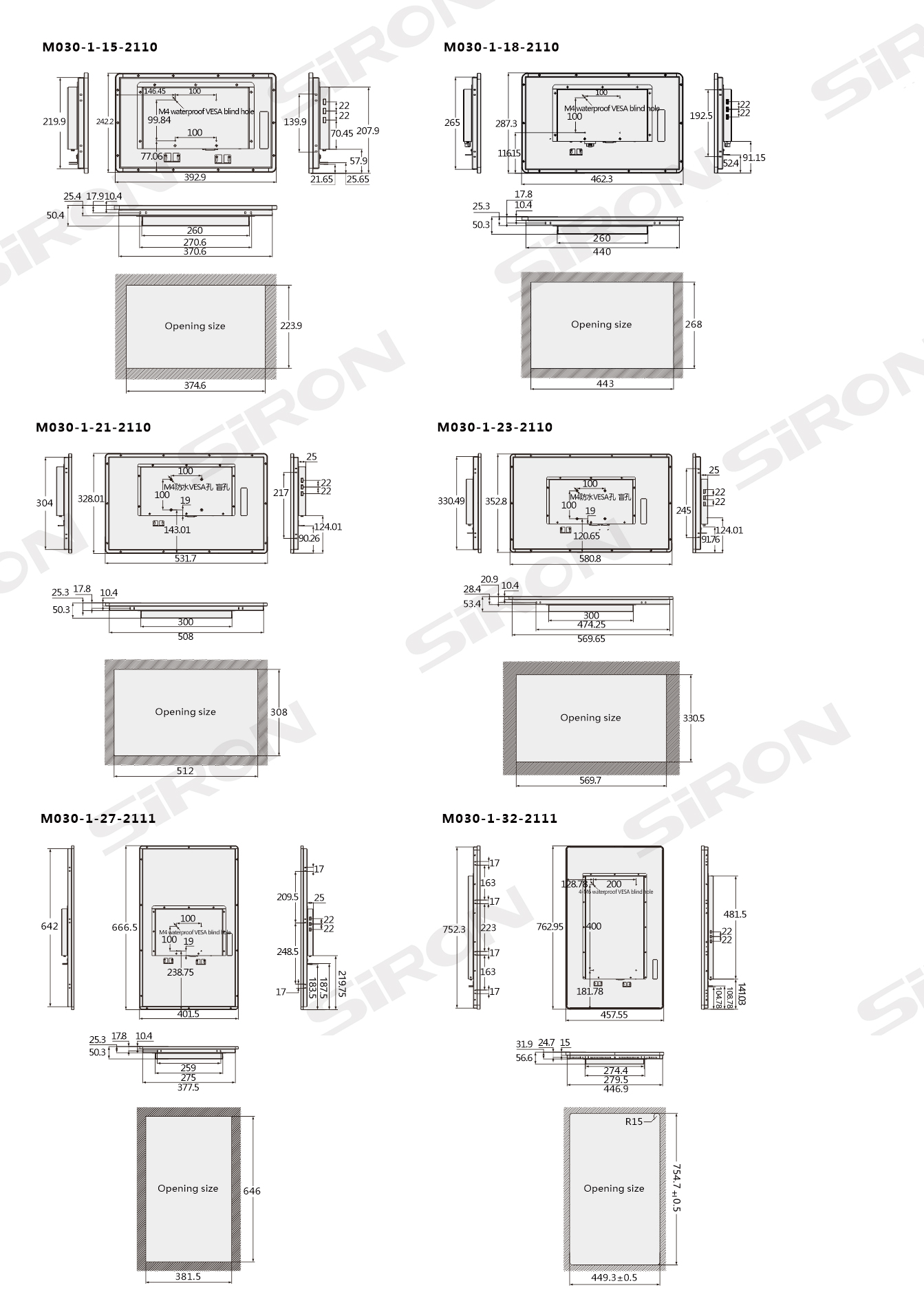

Installation Dimensions
