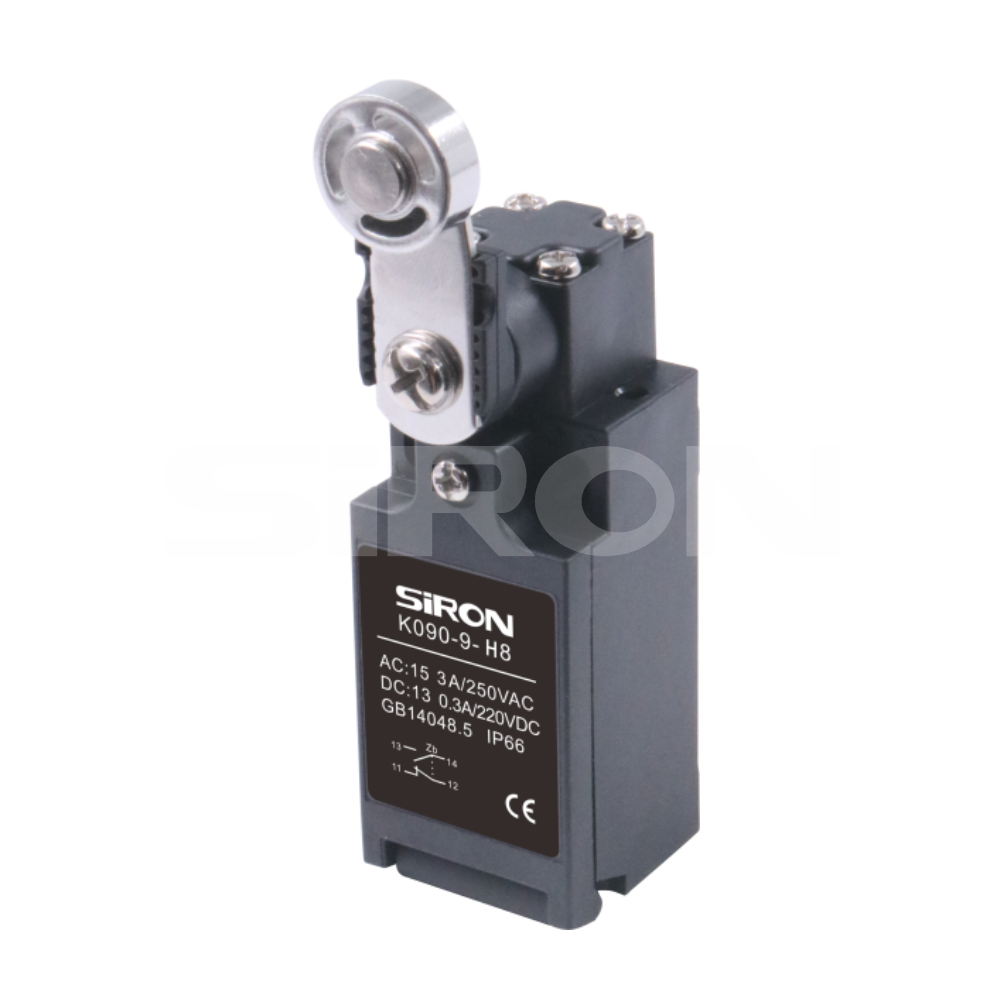

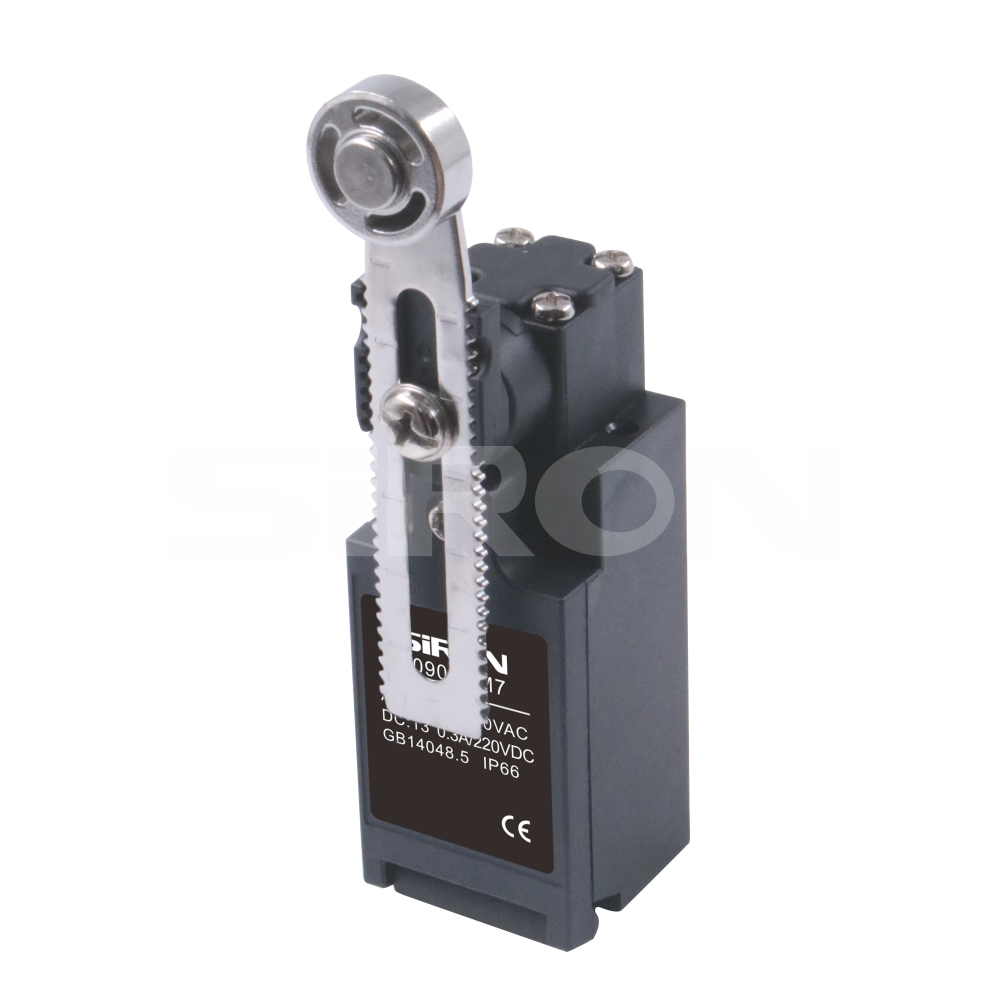

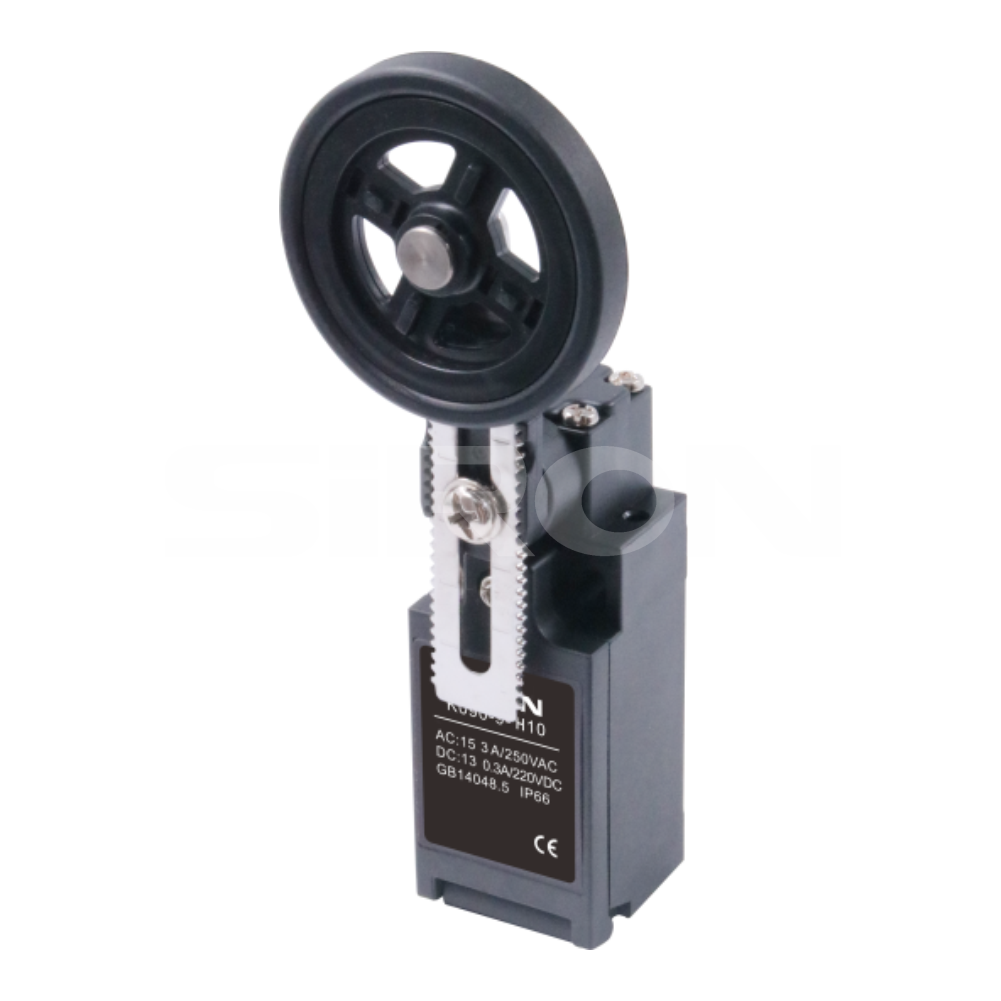

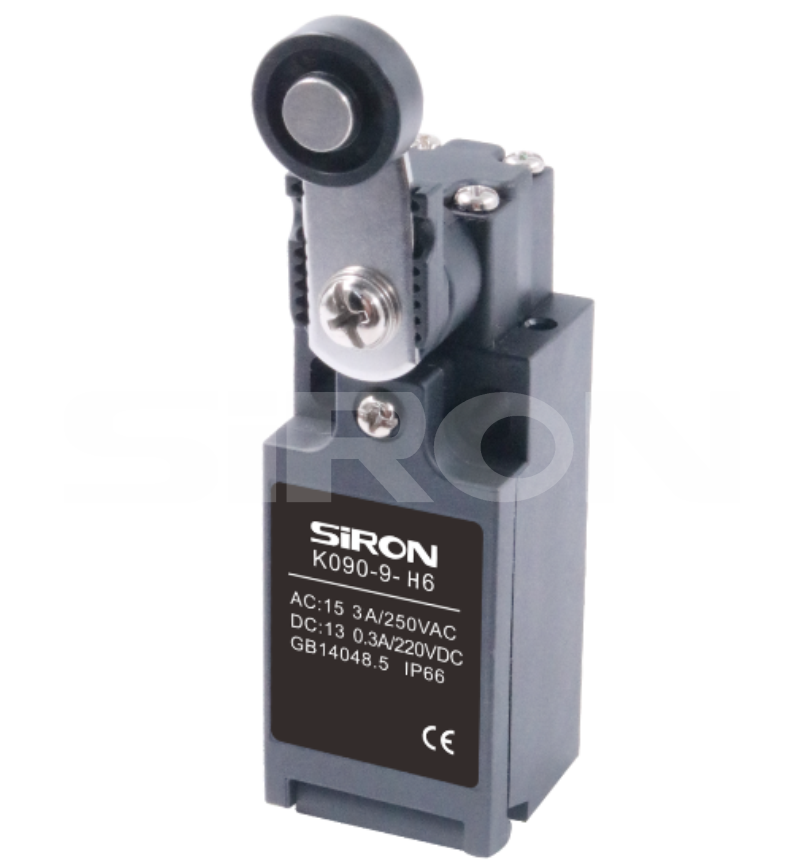

SiRON K090-9-H Series Vertical Limit Switch

Name: SiRON K090-9-H Series Vertical Limit Switch
Brand: SiRON
Rating: 5.0 (74 reviews)

Features:

* Forced disconnect action device (NC contact only), which can be used when contact is generatedThe contact will be disconnected in the event of a fault such as fusing.
* Strengthen the top sealing structure to improve the sealing performance.
* The built-in contact base has a snap-action type.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-9-H Series
Brand:
SiRON
Code:
9031809090

Vertical Limit Switch Highly enclosed Strengthen the structure catheter type Quick-acting type

Product Description

About selection

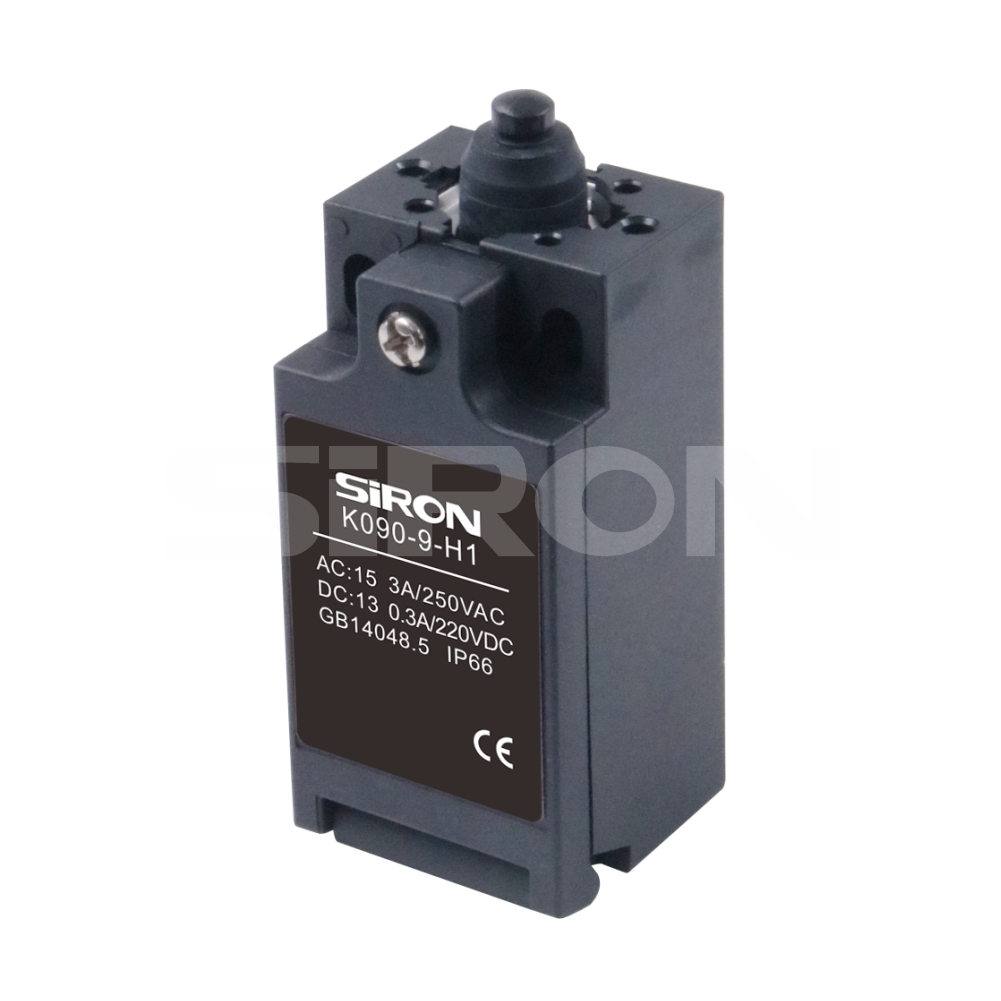

Selection example: K090-9-H1 indicates the K090-9 series, with H1 as the serial number.

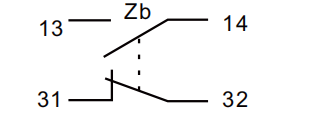

Contacr Form

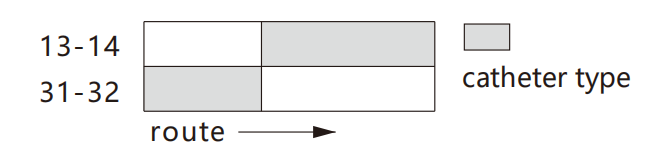

Quick-acting type (1NC/1NO)	Action pattern

Specifications

Name		Vertical safety limit switch
Protection level		IP66
Life	Electrical	Over 500,000 (AC250V 3A, resistive load) Over 300,000 (AC250V 10A, resistive load)
Operating speed		1mm - 0 . 5m/s(K090 - 9 - M5 type)
Action frequency		Electrical: 30 times per minute
Contact resistance		Below 2 5 m Ω
Minimum load		DC5V 1mA resistor load (N standard reference value)
Rated insulation voltage(UI)		300V
Protection level against electric shock		ClasslI(double insulation)
Withstand voltage		Between terminals of the same level: 2.5KV; Between opposite poles: 4kV;
		Between each terminal and the non-charging metal part: 6kV
Insulation resistance		Above 1 0 0 m Ω
Contactgap		Minimum 2× 0.5mm quick-acting type
Vibrate	Malfunction	10 - 55Hz 0 . 75mm single amplitude
Shock	Durable	1000m/s⊃2;
	Malfunction	300m/s⊃2;
Ambienttemperature		When in use: -20 to +70℃(not frozen)
Environment humidity		Below 9 5 % R H

Rated value

Model		K090-9-H1 K090-9-H20	K090-9-H2 K090-9-H21	K090-9-H3 K090-9-H22	K090-9-H4 K090-9-H23	K090-9-H5 K090-9-H6 K090-9-H24 K090-9-H25	K090-9-H7 K090-9-H26	K090-9-H8 K090-9-H27	K090-9-H9 K090-9-H10 K090-9-H28 K090-9-H29	K090-9-H11 K090-9-H12 K090-9-H30 K090-9-H31
Action force(maximum)	OF	6.5N	6.5N	5.0N	5.0N	5.0N	4.5N	5.0N	4.5N	1.5N
Restoring force(minimum)	RF	1.5N	1.5N	0.8N	0.8N	0.5N	0.4N	0.5N	0.4N	-
Pre-travel	PT	2mm	2mm	4mm	4mm	18-27°	18-27°	18-27°	18-27°	15°
Overtravel(minimum)	OT	4mm	4mm	5mm	5mm	40°	40°	40°	40°	-
Poor impact stroke(maximum)	MD	1mm	1mm	1.5mm	1.5mm	14°	14°	14°	14°	-
Action position	OP	18.2±0.5mm	28.6±0.8mm	37±0.8mm	27±0.8mm	-	-	-	-	-
Total trip	TT	6mm	6mm	9mm	9mm	80°	80°	80°	80°	-
Forced discommecion stroke (minimum)	DOT	3.2mm	3.2mm	5.8mm	4.8mm	50°	50°	50°	50°	-
Forced breaking force (minimum)	DOF	20N	20N	20N	20N	20N	20N	20N	20N	-
