K090-9-A Series
SiRON
9031809090
About selection

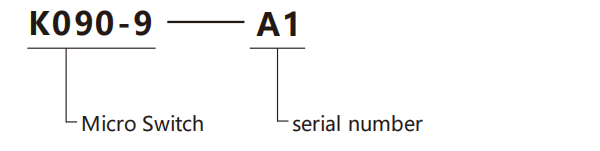

Selection example: K090-9-A1 indicates the K090-9 series, serial number A1.
Contacr Form
Specifications
Name | Micro Swich | |||||||||
Model | K090-9-A1 | K090-9-A2 | K090-9-A3 | K090-9-A4 | K090-9-A5 | K090-9-A6 | K090-9-A7 | K090-9-A8 | K090-9-A9 | |
Appearance |   |  |  |  |  |  |  |  |  | |
Action force | 200g(1.96N) | 200g(1.96N) | 200g(1.96N) | 200g(1.96N) | 125g(1.23N) | 200g(1.96N) | 200g(1.96N) | 125g(1.23N) | 125g(1.23N) | |
Resilience | 50g(0.49N) | 50g(0.49N) | 14g(0.14N) | 50g(0.14N) | 14g(0.14N) | 50g(0.49N) | 50g(0.49N) | 14g(0.14N) | 14g(0.14N) | |
Pre-travel | 1.2mm | 1.2mm | 2.8mm | 1.2mm | 3.0mm | 1.2mm | 1.2mm | 2.8mm | 2.8mm | |
| Overtravel | 0.6mm | 0.6mm | 1.0mm | 0.8mm | 1.2mm | 0.6mm | 0.6mm | 1.0mm | 1.0mm | |
Difference stroke | 0.3mm | 0.5mm | 0.8mm | 0.5mm | 0.8mm | 0.3mm | 0.3mm | 0.8mm | 0.8mm | |
Action position | 14.7±0.5mm | 15.2±0.5mm | 15.2±1.2mm | 20.5±0.6mm | 20.5±1.2mm | 14.7±0.5mm | 14.7±0.5mm | 15.2±0.6mm | 15.2±0.6mm | |
Operating speed | 0.1mm~1m/s | |||||||||
Operating frequency | Mechanical | 600 times per minute | ||||||||
Electric | 30 times per minute | |||||||||
Insulation resistance | Above 100MΩ, DC500V | |||||||||
| Contact resistance | 20mΩ(initial value) | |||||||||
| Medium withstand voltage | Non-wired | 1000VAC | ||||||||
| Between terminals | 1500VAC | |||||||||
| Vibration | Complex amplitude of 10 to 55Hz | |||||||||
| Shock | Durable | 1000m/s⊃2; | ||||||||
| Malfunction | 300m/s⊃2; | |||||||||
| life | Electric | More than 100,000 times | ||||||||
| Mechanical | More than one million times | |||||||||
| Protection level | IP40 | |||||||||
| Operating temperature | -25～+80℃ | |||||||||
| Operating humidity | <85% | |||||||||

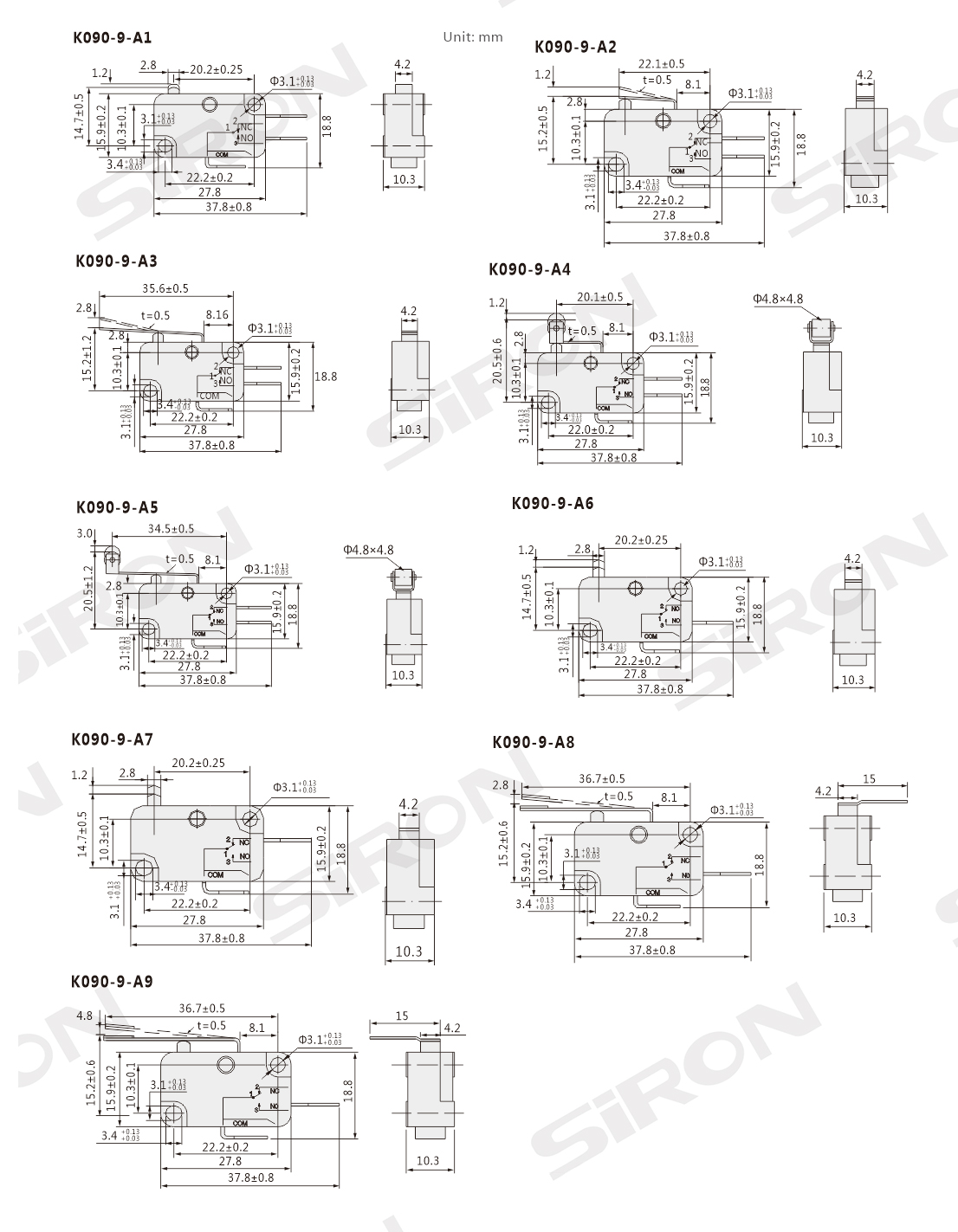

Dimension
