K090-9-Z Series
SiRON
9031809090

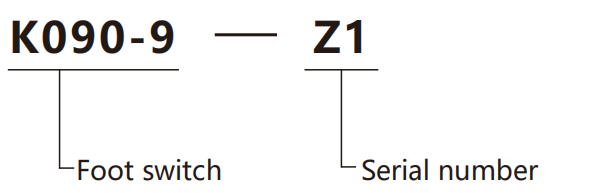

About selection
Selection example: K090-9-Z1 indicates the K090-9 series, with Z1 serial number.
Type
| Type | Small attached fixed piece | Alternating type | Standard type (reset type) | Protective cover type | Large size |
| Model | K090-9-Z1 K090-9-Z2 K090-9-Z3 | K090-9-Z6 K090-9-Z11 K090-9-Z14 K090-9-Z17 | K090-9-Z4 K090-9-Z5 K090-9-Z7 K090-9-Z8 K090-9-Z8S | K090-9-Z9 K090-9-Z10 K090-9-Z15 K090-9-Z16 K090-9-Z18 K090-9-Z19 | K090-9-Z12 K090-9-Z13 K090-9-Z20 |

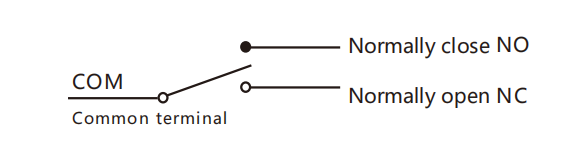

Contacr Form
Specifications
Name | Model | Rating | Cantact | Action force | Material of Rind | Cable type/length |
| Foot switch | K090-9-Z1 | 10A 250VAC | One open and one closed | 0.7kg | plastic | 0.5mm²,3C/ 1~3m |
| K090-9-Z2 | 0.7kg | |||||
| K090-9-Z3 | 0.9kg | Ironclad | ||||
| K090-9-Z4 | 1.2kg | plastic | 0.75mm²,3C/ 0.5m,1~3m | |||
| K090-9-Z5 | 15A 250VAC | One open and one closed | 1.1kg | plastic | 0.75mm²,3C/ 1m,1.5~2m | |
| K090-9-Z6 | 6A 250VAC | 2kg | 0.75mm²,3C/ 1m,1～2m | |||
| K090-9-Z7 | 10A 250VAC | One open and one closed | 1.kg | Aluminium alloy | 0.5mm²,3C/ 1~3m | |
| K090-9-Z8 | 1.2kg | 0.75mm²,3C/ 0.5m,1~3m | ||||
| K090-9-Z8S | 15A 250VAC | 1.1kg | 0.75mm²,3C/ 1m,1~3m | |||
| K090-9-Z9 | 15A 250VAC | One open and one closed | 3.2kg | Aluminium alloy | With cable fixing head attached No cable included | |
| K090-9-Z10 | Two open and two closed | 3.2kg | ||||
| K090-9-Z11 | 6A 250VAC | One open and one closed | 3.1kg | |||
| K090-9-Z12 | 15A 250VAC | 3.2kg | ||||
| K090-9-Z13 | 15A 250VAC | Two open and two closed | 3.2kg | |||
| K090-9-Z14 | 6A 250VAC | One open and one closed | 3.1kg | |||
| K090-9-Z15 | 15A 250VAC | 3.2kg | ||||
| K090-9-Z16 | 15A 250VAC | Two groups, one open and one closed | 3.2kg | |||
| K090-9-Z17 | 6A 250VAC | One open and one closed | 3.1kg | |||
| K090-9-Z18 | 15A 250VAC | Two groups, one open and one closed | 2.8kg | |||
| K090-9-Z19 | 3.2kg | |||||
| K090-9-Z20 | 3.2kg |
