D042 Series
SiRON
9405410000
ABOUT SELECTION
![]() | ||

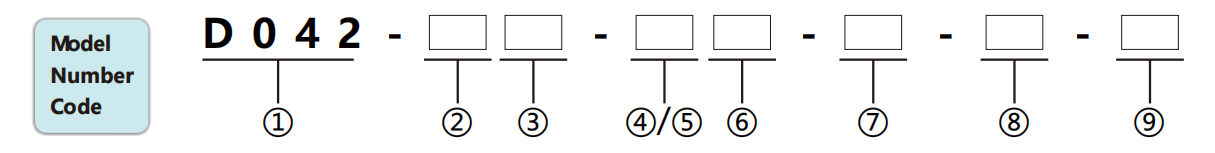

| Type analysis | ||
| ① | LED signal lamp series | D042 |
| ② | Installation mode | 1. Direct mount 2.Upright type 3.L-shaped bracket 4. Bent type |
| ③ | Rodlength (Install directly without selecting this option) | Blank:150mm |
| ④ | Number of color layers (multicolor) |
1: One layer (RYG) 2: Twolayers (RG) 3: Three layers (RYG) 4:Four layers (RYGB) 5:Five Layers (RYGBW) |
| ⑤ | Number of color layers (monochrome) | R: Red Y: Yellow G: Green B: Blue W: White |
| ⑥ | Shade color | Blank:standardtype C:translucencytype |
| ⑦ | Working condition | Blank:Always on B:Always on with buzzer (continuous tone) Q:Always on + flashing with buzzer(intermittent tone) |
| ⑧ | Body color | Blank:White H:Black |
| ⑨ | Rated voltage | Blank:24VAC/DC 12:12VAC/DC 110:110VAC 220:220VAC |
Note: 1. Installation method: Direct installation method with no option for pole length;
2. Operating status:OptionQ"Always on+ flashing light with buzzer (intermittent tone)" means that customers can choose the wiring by themselves according to their needs to achieve either "Always on with buzzer" or "flashing light with buzzer".
Specifications

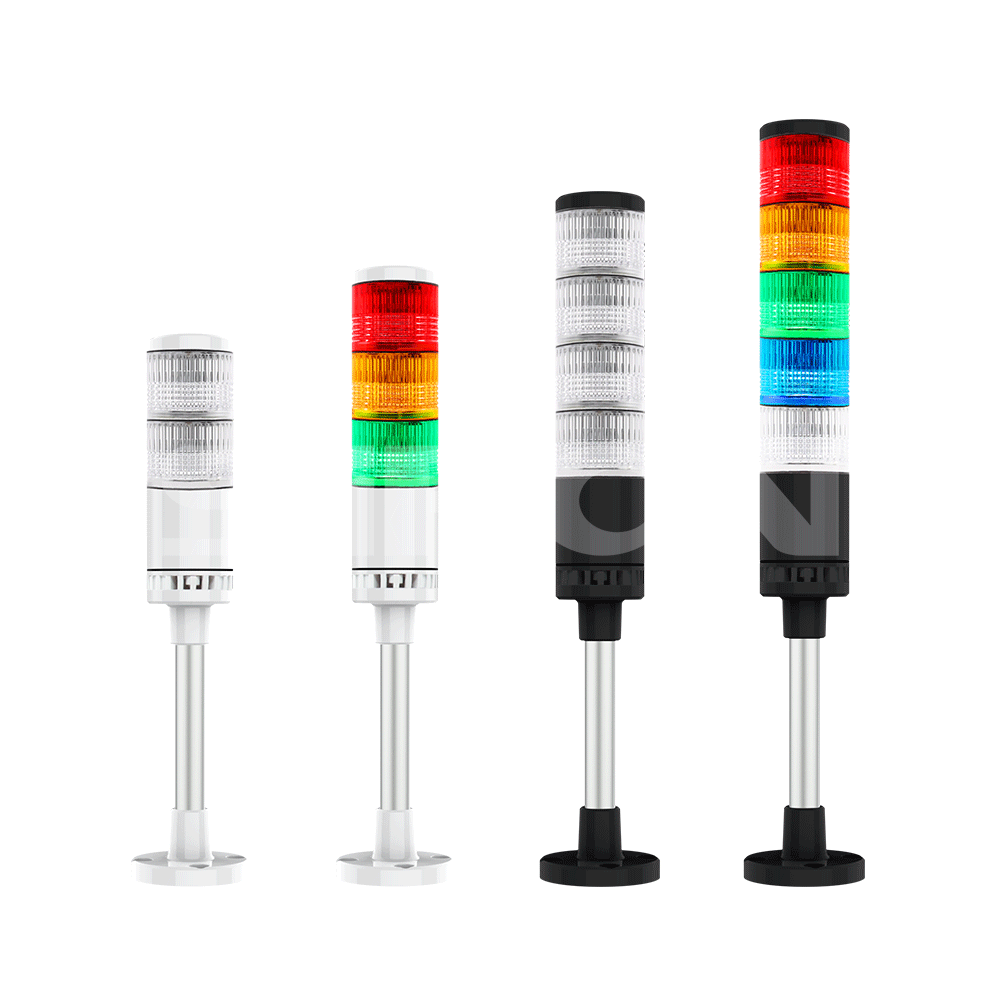

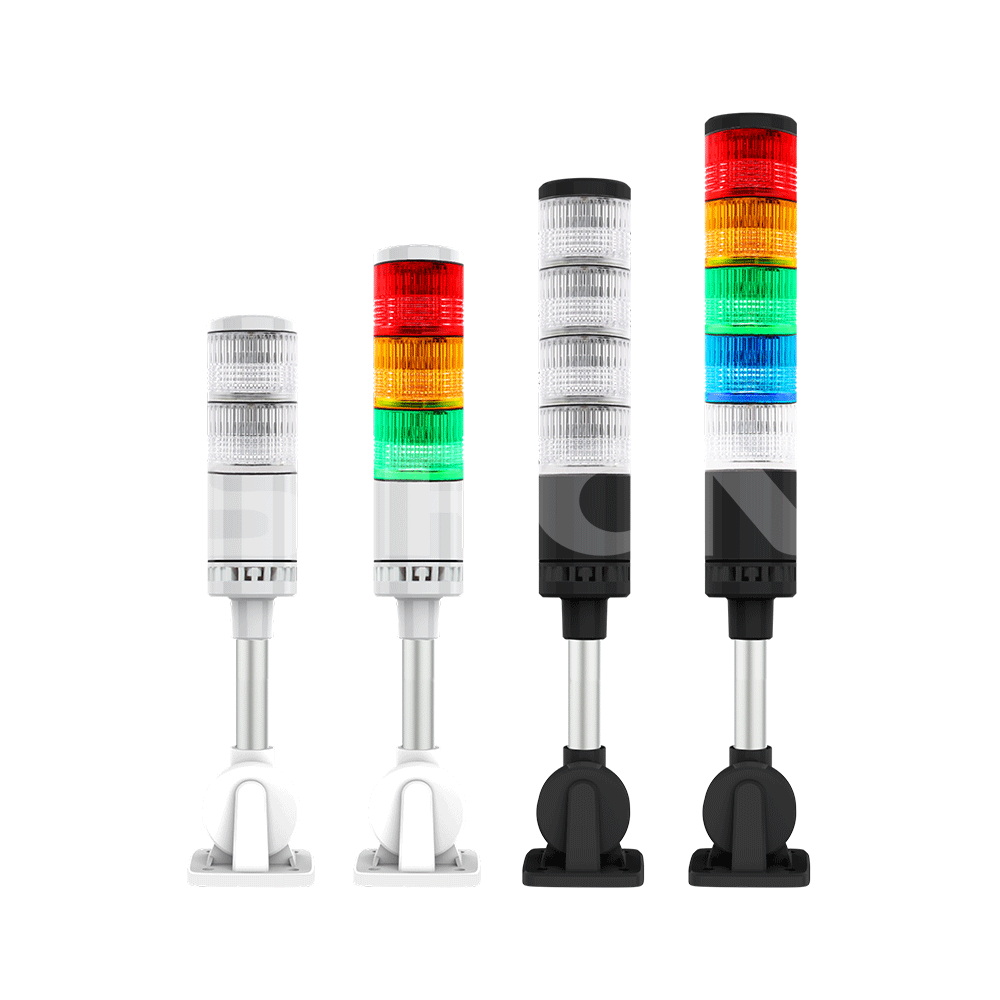

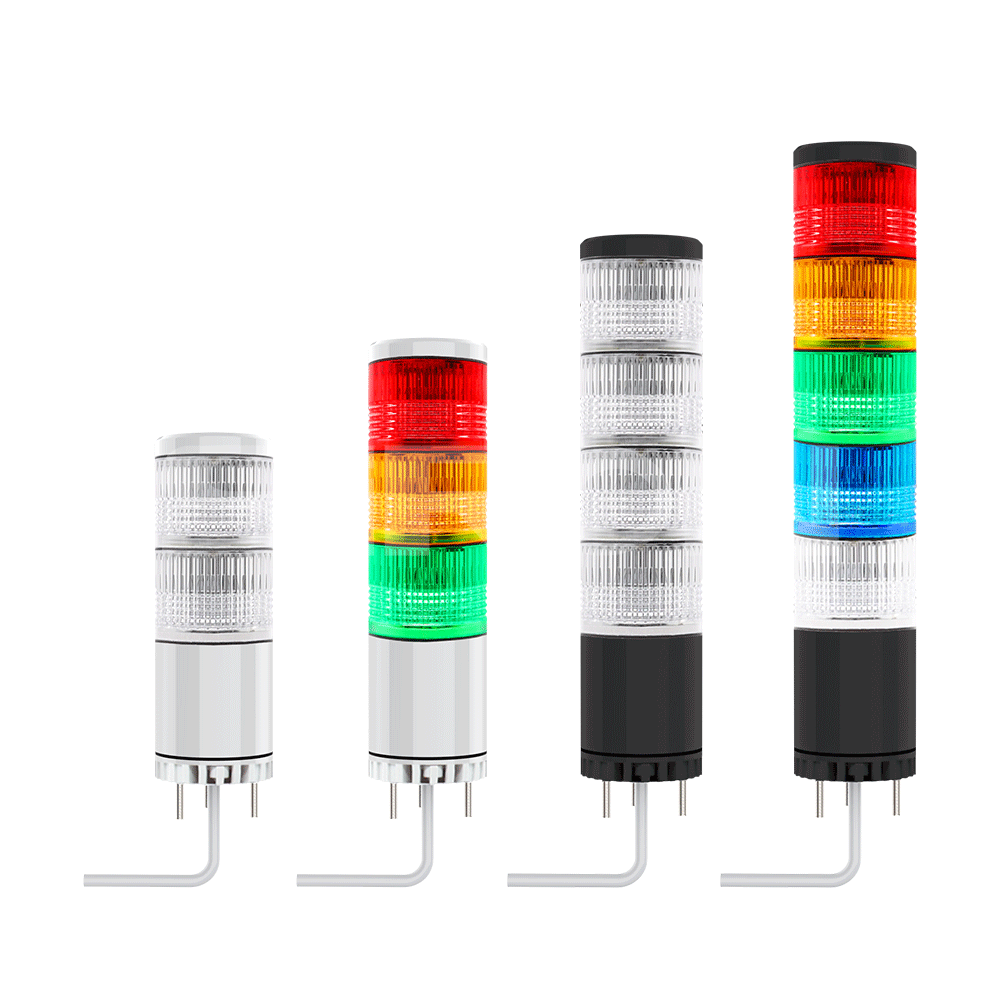

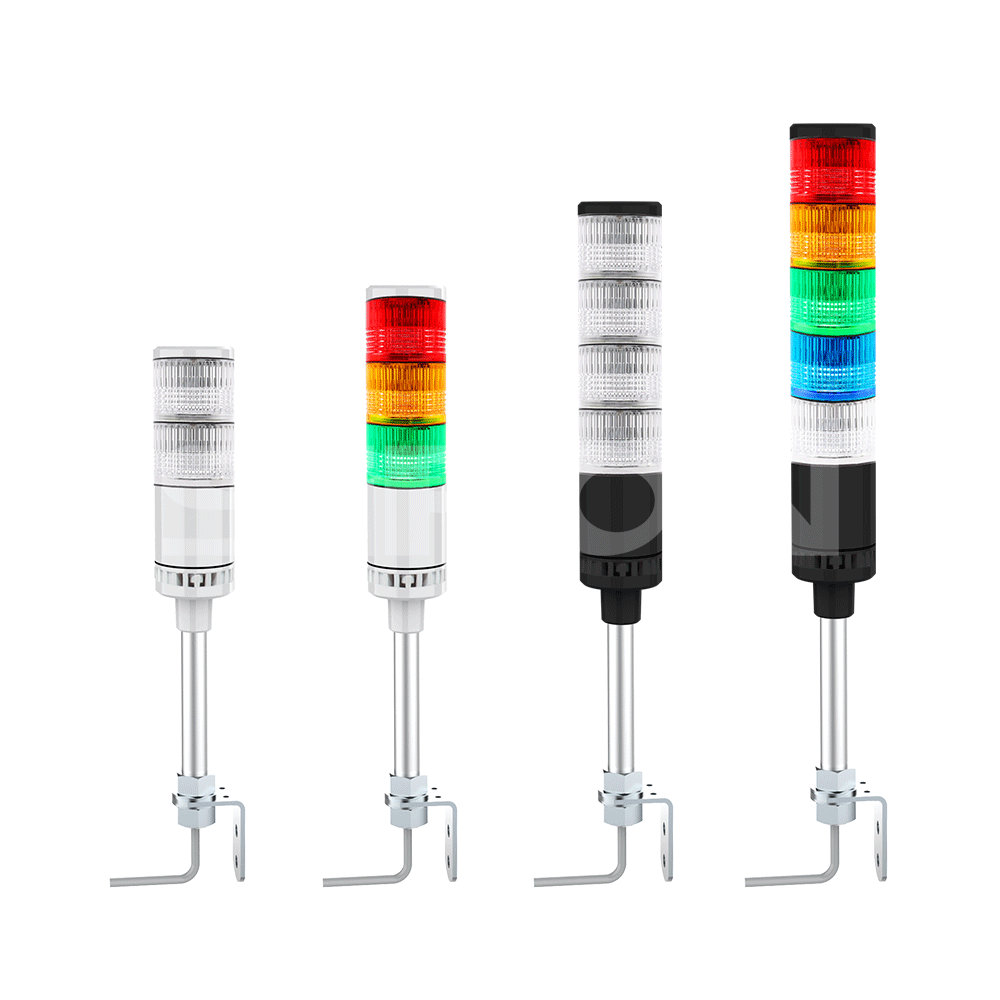

| Model number | D042-1 | D042-2 | D042-3 | D042-4 |
| Appearance | ![]() ![]() | ![]() | ![]() ![]() | ![]() ![]() |
| Rated voltage | 24VAC/DC;12VAC/DC;110V AC;220V AC | |||
| Working condition | 60~≥85db/1m(Manually adjustable) | |||
| Material | lamp shade PC + lamp housing ABS | |||
| Number of color layers | 1~5 floor | |||
| Working temperature | -15℃~+40℃(No icing) | |||
| Storage temperature | -20℃~+70℃(No icing) | |||
| Working humidity | 40~85%RH(No frosting) | |||
| Anti-vibration | 10~55Hz,amplitude 0.75mm | |||
| Installation method | Direct install,Upright type,L-shaped bracket,Bent type | |||
| Protection grade | IP65 | |||
| Signal polarity | NPN/PNP general | |||
| Standard wiring length | 1500mm | |||
| Luminescent lamp source color | ![]()
Red Yellow Green Blue White | |||
