SiRON D021-D Series LED Signal Lamp Highlight Light Beads

Name: SiRON D021-D Series LED Signal Lamp Highlight Light Beads
Brand: SiRON
Rating: 5.0 (74 reviews)

Features:

*Imported PC with high light transmission. Good seismic performance.

*Aluminum alloy foldable base structure. Make sure the warning light has good heat dissipation.

*Built-in buzzer. The sound is loud and not harsh.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

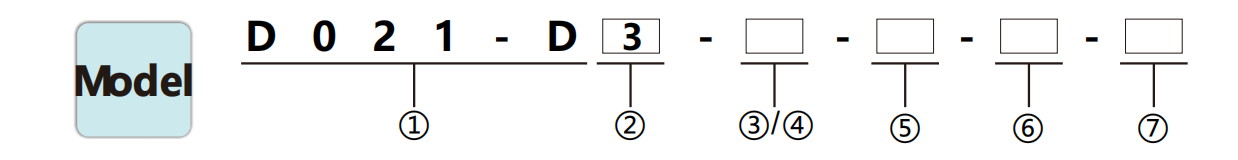

Type analysis
①	LED signal lamp series	D021-D
②	Mounting holes	3: Three-holebase 4: Four-holebase
③	Color layers（Acquiesce）	3：threelayers（RYG） 5：Five-layer（RYGBW）
④	Color selection (Articles made to order）	R: red Y: yellow G: green B: blue （Top downcolor ordering）
⑤	Working condition	Blank：Always on B：Always on with buzzer S：Flashing Q：Flashing with buzzer
⑥	Connection mode	Blank: common positive/ negative Universal C: contacttype
⑦	Rated voltage	Blank ：24VDC 220：220VAC

Specifications

Model number	D021-D4-3	D021-D4-5

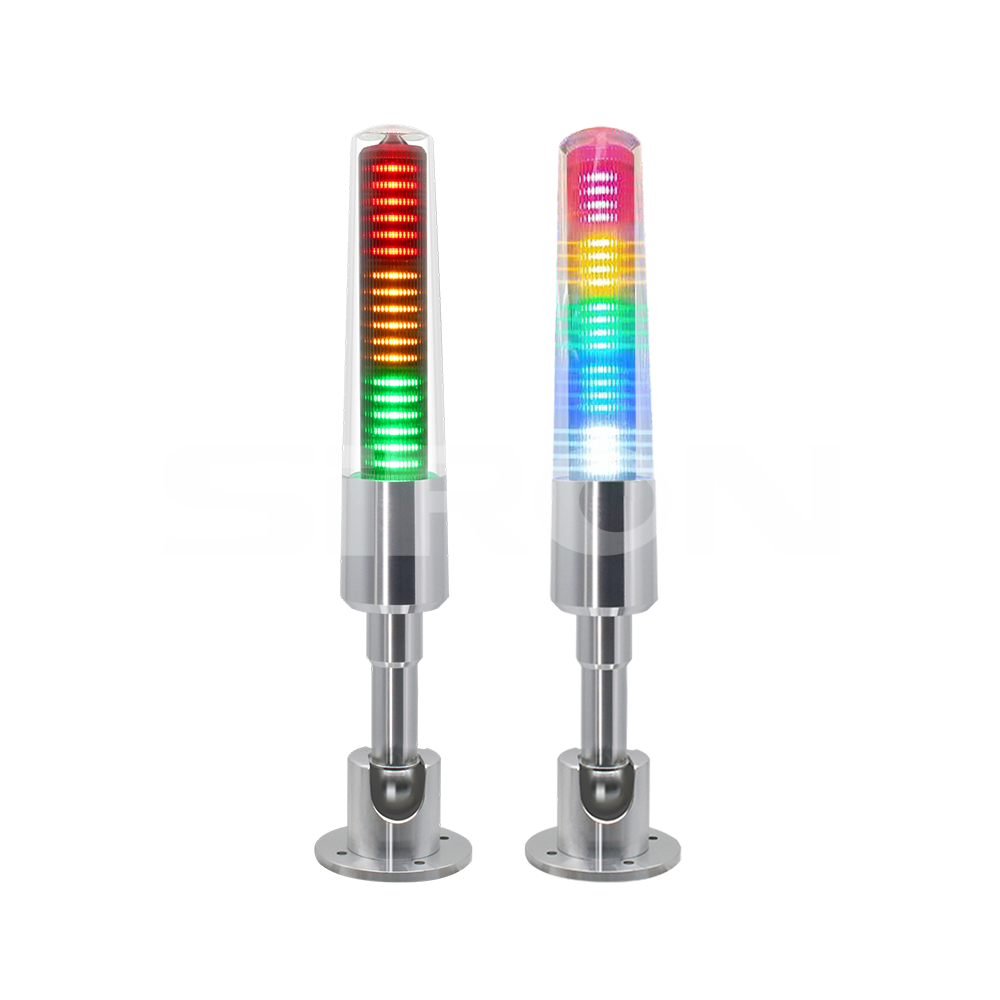

Appearance
Appearance/Body color	Appearance:Baseball rod design light body color silver
Thematerial	PC(bulletproof rubber)lamp shade +acrylic lamp body core shaft+aluminum alloy base
Input voltage/lnput current	Input voltage:24V DC/220V AC input Current:40~250mA
Lhigt source/Luminous angle	Light source:Patch 2835 LED,0.2W/pcs luminous Angle:The whole lamp can be seen by 360°
Power/Sound intensity/Class of protection	Power:monochrome 1.0W,total power 6W Sound intensity:Buzzer>85dB Protection level:IP40
Color layer/Number of holes in base	Number of color layers:single-layer three-color/single-layer five-color base holes:3 holes /4 holes
Working condition	Alvays on/Always on with buzzer/Flashing/Fashing with buzzer
Installation mode/Connection mode	Installation mode:Bending connection mode:direct power input type(positive/negative universal)/contact type
Service life/Standard wiring length	Working life:50000h Wiring length:1500mm;
Operating temperature/Storage temperature	Operating temperature:-20~45'c Storage temperature:-40~709C
Operating humidity/Storage humidity	Operating humidity:10~90%Storage humidity:10~90%
Luminescent lamp source color	Red Yellow Green Blue White
