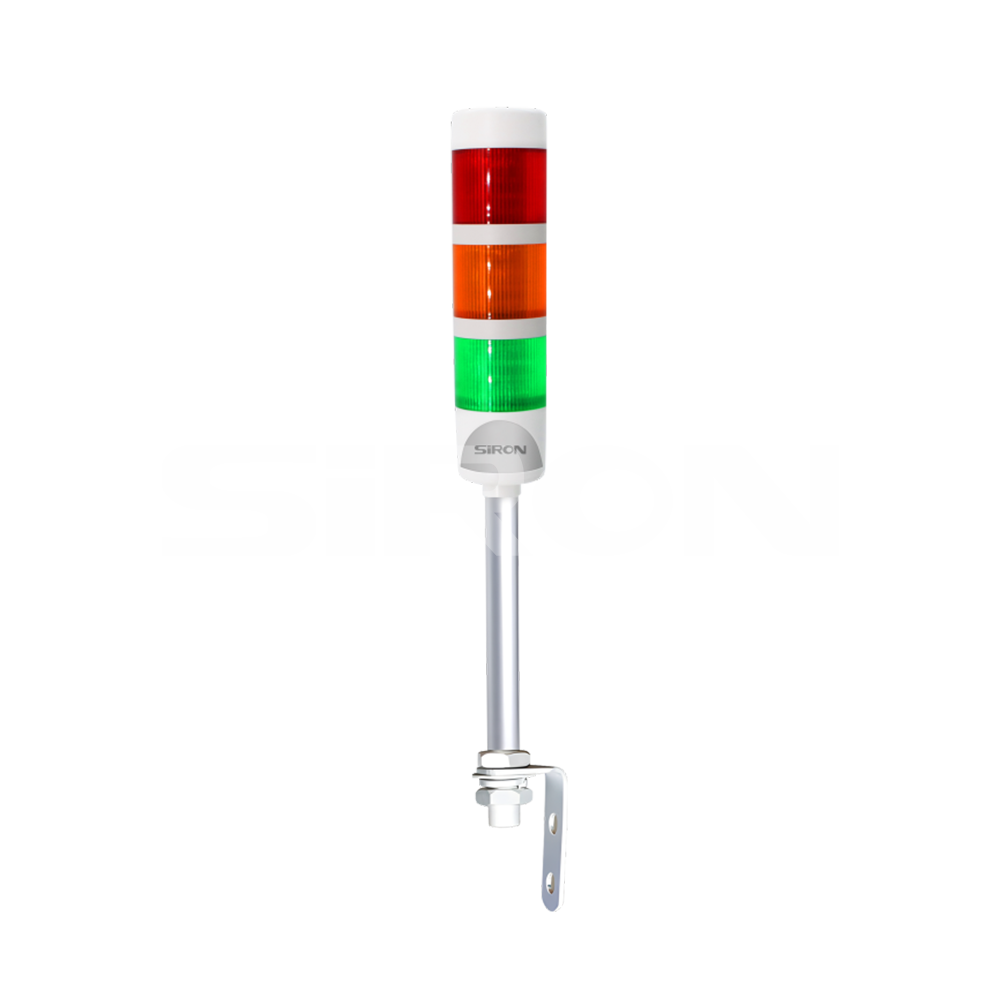

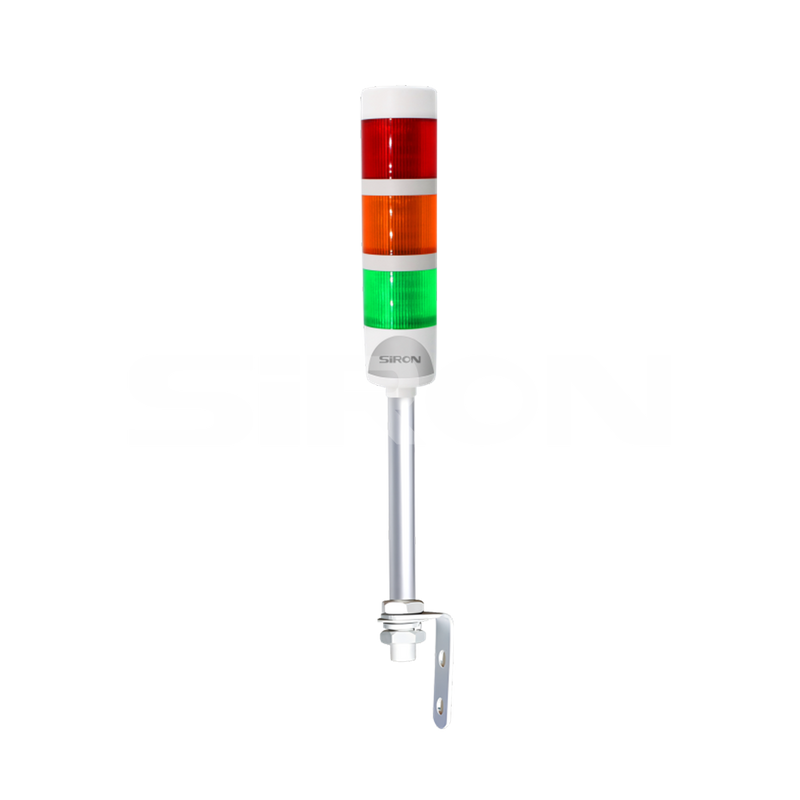

D016-A Series
SiRON
9405410000
ABOUT SELECTION
 | ||
| Model analysis | ||
| ① | LED signal lamp series | D016-A |
| ② | Installation mode | 1: uprighttype 2: bendingtype 3: rodtype L type |
③ | Color layers（Acquiesce） | 1: Firstfloor 2: Secondfloor (RG) 3: Three layers (RYG) 4: Four layers (RYGB) |
| ④ | Color selection（Articles made to order） | R: Red Y: YellowG: Green B: Blue(color order from to ptobottom) |
| ⑤ | Working condition | Blank: Alwayson B: Always on with buzzer S: Flashing Q: Flashing with buzzer |
| ⑥ | Case color | Blank: White H: Black |
| ⑦ | Connection mode | Blank: commonpositive/negativeUniversa l C: contacttype |
| ⑧ | Rated voltage | Blank：24VDC 220：220VAC |
Specifications

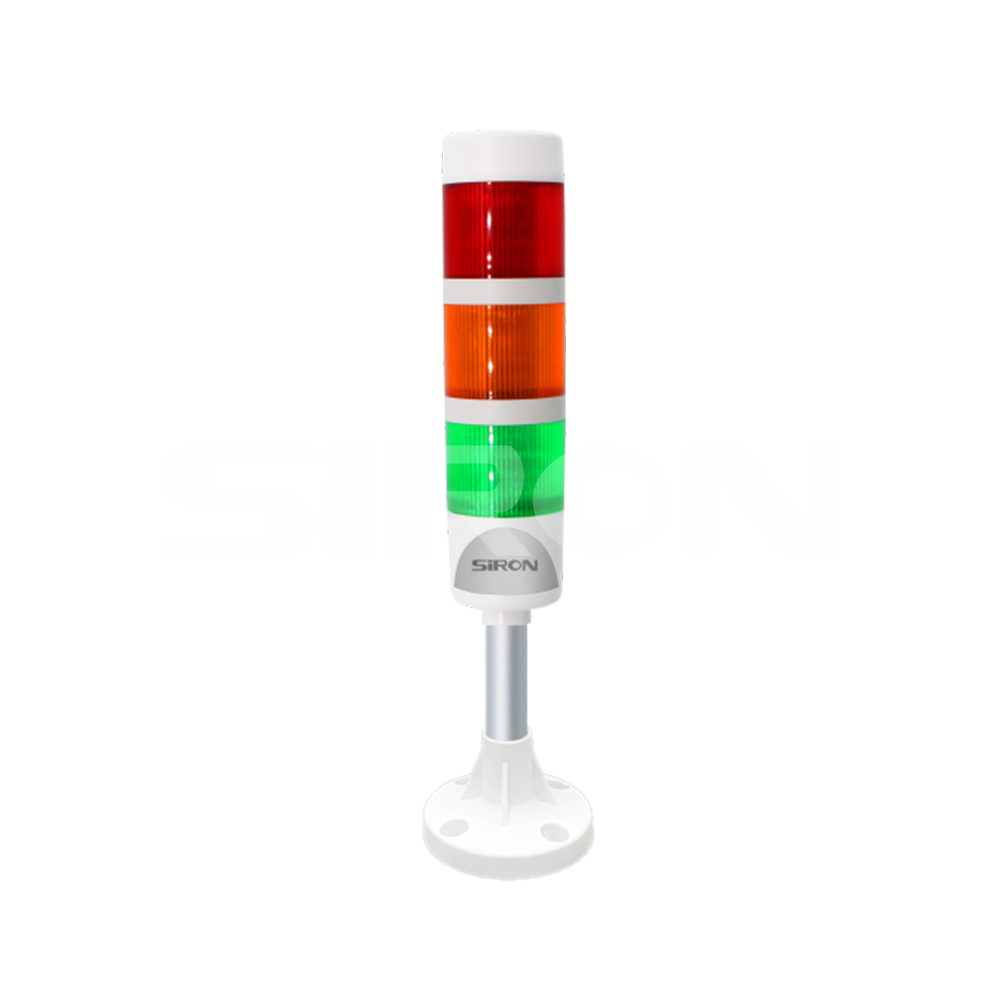

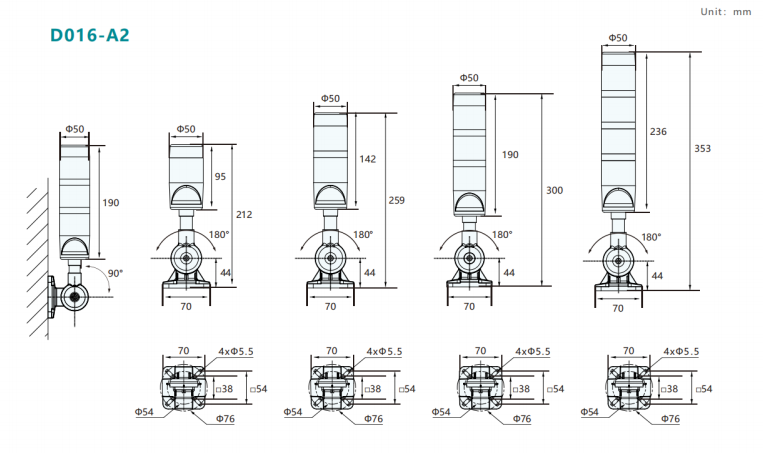

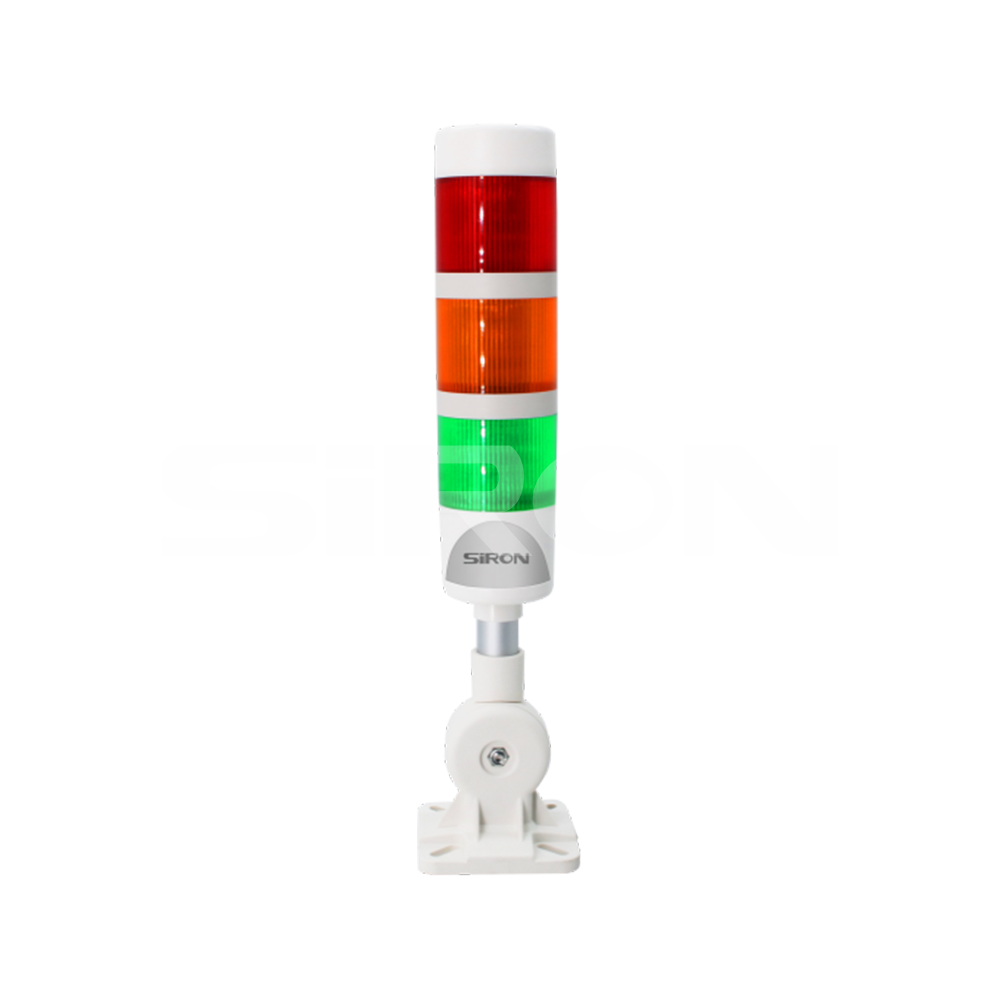

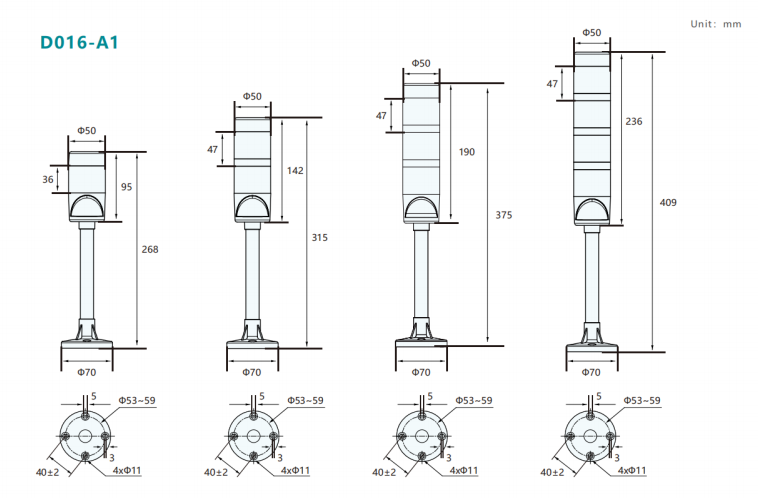

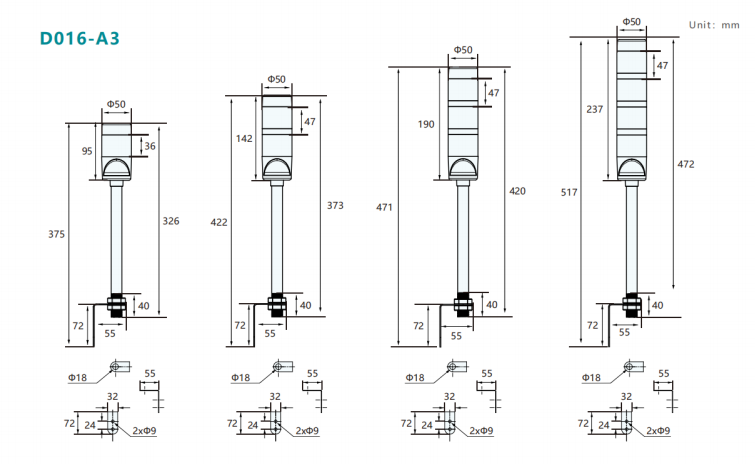

| Model number | D016-A1 | D016-A2 | D016-A3 |
| Appearance |   |  |  |
| Input voltage | 24V DC/220V AC | ||
| Input current | 60~150mA | ||
| The material | Lamp shade PC+lamp shell ABS+lamp pole aluminum alloy | ||
| Case color | White/Black | ||
| Power | Monochrome 1.0W, Total power less than 3.6W | ||
| Lhigtsource | patch 2835 LED,0.2W/pcs | ||
| Luminous angle | Single lamp 120°light,the whole lamp 360°visible | ||
| Sound intensity | Buzzer>90DB | ||
| Class of protection | IP40 | ||
| Color layer | 1~4layer | ||
| Working condition | Always on/Always on with buzzer/flashing/flashing with buzzer | ||
| Installation mode | Upright/bent/bar type L | ||

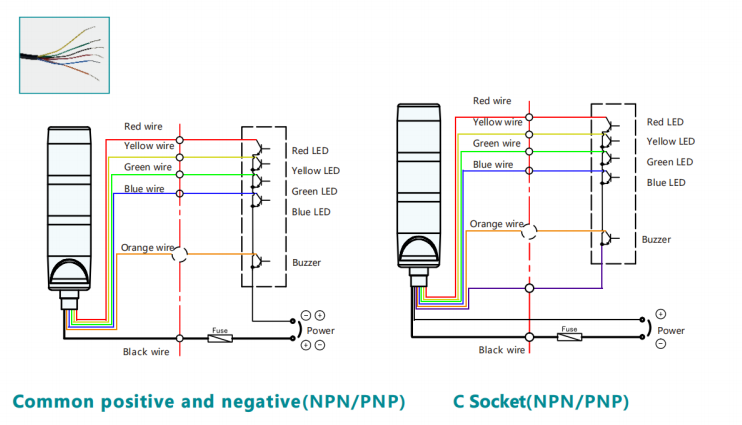

| Connection mode | Direct power input type(common positive/negative)/contact type | ||
| Service | 50000h | ||
| Standard wiring length | 1500mm | ||
| Operating temperature/Storage temperature | Operating temperature: -20~45℃ Storage temperature: -40~70℃ | ||
| Operating humidity/Storage humidity | Operating humidity: 10~90% Storage humidity: 10~90% | ||
| Luminescent lamp source color |
Red Yellow Green Blue | ||
