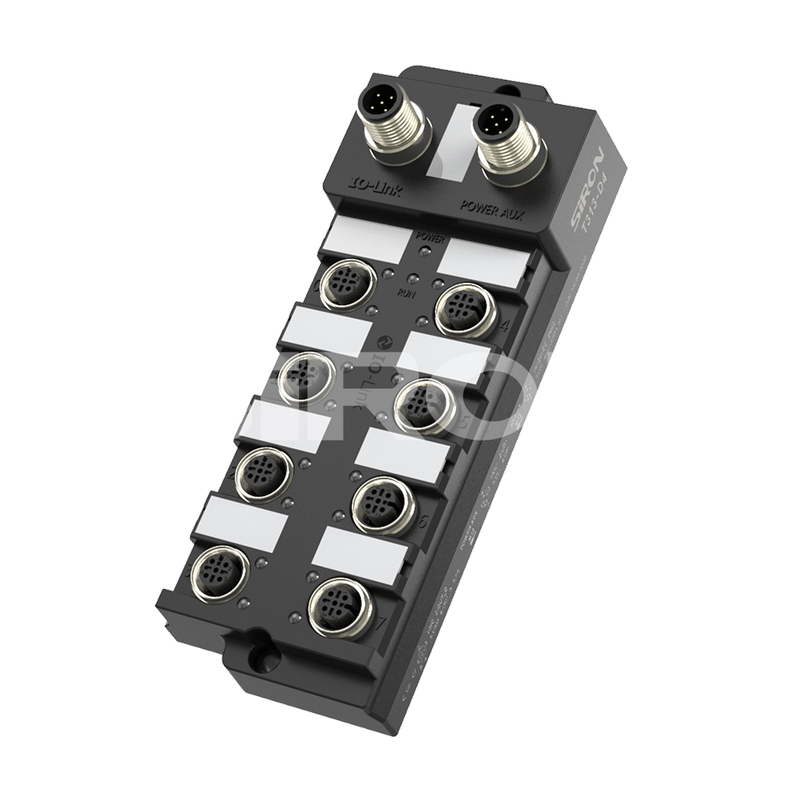

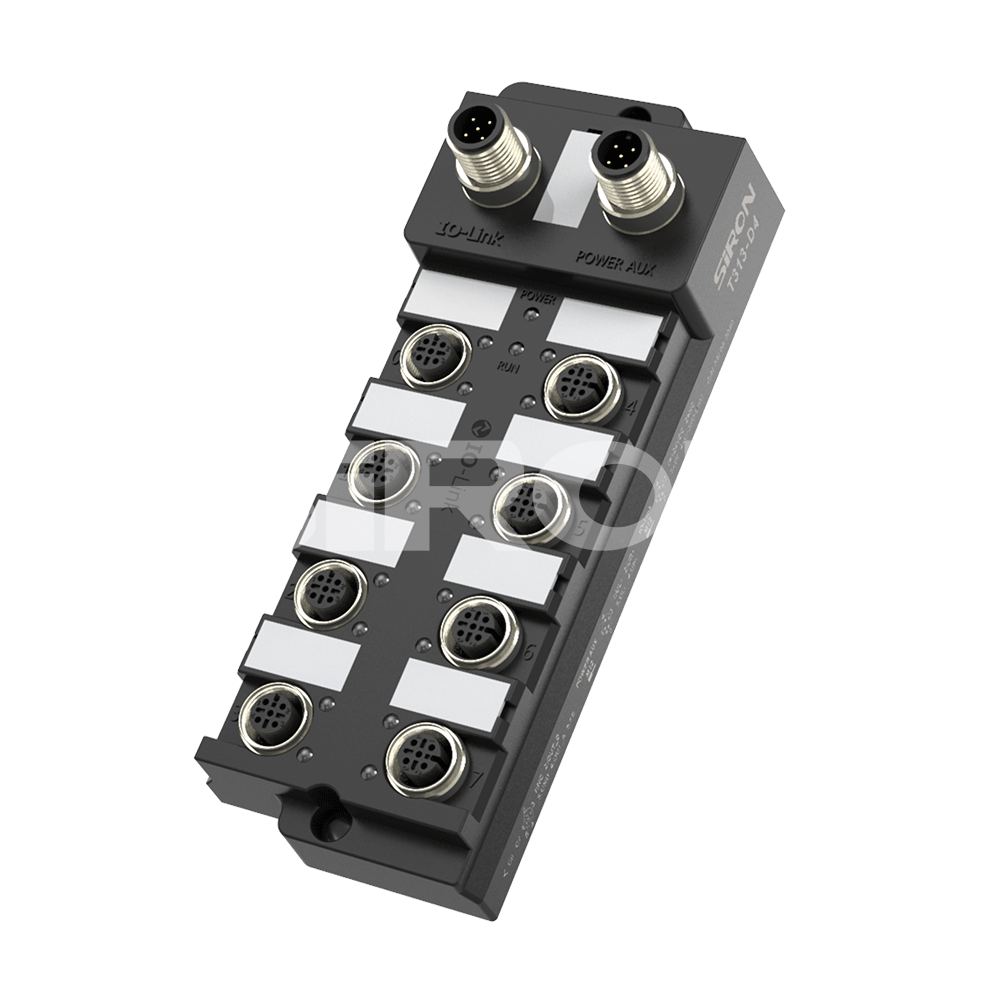

T313-D
SiRON
8517799000

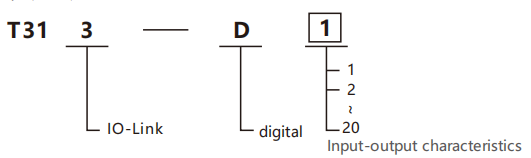

About selection
Selection example: T313-D1 represents the IO-Link slave module series, digital, 16-channel digital input (NPN), 0-channel digital output. Input/output characteristics
| Code | Input | Output |
| 1 | 16 digital input(NPN) | 0 digital output |
| 2 | 16 digital input(PNP) | 0 digita output |
| 3 | 0 digital input | 16 digital output(PNP) |
| 4 | 0 digital input | 16 digital output(PNP)(A +auxiliary power suppl |
| 5 | 0 digital input | 16 digital output(PNP)(B) |
| 6 | 8 digital input(NPN) | 8 digital output(PNP)(A) |
| 7 | 8 digital input(PNP) | 8 digital output(PNP)(A) |
| 8 | 8 digital input(NPN) | 8 digital output(PNP)(A +auxiliary power supply) |
| 9 | 8 digital input(PNP) | 8 digital output(PNP)(A +auxiliary power supply ) |
| 10 | 8 digita input(NPN) | 8 digital output(PNP)(B) |
| 11 | 8 digital input(PNP) | 8 digital output(PNP)(B) |
| 12 | 0 digital input | 16 digital output(NPN)(A) |
| 13 | 0 digital input | 16 digital output(NPN)(A+auxiliary power supply ) |
| 14 | 0 digital input | 16 digital output(NPN)(B) |
| 15 | 8 digital input(NPN) | 8 digital output(NPN)(A) |
| 16 | 8 digital input(PNP) | 8 digital output(NPN)(A) |
| 17 | 8 digital input (NPN) | 8 digital output(NPN)(A +auxiliary power supply) |
| 18 | 8 digital input(PNP) | 8 digital output(NPN)(A+auxiliary power supply ) |
| 19 | 8 digital input(NPN) | 8 digital output(NPN)(B) |
| 20 | 8 digital input(PNP) | 8 digital output(NPN)(B) |
Specifications
| Model | T313-D1 | T313-D2 | |
 | |||
| Operatingload woltage | 24VDC±10% | ||
| Module operating current | <100mA | ||
| Supply current | >1.6A | ||
| Operating temperature | -20~+55℃ | ||
| Input | nput points | 16 | |
| Interface type | M125 holes | ||
| Input mode | NPN(Low Level Effective) | PNP(High Level Effective) | |
| Input impedance | about 3K | ||
| Input rated current | about 7mA | ||
| Input delay | 3ms | ||
| Switching threshold | 2mA/4mA 7V/11V | ||
| Isolation mode | Opto-couplers isolation | ||
| Sensorpowersupply | Maximum 150mA;The total current fromCO to C3shall notexceed 1.2A.The total current of C4-C7 shall not exceed 1.2A.The total current of CO-C7 is limited by the maximum current of the Master port. | ||
| IO-Link | Numberof interfaces | 1 | |
| IO-Linkprotoool version | V1.1 | ||
| IO-Link Indicates the inlerface type | Class A | ||
| Frame type | TYPE_2_2 | ||
| Transmission rate | COM238.4kbit/s | ||
| Minimumcycle time | 2400us | ||
| ISDU(Index Srvice) | support | ||
| Block parameter operation | nonsupport | ||
| Data Storage(DS) | support | ||
| Data store lock | support(Note:This feature is supported for compatibility,but the device will not perform this operation) | ||
| Model | T313-D4 | T313-D13 | T313-D3 | T313-D12 | T313-D5 | T313-D14 | |
| Appearance |  |  | |||||
| Operating/load voltage | 24VDC±10% | ||||||
| Module operating current | <100mA | <100mA(Ub) | |||||
| Supply current | >8A | ≤4A(UI Ub) | |||||
| Operating temperature | -20～+55℃ | ||||||
| output | Output points | 16 | |||||
| Output mode | PNP | NPN | PNP | NPN | PNP | NPN | |
| Output current | 0.5A;Maximum 1A;The total current from CO to C3 shall not exceed 4A.The total current from C4 to C7 must not exceed 4A | 0.1A;Maximum 0.5A; The total current shallnot exceed 4A. | |||||
| Output protection mode | Overload protection,overheat protection | ||||||
| Output protection response time | ≈20ms | ||||||
| Switching frequency | 100Hz | ||||||
| Output voltage drop | ≈0.6V | ||||||
| lsolation mode | opto-isolator | ||||||
| Number of interfaces | 1 | ||
| IO-Link protocol version | V1.1 | ||
| I0-Link lndicates the inteface type | Class A | ClassA | Class B |
| Frame type | TYPE_2_4 | ||
| Transmission rate | COM238.4kbit/s | ||
| Minimum cycle time | 2400us | ||
| ISDU(Index Service) | support | ||
| Block parameter operation | nonsupport | ||
| Data Storage(DS) | support | ||
| Data store lock | support (Note:This feature is supported for compatibility,but the device will not peform this operation.) | ||
8-channel digital input + 8-channel digital output
| Model | T313-D8 | T313-D17 | T313-D9 | T313-D18 | T313-D6 | T313-D15 | T313-D7 | T313-D16 | T313-D10 | T313-D19 | T313-D11 | T313-D20 | |
Appearance | | | |||||||||||
| Operatingload voltage | 24VDC±10% | ||||||||||||
| Module operating curent | <100mA | <100mA(Ub) | |||||||||||
| Supply current | >8A | ≤4A(Ui Ub) Note: The IO-Link Master provides power, and the Master parameters need to be considered | |||||||||||
| Operating temperature | -20～+55℃ | ||||||||||||
| Input | Input points | 8(C0...C3) | |||||||||||
| Interface type | M125 pole | ||||||||||||
| Input mode | NPN(Low level effective) | PNP(high level effective) | NPN(Low level efP hti el)evel effective)NPN(Lowleveleffective) | PNP(high level effective) | |||||||||
| Input impedance | ≈3K | ||||||||||||
| Input rated current | ≈7mA | ||||||||||||
| Input delay | 3ms | ||||||||||||
| Switching threshold | 2mA/4mA 7V/11V | ||||||||||||
| lsolation mode | opto-isolator | ||||||||||||
| Sensor powersupply | 150mA;cCo...The total current of C3 shall not exceed 1.2A | 150mA;C0...The total current of C3 shall not exceed 1.2A(U) | |||||||||||
| Output points | 8(C4.…C7) | |||||||||||
| Output mode | PNP | NPN | PNP | NPN | PNP | NPN | PNP | NPN | PNP | NPN | PNP | NPN | |
| Output current | 0.5A;Maximum 1A;(C4...The total current of C7 must not exceed 4A. | 0.2A;Max0.5A;(U The total current shall not exceed 4A. | |||||||||||
| Output protection mode | Overload protection,overheat protection | ||||||||||||
| Output protecion response time | ≈20ms | ||||||||||||
| Switching frequency | 100Hz | ||||||||||||
| Output woltage drop | ≈0.6V | ||||||||||||
| lsolation mode | opto-isolator | ||||||||||||
| Number of interfaces | 1 | ||||||||||||
| IO-Link protocol version | V1.1 | ||||||||||||
| IO-Link Indicates the inteface type | Class A | Class A Class B | |||||||||||
| Frametype | TYPE_2_5 | ||||||||||||
| Transmission rate | COM2 | ||||||||||||
| Minimum cycle time | 38.4kbit/s | ||||||||||||
| ISDU(Index Service) | 2400us | ||||||||||||
| Block parameteroperation | nonsupport | ||||||||||||
| Data Storage(DS) | support | ||||||||||||
| Data store lock | support (Note:This feature is supported for compatibility,but the device will not perform this operation.) | ||||||||||||

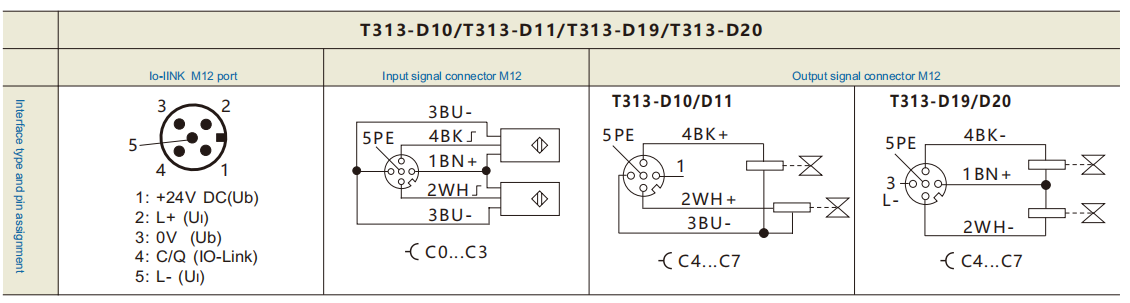

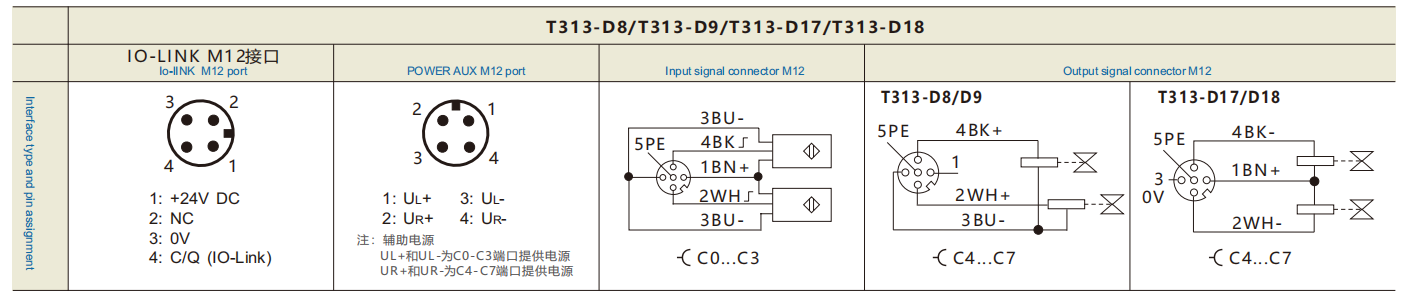

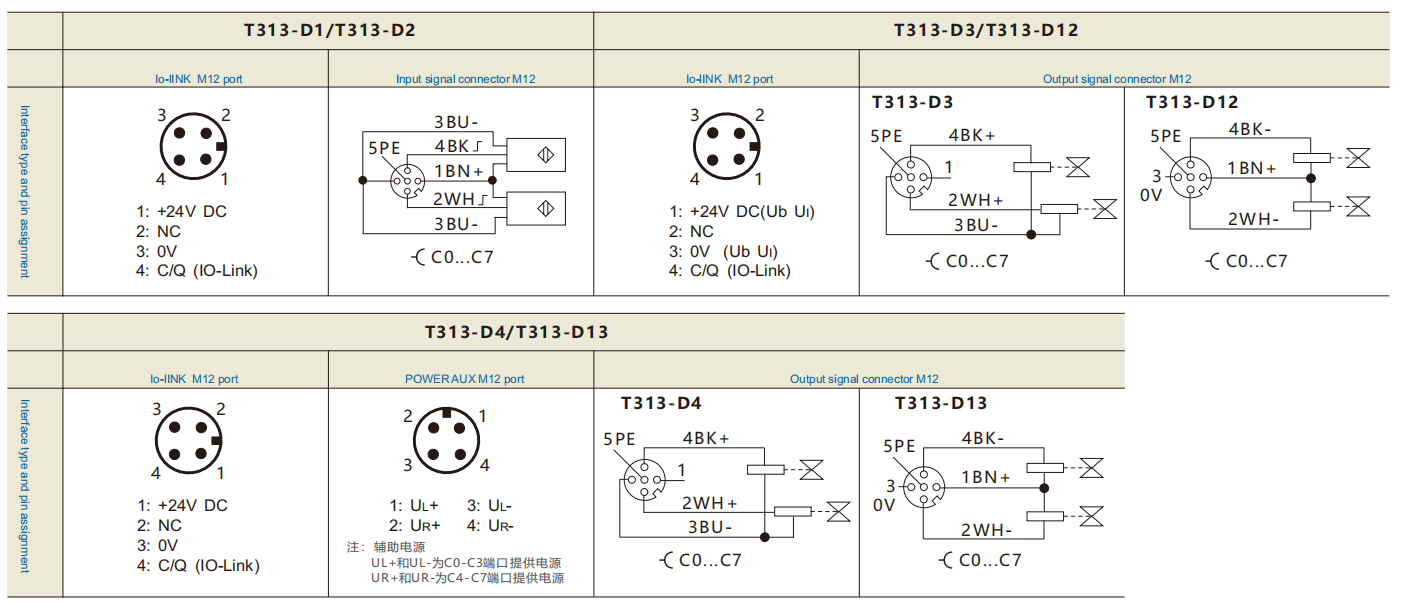

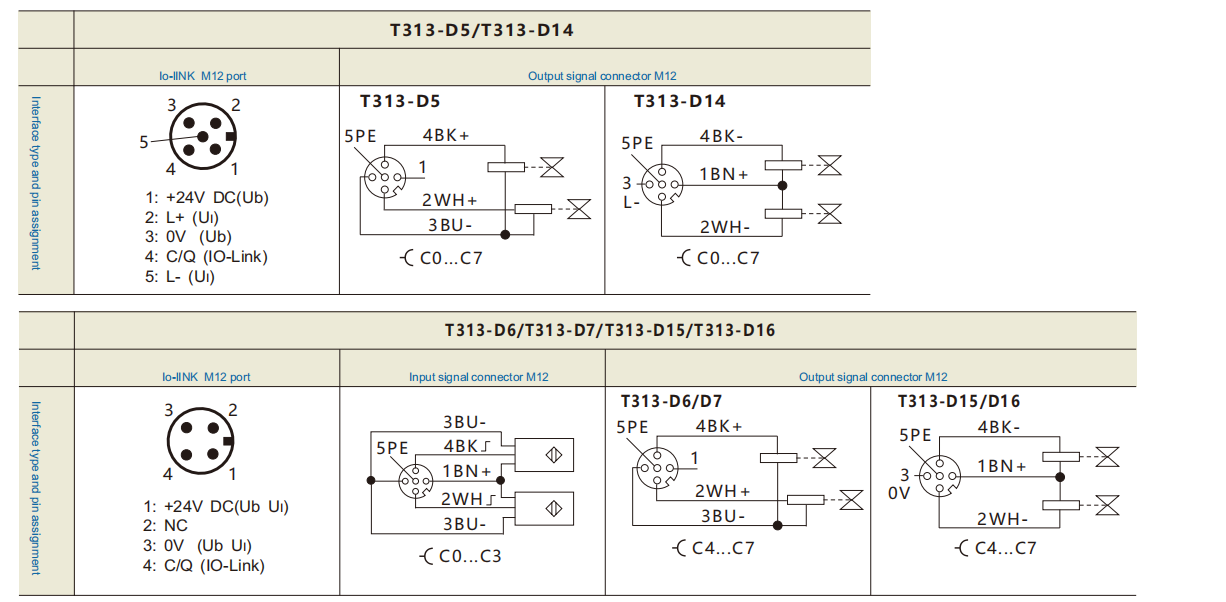

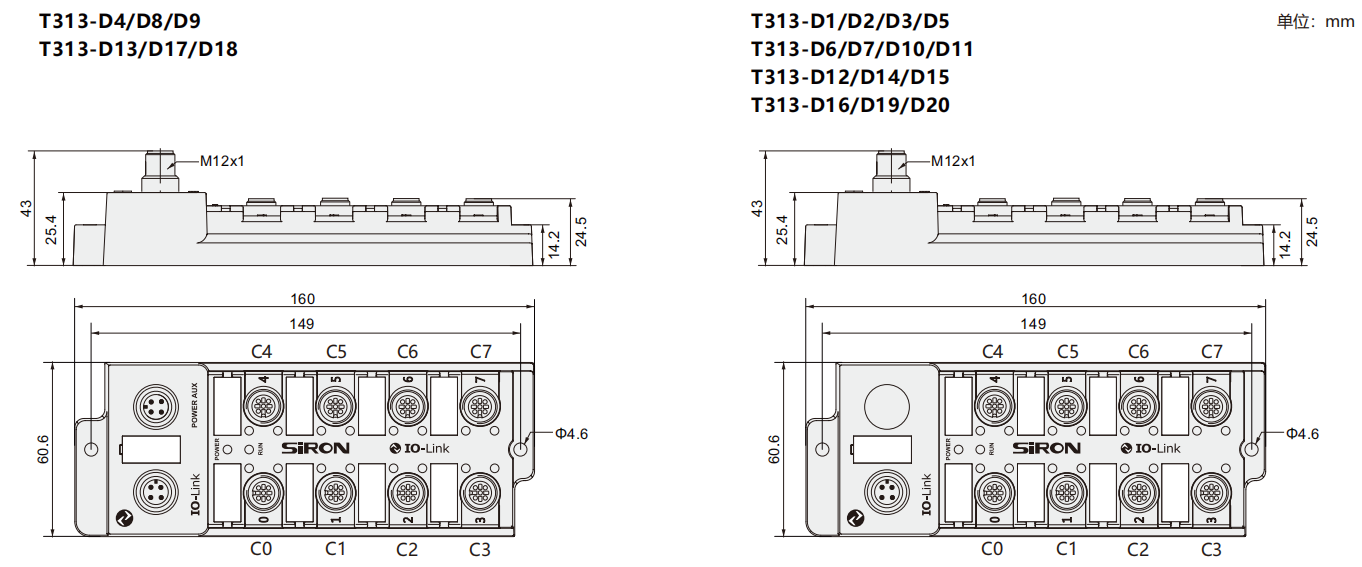

Dimensions
