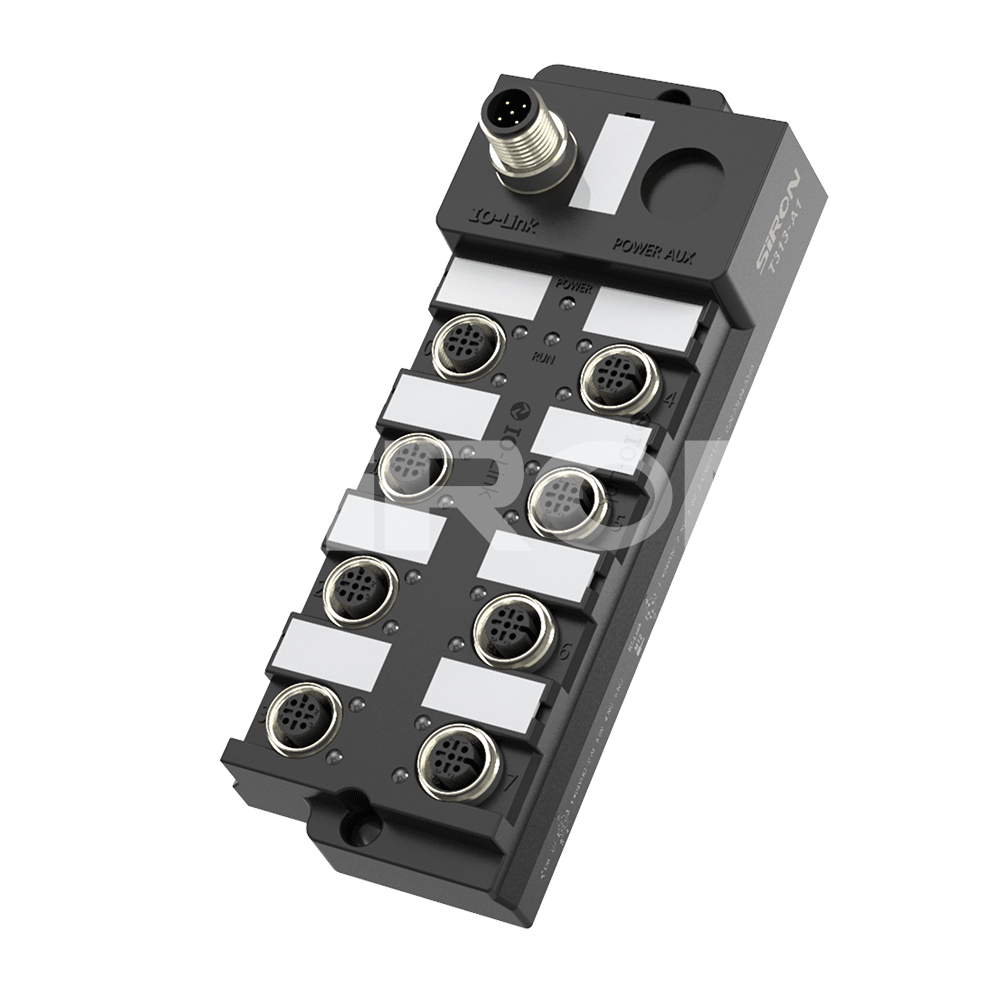

SiRON T313-A Series IP67 I/O-Link Slave Module Analog M12

Name: SiRON T313-A Series IP67 I/O-Link Slave Module Analog M12
Brand: SiRON
Rating: 5.0 (65 reviews)

Features

* IO-Link remote I/O module device Deveice;

* 8 channels 4 ~ 20mA/0 ~ 20mA/0 ~ 10V input M12 5 holes; M12 A-code IO-Link standard Class A interface;

* Shell glass fiber material; The electronic circuit is potting with resin and has IP67 protection grade.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

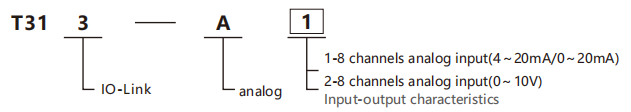

About selection

Selection example: T313-A1 represents the IO-Link slave module series, analog , 8-channel input (4 ~ 20mA/0 ~ 20mA).

Specifications

c

Model		T313-A1	T313-A2
Opera fing/load voltage		24VDC±10%
Module operating current		<100mA
Maximum supply current		2.4A(Related to the sensor when connected to CO-C7)
Operafing temperature		-20~+55℃
Analoginput	nputpoints	8
	Interface type	M125 hole s
	Inputmode	4~20mA/0~20mA analog input	0~10Vanalog input
	Inputresolu fion	≤14 ports	≤13 ports
	Maximum input range	0~22mA	0~12V
	Inputimpedance	/	1MΩ
	Sensor power supply	Maximum 300mA;The total aurent from Co t加C3shall mat eceed 1.2A.The total urent of C4-C7shall not esceed 1.2A.The total curert fCO-7 is limined by the maimum curent ofthe Master port
IO-Link	NumberofinterfacBs	1
	IO-Link protoool version	V1.1
	I0-Link lndicales tha interfacatype	Class A
	IO-Link Input bytes	16 bytes(each analog channel occupies 2 bytes)
	Frame type	TYPE_2_V
	Transmission rate	COM3230.4kbit/s
	Minimum cyde time	2400us
	SDU(IndexService)	support
	Block parameter operation	nonsupport
	DataStorage(DS)	support
	Data store lock	support (Note:This feature is supported for comptibilfty,but the device will not perform this operation)

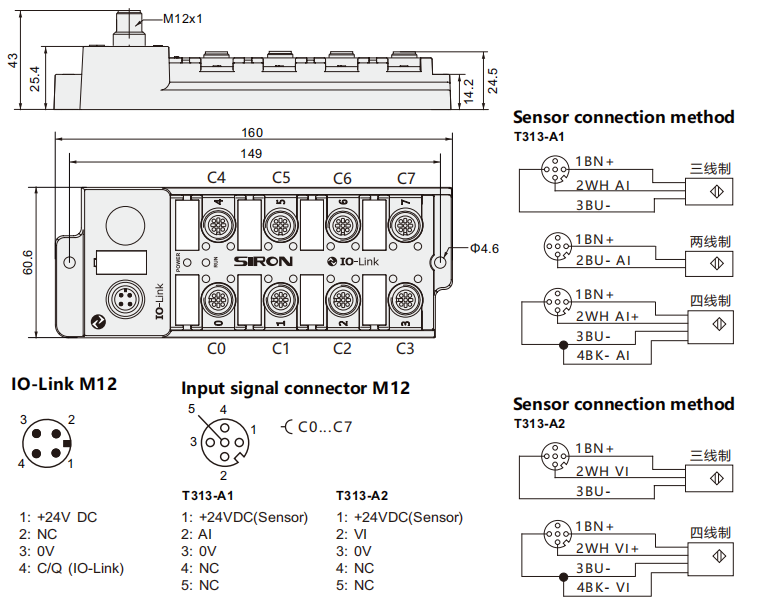

Dimensions

企业微信截图_17682929981491

Cable specifications and outline drawings

communication cable 1,2

Model	T313-X1-1-2000	T313-X1-2-2000
Appearance	①	②
Cable specification	2222AWG
Cable diameter	6.5mm
Cable material	PVC
Jacket oolor	green
Shield	Aluminum foil,tin-plated copper braided layer

communication cable 3,4

Model	T313-X2-1-2000	T313-X2-2-2000
Appearance	③	④
Cable diametermaterial	8.5mm;PVC(grey)
Core section	41.2mm²+10.75mm²
Rated current/voltage	15A;240V
Dcresistance	13.3Ω/km
Sbrageloperaing temperature	Storage:-40 to 90℃ Operation:0-90℃

power cable 5

Model	T313-X2-3-2000
Appearance
Rated voltage	10~30V
Rated current	4A
Insulation impedance	≥10⁹ Ω
Noise impedance	≤5mΩ
Ambient temperature	Plug:-30 to+90℃ Cable:-30 to +80℃
Cable structure	0.25mm²
Cable diameter	5.25mm
Cable color	grey,PVC
Contact point	Brass,gold-plated
Plug-in handle	PVC plastic
Mechanical life	Maximum 100 insertion and extraction cycles
Class of protection	IP67(Only in the connected state)
