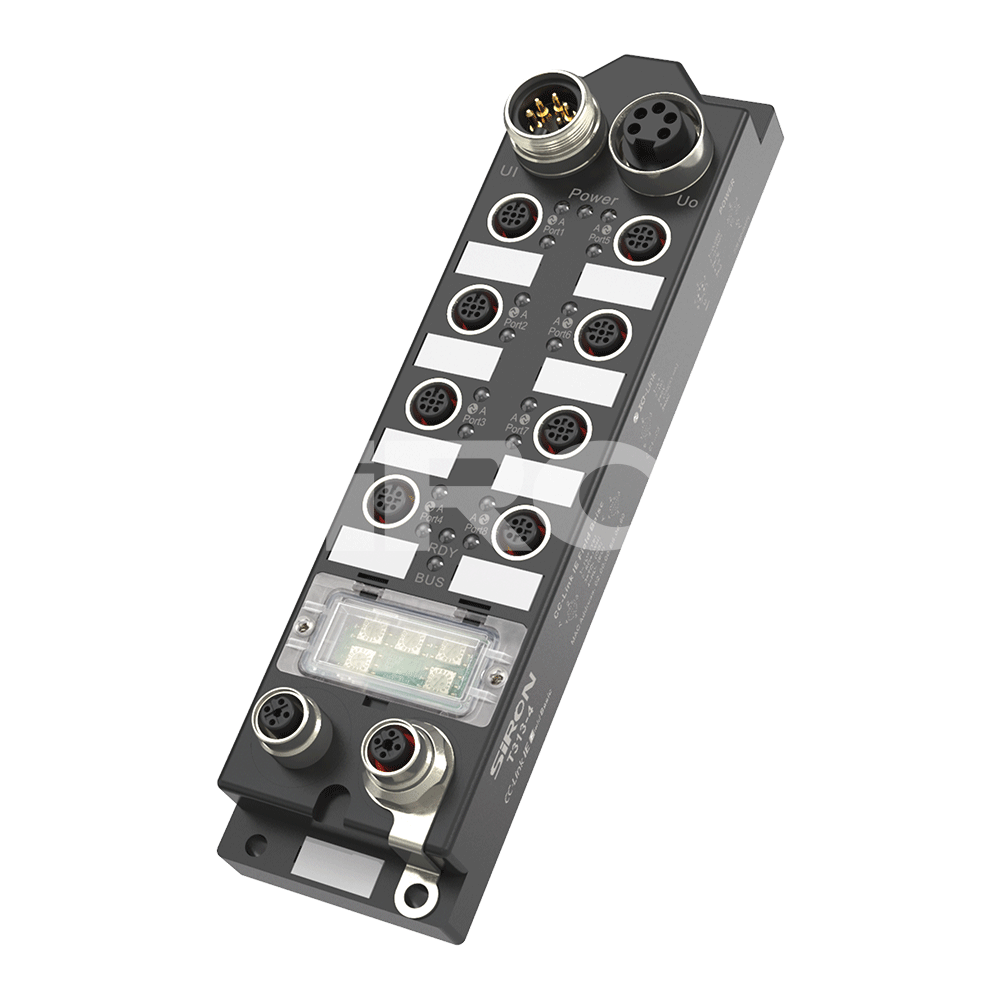

T313-4
SiRON
8517799000

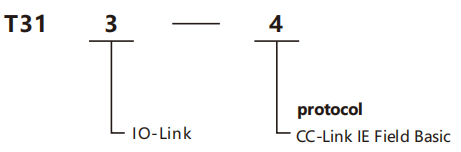

About selection
Selection example: T313-4 represents the IO-Link master module series, which conforms to the CC-Link IE Field Basic protocol.
Specifications
| Model | T313-4 | |
| Operating/load voltage | 24VDC±10% | |
| Module operating current | <200mA | |
| Supply current | Recommendation>8A | |
| Number of ports | 8(C1...C8) | |
| Port mode | M12,Class A,5-core | |
| Port provides curent | The maximum 2A is the current provided by the first hole to the Device. Among them: C1... The total of C4 does not exceed 4A. C5… The total of C8 does not exceed 4A | |
| Operating temperature | -20～+55℃ | |
| OLinkparameter | SIO mode | The 4th hole is not supported and cannot be used as a regular IO |
| IO-Link | ThefourthholeislO-Link | |
| IO-Link Porttype | The second hole of Class A is vacant | |
| IO-Link protocol specifications | V1.1 | |
| Frame type | Support all frame types in the specification | |
| Supported devices | The maximum support is 32Bytes Input/32Bytes Output | |
| Transmission rate | 4.8kbps(COM1)/38.4kbps(COM2)/230.4kbps(COM3) | |
| CC-LinkIEFieldBasiccommunicationinterface | Number of interfaces | 2 |
| Transmission mode | 100Base-TX | |
| Automalic negotiafion mechanism | support | |
| Automatic cross flip | support | |
| Maximum transmission rate | 100Mbit/s | |
| Interface type | M12D code hole | |
| Number of occupied stations | 1 to 4 | |
| Default IPv4 address | 192.168.3.* (* is the hexadecimal number corresponding to the rotary code switch) | |
| IPaddress setting function | Supported IPAddressSet port number: 61451 can only change the network segment | |
| Default subnet mask | 255,255,255.0 | |
| Communication data format | binary system | |
