T313-1
SiRON
8517799000
About selection

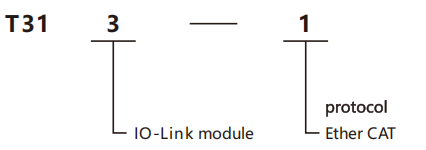

Selection example: T313-1 represents the IO-Link master module series, and the protocol it complies with is EtherCAT.
Specifications
| Model | T313-1 | |
| Operating/load voltage | 24VDC±10% | |
| Module operating current | <200mA | |
| Supply current | Recommendation >8A | |
| Number of ports | 8(C1..C8) | |
| Port mode | M12,Code A,5-core | |
| Port provides current | The maximum 2A is the current provided by the first hole to the Device. Among them: C1... The total of C4 does not exceed 4A. C5… The total of C8 does not exceed 4A | |
| Operating temperature | -20～+55℃ | |
| IO-Linkparameter | SIO mode | The 4th hole is not supported and cannot be used as a regular 10 |
| IO-Link | The fourth hole is IO-Link | |
| IO-Link Port type | The second hole of Class A is vacant | |
| IO-Link protocol specifications | V1.1 | |
| Frame type | Support all frame types in the specification | |
| Supported devices | The maximum support is 32Bytes Input/32Bytes Output | |
| Transmission rate | 4.8kbps(COM1)/38.4kbps(COM2)/230.4kbps(COM3) | |
| EtherCATcommunicationintrface | Number of interfaces | 2 |
| Transmission mode | 100Base-TX | |
| Automaic negotiabion mechanism | support | |
| Automaticcross flip | support | |
| Maximum transmission rate | 100Mt/s | |
| Automatic scanningl | The EtherCAT scanning function can be utilized to automatically scan the IO-Link Device connected to the port | |
| Interface type | M12 D code hole | |
