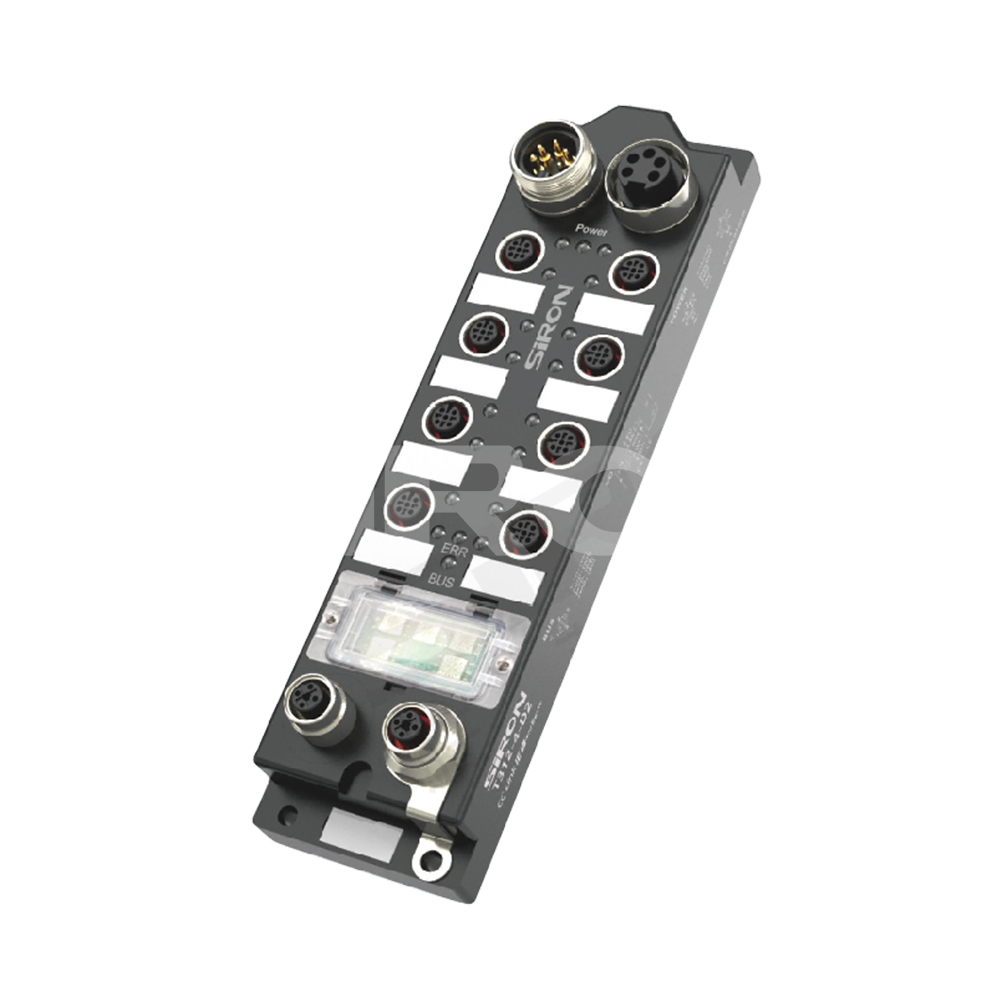

T312-4
SiRON
8517799000
About selection

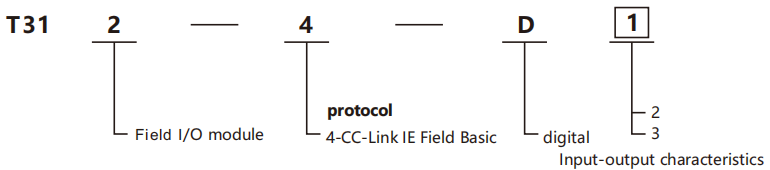

Selection example: T312-4-D2 represents the field I/O module series, with the CC-Link IE Field Basic protocol, digital quantity, 16-channel digital input (PNP).
| Code | Input | Output |
| 2 | 16 channels digital input(PNP) | 0 channels digital output |
| 3 | 0 channels digital input | 16 channels digital output(PNP,0.5A) |
Specifications
| Model | T312-4 Series | |
| Operating/load voltage | 24VDC±10% | |
| Module operating curent | <200mA | |
| Operating temperature | 0～55℃ | |
LoadI/O Supply Current (UL) | recommended to be greater than 8A(T312-4-D3) | |
| CC-LinkIE FiekdBasic communication interface | Number ofintertaces | 2 |
| Transmission mode | 100Base-TX | |
| Automatic negotiafion mechanism | support | |
| Automatic cross fip | support | |
| Mavimum transmission rate | 100Mbit/s | |
| Number ofoccupied stations | Occupy one station(64-bit)— | |
| Default IPv4 address | 192.168.3.*(*represents the hexadecimal number corresponding to the dip switch) | |
| Paddress seting function | Supported IPAddressSet port number:61451 can only change the network segment 255.255— | |
| Default subnet mask | 255.0 | |
| Communicafion data format | binary | |
16 channels digital input
| Model | T312-4-D2 |
| Input points | 16 |
| Input mode | PNP(High level effective) |
| Input standard type | IEC 61131-2 Type 3 |
| Input delay | 3ms |
| Volitage switch threshald | 9.2V/10.4V |
| Current switching threshold | about 2.2mA |
| lsolation mode | opto-isolator |
16 channels digital output
| Model | T312-4-D3 |
| Output points | 16 |
| Output mode | The common terminal is OV(controlled at 24V) |
| Output current | 0.5A |
| Output protection mode | Overload protection,overheat protection |
| Output protection response fime | ≈20ms |
| Switching frequency | 100HZ |
| Output voltage drop | =0.6V |
| lsolation mode | Opto-couplers isolation |

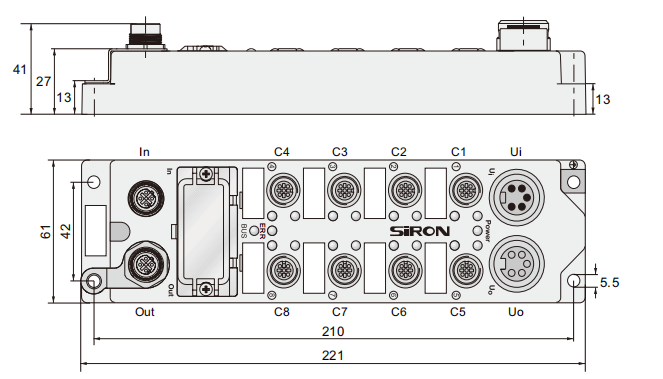

Dimension
