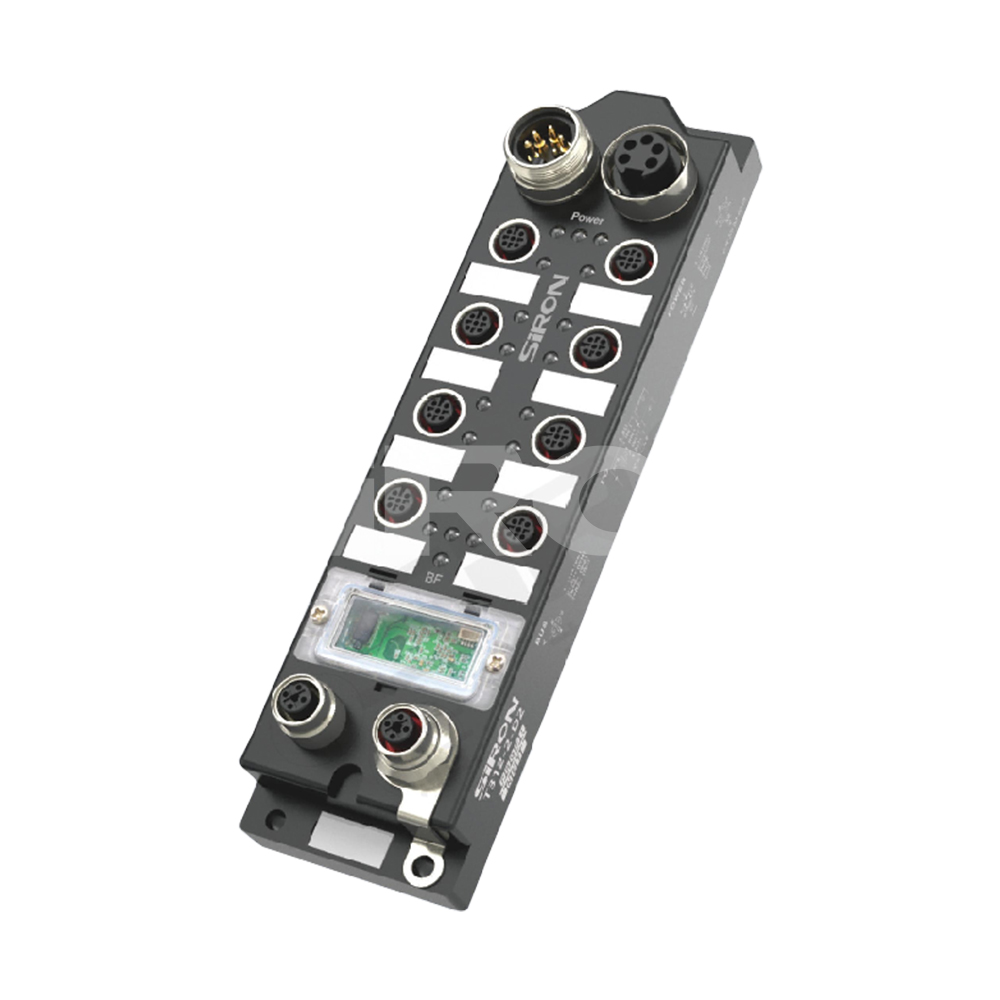

T312-2
SiRON
8517799000
About selection

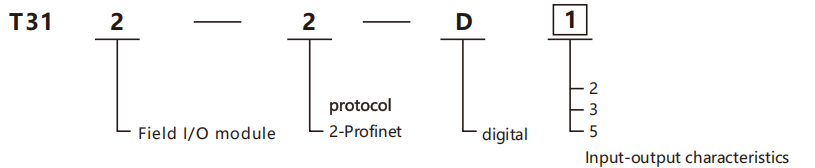

Selection example: T312-2-D2 represents the field I/O module series, with the protocol being Profinet, digital quantity, and 16-channel digital input (PNP)Input/output characteristics.
| Code | Input | Output |
| 2 | 16 channels digital input(PNP) | 0 channels digital output |
| 3 | 0 channels digital input | 16 channels digital output(PNP,0.5A) |
| 5 | 8 channels digital input(PNP) | 8 channels digital output(PNP,0.5A) |
Specifications
| Model | T312-2 Series | |
| Operating/load voltage | 24VDC±10% | |
| Module operating curent | <200mA | |
| Operating temperature | 0～55℃ | |
Load I/O Supply Current(UL) | recommended to be greater than 8A(T312-2-D3,T312-2-D5) | |
| EtherCAT communication interact | Number ofinterfaces | 2 |
| Transmission mode | 100Base-TX | |
| Automatic negotiation mechanism | support | |
| Automatic cross fip | support | |
| Maoimum transmission rate | 100Mbit/s | |
Input/output parameters
16 channels digital input
| Model | T312-2-D2 |
| Input points | 16 |
| Input mode | PNP(High level effective) |
| Input impedance | =3K |
| Input rated current | =7mA |
| Input delay | 3ms |
| On-off threshold | 2mA/4mA |
| lsolationmode | opto-isolator |
16 channels digital output
| Model | T312-2-D3 |
| Output points | 16 |
| Output mode | The common terminal is OV(controlled at 24V) |
| Output current | 0.5A |
| Output protection mode | Overload protection,overheat protection |
| Output protection response fime | ≈20ms |
| Switching frequency | 100HZ |
| Output voltage drop | =0.6V |
| lsolation mode | Opto-couplers isolation |
8 channels digital input/output
| Model | T312-2-D5 | |
| Input | Input points | 8 |
| Input mode | PNP(High level effective) | |
| Input standard type | IEC 61131-2 Type 3 | |
| Input delay | 3ms | |
| Voltageswich threshold | 9.2V/10.4V | |
| Current swiching threshold | 2.2mA about | |
| Isolafion mode | Opto-couplers isolation | |
| Output | Output points | 8 |
| Output mode | The common terminal is OV(controlled at 24V) | |
| Output curent | 0.5A | |
| Output prolecfon mode | Overload protection,overheat protection | |
| Output protecfion response time | about 20ms | |
| Switching frequency | 100HZ | |
| Output woltage drop | =0.6V | |
| Isolafion mode | Opto-couplers isolation | |

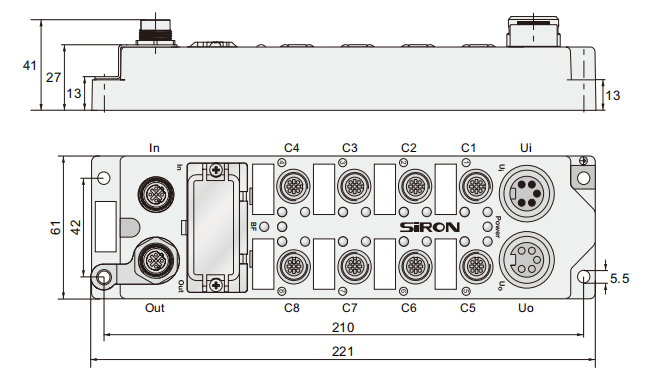

Dimension
