SiRON T213/T214 Series 30P/40P New Metal Dome Type Terminal Block

Name: SiRON T213/T214 Series 30P/40P New Metal Dome Type Terminal Block
Brand: SiRON
Rating: 5.0 (71 reviews)

Features

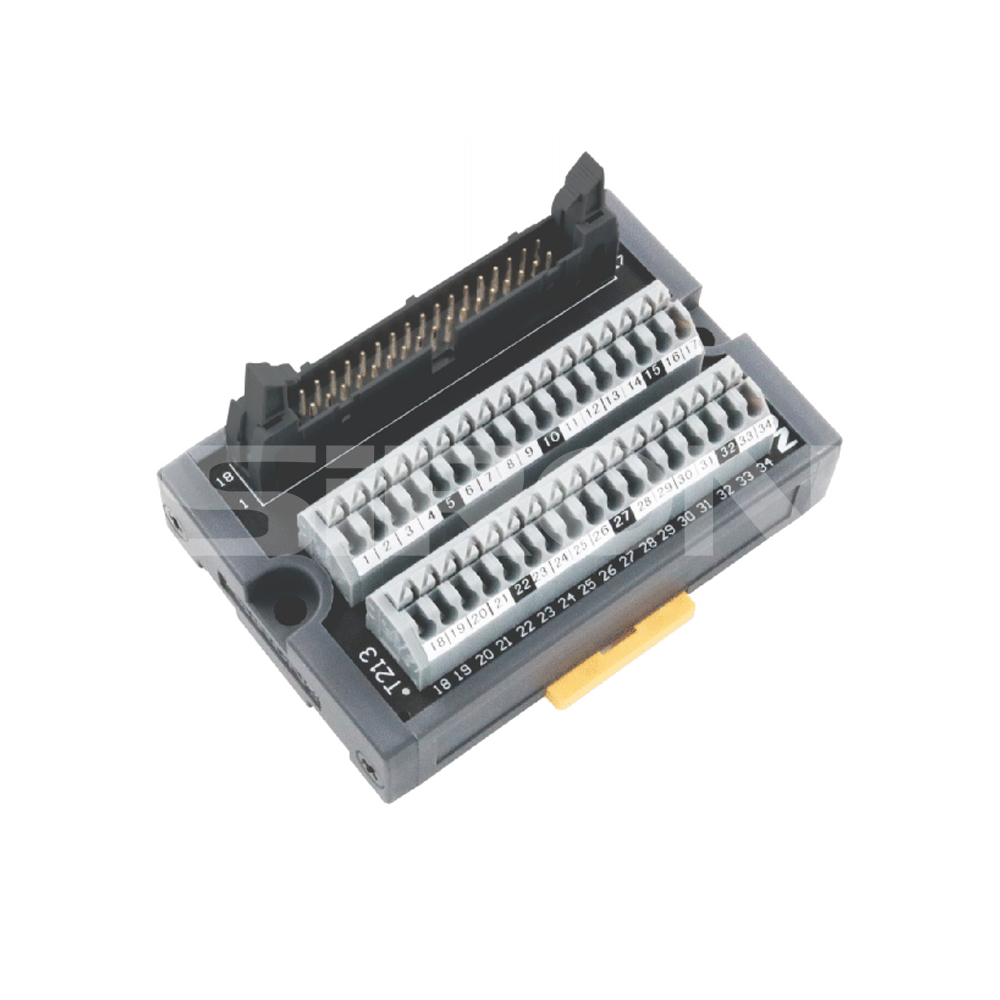

T213/T213-K are 34P connectors correspondingto 34P terminalsConnect, corresponding to KV-32XA/C Of KEYENCE,K-64xa /C
KV-32TA/C,KV-64TA/CExpansion board for use.

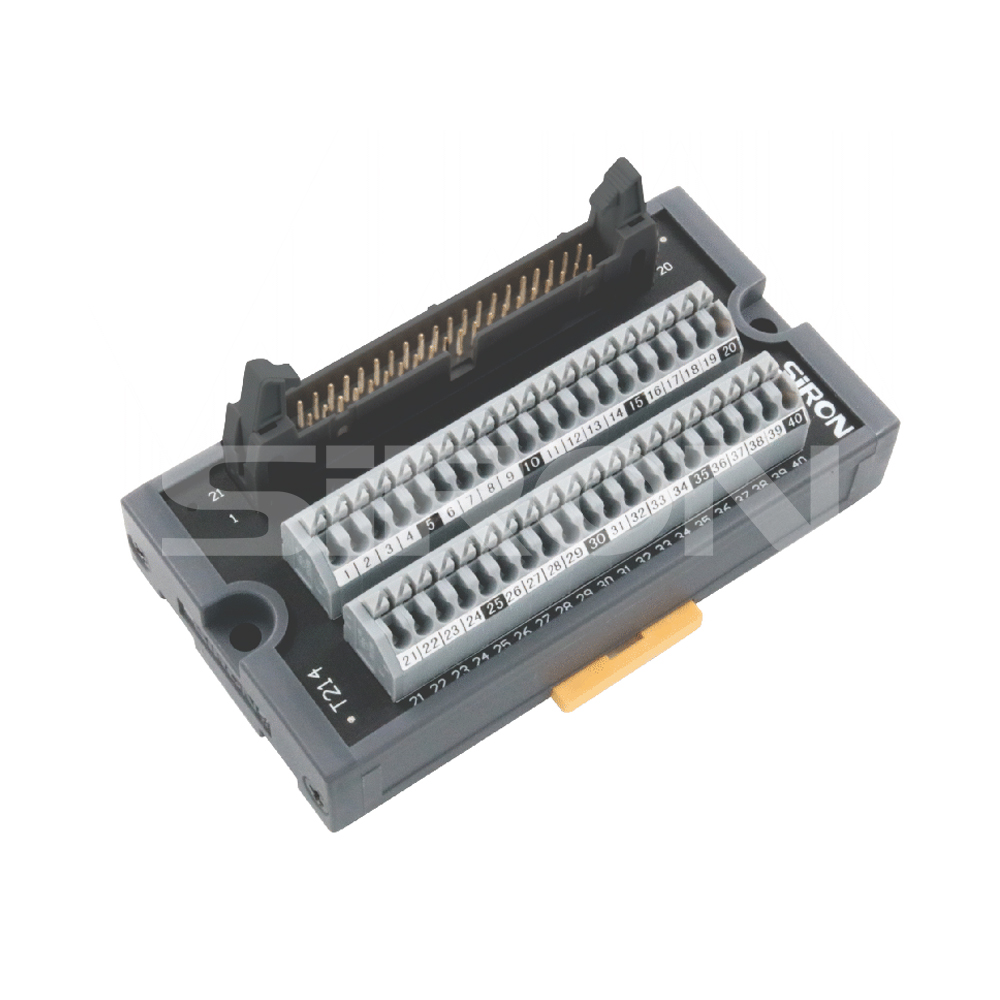

T214/T214-K is the 40P connector correspondingo the 40P terminalConnection, minimum volume design.

Product Description

Suitable wire

主图11端子台

Type selection reference

Model	T213/T213-K	T214/T214-K
Name	Spring type 34-bit terminal block	Spring type 40-bit terminal block

Suitable PLC

Panasonic

OMRON		CJ1W-ID231 CJ1W- -OD232 CJ¹W-iD261 CJ1W- -OD233 CJ1W-MD261(IN) CI1W-OD262 CJ1W-MD263(IN) Ci1W-OD263 CJiW-MD563(IN) CJ1W-MD263(Out) CJ1W-OD231 CJ¹W-MD563(Out) CJ1W-OD261 CJ1M-CPU21 CJ¹W-MD261(Out) CJ1M-CPU22 CJ1M-CPU23 CJ1W-ID232 Ci1W-ID262
MITSUBISHI		Qx41 QY42P QX41-S1 QY71 QX42 QH42P QX42-S1 QD70P4 QX71 QD7P QX72 QD70D QY41P QD75M
KEYENCE	KV-C32XA/C KV-C64XA/C KV-C32TA/C KV-C64TA/C	KV-1000 KV-3000 KV-5000	KV-H20S KV-H40S
Panasonic		FPG-XY64D2T/P FP2-XY64P2P FP2-C1D FP2-XY64D7P FP2-X32D2 FP2-PP21 FP2-X64D2 FP2-PP22 FP2-32T/P FP2-PP41 FP2-Y64T/P FP2-PP42 FP2-XY64D2T FP2-HSCT FP2-XY64D7T FP2-PXYT
SIEMENS		40P Plug with a full range
Yokogawa		F3WD64-3N F3WD64-3FF3WD32-3F

Suitable cable

Suitable cable:X200-3 X210-3,X200-4 X210-4 X210-5 X218-6

For details, please refer to the directory cable series

Specifications

Input	Nominal operating current	1A
	Nominal coil voltage	DC24V
Corresponding output Devices		Servo motor control signal line circuit.	Button Switch,Photoelectric Switch,Solenoid, Indicator,Stepping Servo Motor,etc
