SiRON T14 IP20 CC-Link IE Field Basic Bus Module

SiRON T14-C IP20 CC-Link IE Field Basic Bus Module

Name: SiRON T14-C IP20 CC-Link IE Field Basic Bus Module
Brand: SiRON
Rating: 5.0 (95 reviews)

Features

Protection grade lp20;
Integrated l/O,EtherCAT bus, small size 80x75x38mm;
Small footprint, fast speed, fast wiring, pluggable wiring terminals;
Simple configuration, suitable for most manufacturers' master stations such as Omron and Inovance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T14-C
Brand:
SiRON
Code:
8471800000

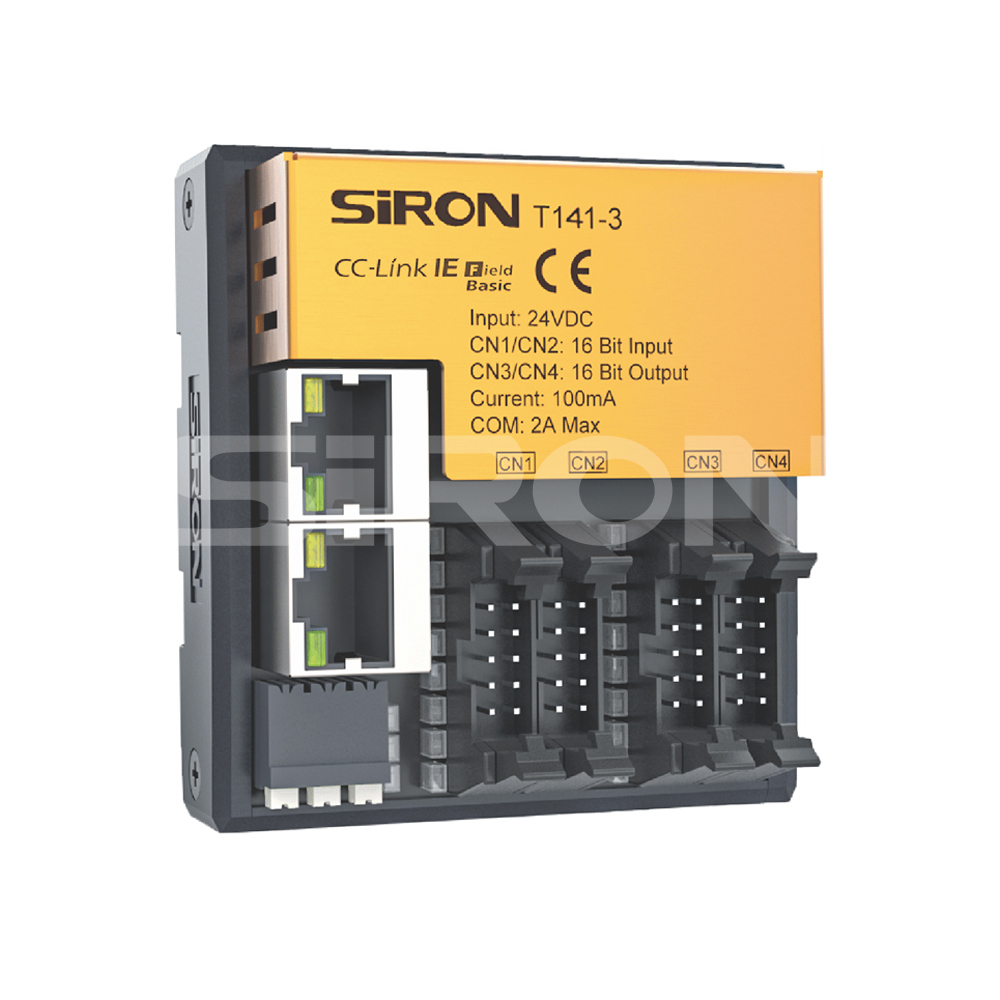

spring terminal CC-Link IE bus module MIL plug CC-Link IE bus module Compact CC-Link IE bus module IP20 CC-Link IE bus module

Product Description

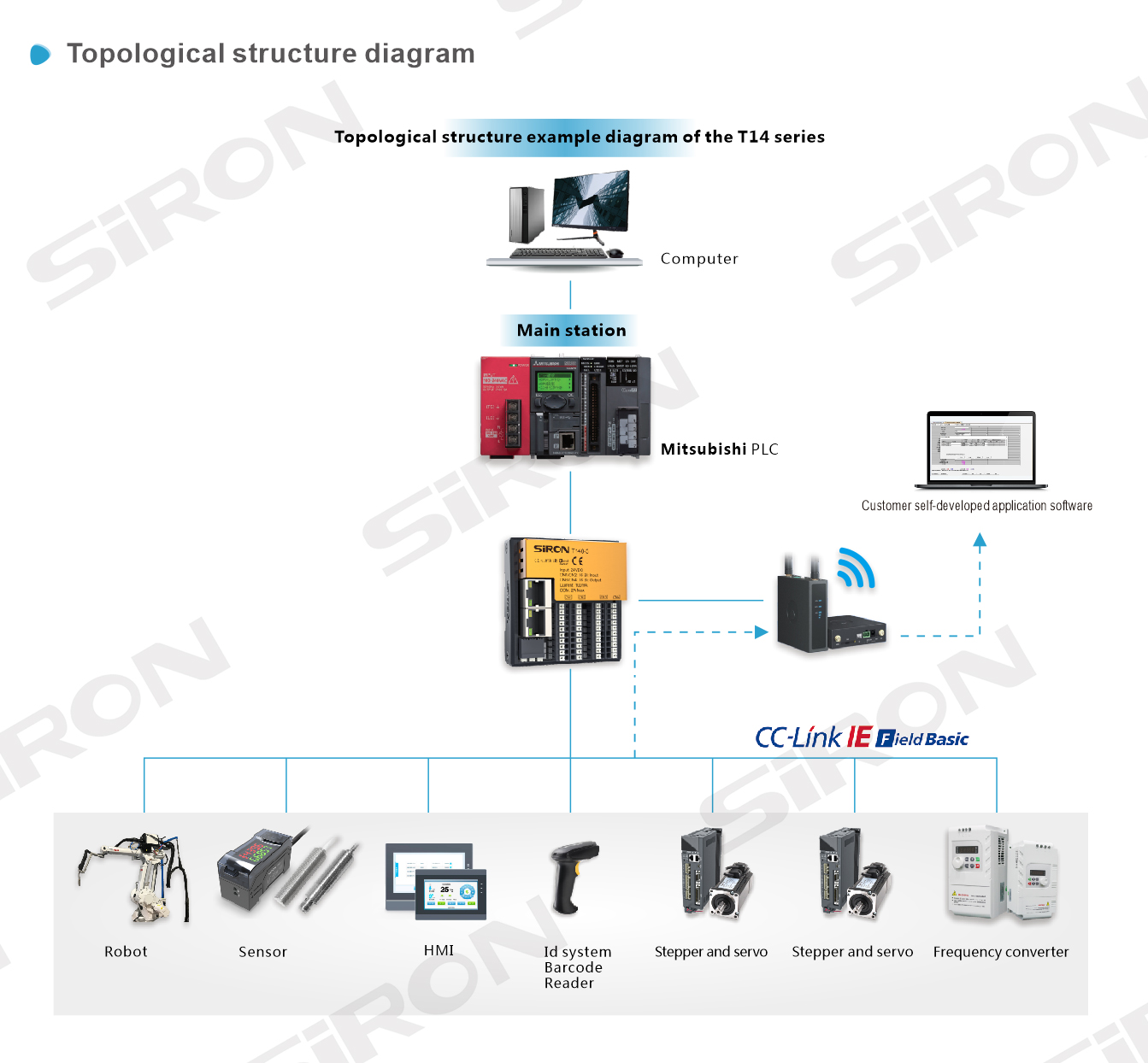

About selection

企业微信截图_17551488175087

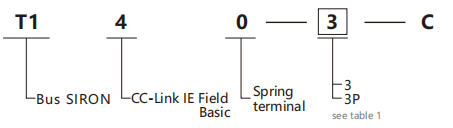

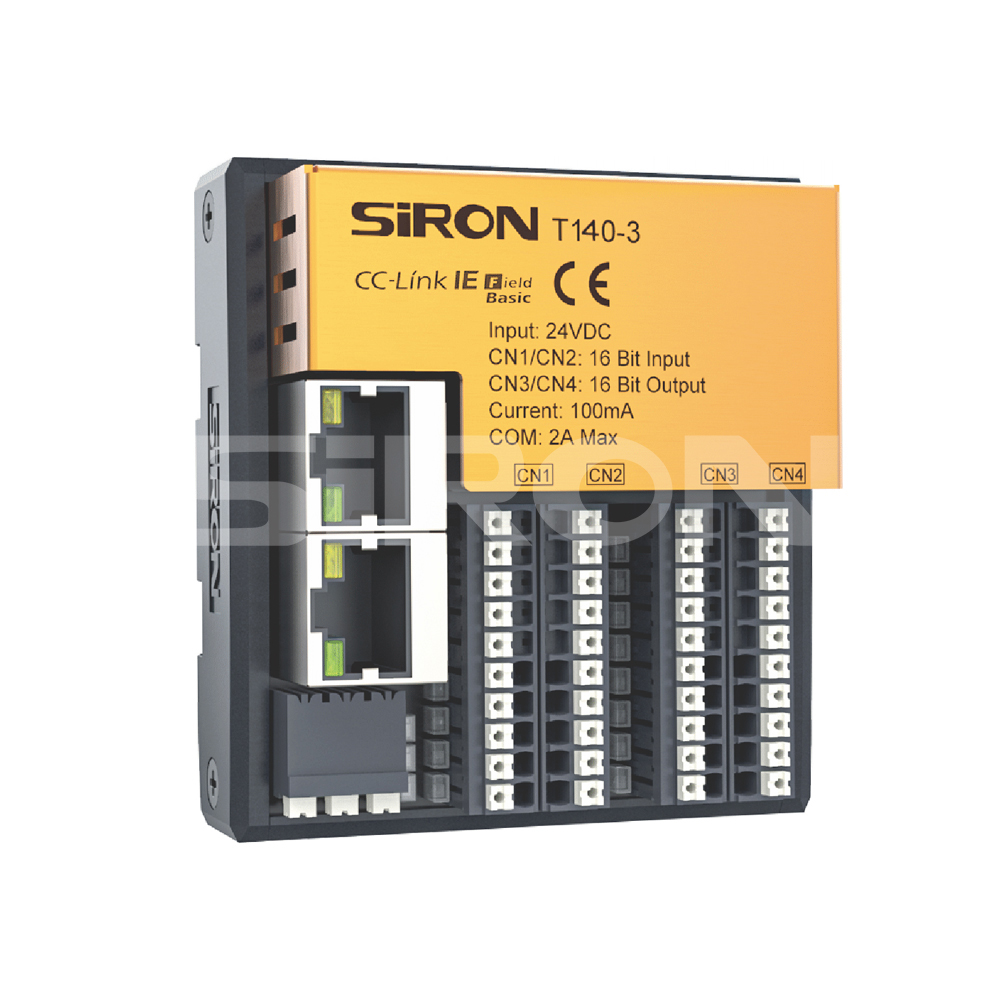

Selection example: T140-3-C represents the T1 second-generation bus module. The protocol is CC-Link Field Basic, the connection method is spring terminal, and the input/output characteristics are: 16-channel digital input, 16 channel digital output (NPN)

Table 1: Input/output characteristics

Code	Input	Output
3	16 channels digital input(NPN&PNP)	16 channels digital output(NPN)
3P	16 channels digital input(NPN&PNP)	16 channel digital output(PNP)
4	32 channel digital input(NPN&PNP)	0 channels digital output
5	0 channel digital input	32 channel digital output(NPN)
5P	0 channel digital input	32 channel digital output(PNP)

Specifications

Rated voltage	24V DC(12～30V)
Current consumption	60mA

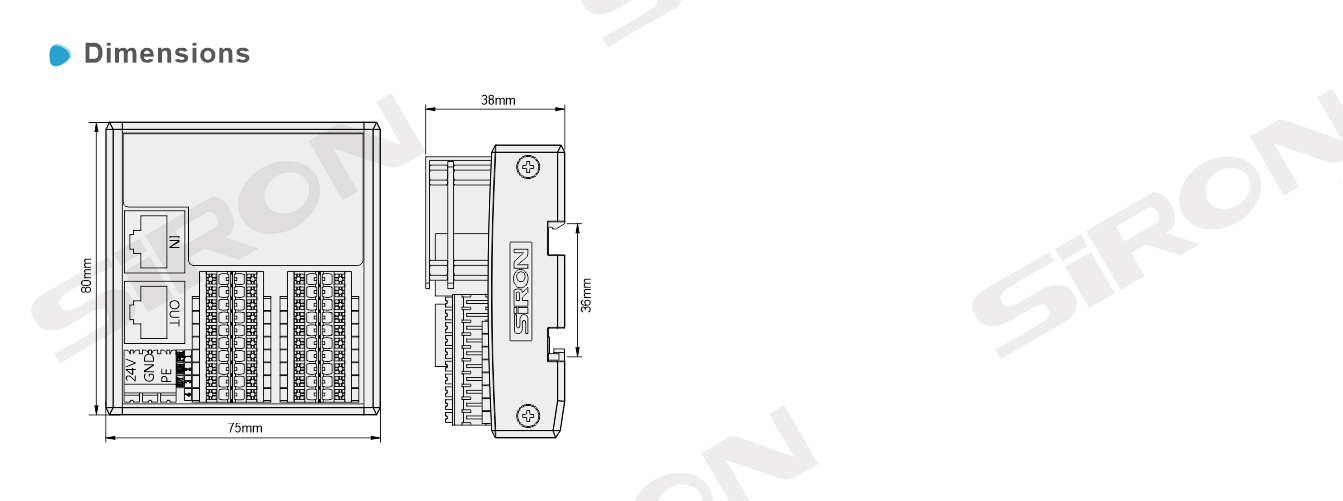

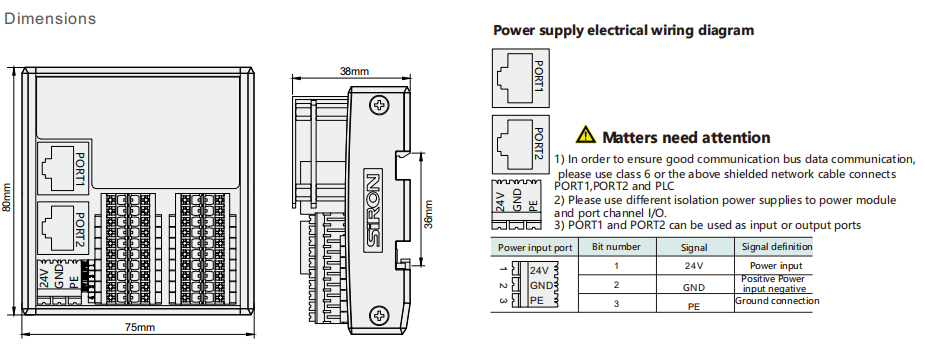

Size	80×75×38mm
Protection grade	IP20
Working temperature	-20～60℃
Storage temperature	-20～75℃
Relative humidity	95%,No condensation
Weight	130g

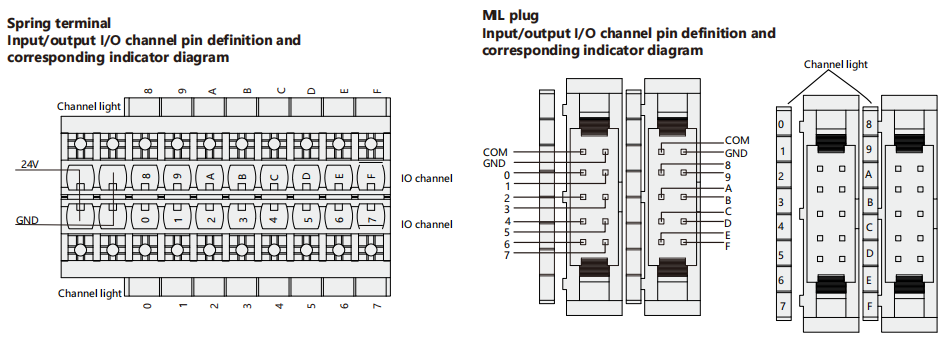

Communication bus interface

EtherCATEthernet interface	Interface	Signal	Signal definition
	1	TX+	Data sending positive end
	2	TX-	Data sending negative end
	3	RX+	receiving positive end
	4	/	/
	5	/	/
	6	RX-	Data receiving negative end
	7	/	/
	8	/	/
	Connector housing	PE	Chassis ground
