SiRON T055~T058 Series Metal dome type terminal block

Name: SiRON T055~T058 Series Metal dome type terminal block
Brand: SiRON
Rating: 5.0 (59 reviews)

Features

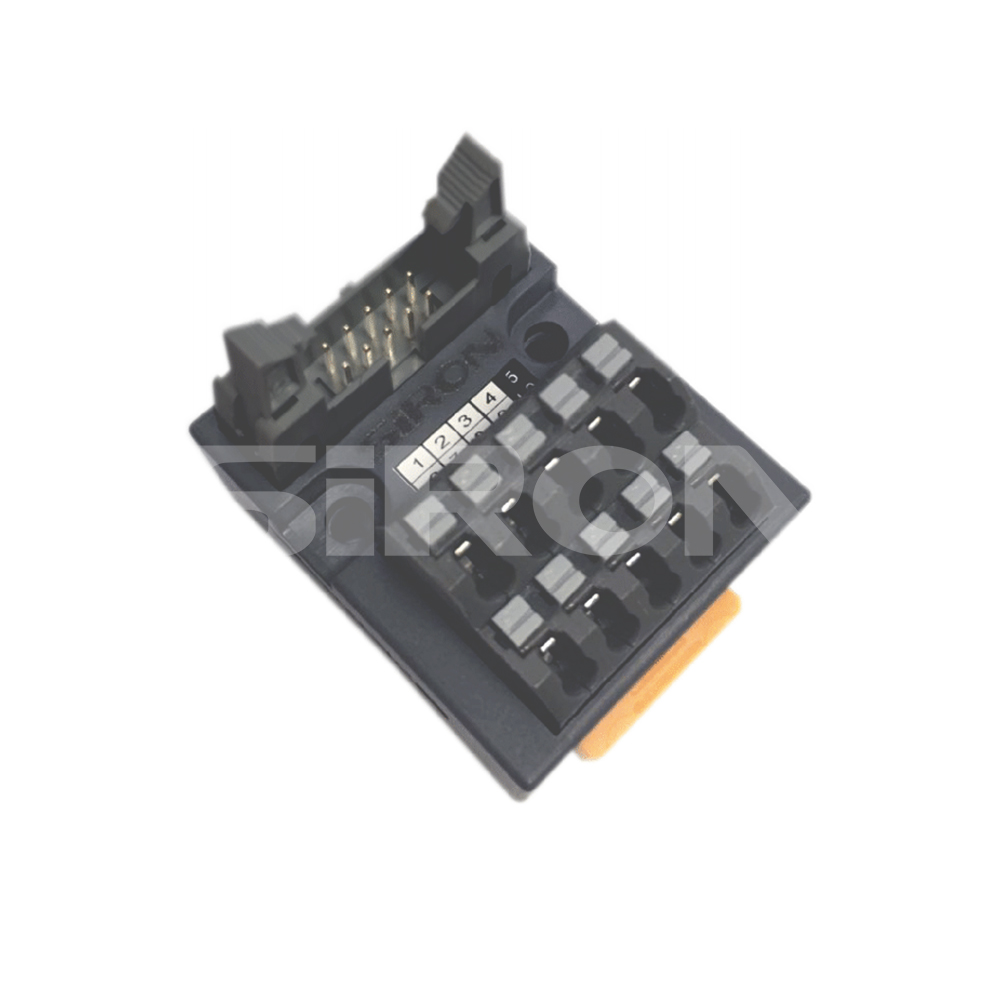

T055 use10Pin two-way connecting regardless input and output;ermlna Interface panel is used to Interface panel to march SiRON other products to realizehigh-effective wiring connection.

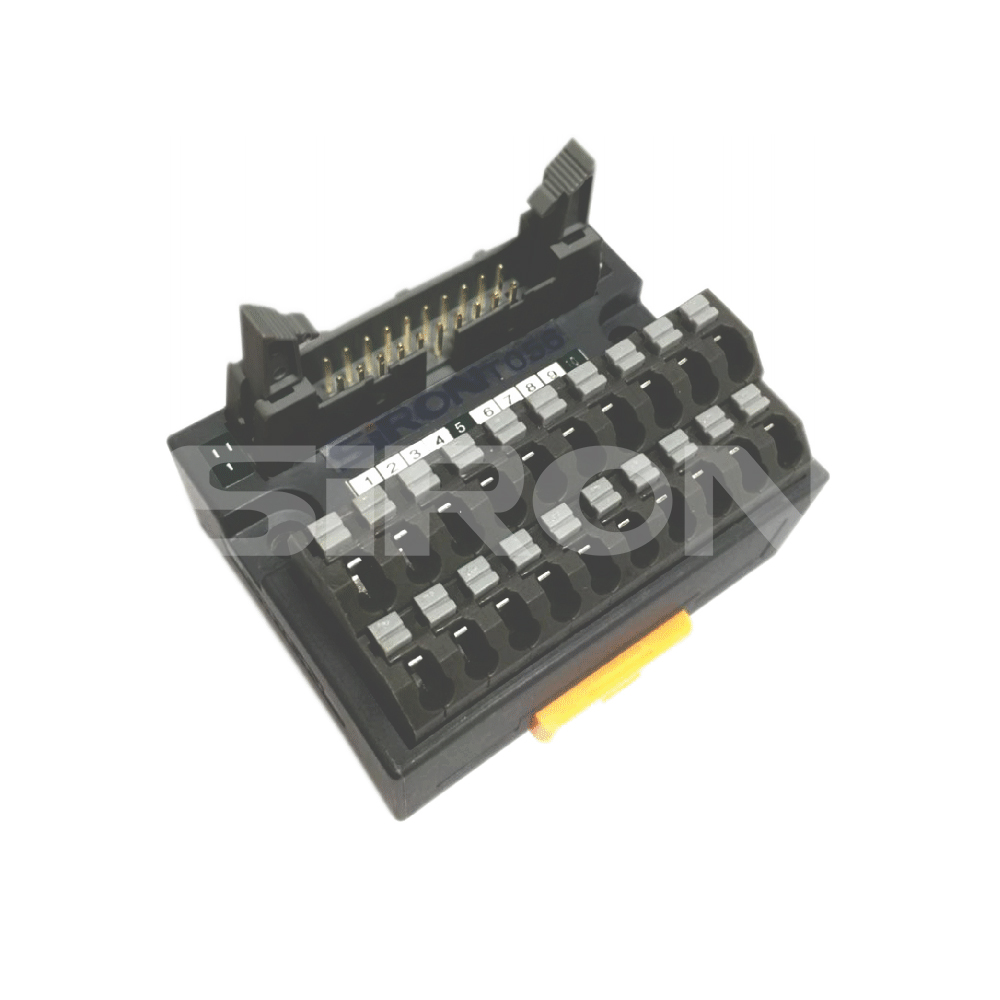

T056 is a 20pinconnector, suitable to all PLC connections with 20pin MlL plug on the market.termuna1

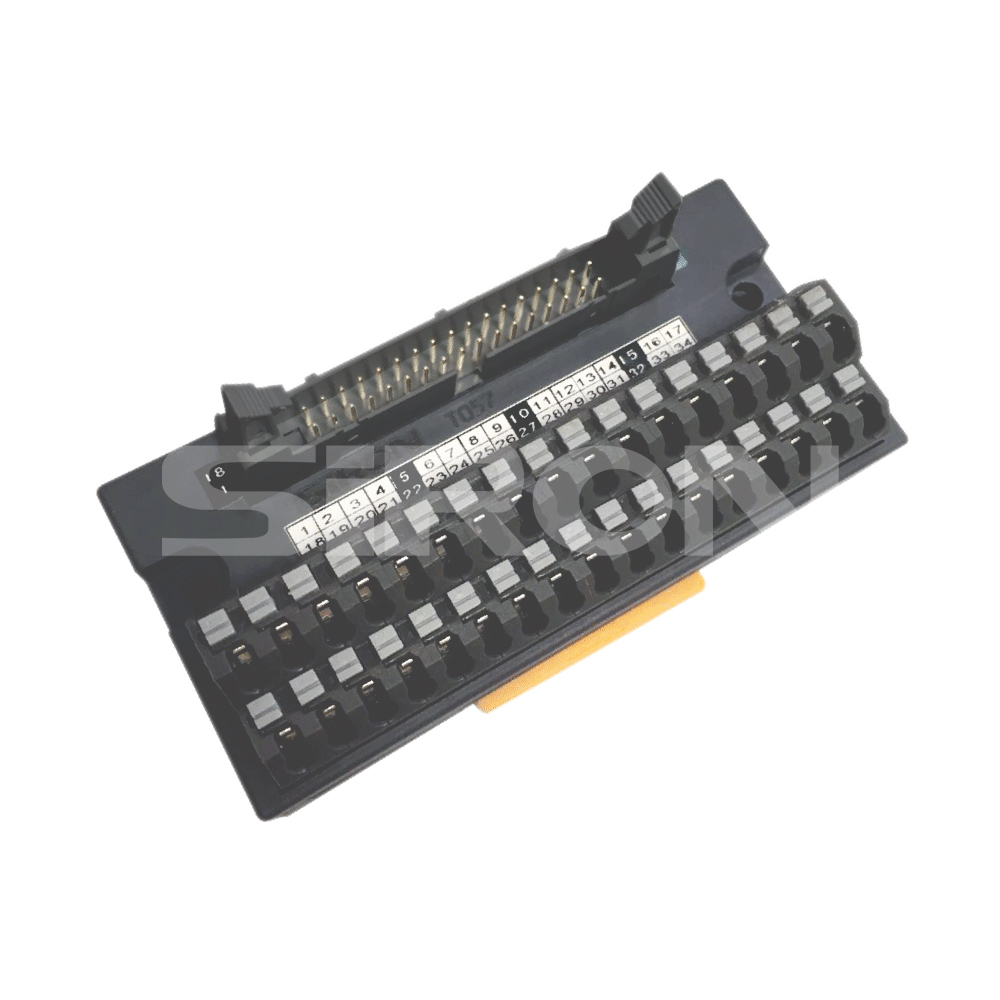

T057 is a 34pirconnector.suitable to all PLC connections with 34pin MlL plug on the market.termnna

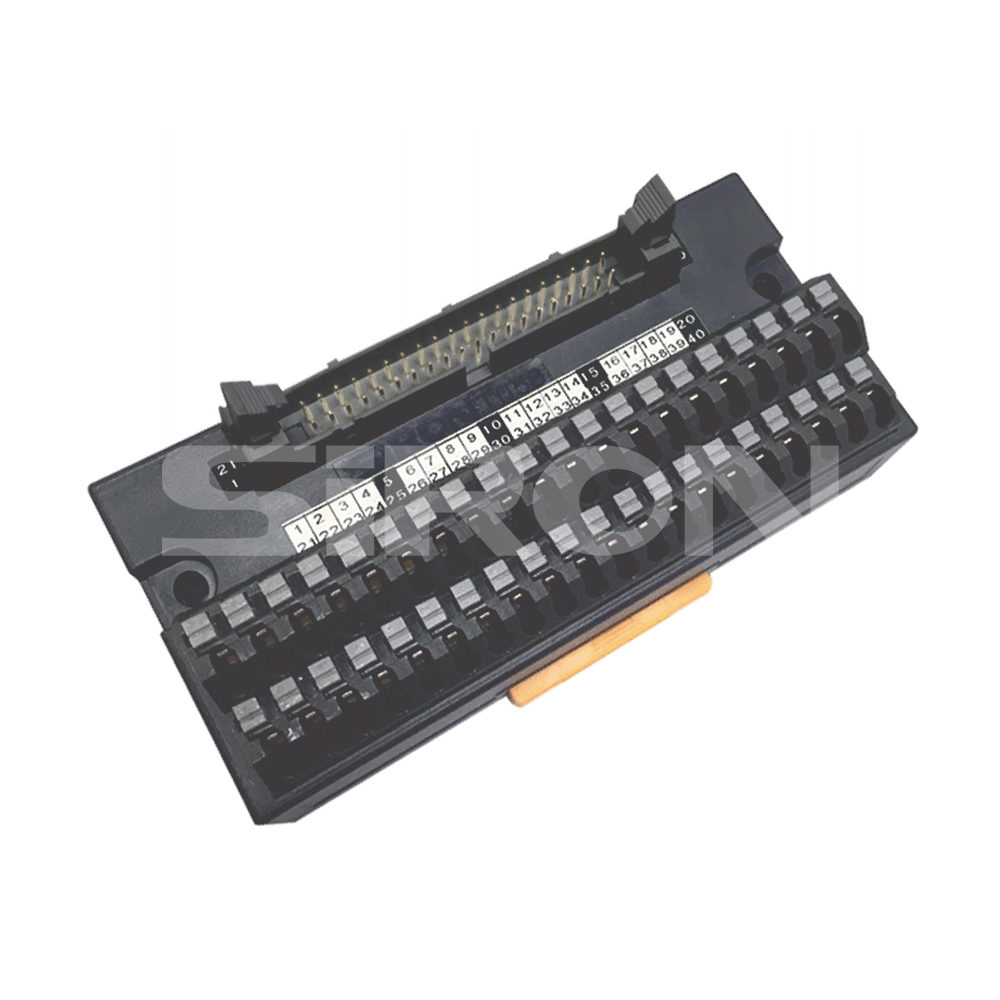

T058 is a 40pirconnector.suitable to all PLC connections with 40pin MlL plug on the market, small size for space saving.
These four products are minimum spacedesian of the ntra-industry.

Quantity:
Availability:





Inquire Add to Basket

Model:
T055/T056/T057/T058
Brand:
SiRON
Code:
8536901100

NPN/PNP Terminal block 20P terminal block MIL Plug light terminal block AWG17 Terminal Block Metal dome Terminal Block

Product Description

Type selection reference

Model	T055	T056	T057	T057-K	T058	T058-K
Name	10-bit terminal block	20-bit terminal block	34-bit terminal block		40-bit terminal block

Suitable PLC

Panasonic

KEYENCE	KV-B16XAXC		KV-C32XA/C	KV-1000 KV-3000
	KVseries of small PLC		KV-C64XA/C	KV-5000 KV-H20S KV-H40S
			KV-C32TA/C
			KV-C64TA/C
Panasonic	FPO-C16T/C16CT			FPG-XY64D2T/P FP2-C1D
	FPO-C16P/C16CP			FP2-X32D2
	FPO-C32T/C32CT/T32CT			FP2-X64D2
	FPD-C32P/C32CP/T32CP FPO-E16T/P			FP2-32T/P
	FPO-E32T/P FPO-E8X			FP2-Y64T/P
	FPO-E16X FPZ-C28 FPZ-C32			FP2-XY64D2T/XY64D7T
	FPO-C16T/C16CT			FP2-XY64D2P/XY64D7P FP2-PP21
	FPO-C16P/C16CP			FP2-PP22
	FPO-C32T/C32CT/T32CT			FP2-PP41
	FPO-C32P/C32CP/T32CP FPO-E16T/P			FP2-PP42
	FPO-E32T/P FPO-E8YT			FP2-HSCT
	FPO-E16YT FPZ-C32			FP2-PXYT
	FPZ-C28
OMRON		CJ1W-MD232 CJ1W-MD233		CJ1W-ID231 CJ1W-OD232 CJ1W-ID261 CJ1W-OD233 CJ1W-MD261 CI1W-OD262 CJ1W-ID232 CI1W-OD263 CI1W-ID262 CJ1W-MD263 CJ1W-MD263 CJ1W-MD563 CJ1W-MD563 CJ1M-CPU21 CJ1W-OD231 CJ1M-CPU22 CJ1W-OD261 CJ1M-CPU23 CJ1W-MD261









MTSUBISHI		FX1NC-16MT FX1NC-32MT FX2NC-16MT FX2NC-32MT FX3UC-32MT FX2NC-16EX FX2NC-16EX-C FX2NC-16EXL-C FX2NC-16EYT FX2NC-17EYT-C FX2N-10PG FX2N-10GM FX2N-20GM		QX41 QX72 QX41-S1 QY41P QX42 QY42P QX42-S1 QY71 QX71 QH42P QD70P4 QD70D QD70P QD75M










SIEMENS				40P Plug with afull range
Yokogawa				F3WD64-3N F3WD32-3F F3WD64-3F

Suitable cable

Suitable cable:X 2 0 0 -1 X 2 1 0 - 1 X 2 1 6 -1 X 2 1 6 - 2，X 2 0 0 -2 X 2 1 0 - 2 X 2 1 8 -1 X 2 1 8 - 9，X 2 0 0 -3 X 2 1 0 - 3，X 2 1 0 -4 X 2 0 0 - 4 X 2 1 0 -5 X 2 1 8 - 6

For details, please refer to the directory cable series

Specifications

Input	Nominal operating current	1A
	Nominal coil voltage	DC24V
Corresponding output Devices		Button Switch,Photoelectric Switch,Solenoid, Indicator,Stepping Servo Motor,etc.	Servo motor control signal line circuit.	Button Switch,Photoelectric Switch,Solenoid, Indicator,Stepping Servo Motor,etc.
