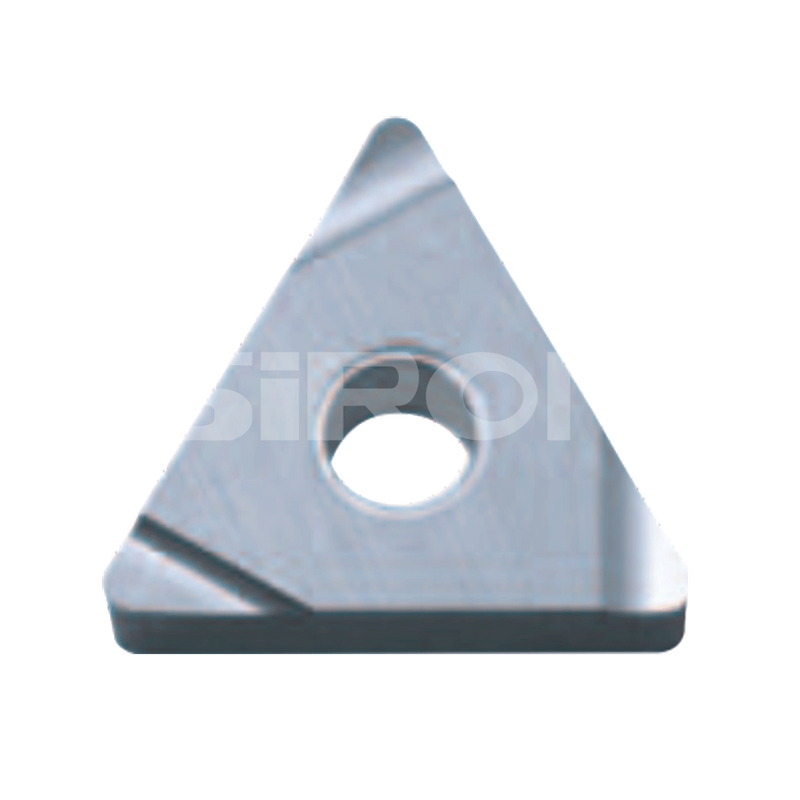

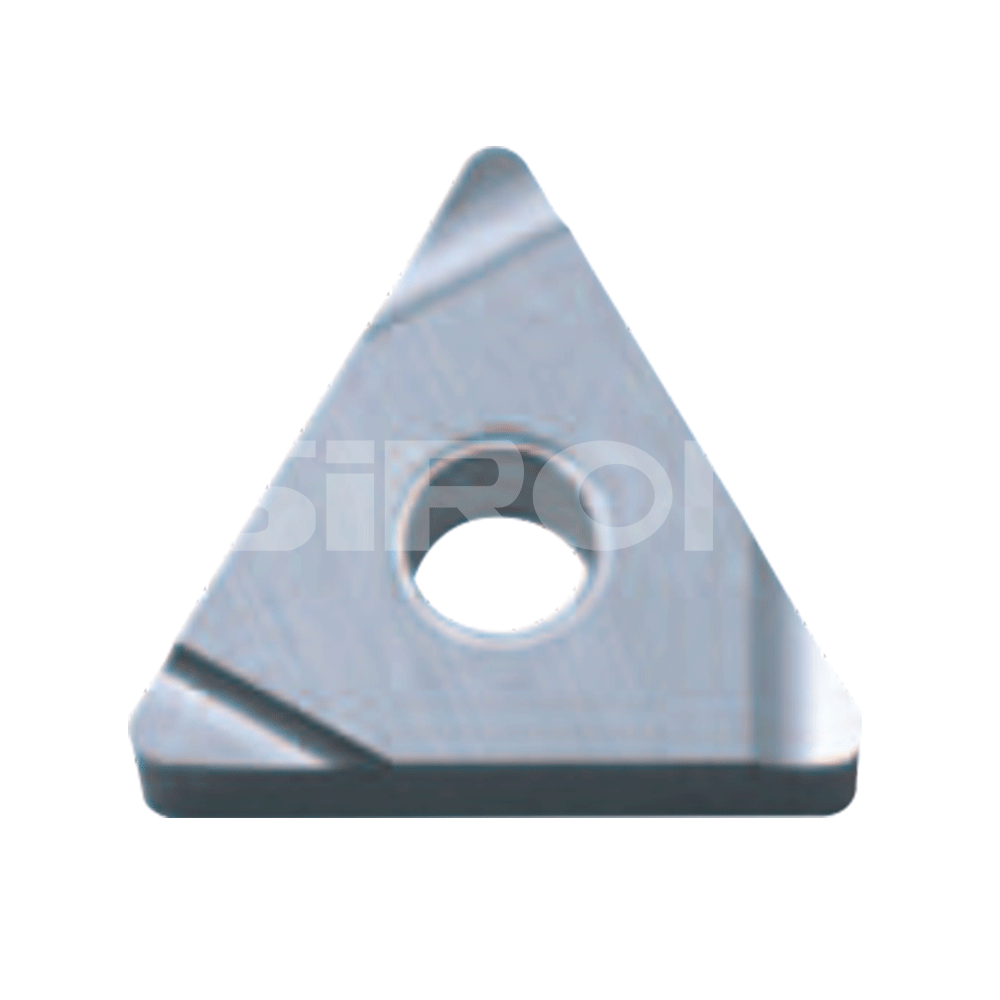

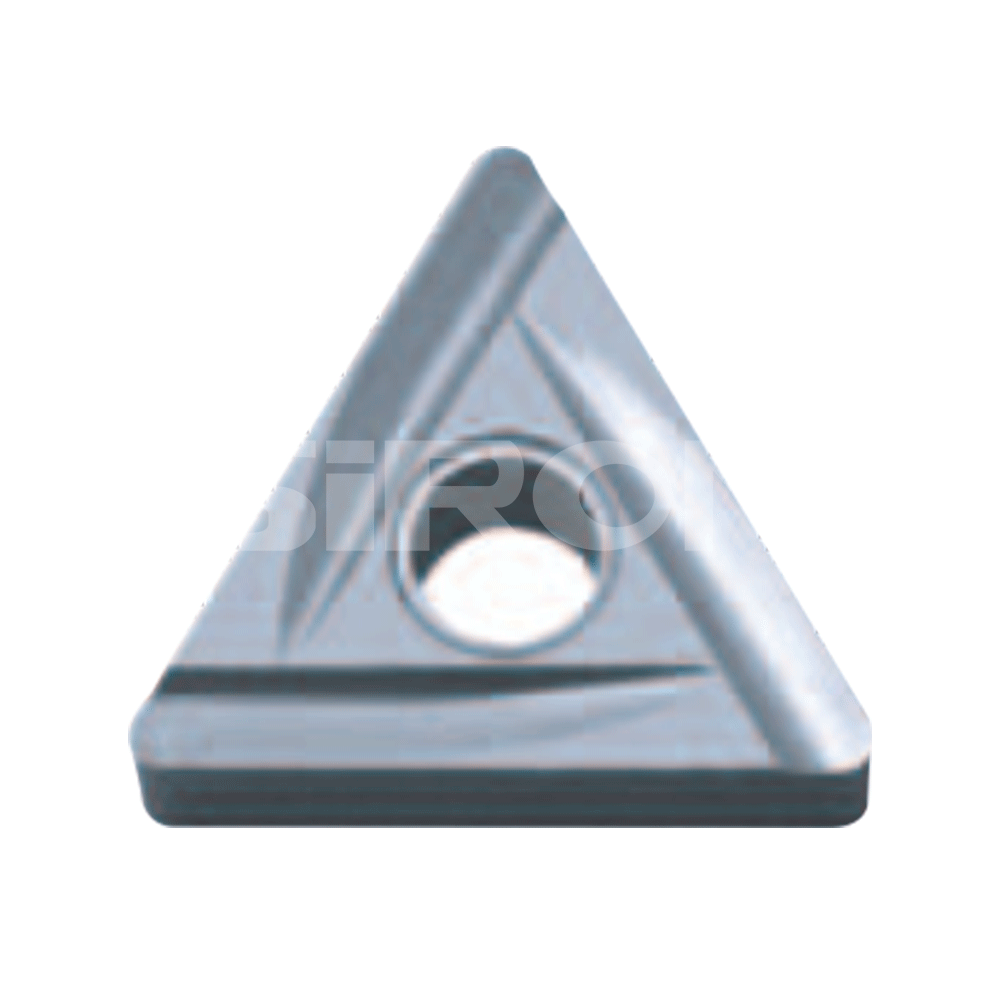

SiRON MT-GTNGG Series Grinding-Positive/Negative Angle Turning Inserts

Features
Particles are a general term for indexable turning inserts, which are the mainstream products in modern metal cutting applications. Mainly used in metal turning, milling, cutting and grooving, thread turning and other fields.According to the material, it can be divided into coated blade, metal ceramic blade, non-metal ceramic blade, carbide blade, superhard blade, etc. It is characterized by high efficiency, high wear resistance, compared with traditional welded blades,The machining efficiency of alloy inserts is increased by more than 4 times. With the continuous progress of coating technology, breakthroughs in key technologies of wear resistance and high temperature resistance will further improve efficiency and reduce processing costs.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MT-GTNGG

  • SiRON

  • 8207901000

60 angle
Product Description

Specification


size 企业微信截图_17582709464198 P steel
●
Processing conditions
stable cutting
General cutting
Unstable cutting
M stainless steel

●
K cast iron
●
N nonferrous material ●

S high temperature
●
H alloy
ultrahard material


shape model MT-G size metal ceramic Hard alloy (coating) cutting parameter
IC S D1 (Non-stick coating) 15P 15L fmin fmax apmin apmax
TNGG160402 R-F TNGG160402 L-F 9.525 4.76 3.81 ★ ★ ★ >0.1 0.2 >0 <2.5
TNGG160404 R-F TNGG160404 L-F ★ ★ ★
TNGG160402 R-U TNGG160402 L-U 9.525 4.76 3.81 ★ ★ ★ >0.2 <0.4 >1 <4
TNGG160404 R-U TNGG160404L-U ★ ★ ★
