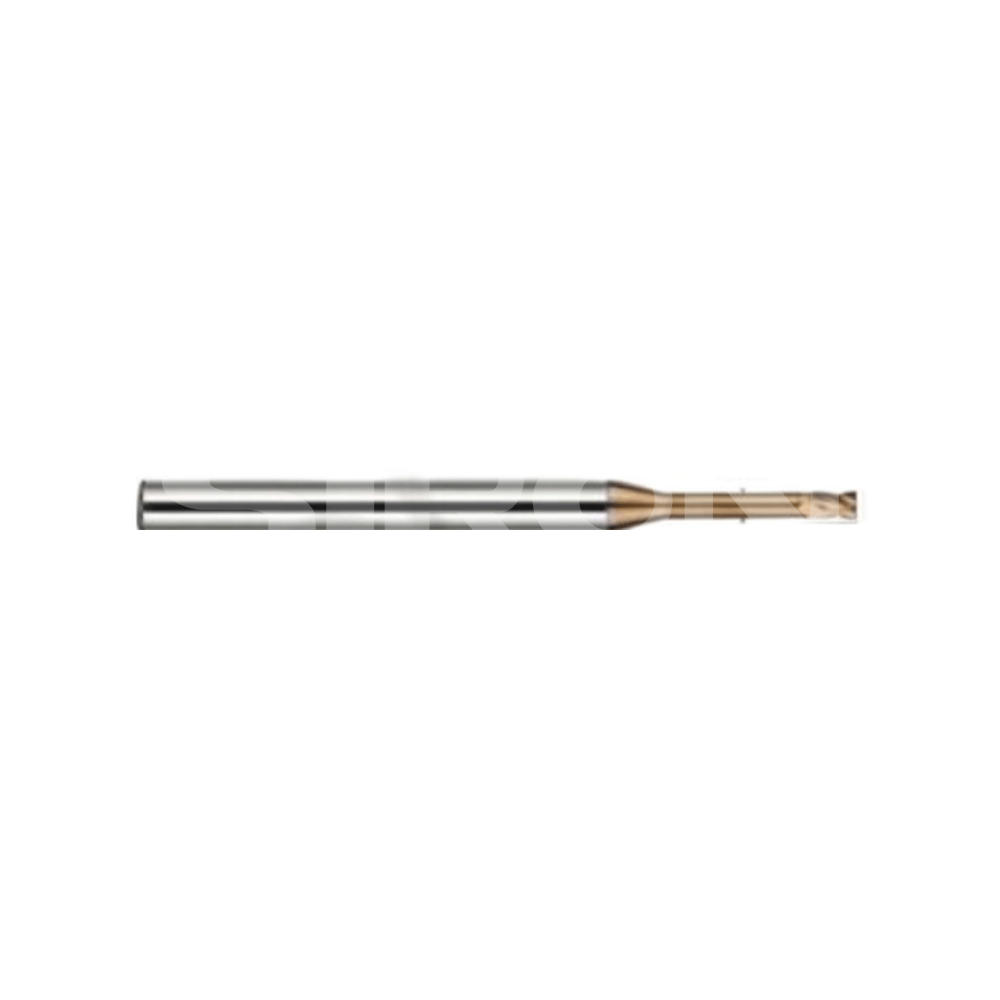

SiRON MT-X-EN Series High-speed High-hardness Deep Groove Flat Knife

Name: SiRON MT-X-EN Series High-speed High-hardness Deep Groove Flat Knife
Brand: SiRON
Rating: 5.0 (83 reviews)

Features

A milling cutter is a rotary tool with one or more teeth for milling operations. When working, each cutter tooth cuts off the allowance of the workpiece intermittently in turn.Milling cutters are mainly used for machining planes, steps, grooves, forming surfaces and cutting workpieces on milling machines.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
MT-X-EN
Brand:
SiRON
Code:
8207901000

60 degree

Product Description

Specification

	Cutting edge diameter		Blades		Dlameter tolerance of the cutting edge		Handle diameter tolerance
	0.2~0.9		2 blades		-0.005~0		H6
	1.0~4.0		4 blades		-0.01~0
Model MT-X-EN	Specification
60-degree deep groove flat knife	diameter	length		effective length	neck diameter	handle diameter		total length
0.24D50L-L1-2T(60%)	0.2	0.3		1.0	0.16	4		50
0.24D50L-L2-2T(60%				2.0
0.34D50L-L1-2T(60	0.3	0.5		1.0	0.26
0.34D50L-L2-2T(60°)				2.0
0.34D50L-L3-2T(60°)				3.0
0.44D50L-L2-2T(60°)	0.4	0.6		2.0	0.36
0.44D50L-L3-2T(60°)				3.0
0.44D50L-L4-2T(60°)				4.0
0.44D50L-L6-2T(60°)				6.0
0.54D50L-L2-2T(60°)	0.5	0.7		2.0	0.45
0.54D50L-L3-2T(60°)				3.0
0.54D50L-L4-2T(60°)				4.0
0.54D50L-L5-2T(60°)				5.0
0.54D50L-L6-2T(60°)				6.0
0.54D50L-L8-2T(60°)				8.0
0.64D50L-L2-2T(60°)	0.6	0.9		2.0	0.55
0.64D50L-L3-2T(60°)				3.0
0.64D50L-L4-2T(60°)				4.0
0.64D50L-L5-2T(60°)				5.0
0.64D50L-L6-2T(60°)				6.0
0.64D50L-L8-2T(60°)				8.0
0.74D50L-L3-2T(60°)	0.7	1.0		3.0	0.65
0.74D50L-L4-2T(60°)				4.0
0.74D50L-L5-2T(60°)				5.0
0.74D50L-L6-2T(60°)				6.0
0.74D50L-L8-2T(60°)				8.0
0.74D50L-L10-2T(60°)				10.0
0.84D50L-L3-2T(60°)	0.8	12		3.0	0.75
0.84D50L-L4-2T(60°)				4.0
0.84D50L-L5-2T(60°)				5.0
0.84D50L-L6-2T(60°)				6.0
0.84D50L-L8-2T(60°)				8.0
0.84D50L-L10-2T(60°)				10.0
