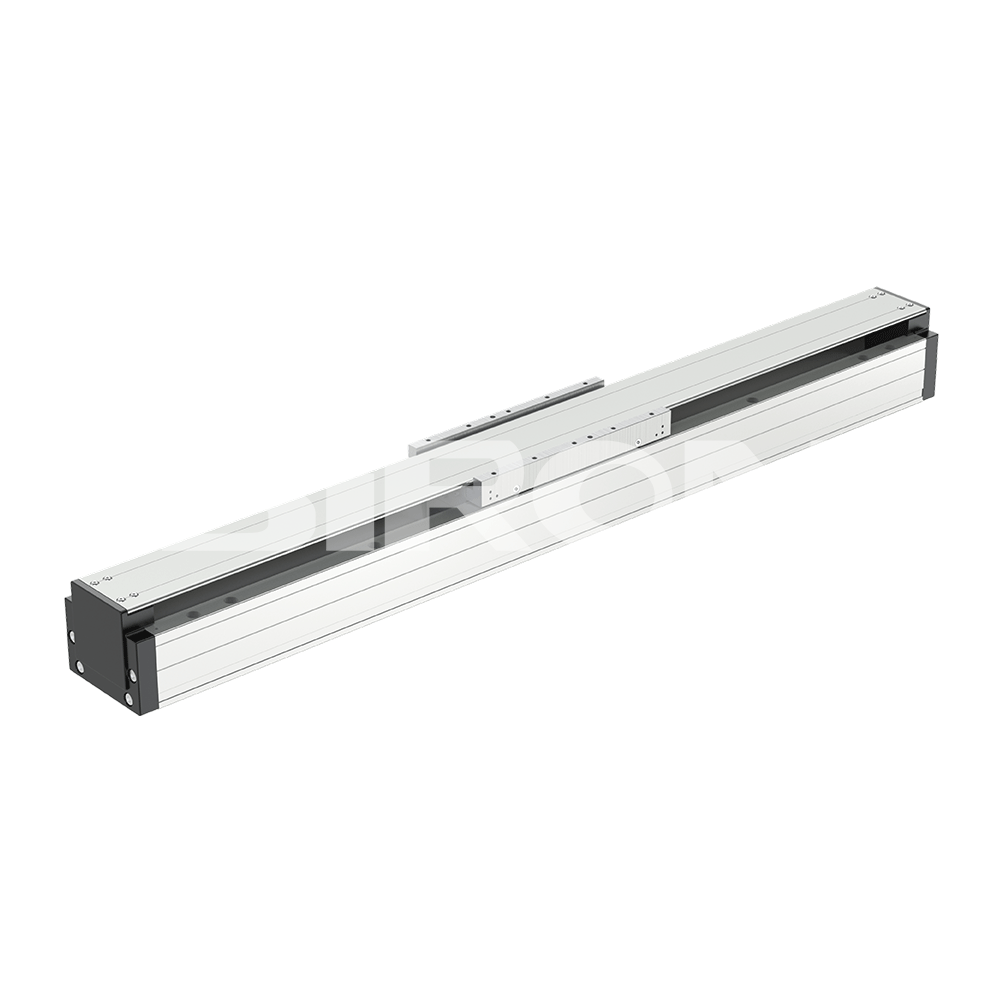

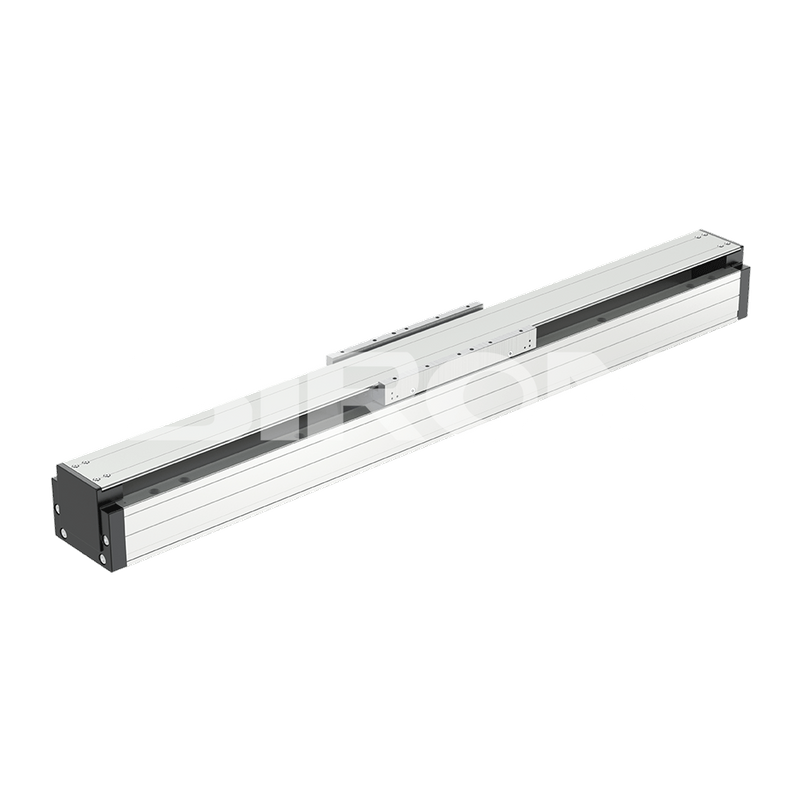

SiRON M373-82 Linear Electrical Compact Module

Name: SiRON M373-82 Linear Electrical Compact Module
Brand: SiRON
Rating: 5.0 (92 reviews)

Features:

◆ Lightweight and miniaturized linear motor standard products
◆ Magnetic gate/grating positioning
◆ Comprehensive replacement of screw module + servo motor, better cost performanceHigh stability,
high reliability, high response speed
◆ Smooth movement, no wear, minimal maintenance, long service lifeWidely used in desktop dispensing
machine, lock screw machine, soldering machine, etc

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M373-82
Brand:
SiRON
Code:
9001909090

1260mm Maximum stroke 82mm Module Base

Product Description

About selection

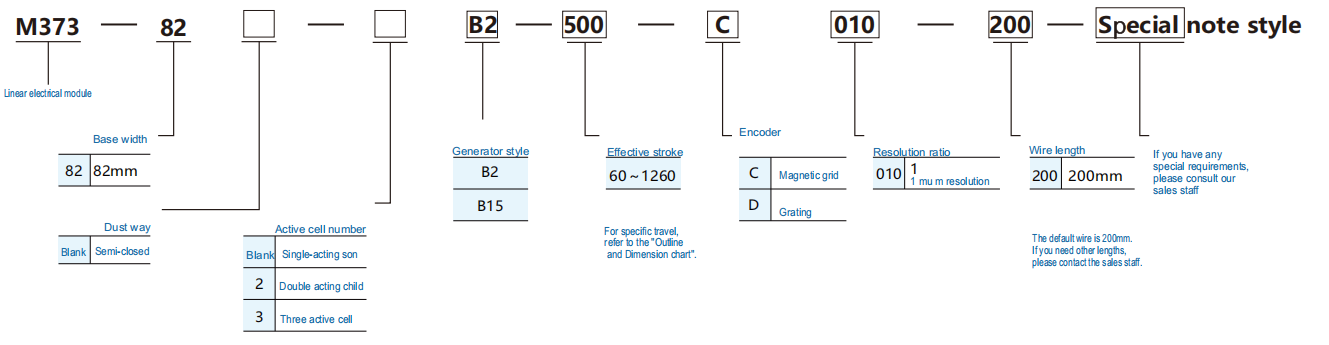

Selection examples: M373-82-B2-500-C010-200: M373 series, base width 82mm, semi-closed, single actuator, motor type B2, effective stroke 500mm, magnetic gate encoder resolution 1μm, wire length 200mm.

Note:

1. The default value is "encoder magnetic grating (C010), grating (D010)". If you have other precision requirements, please consult our sales staff.

2. If you need the photoelectric switch, please order it separately

Product specification

Motor model		B15-W040	B2-W040
Peak thrust		208.0N	392.0N
Continue to push		52.0N	98.0N
Peak current		10.0Arms	10.0Arms
Sustained current		2.5Arms	2.5Arms
Motor constant @Tmax		23.4N/(W1/2)	10.5N/(W1/2)
Maximum continuous dissipatedpower		42.5W	59.2W
Force constant		20.8N/Arms	39.2N/Arms
Reverse electromofive force		17.1Vpeak/(m/s)	32.1Vpeak/(m/s)
Feedback	Magneticgrid	1.0μm resolution cable length:200mm	1.0μm resolution cable length:200mm
	Grating	1.0μm resolution cable length:200mm	1.0μm resolution cable length:200mm
Repeatacouracy	Magneticgrid	±5μm	±5μm
	Grating	±3μm	±3μm
Guide		Built-in double guide rail	Built-in double guide rail
Straightness		±10μm/300mm	±10μm/300mm
Interphase impedance @25°		4.0 ohms	6.6 ohms
Phase-to-phase inductance		10.0mH	21.4mH
Electricaltime constant		0.9ms	2.8ms
Maximum teminal voltage		460Vdc	460Vdc
Maximum winding temperature		120℃	120℃
Coil weight		1.3KG	1.7KG
Electricalcycle length		20.0mm	20.0mm
Installation method		Horizontal mounting/side mounting	Honzontal mounting/side mounting
Load		At an acceleration of 1G,a speed of 1000mm/s,and a dwell ime of0.2s,When running a 1000mm stroke:Horizontal installation:load 8kg;Side-mounted installation:Load 6kg;Maximum operating speed limit 2000mm/s	At an acceleration of 1G,aspeed of 1000mm/s,and a dwell time of 02s,When running a 1000mm stroke Honizontal installation Load 15kg:Side-mounted installation:Load 10kg; Maximum operating speed limit:2000mm/s
Module weight		60mm stroke 5.0kg(for every additional 60mm stroke,an additional 0.5kg is added)	80mm stroke 5.6kg(for every additional 60mm stroke,an additional 0.5kg is added)
Onigin sensor(extemal)		K016-A3/K016-A4(Optional)
