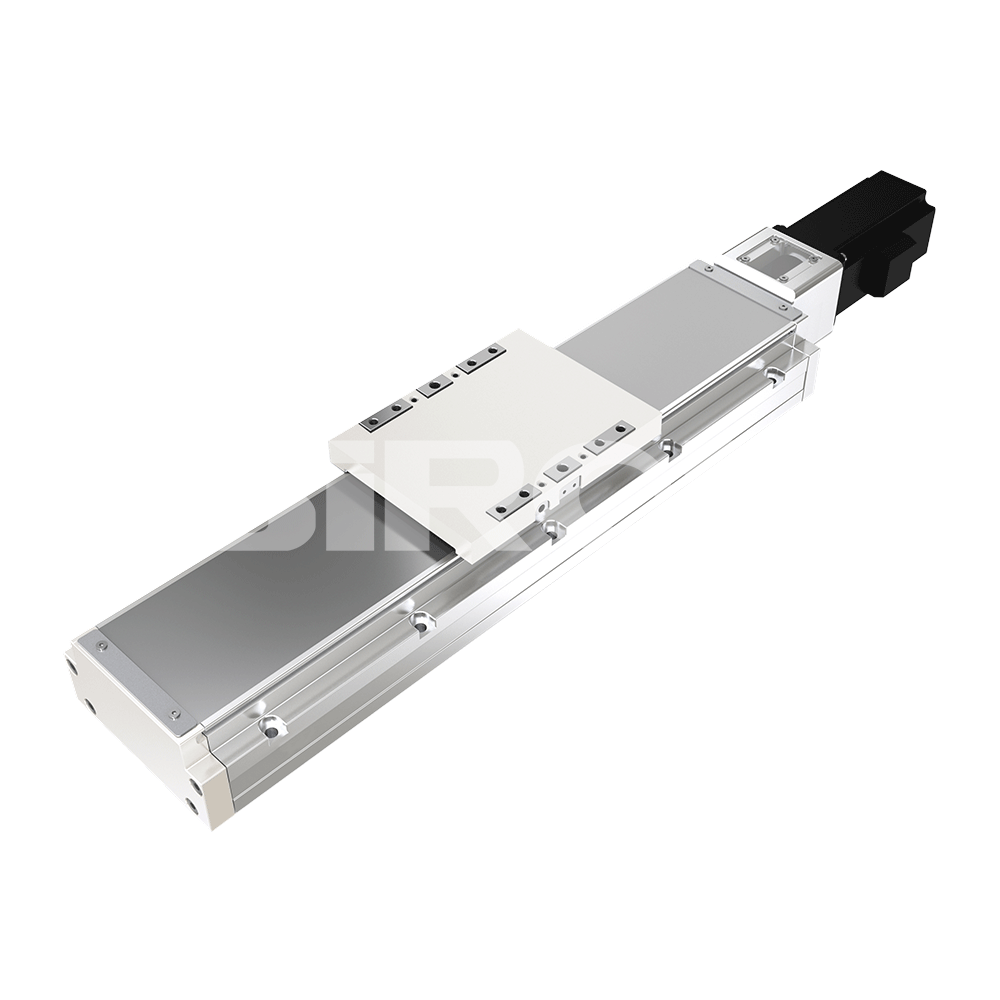

SiRON M313 Embedded Ball Screw Compact Module

Name: SiRON M313 Embedded Ball Screw Compact Module
Brand: SiRON
Rating: 5.0 (62 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M313
Brand:
SiRON
Code:
9001909090

1250mm Maximum stroke 1600mm/s Maximum speed Φ16mm Ball bearing screw

Product Description

About selection

Selection example: M313-5-50-BC-M40B-E5 is M313 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 400W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.01
	Ball screw lead(mm)		5	10	20	32
	Maximum speed(mm/s)		250	500	1000	1600
	Maximum payload(kg)	Horizontal	110	88	40	30
		Vertical	33	22	10	8
	Rated thrust(n)		1388	694	347	218
	Stroke pitch(mm)		50-1250mm/50 interval
Sarts	AC Servo motoroutput(w)		400
	Can be equippedwith stepping motor		86
	Ball screw(mm)		C7φ16
	Coupling(mm)		10×14
	Home sensor	Outside	K017-A6

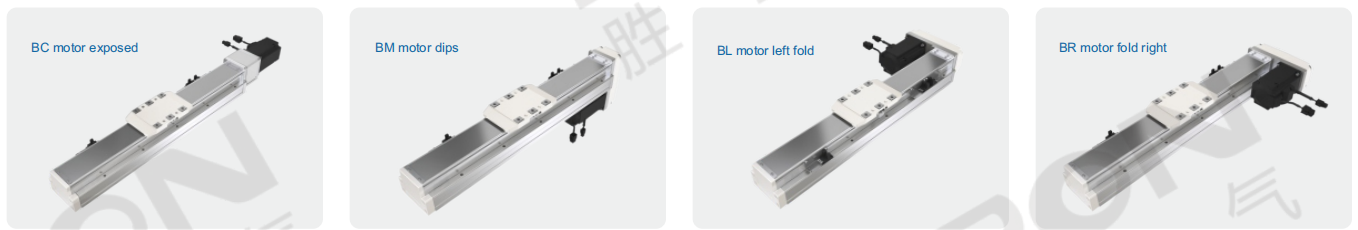

Installation method

企业微信截图_17742557112611

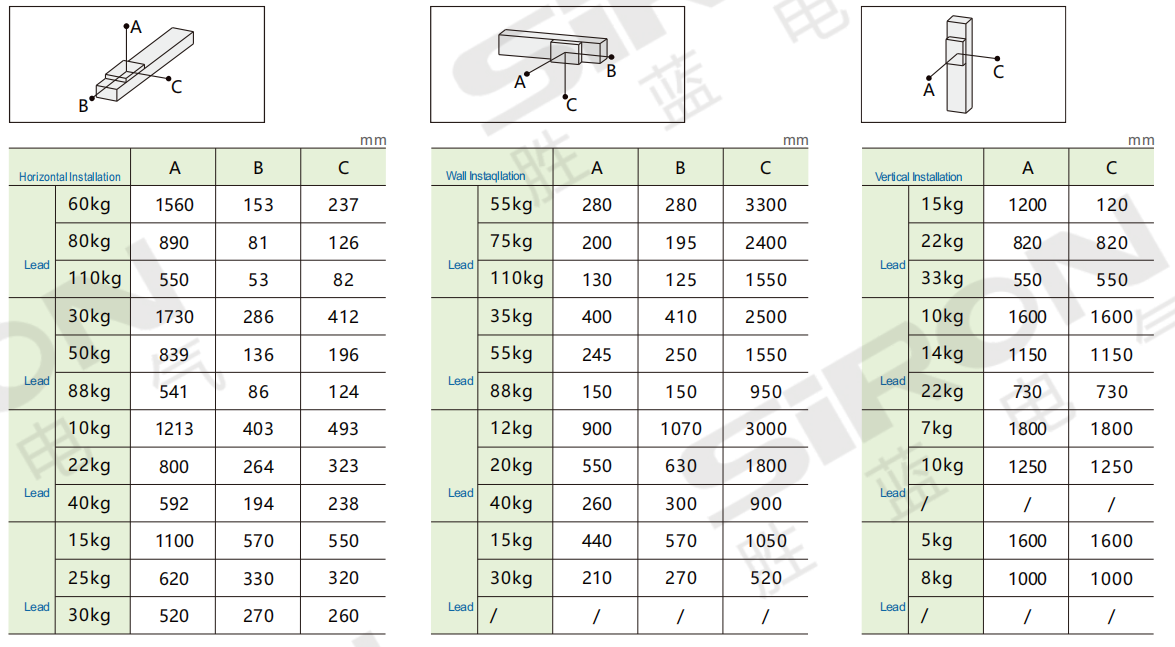

Allowable overhang

企业微信截图_17742557986366

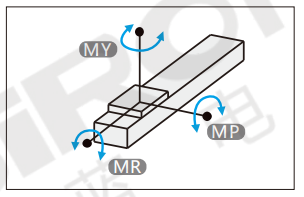

Static loading moment

企业微信截图_17742558421175

MY	606
MP	606
MR	1168

Suitable motor brand

Brand	The motor mark Whether the brakes	Motor dapacity	voltage	Motor model	voltage
Mitsubishi	Nobrakes(horizontal style)	400	220	HG-KR43	MR-J4-40A
Mitsubishi	M With brake(vertical style)	400	220	HG-KR43B	MR-J4-40A
Panasonic	No brakes (horizontalstyle)	400	220	MHMD042G1U	MBDHT2510
Panasonic	P With brake(vertical style)	400	220	MHMD042G1V	MBDHT2510
Delta	Nobrakes (horizontalstyle)	400	220	ECMA-C20604ES	ASD-B20421-B
Delta	T With brake(vertical style)	400	220	ECMA-C20604FS	ASD-B20421-B

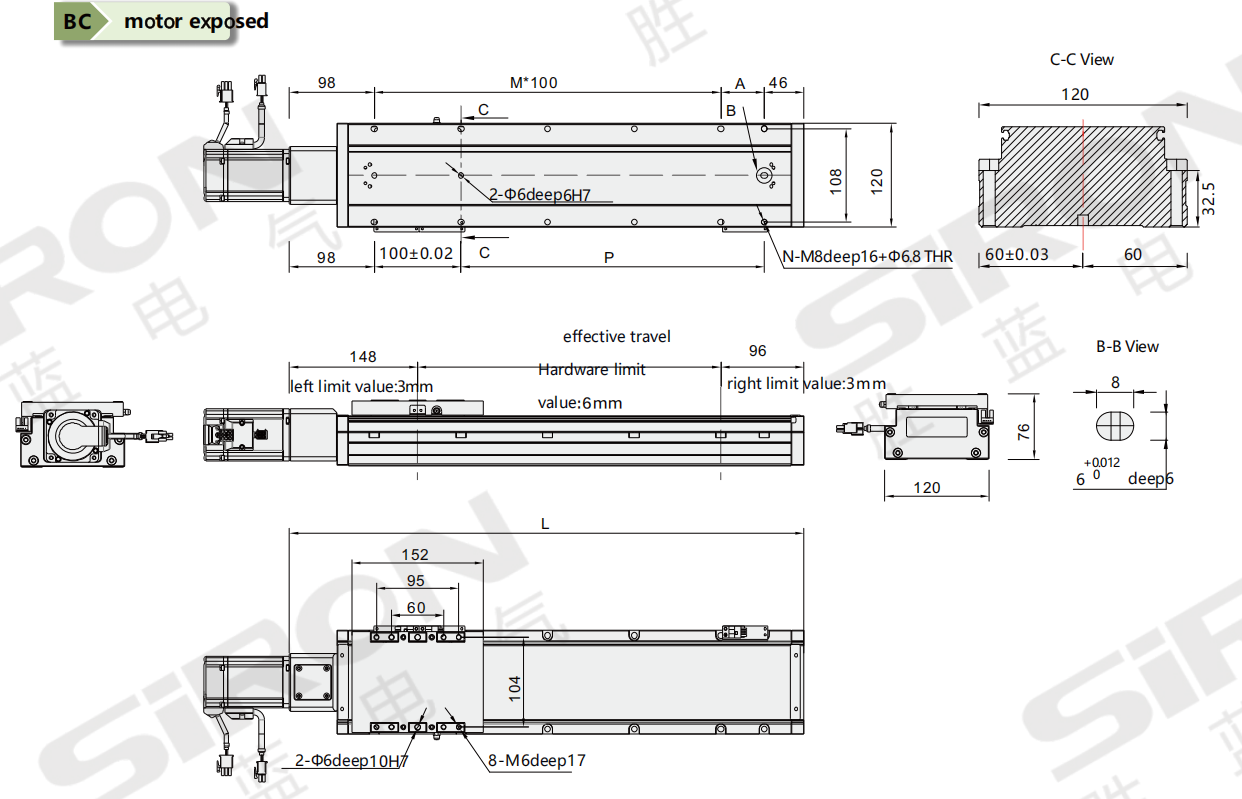

General dimension drawing

企业微信截图_17742565801993

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650
L	294	344	394	444	494	544	594	644	694	744	794	844	894
A	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7
N	6	6	8	8	10	10	12	12	14	14	16	16	18
P	50	100	150	200	250	300	350	400	450	500	550	600	650
weight(kg)	5.05	5.40	5.75	6.10	6.45	6.80	7.15	7.50	7.85	8.20	8.55	8.90	9.25

Stroke	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
L	944	994	1044	1094	1144	1194	1244	1294	1344	1394	1444	1494	1544
A	100	50	100	50	100	50	100	50	100	50	100	50	100
M	7	8	8	9	9	10	10	11	11	12	12	13	13
N	18	20	20	22	22	24	24	26	26	28	28	30	30
P	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
weight(kg)	9.60	9.95	10.30	10.65	11.00	11.35	11.70	12.05	12.40	12.75	13.10	13.45	13.80

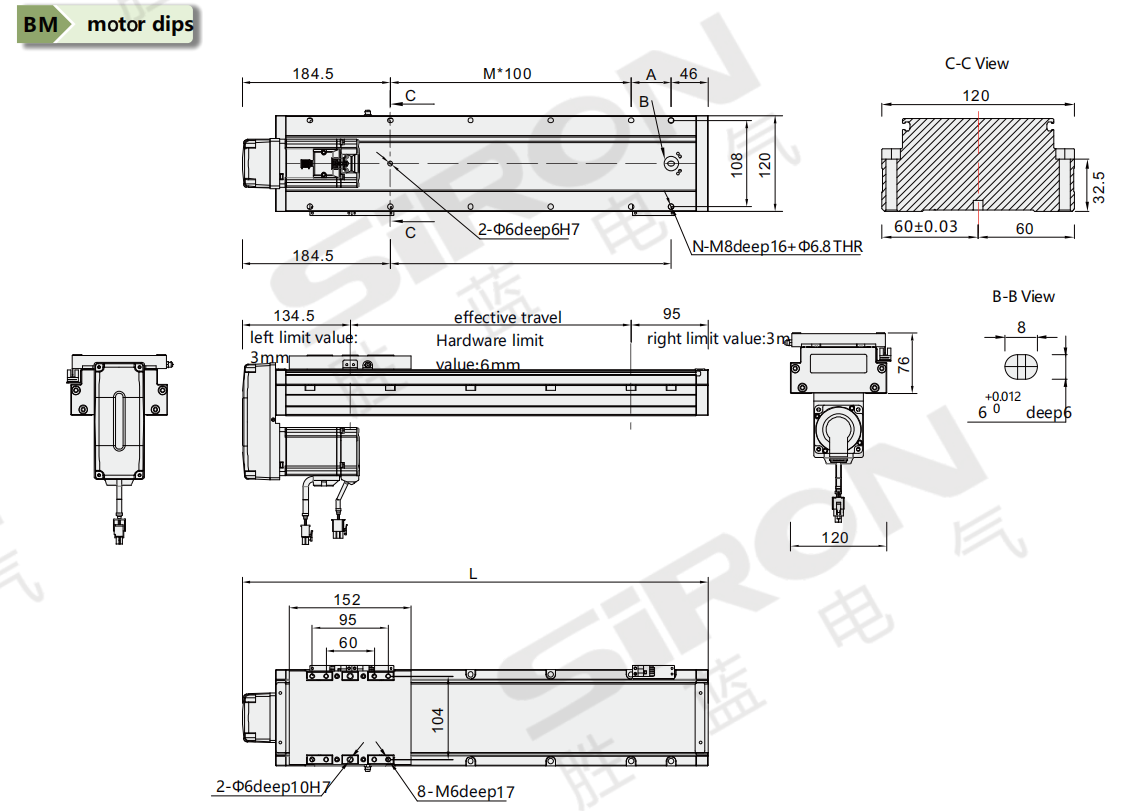

企业微信截图_17742566715859

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650
L	280.5	330.5	380.5	430.5	480.5	530.5	580.5	630.5	680.5	730.5	780.5	830.5	880.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50
M	0	0	1	1	2	2	3	3	4	4	5	5	6
N	4	4	6	6	8	8	10	10	12	12	14	14	16
P	50	100	150	200	250	300	350	400	450	500	550	600	650
weight(kg)	5.25	5.60	5.95	6.30	6.65	7.00	7.35	7.70	8.05	8.40	8.75	9.10	9.45

Stroke	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
L	930.5	980.5	1030.5	1080.5	1130.5	1180.5	1230.5	1280.5	1330.5	1380.5	1430.5	1480.5	1530.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100
M	6	7	7	8	8	9	9	10	10	11	11	12	12
N	16	18	18	20	20	22	22	24	24	26	26	28	28
P	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
weight(kg)	9.80	10.15	10.85	11.20	11.55	11.90	12.25	12.60	12.56	12.91	13.26	13.61	13.96

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff.

企业微信截图_17742566715859

When the stroke is 50, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650
L	270.5	320.5	370.5	420.5	470.5	520.5	570.5	620.5	670.5	720.5	770.5	820.5	870.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7
N	6	6	8	8	10	10	12	12	14	14	16	16	18
P	50	100	150	200	250	300	350	400	450	500	550	600	650
weight(kg)	5.25	5.60	5.95	6.30	6.65	7.00	7.35	7.70	8.05	8.40	8.75	9.10	9.45

Stroke	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
L	920.5	970.5	1020.5	1070.5	1120.5	1170.5	1220.5	1270.5	1320.5	1370.5	1420.5	1470.5	1520.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100
M	7	8	8	9	9	10	10	11	11	12	12	13	13
N	18	20	20	22	22	24	24	26	26	28	28	30	30
P	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
weight(kg)	9.80	10.15	10.85	11.20	11.55	11.90	12.25	12.60	12.56	12.91	13.26	13.61	13.96

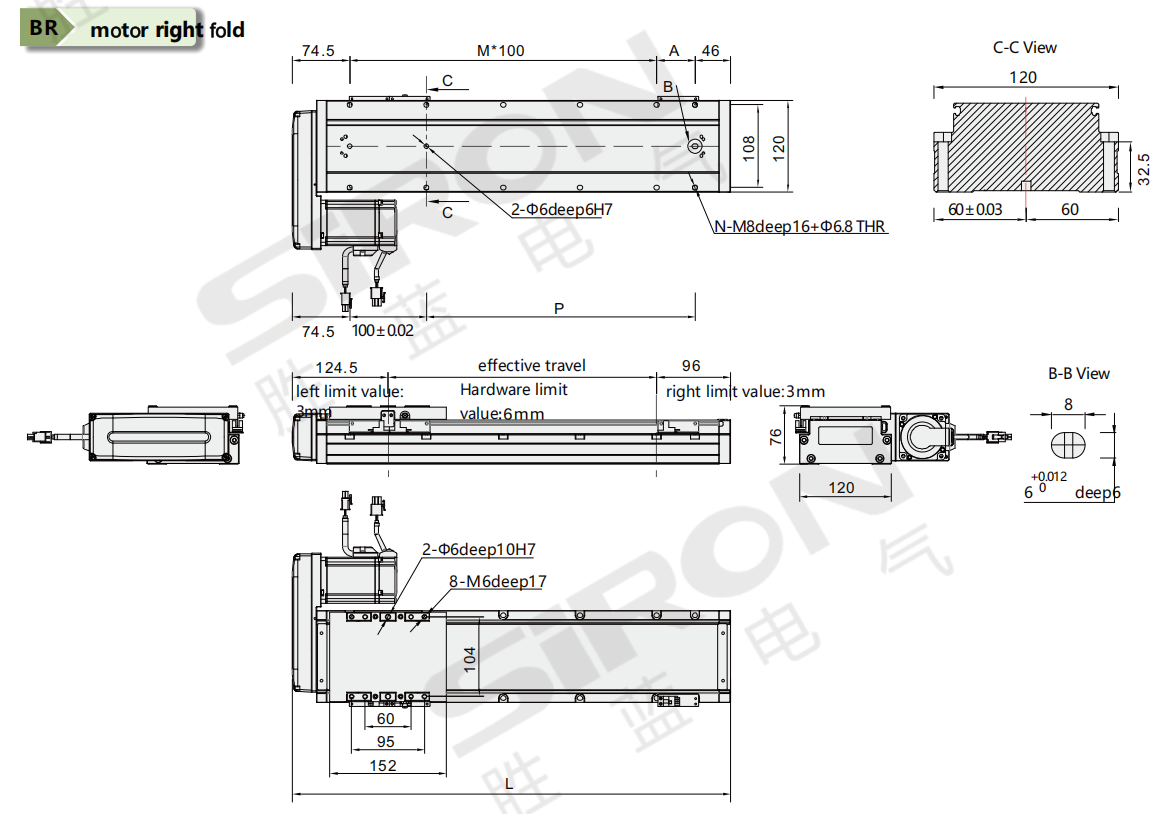

企业微信截图_17742568678338

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650
L	270.5	320.5	370.5	420.5	470.5	520.5	570.5	620.5	670.5	720.5	770.5	820.5	870.5
A	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7
N	6	6	8	8	10	10	12	12	14	14	16	16	18
P	50	100	150	200	250	300	350	400	450	500	550	600	650
weight(kg)	5.25	5.60	5.95	6.30	6.65	7.00	7.35	7.70	8.05	8.40	8.75	9.10	9.45

Stroke	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
L	920.5	970.5	1020.5	1070.5	1120.5	1170.5	1220.5	1270.5	1320.5	1370.5	1420.5	1470.5	1520.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100
M	7	8	8	9	9	10	10	11	11	12	12	13	13
N	18	20	20	22	22	24	24	26	26	28	28	30	30
P	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
weight(kg)	9.80	10.15	10.85	11.20	11.55	11.90	12.25	12.60	12.56	12.91	13.26	13.61	13.96

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff
