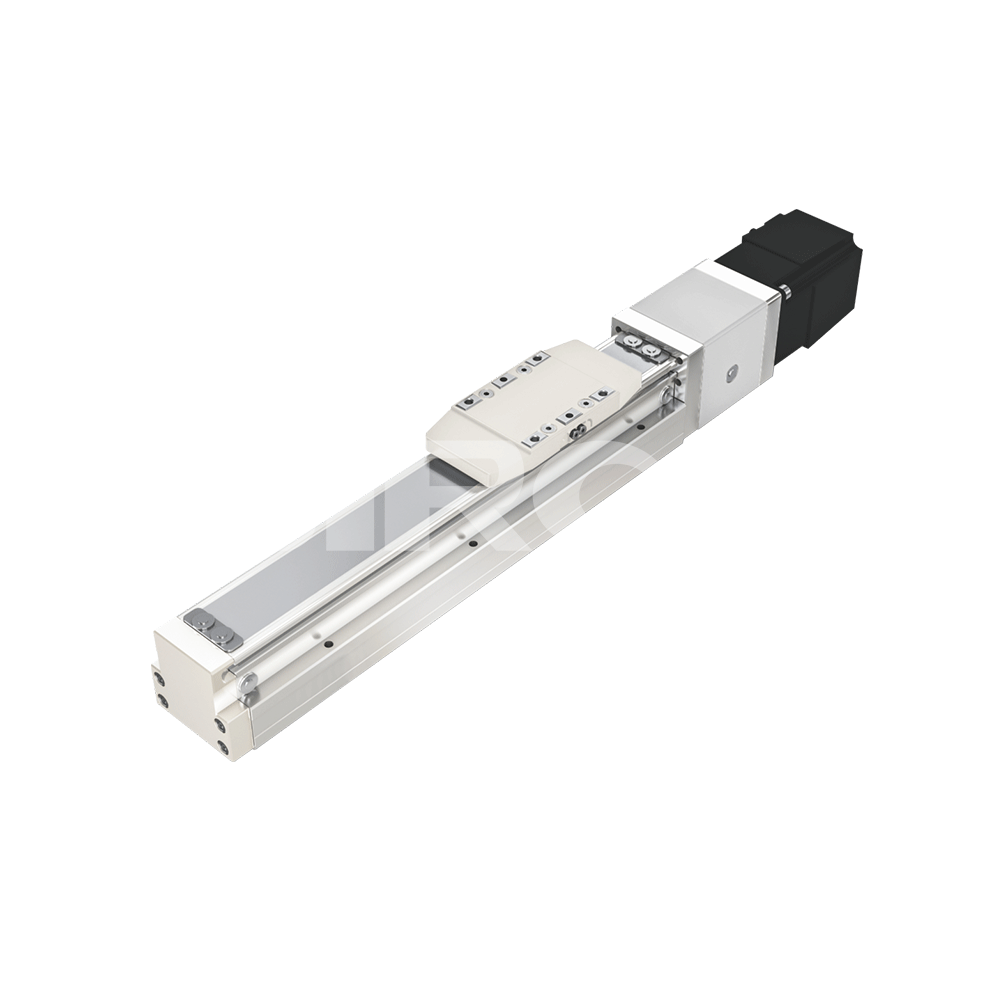

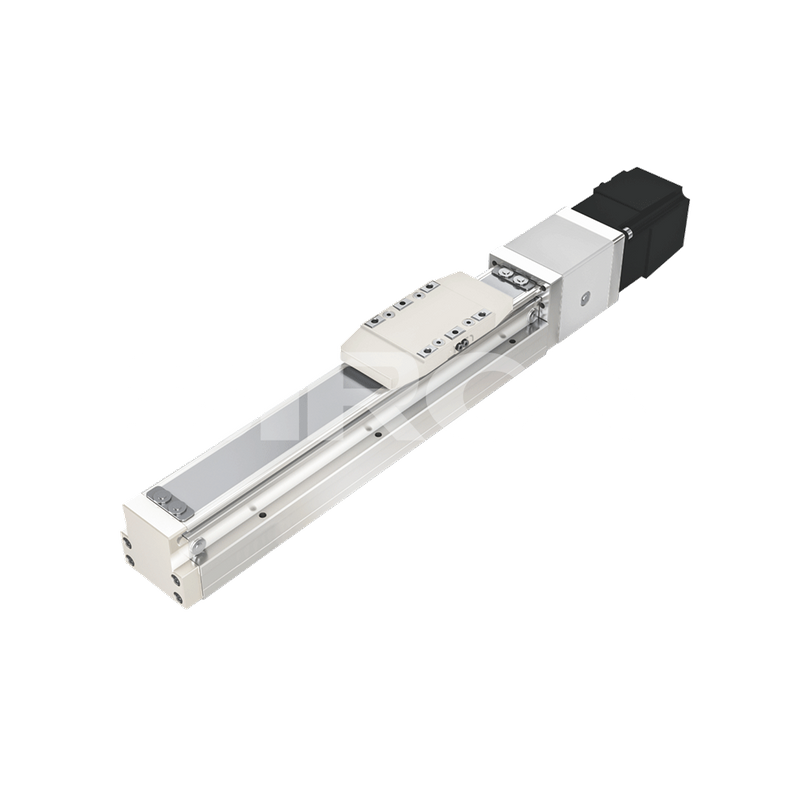

SiRON M310 Embedded Ball Screw Compact Module

Name: SiRON M310 Embedded Ball Screw Compact Module
Brand: SiRON
Rating: 5.0 (11 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M310
Brand:
SiRON
Code:
9001909090

850mm Maximum stroke 500mm/s Maximum speed Φ10mm Ball bearing screw

Product Description

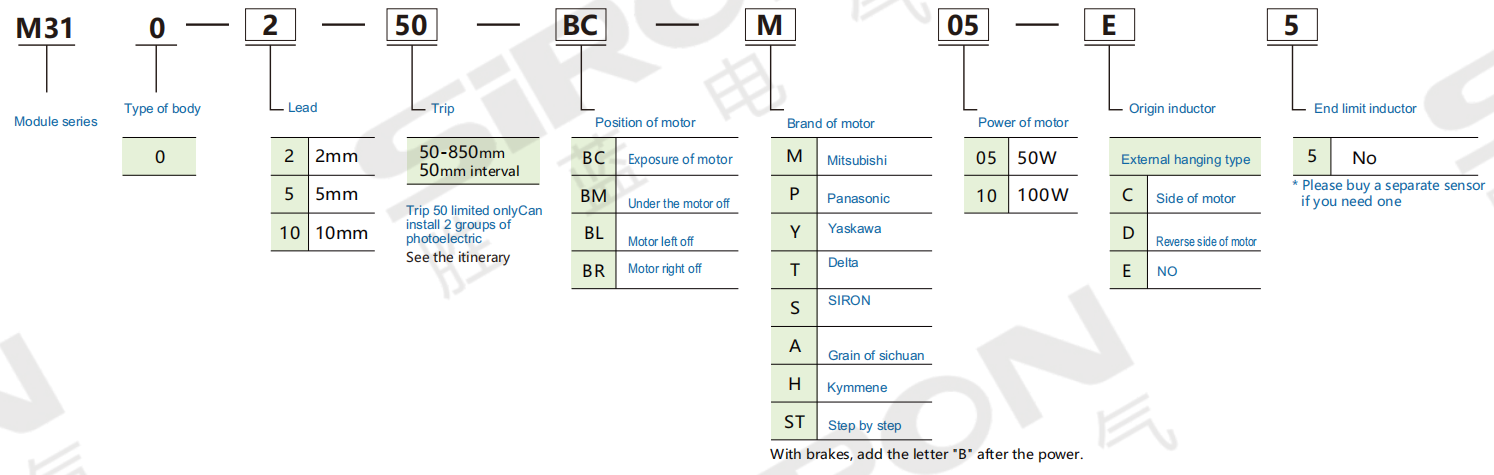

About selection

Selection example: M310-2-50-BC-M05B-E5 is M310 series, guide 2mm, stroke 50, motor exposed, Mitsubishi 50W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staff.

Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specifications	The motor power		50W/100W
	Repeatability(mm)		±0.01
	Ball screw lead(mm)		2	5	10
	Maximum speed(mm/s)		100	250	500
	Maximum payload(kg)	Horizontal	25	20	12
		Vertical	8	8	3.5
	Rated thrust(n)		424	141	71
	Stroke pitch(mm)		50-850mm/50 interval
Sarts	AC Servo motor output(w)		100
	Can be equipped with stepping motor		42/57
	Ball screw(mm)		C7φ10
	Coupling(mm)		7×8
	Home sensor	Outside	K017-A6

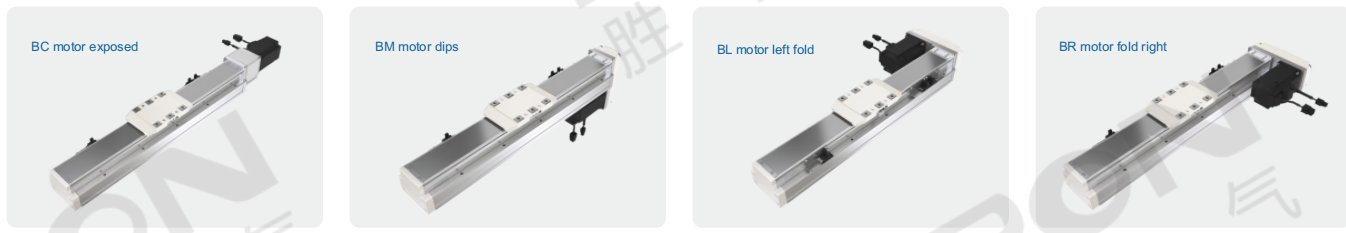

Installation method

企业微信截图_17742339916213

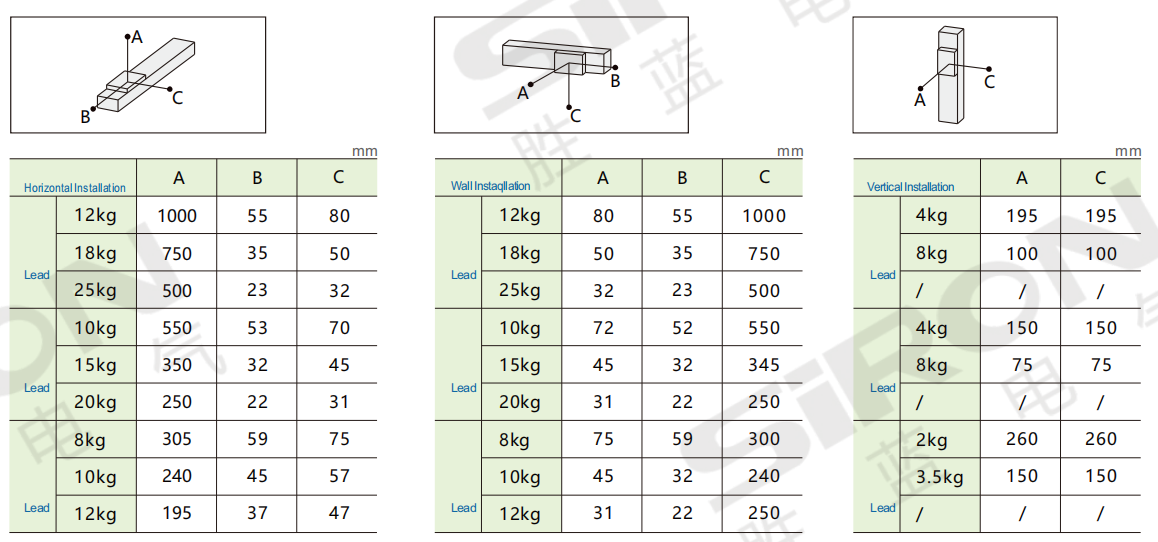

Allowable overhang

企业微信截图_17742365568602

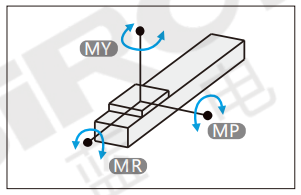

Static loading moment

企业微信截图_17742342914095

MY	79
MP	79
MR	61

Suitable motor brand

Brand	The motor mark	Whether the brakes	Motor capacity	voltage Motor model	voltage
Mitsubishi	M	Nobrakes(horizontalstyle)	100	220 HG-KR13	MR-J4-10A
Mitsubishi	M	With brake(vertical style)	100	220 HG-KR13B	MR-J4-10A
Panasonic	P	Nobrakes (horizontalstyle)	100	220 MSMD012G1U	MADHT1505
Panasonic	P	With brake (vertical style)	100	220 MSMD012G1V	MADHT1505
Delta	T	Nobrakes (horizontalstyle)	100	220 ECMA-C20401ES	ASD-B20121-B
Delta	T	With brake(vertical style)	100	220 ECMA-C20401FS	ASD-B20121-B

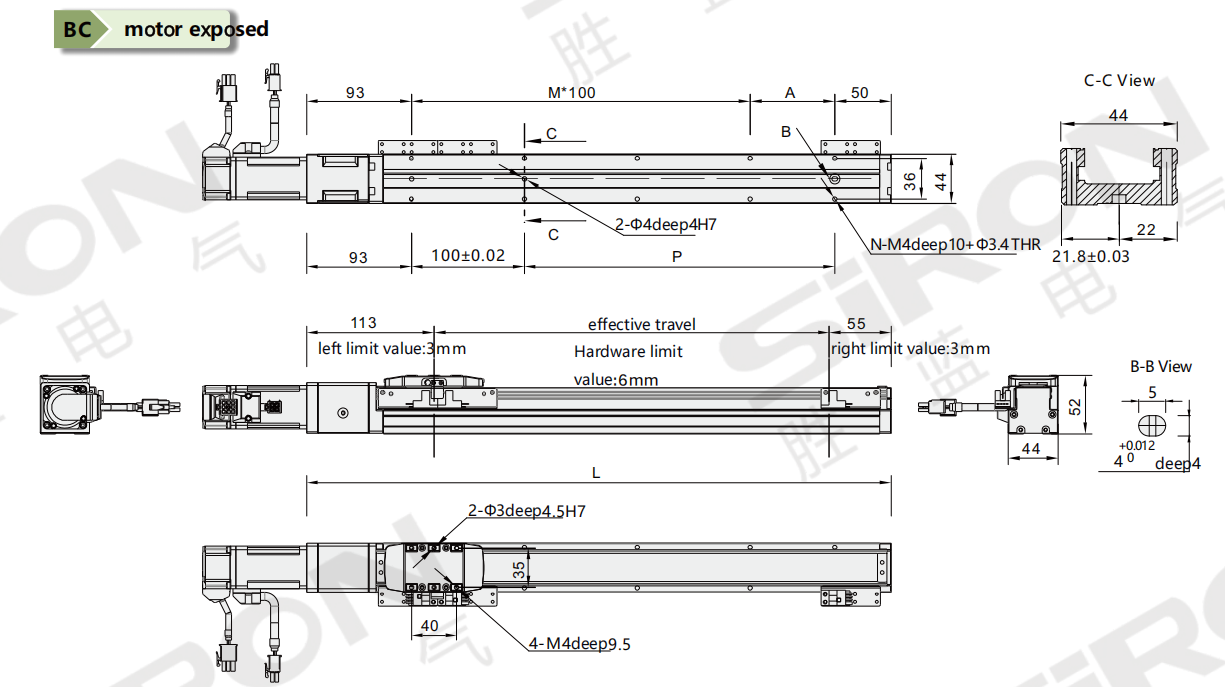

General dimension drawing

企业微信截图_17742367269449

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	218	268	318	368	418	468	518	568	618	668	718	768	818	868	918	968	1018
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.11	1.36	1.61	1.86	2.11	2.35	2.60	2.85	3.10	3.34	3.59	3.84	4.09	4.34	4.59	4.84	5.09

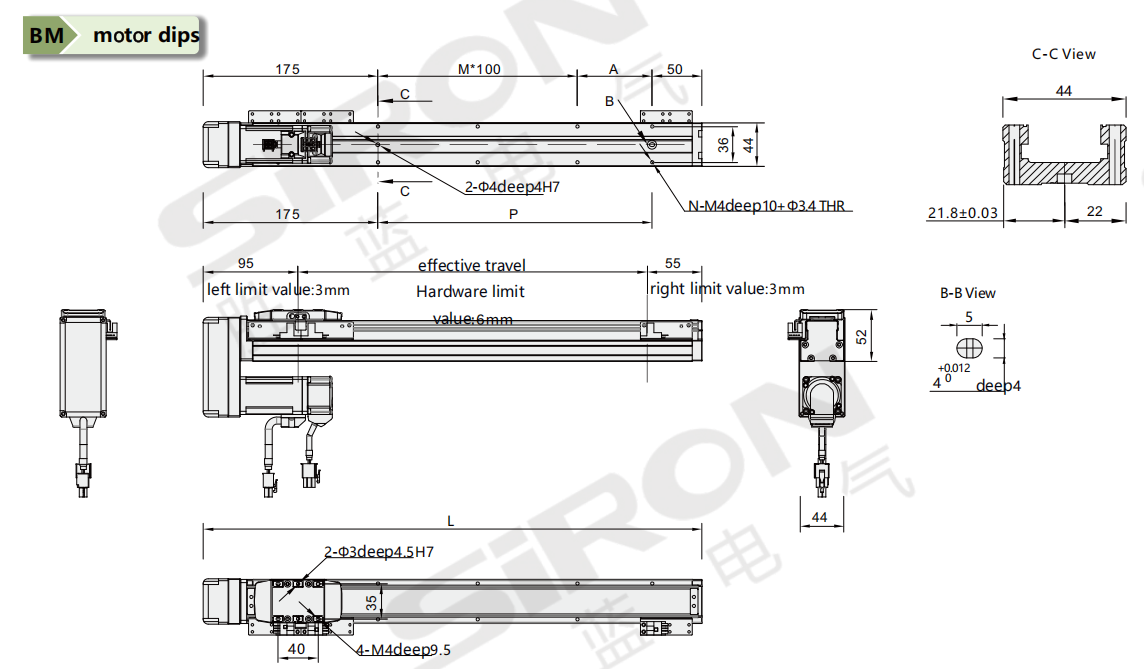

企业微信截图_17742368429066

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	0	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7
N	4	4	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.41	1.66	1.91	2.16	2.40	2.65	2.90	3.14	3.39	3.64	3.89	4.14	4.39	4.64	4.89	5.14	5.39

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff.

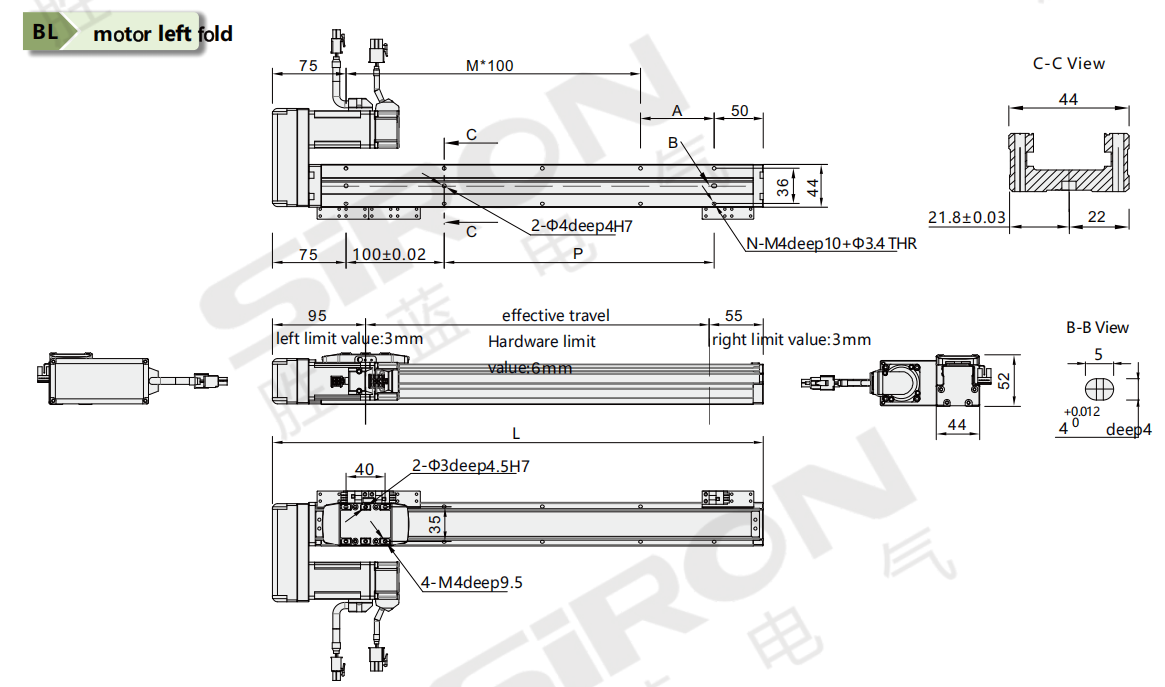

企业微信截图_17742369611445

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.41	1.66	1.91	2.16	2.40	2.65	2.90	3.14	3.39	3.64	3.89	4.14	4.39	4.64	4.89	5.14	5.39

企业微信截图_17742369611445

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	1.41	1.66	1.91	2.16	2.40	2.65	2.90	3.14	3.39	3.64	3.89	4.14	4.39	4.64	4.89	5.14	5.39

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff. .
